Features of THERMALTAKE Swafan EX12 120mm ARGB Cabinet Fan ( Black ) ( Triple Pack )

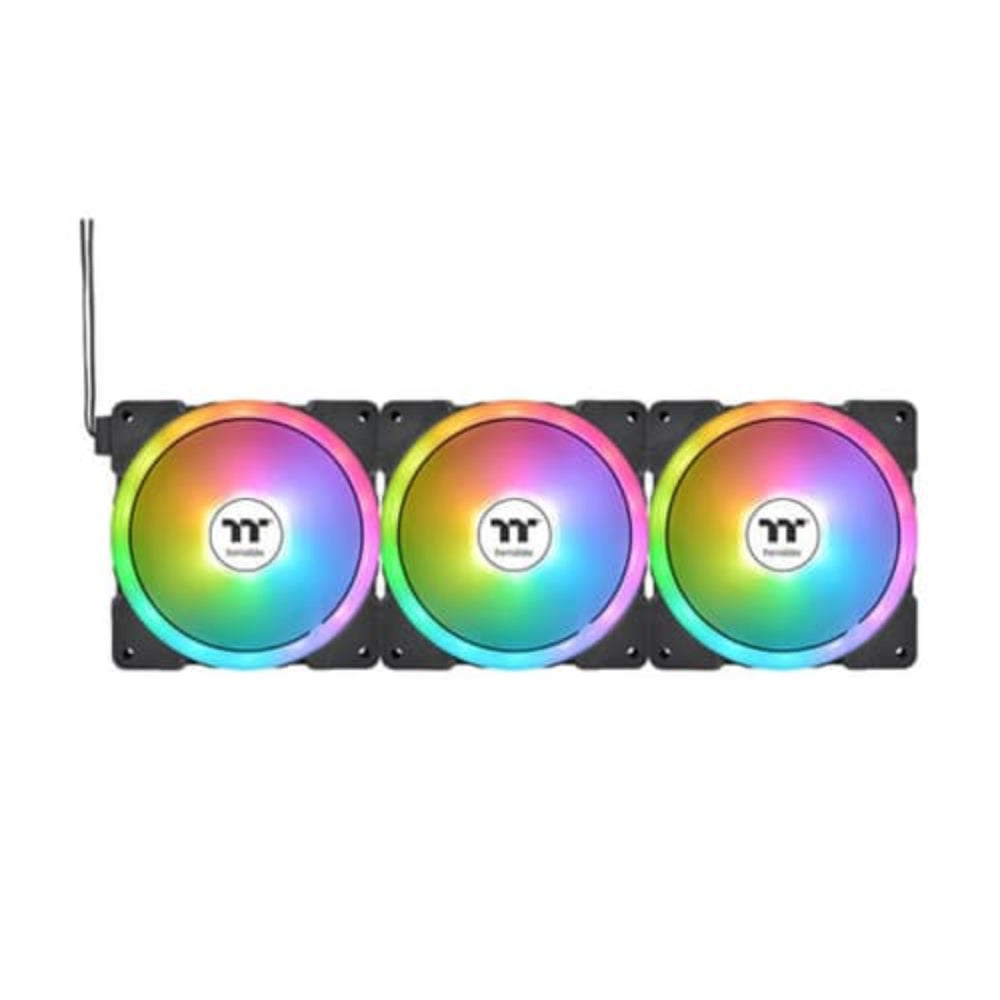

SWAFAN EX12 ARGB brings magnetic force design to ARGB fans while keeping the iconic swappable fan blade design. Daisy-chaining up to 3 fans per cable improves fan connection efficiency and convenience while enhancing cable management for PC building.

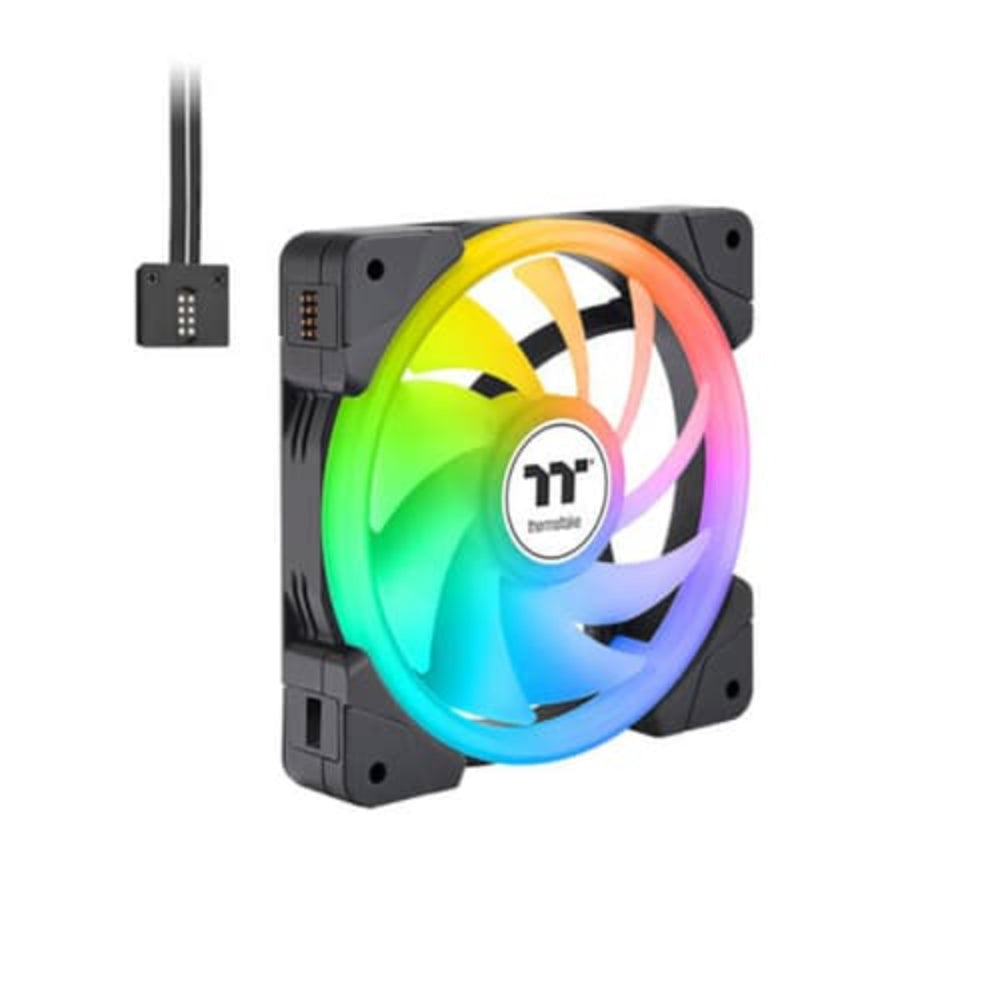

Quick Connect with Magnetic Force Design

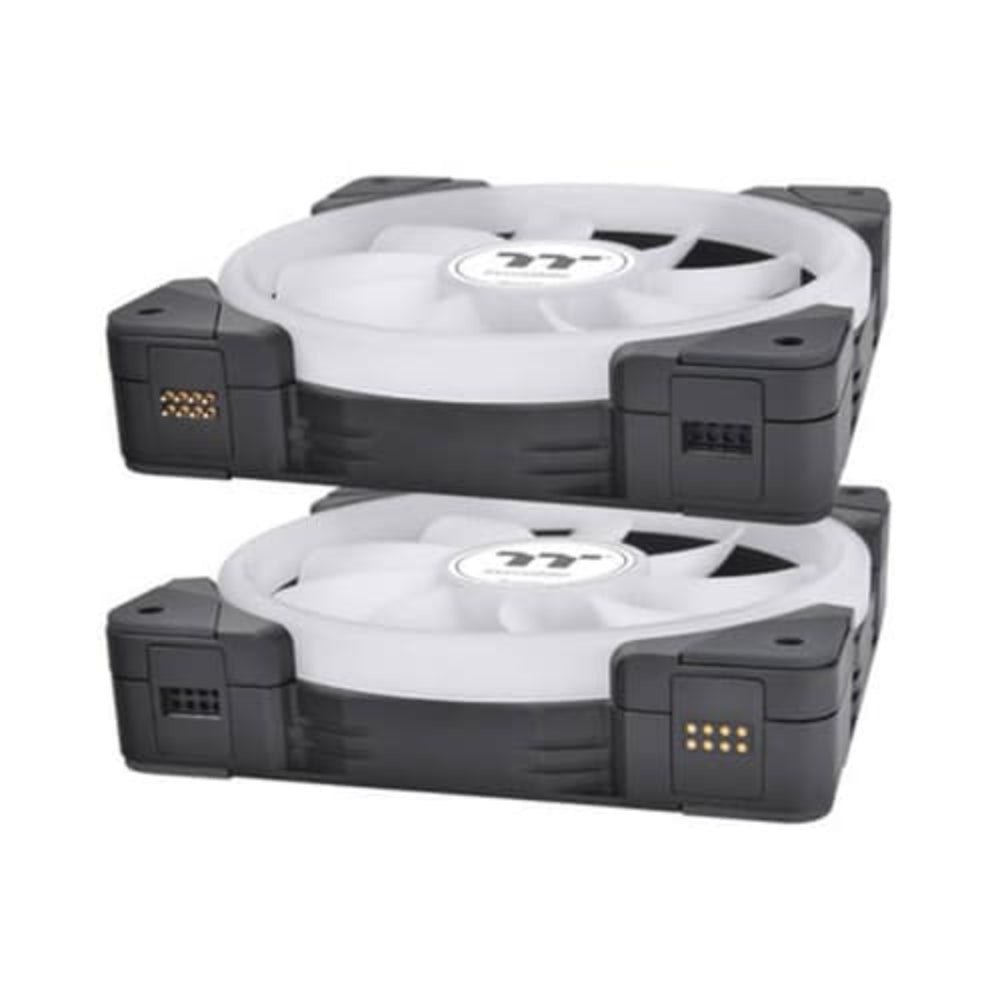

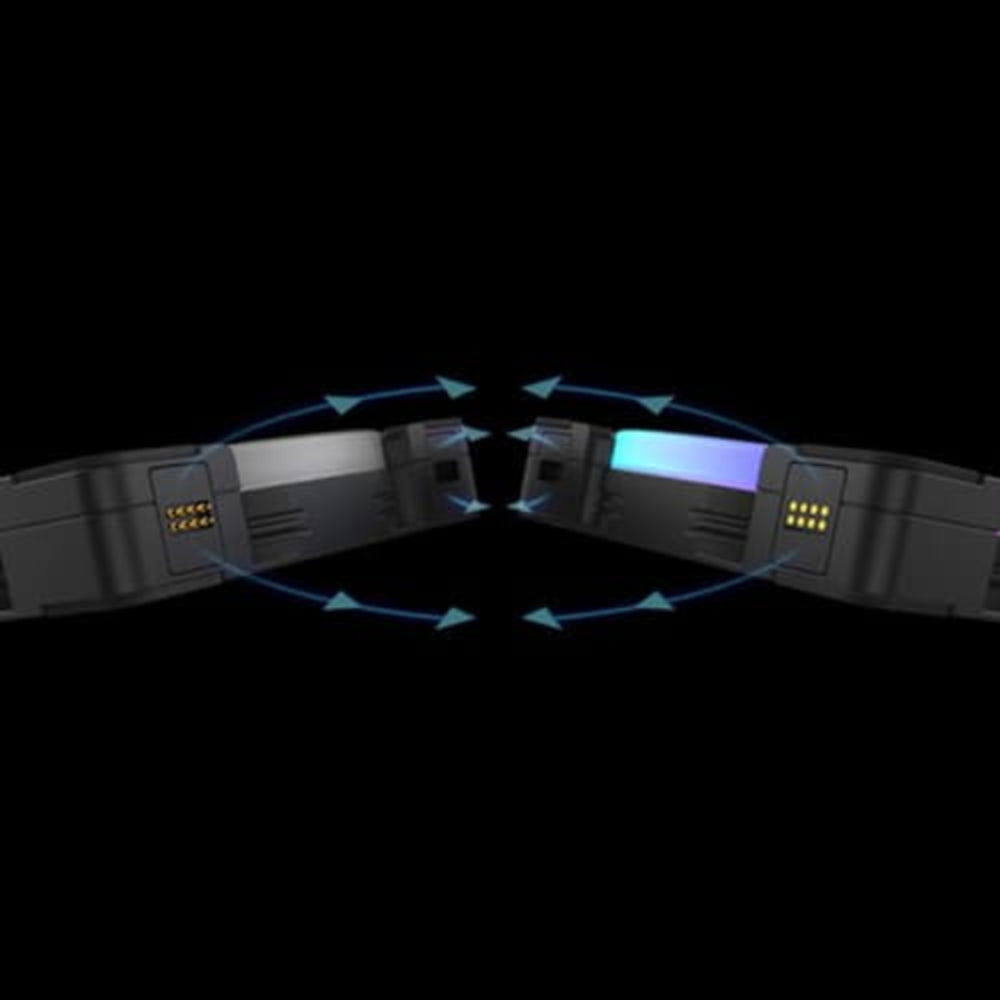

Our magnetic force design ARGB version enables the connection of both the 12V PWM cable and the 5V ARGB lighting cable to a single magnetic connector; simply placing the fans side by side, the magnet connectors will instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC.
Pop and insert, it is that easy.
If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply the bearing lubricant that is included in the package if needed.
Don’t Turn Your Back on Lighting Ever Again!
No more sacrificing aesthetics for your airflow direction; SWAFAN EX can now do both!
Great Lighting Effects with 16.8M Colors
Two independent LED rings with 20 LEDs (Inner ring: 6, Outer ring: 14) allows you to explore different build themes with 5V motherboard sync lighting software.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Specifications of THERMALTAKE Swafan EX12 120mm ARGB Cabinet Fan ( Black ) ( Triple Pack )
| Model | SWAFAN EX12 |
| P/N | CL-F167-PL12SW-A |
| Fan Dimension | 120 x 120 x 25 mm |
| Interface | 2510-4 PIN PWM, 5V ARGB header-3PIN |
| Fan Started Voltage | 9.0 V |
| Fan Rated Voltage | 12 V & 5V |
| Rated Current | 12 V - 0.27 A , 5 V – 0.72 A (one fan) |
| Power Input | 12 V – 3.24 W , 5 V – 3.6 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Max. Air Pressure |
Standard Fan Blade : 2.39 mm-H2O (one fan) Reverse Fan Blade : 2.02 mm-H2O (one fan) |
| Max Air Flow |
Standard Fan Blade : 57.11 CFM (one fan) Reverse Fan Blade : 56.26 CFM (one fan) |
| Noise Level |
Standard Fan Blade : 30.6 dB-A (one fan) Reverse Fan Blade : 32.5 dB-A (one fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
| Included ltems |
Fan Frames x 3 Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Cable x 3 |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
