Description
Features of THERMALTAKE S500 ATX Mid Tower Cabinet (Black)
The THERMALTAKE S500 TG ATX Cabinet comes with one tempered glass panel on the left, and with one pre-installed 140mm fan in the front and 120mm rear fan with support for up to ATX motherboard. The THERMALTAKE S500 TG Mid-Tower Chassis boasts a sleek, elegant, and modern design. The Thermaltake Cabinet S500 Tempered Glass Mid-Tower Chassis comes with TT Premium and Tt LCS Certified which allows usage of high-quality liquid and air coolers for the enthusiast-level cooling configuration and providing space best extreme level liquid cooling solution for overall best performance. The sleek steel design with full metal and glass construction. The builtin PSU cover allows cable managements and removes the cable clutter and allows for more ventilation.
The Riser GPU bracket reduces the weight on the motherboard and prevents the PCIe slots from declining and degrading for the more powerful and advanced GPU. The patented rotational 8 slot design allows for vertical GPU support as well as normal horizontal to gain flexible space for the system. The tempered glass panel on the Thermaltake S500 TG is more durable and scratch-resistant than the acrylic panels. The I/O ports provide handy access to two USB 3.0 ports and two 2.0 ports on the front panel to grant easy access when needed. The superior hardware and liquid cooling support allow for longer and more powerful GPU with up to support for three 140mm fans and two 200mm on the front and a 360mm radiator on the top and 420mm on the front for optimum cooling in the high-end systems.

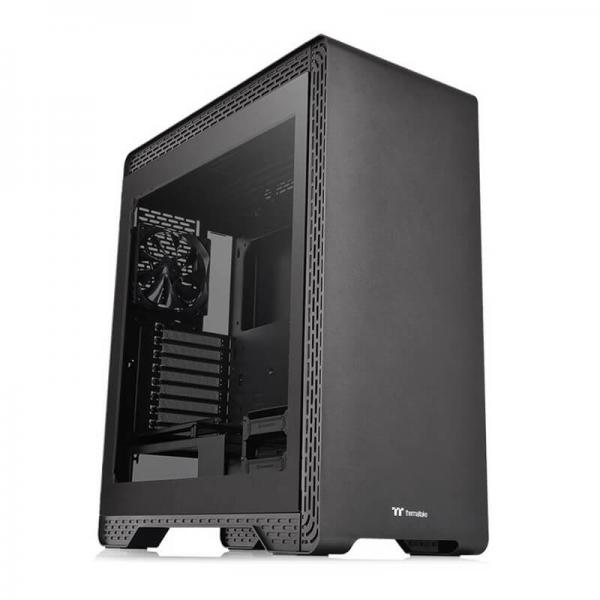

Modern Design, Solid Structure
The S500 is a mid-tower PC Cabinet built within a modern steel case construction, combining both sophistication and elegance. Meticulously manufactured with one tempered glass side panel and two pre-installed standard fans; one 140mm at the front and a 120mm fan at the rear, allowing for outstanding cooling ventilation. The case incorporates a fully modular design, including a vertical radiator & GPU mount, patented rotational PCI-E slots, and support for 200mm fans. The S500 is able to provide unparalleled build flexibility, and is able to offer near limitless possibilities for high-end configurations.
Storage-wise, the case contains four drive trays with fully modular drive racking, delivering innovative storage capacity options, as well as offering great liquid cooling expansion. The S500 TG is perfectly optimised for users who are looking for a modern and stylish case, that offers all the necessary features for advanced users.

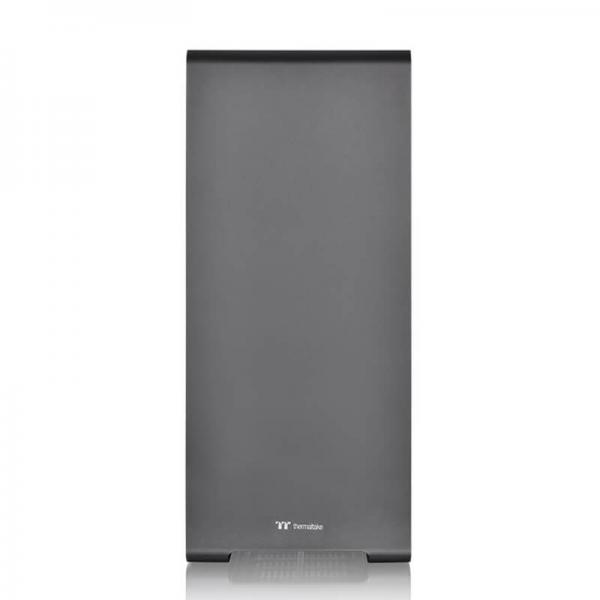

Clean & Sleek Design
The chassis utilises a full steel and glass construction. With a sleek front panel design, the case provides an overall sophisticated and professional look, which will perfectly compliment any build.
PSU Cover & Riser GPU Support Bracket
The built-in PSU cover contains an overall ventilated design. Optimising airflow, as well as hiding those unsightly cables. The integrated riser GPU support bracket not only prevents the graphics card from sagging, but also helps to reduce the weight on the motherboard’s PCI-E slot.
Display It Your Way
Patented rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, giving you plenty of flexible space for your system.

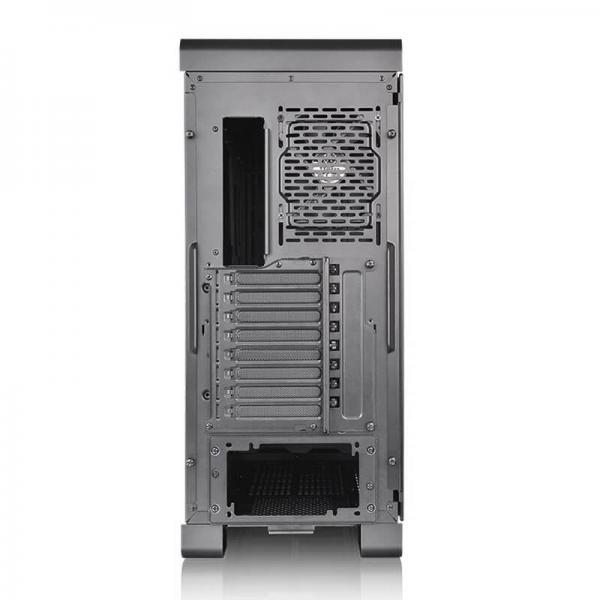

Patented Rotational PCI-E 8 Slots Design
With Patented Rotational PCI-E slots, you can choose the way you want to display graphic cards vertically which helps you gain flexible space for system.

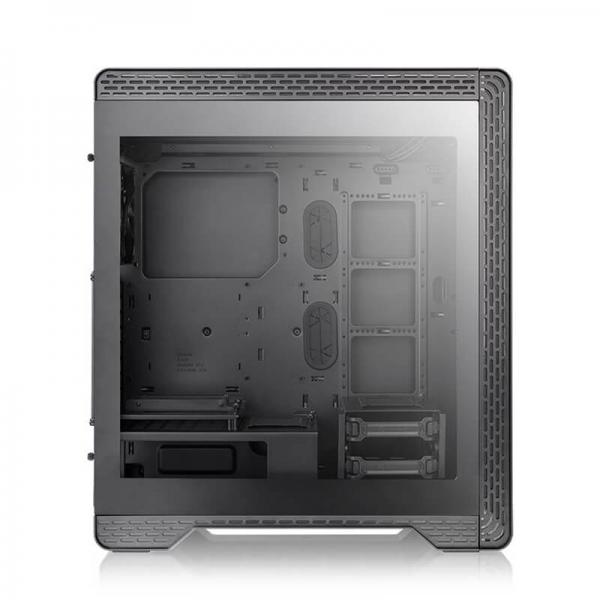

Tempered Glass Window
The 4mm tempered glass window on the side of the S500 TG is built to be more durable, scratch resistant, and transparent for an advanced view of your hardware.
Superior Hardware and Liquid Cooling Support
The S500 TG has outstanding expandability. It can support a CPU cooler with a maximum height of 172mm, dual expansion slot VGA of up to 400mm in length without an HDD rack, and a power supply with a length of up to 220mm. Optimized for excellent cooling capability with one 140mm exhaust front fan and one 120mm rear fan preinstalled, S500 TG is able to house up to three 140mm or two 200mm front fans, up to two 200mm fans on top, and a radiator up to 360mm on top and 420mm at the front to allow users to build their desired high-end system.

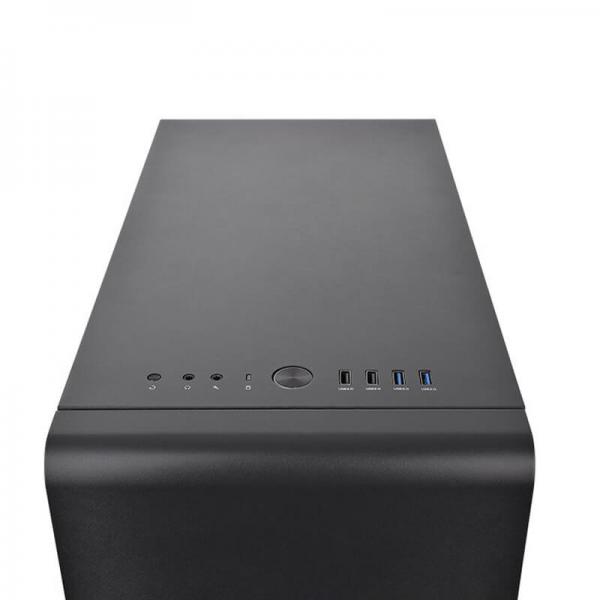

Handy I/O Ports
Two 3.0 USB and two 2.0 USB ports on top-front panel to grant direct access when needed.
Specifications of THERMALTAKE S500 ATX Mid Tower Cabinet (Black)
| P/N | CA-1O3-00M1WN-00 |
| Series | S Series |
| Model | S500 TG |
| Case Type | Middle Tower |
| Dimension (H x W x D) | 565 x 240 x 500 mm (22.2 x 9.4 x 19.7 inch) |
| Side Panel | 4mm Tempered Glass x 1(Left) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System |
Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16 dBA) Front (intake) : 140 x 140 x 25 mm fan (1000rpm, 20dBA) |
|
Drive Bays -Accessible -Hidden |
2.5” x 2 or 3.5”x 2 (HDD Rack) 2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket) |
| Expansion Slots | 8 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support |
Front: 3 x 120mm, 3 x 140mm, 2 x 200mm Top: 3 x 120mm, 2 x 140mm, 2 x 200mm Rear: 1 x 120mm |
| Radiator Support |
Front: 1 x 360mm, 1 x 420mm Top: 1 x 280mm, 1 x 360mm Rear: 1 x 120mm Right: 1 x 360mm (Without HDD Rack) |
| Clearance |
CPU cooler height limitation: 172mm VGA length limitation: 282mm(With HDD Rack) 400mm(Without HDD Rack) PSU length limitation: 220mm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
