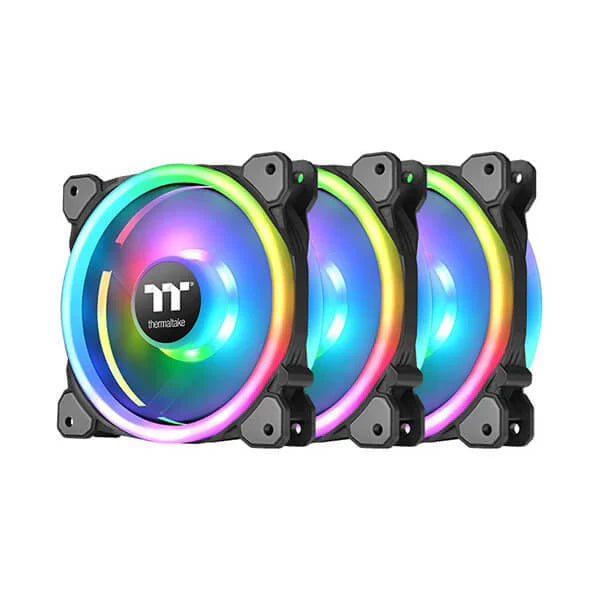

Features of THERMALTAKE Ring Trio 14 140mm RGB
THERMALTAKE Riing Trio 14 RGB is the world’s first intelligent radiator fan with 3 independent 16.8 million color LED ring design, featuring 30 addressable LEDs in total and supports multiple software including TT RGB PLUS, NeonMaker, Amazon Alexa Voice Service and Razer Synapse 3 (Razer Chroma). This quiet high-static pressure 140mm fan is designed with long-life hydraulic bearings and compression blades, delivering remarkable cooling performance.

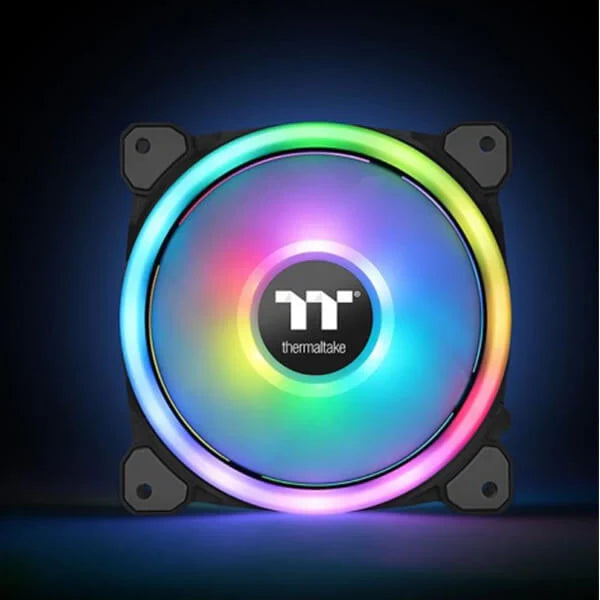

The World’s 1st Three Independent 16.8 Million Color LED Ring Design
Featuring 30 addressable LEDs in total (front:12; middle:6; back:12) ,great light coverage, and uniform color and brightness, the built-in LED ring can light up your build with 16.8 million colors.
TT RGB PLUS Software & App
Monitor fan performance, adjust fan speeds, and customize lighting effects for all you compatible products via the TT RGB PLUS Software and an exclusive mobile app with ease. You can drag the slider to adjust the ideal fan speed (RPM) on the dedicated control panel, or simply choose default modes.

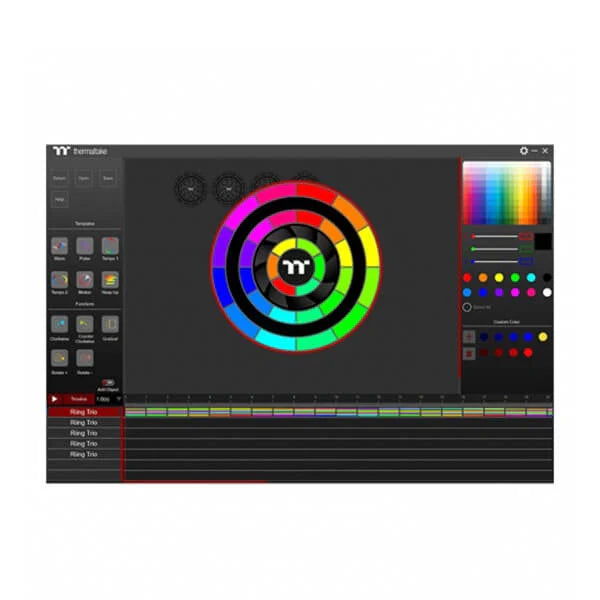

NeonMaker Light Editing Software
NeonMaker is a new and innovative approach to adjusting RGB lighting on the Riing Trio fans, this allows users to customize lighting profiles, adjust effects on the timeline and lighting directions. Personalize your Riing Trio fans with NeonMaker and orchestrate your very own unique light show!
Set Up Your Spectacular Lighting
Create fascinating lighting effects with our NeonMaker Light Editing Software to fully customize each individual LED on your Riing Trio fans, or simply adjust from TT RGB Plus software to choose multiple stunning RGB lighting across your build.

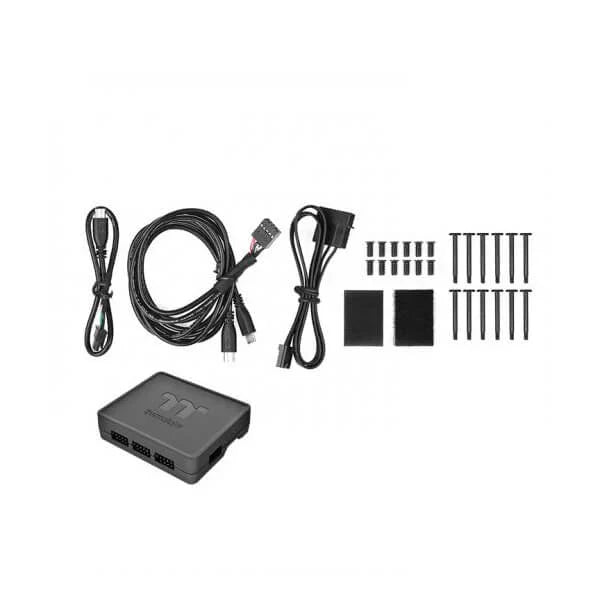

Digital Lighting Controller
The controller is designed with a DIP switch on the back to set up a number for each controller easily. You can add up to 5 devices to one lighting controller and up to 16 controllers to the software.
*Due to wattage limitations is recommended to not connect more than 5 fans to a single peripheral cable (Molex).
*DO NOT connect Riing Trio fans to other TT RGB PLUS controllers.
PWM Controlled Fan with 9 Fan Blade Design
PWM controlled fan with an unique 9 blade design is engineered to generate higher airflow whilst keeping quiet. The Riing Trio fans ensure more efficient cooling performance under intense operation.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.
Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

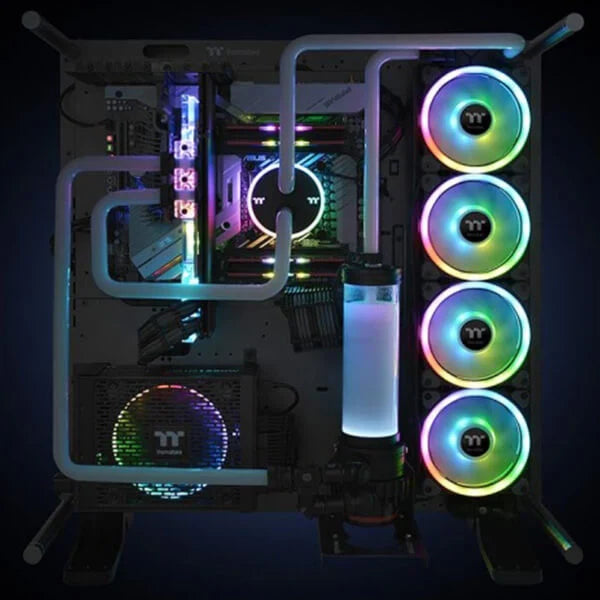

TT RGB PLUS Ecosystem
Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.
Specifications of THERMALTAKE Ring Trio 14 140mm RGB
| Fan Dimension | 140 x 140 x 25 mm |
| INTERFACE | USB 2.0 connectors (9 Pin) |
| System compatibility | Windows 7 / 8 / 8.1 / 10 |
| Fan Started Voltage | 9.0 V |
| Fan Rated Voltage | 12 V & 5V |
| Rated Current | 12V- 0.17 A , 5v – 1.03A (only one fan) |
| Power Input | 12V – 6.12 W . 5V – 15.4 W (Fan*3) |
| Fan Speed | 500 ~ 1400 R.P.M |
| Max. Air Pressure | 1.72mm-H2O |
| Max Air Flow | 60.68 CFM |
| NOISE LEVEL | 26.5 dB-A |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
| Weight | 216 g (one fan) |
| Warranty | 2 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
