Description
Features of THERMALTAKE Pacific Core P5 DP-D5 Plus Distro-Plate with Pump Combo

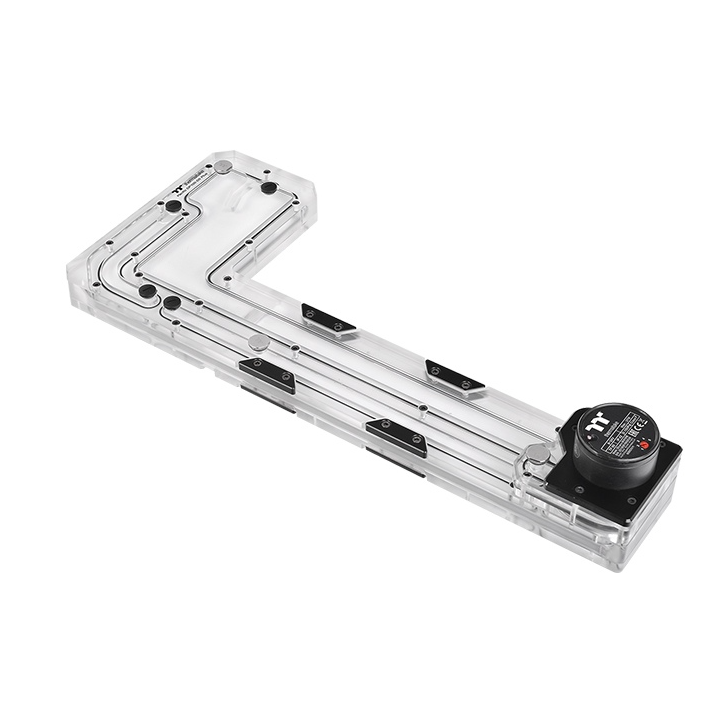

The Pacific Core P5 DP-D5 Plus is a Liquid cooling Distribution plate and D5 pump combo unit built for the Core P5 chassis. This simplifies the tube structure of hard tubing water cooling and adds a smarter way for beginners and experienced modders to present their water-cooled builds.
The Thermaltake Core P5 DP-D5 Plus is a distribution plate with a pre-installed D5 pump, the distro is designed for our Core P5 Chassis allowing you to mount it directly to the chassis. Furthermore can be synced with our TT RGB PLUS Ecosystem.
Full RGB Illumination Design
The built-in 48 addressable LEDs feature great light coverage. The lighting is compatible with TT RGB PLUS and ASUS, GIGABYTE, MSI, and ASROCK RGB software.
Straightforward Installation
Compatible with the Core P5 Chassis

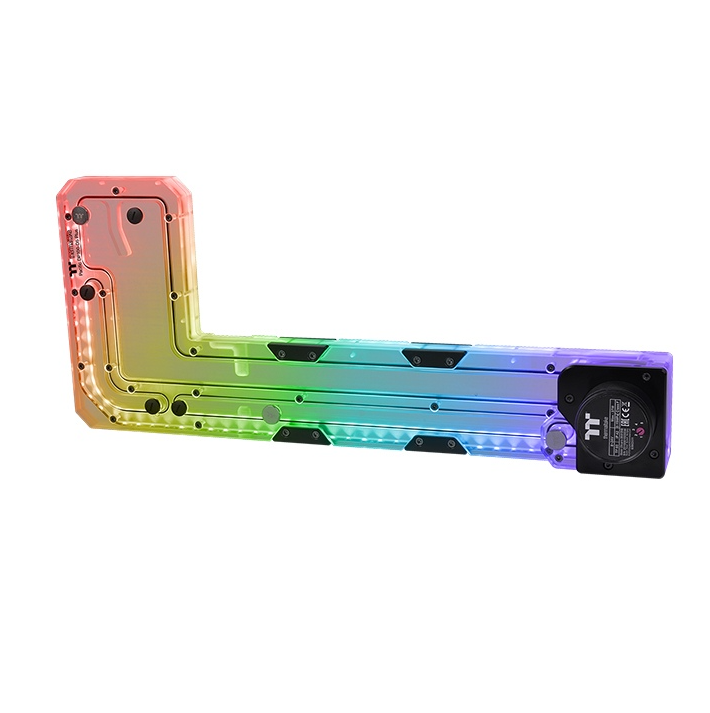

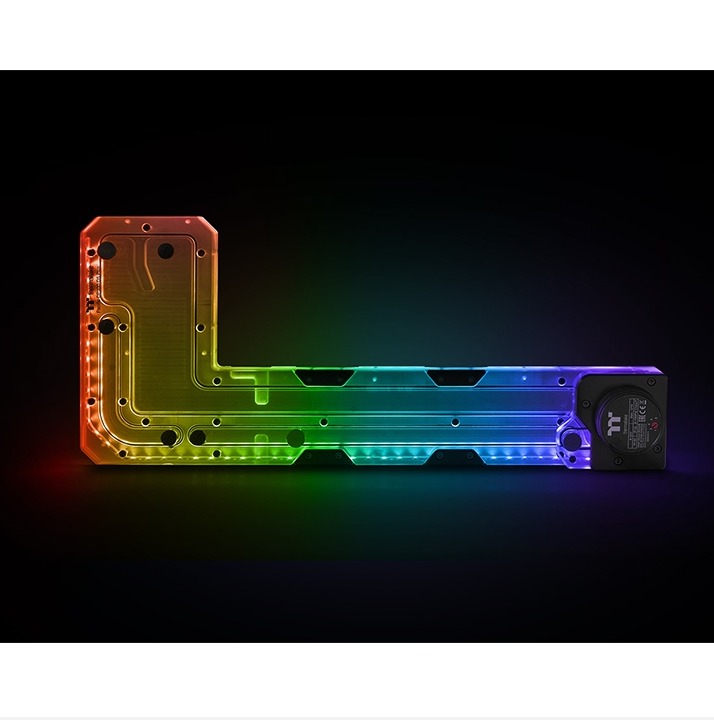

Vivid RGB Lighting from Every Angle
Controlled by the patented TT RGB PLUS Software and the app, DP100-D5’s 48 LEDs light up the distro with stunning customizable RGB lighting.
High quality 18mm thick PMMA
The reservoir is made with 18mm thick PMMA which guarantees quality and pressure resistance.

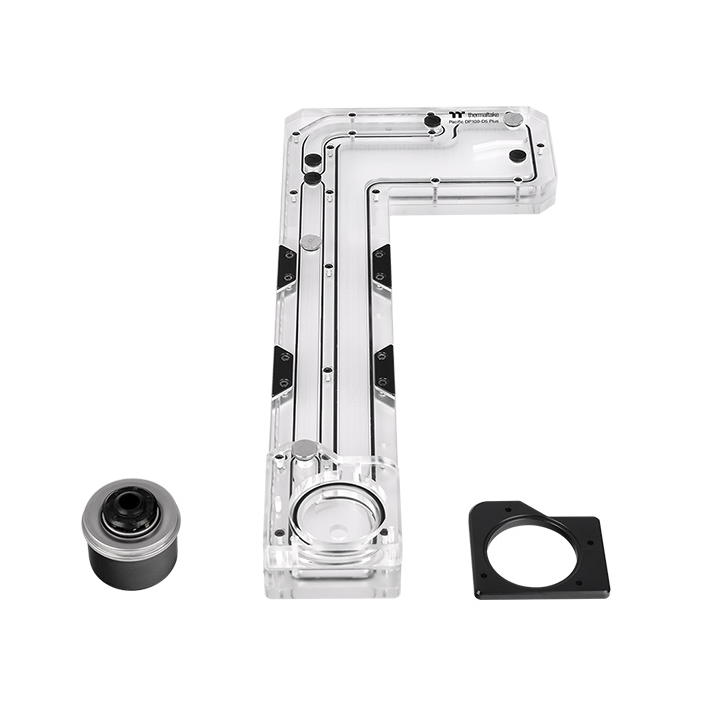

D5 Pump
The D5 Pump on the DP-D5 Plus Plus features exceptional performance and unrivalled reliability, having a lifecycle of 50,000 hours MTBF.
TT RGB PLUS Software
2.0 - New version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to the Alexa-enabled devices.
TT AI Voice Control
Give you full control over the TT RGB PLUS products with your voice. “SyncALL, Say”Hello TT”.
Specifications of THERMALTAKE Pacific Core P5 DP-D5 Plus Distro-Plate with Pump Combo
| P/N | CL-W264-PL00SW-A |
| DIMENSIONS | 544 (L) x 234 (W) x 84.8 (H) |
| INTERFACE | USB 2.0 connectors (9 Pin) |
| SYSTEM COMPATIBILITY | Windows 7 / 8 / 8.1 / 10 |
| POWER INPUT | 37 W / 9 W |
| PUMP |
P1: 1,800 RPM P2: 2,550 RPM P3: 3,300 RPM P4: 4,050 RPM P5: 4,800 RPM |
| CONNECTOR | 4 Pin |
| MATERIAL | POM+ PMMA |
| MAX AIR FLOW | 1135 L/h |
| MAX. AIR PRESSURE | 50 PSI |
| RATED VOLTAGE | 12 V / 5 V |
| CAPACITY | 200 ml |
| PARTS | Stopper *3 (G 1/4 ) |
| SCREW THREAD | G 1/4 |
