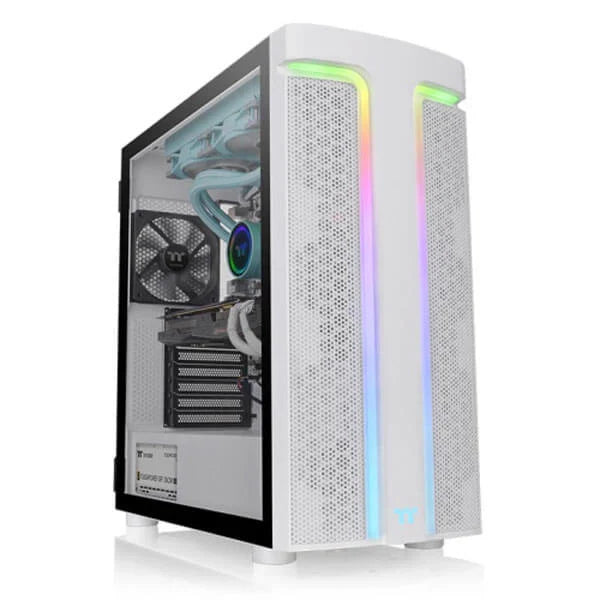

Features of THERMALTAKE H590 Snow ARGB Mid Tower (White)
THERMALTAKE H590 TG Snow ARGB mid-tower pc cabinet has a unique front panel design, featuring two RGB lighting strips around the T shaped pillar, and offers support for up to E-ATX (12" x 13") Motherboards.
This Thermaltake Cabinet supports up to E-ATX (12" x 13") Motherboards and it has a unique design on the front panel, featuring two RGB lighting strips around the T shaped pillar. Its lighting effects can be controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock. H590 TG ARGB mid-tower chassis comes with two pre-installed fans, one at the front and the other at the rear; what’s more, up to seven 120mm fans can be fitted to the chassis and up to a 360mm radiator can be placed on the top and the front of the chassis.

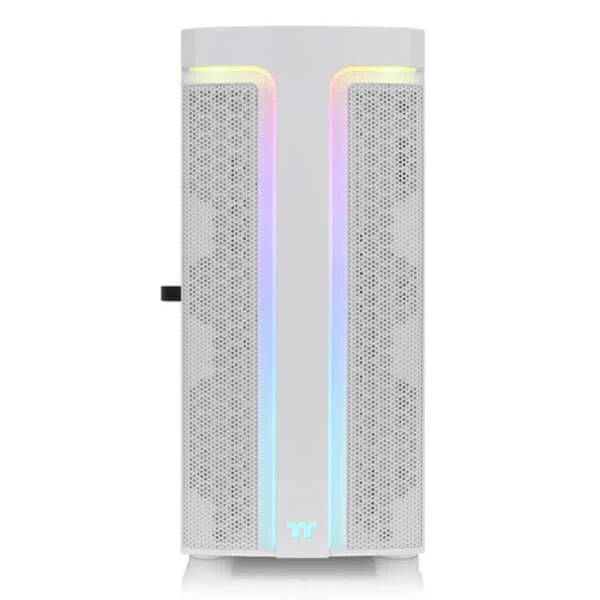

A Unique Design of the Front Panel
H590 TG Snow ARGB mid-tower chassis has a unique design of the front panel, featuring two RGB lighting strips around the T shape. Its lighting effects can be controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Pre-installed Two 120mm Standard Fans
H590 TG Snow ARGB mid-tower chassis comes with two pre-installed standard fans, one at the front and the other at the rear, delivering better cooling performance.
Built-in PSU Cover
H590 TG Snow ARGB mid-tower EATX Cabinet features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

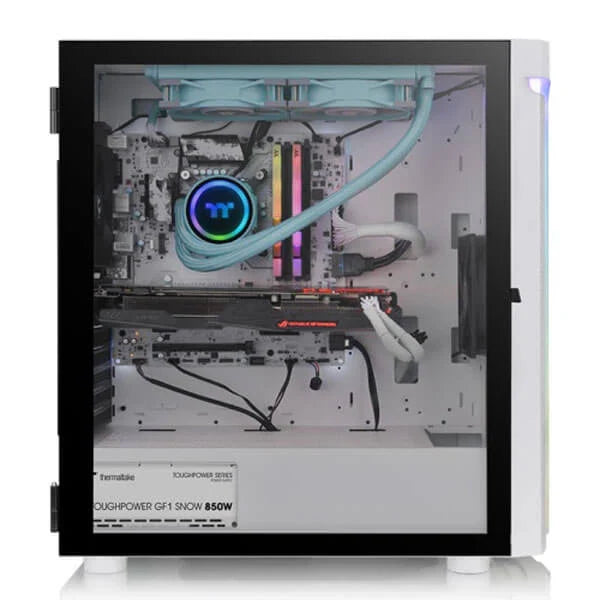

Hinged Tempered Glass Panel
The 4mm hinged tempered glass panel on the left side of the H590 TG Snow ARGB mid-tower chassis is built to be more durable, scratch resistant, and transparent for viewing the hardware.
Dust Filtration
There is one magnetic filter on the top of the chassis to provide a good dust protection.
Opportunities For High-End Expansion
Thermaltake H590 TG Snow ARGB mid-tower chassis has good expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement of up to 360mm in length, a power supply with a length of up to 180mm (with HDD Rack). Optimized for nice cooling capability, the case comes with two pre-installed fans at the front and at the rear; you may also choose to put three 140mm fans at the front and two 140mm fans on top. For radiator compatibility, it can support up to 360mm at the front and on top, giving more opportunities for outstanding cooling solution!
Handy I/O Ports
Two USB 3.0 ports, and one HD Audio and one RGB lighting control button are placed on the top panel to grant direct access when needed.
Specifications of THERMALTAKE H590 Snow ARGB Mid Tower (White)
| Part Number | CA-1X4-00M6WN-00 |
| Series | H Series |
| Model | H590 TG ARGB Snow |
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) |
487 x 216 x 467 mm (19.2 x 8.5 x 18.4 inch) |
| NET WEIGHT | 7.45 kg / 16.42 lbs. |
| SIDE PANEL | 4mm Tempered Glass x 1 |
| Color | White |
| MATERIAL | SPCC |
| COOLING SYSTEM |
Front(intake): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| I/O Port | USB 3.0 x 2, HD Audio x 1, LED button x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT |
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
| RADIATOR SUPPORT |
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| CLEARANCE |
CPU cooler height limitation: 160mm VGA length limitation: 360mm PSU length limitation: 180mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
