Features of THERMALTAKE AX500 ATX Full Tower Cabinet (Black)

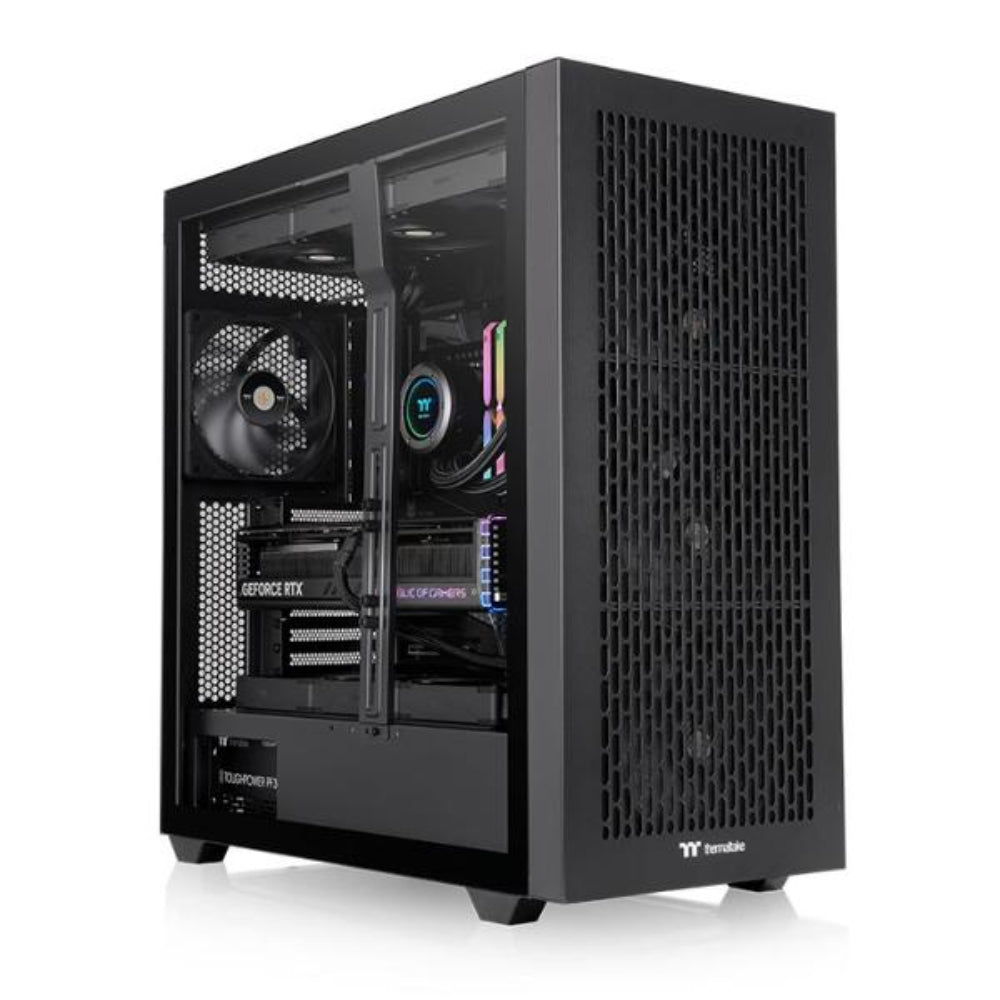

Thermaltake AX500 Full Tower Chassis supports E-ATX/SSI-EEB motherboards, dual 420mm radiators, and up to fourteen 120mm fans for optimal airflow. It features a graphics card holder to prevent sagging and two drive cages beneath the PSU cover, ideal for high-performance workstations or gaming setups.
Compatible with Hidden-Connector Motherboards
The AX500 Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.
*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.
*Note: The top fan + radiator thickness limit is 82mm
Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.
Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.
GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5” or two 2.5” hard drives.
Specifications of THERMALTAKE AX500 ATX Full Tower Cabinet (Black)
| P/N | CA-11D-00F1WN-00 |
| Series | AX Series |
| Model | AX500 |
| CASE TYPE | Full Tower |
| Dimension (H x W x D) | 550 x 248 x 548 mm (21.7 x 9.8 x 21.6 inch) |
| PANEL | Steel + TG |
| Color | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4 |
| Drive Bays -Accessible -Hidden | 5 x 3.5” , 1 x 2.5” or 6 x 2.5” |
| EXPANSION SLOTS | 8 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX), SSI-CEB, SSI-EEB |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm 3 x 140mm , 2x 140mm , 1x 140mm Top: 3 x 120mm , 2x 120mm , 1x 120mm 3 x 140mm , 2x 140mm , 1x 140mm Rear: 1 x 120mm , 1 x 140mm Right: 3 x 120mm , 2x 120mm , 1x 120mm 2 x 140mm , 1x 140mm Power Cover: 3 x 120mm , 2x 120mm , 1x 120mm |
| RADIATOR SUPPORT | Front (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Top (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Rear(AIO): 1 x 120mm , 1 x 140mm |
| CLEARANCE | CPU cooler height limitation: 185mm(Max) VGA length limitation:460mm(Max) PSU length limitation: 200mm (Max) |
