Features of THERMALTAKE AX100 EATX Mid Tower Cabinet (Black)

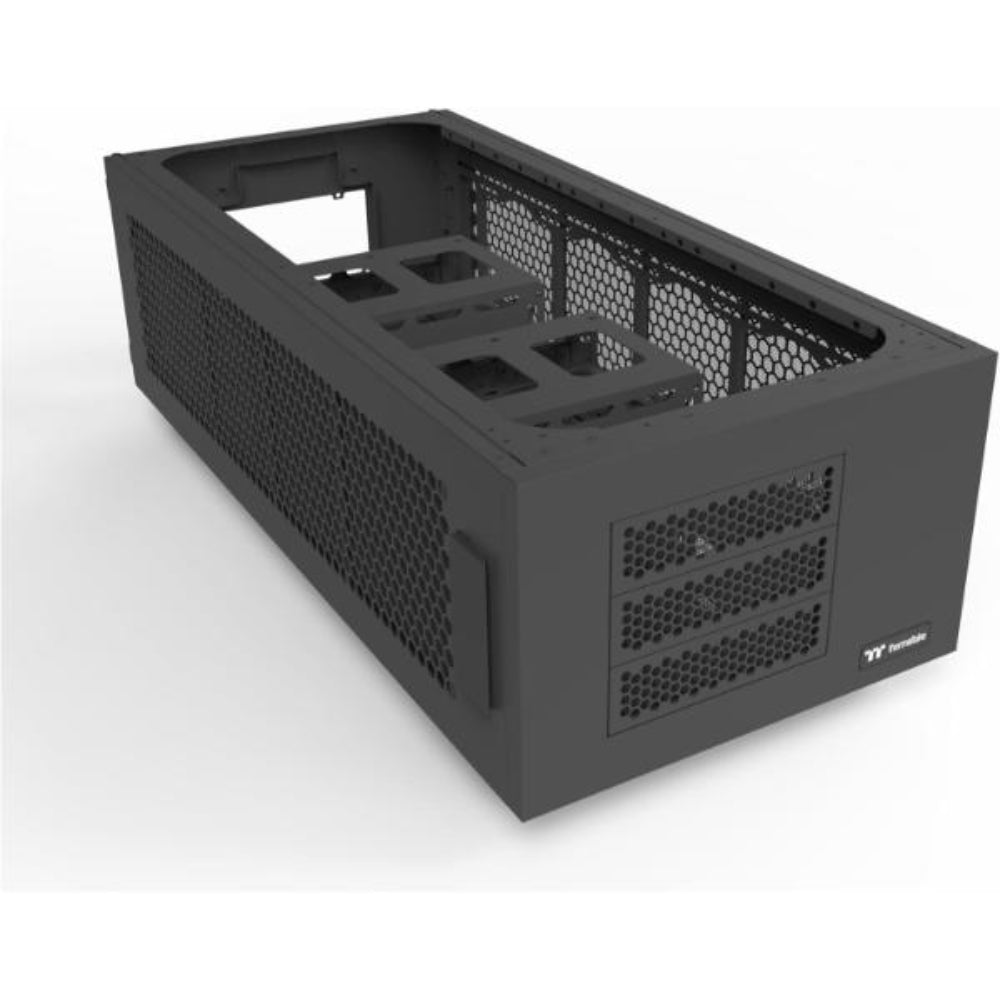

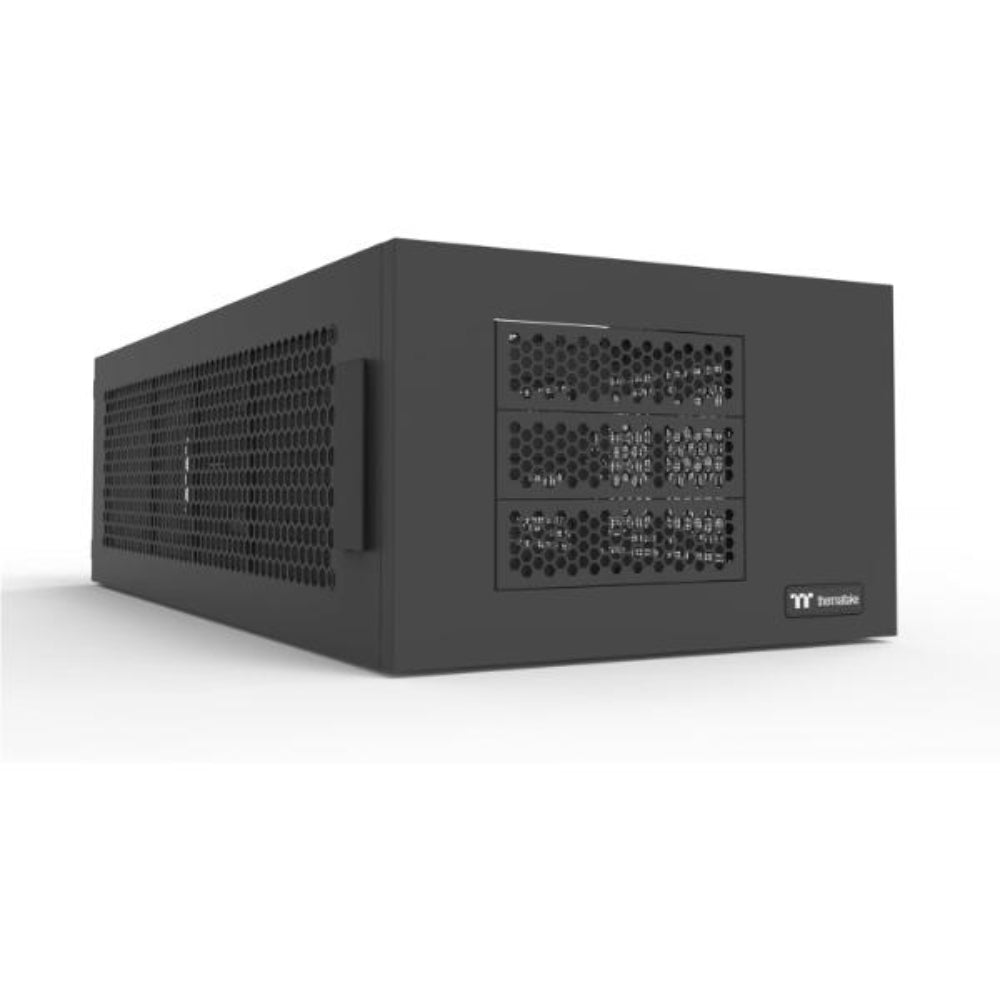

The AX100 is an add-on chamber that enhances the AX700 chassis by adding extra power, storage, and cooling options. It supports a standard PS2 PSU for additional power management and offers space for up to eight HDDs or SSDs. Additionally, the AX100 accommodates up to eight 120mm or 140mm fans and dual 560mm radiators on both sides for optimal thermal performance.
Versatile Expandability
The AX700 or AX700 TG Super Tower Chassis, when combined with the AX100 pedestal, offers multiple stacking options, either on top or bottom, or both top and bottom, creating an expandable system for enthusiasts. This setup allows for enhanced liquid cooling, storage, or dual system configurations, taking the expandability to the next level..
Storage Support
For storage compatibility, The AX100 supports up to eight 2.5‘’ SSDs or 3.5‘’ HDDs in total.
Perfect Dust Protection
The AX100 features dust filters on the front, left and right sides to protect the system.
DMD: Dismantlable Modular Design
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
Specifications of THERMALTAKE AX100 EATX Mid Tower Cabinet (Black)
| P/N | CA-11C-00D1NN-00 |
| Series | AX Series |
| Model | AX100 |
| CASE TYPE | Pedestal |
| Dimension (H x W x D) | 201 x 320 x 678.3 mm (7.91 x 12.60 x 26.71 inch) |
| PANEL | Steel |
| Color | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | - |
| Drive Bays | 8 x 3.5’’ or 2.5’’ (HDD Cage) |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT |
Left Side: 4 x 120mm , 4 x 140mm Right Side: 4 x 120mm , 4 x 140mm |
| RADIATOR SUPPORT |
Left Side: 1 x 480mm (MAX), 1 x 560mm (MAX) Right Side: 1 x 480mm (MAX), 1 x 560mm (MAX) |
| CLEARANCE | PSU length limitation: 220mm (with two bottom fans) |
