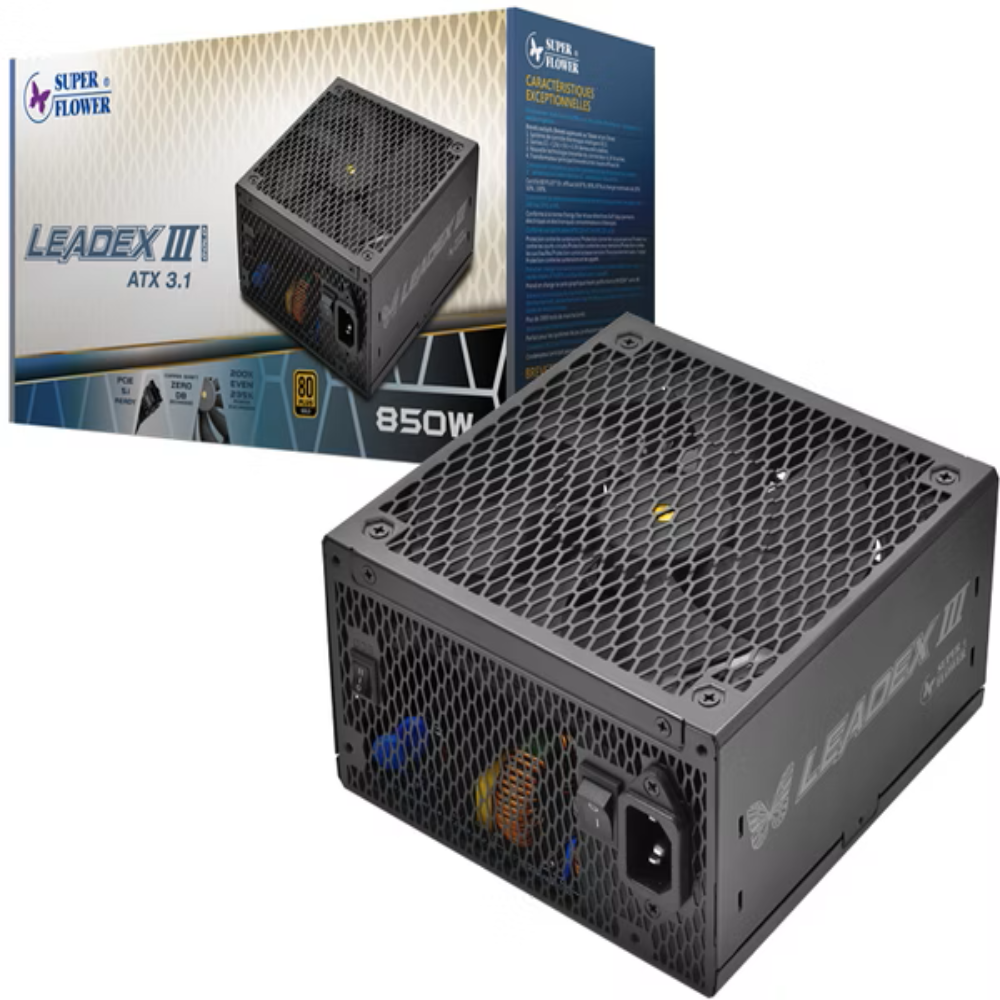

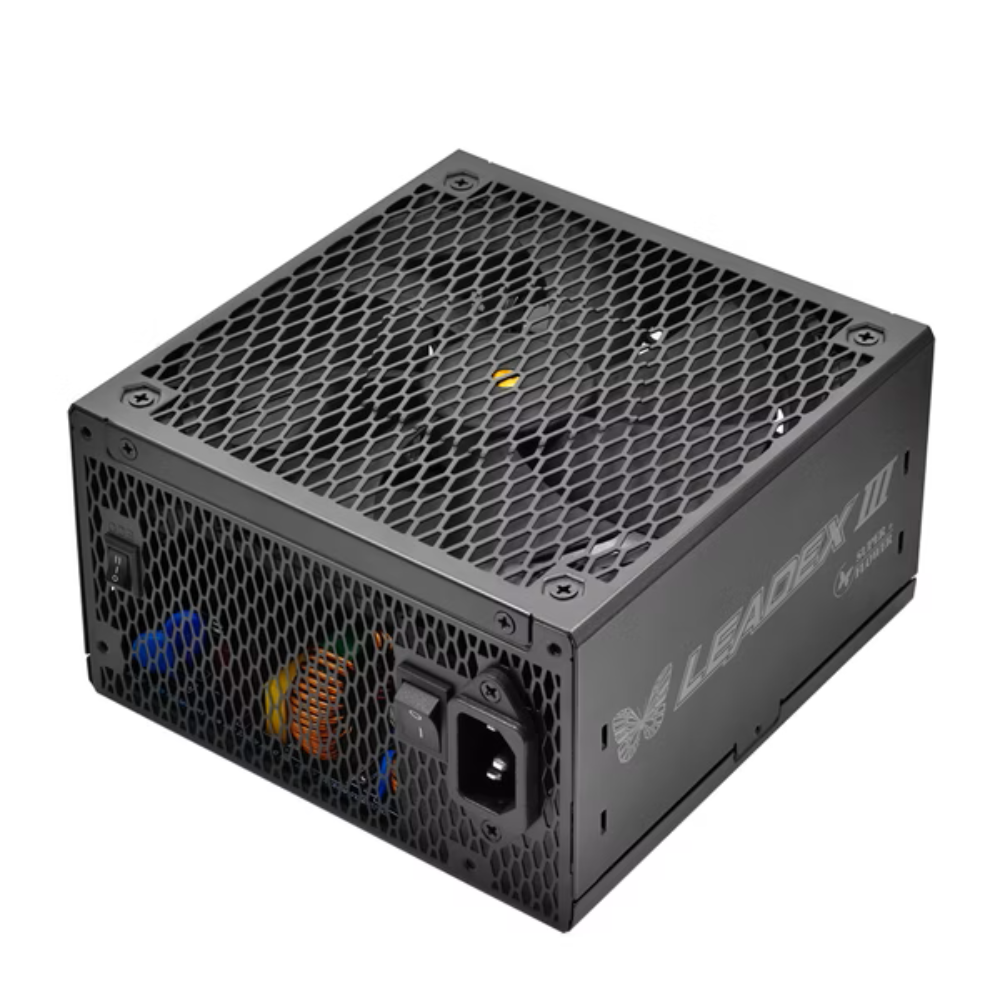

SUPER FLOWER Leadex III Gold Up 850W 80 + Gold Fully Modular ATX 3.1 Power Supply ( 850W ) ( Black )

Features of SUPER FLOWER Leadex III Gold Up 850W 80 + Gold Fully Modular ATX 3.1 Power Supply

LEADEX III GE is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.

140mm F.D.B Fan: Unique 7-blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).

1. Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.
2.  New patented technology of Buckle (20+4) Pin connector  (Patent No.: Taiwan M563575 ; China 7566010,USA)
3. Innovative Design for gaming System & PSU protection
   1. DC output +12V/ +5V/ +3.3V remain stable
   2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
   3. +12V Output With Exceptional Low Ripple Measurements
   4. Low Output Voltage Ripple
4.  ECO-design
     1. Auto & ECO Fan control
     2. High efficiency on all rails, including 5VSB
5.  100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
6. 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
7. Japanese Main Capacitor
8. Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
9. Comply With ATX 12V v3.1, EPS 12V v2.92 Specification.
10. Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
11. Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
12. Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
13. Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
14. More than 2,000 times On/Off test
15. Lead-free Green Materials with RoHS / WEEE Compliance
16. Perfect For Professional & High Performance Gaming System
17. PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.

Specification of SUPER FLOWER Leadex III Gold Up 850W 80 + Gold Fully Modular ATX 3.1 Power Supply
