Description
Features of SILVERSTONE SST-ST45SF-G

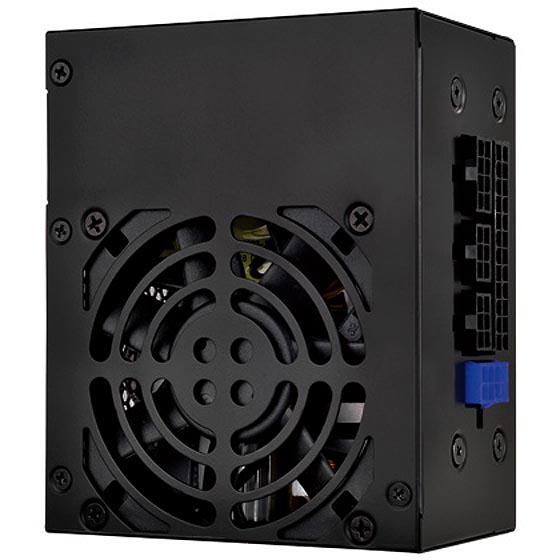

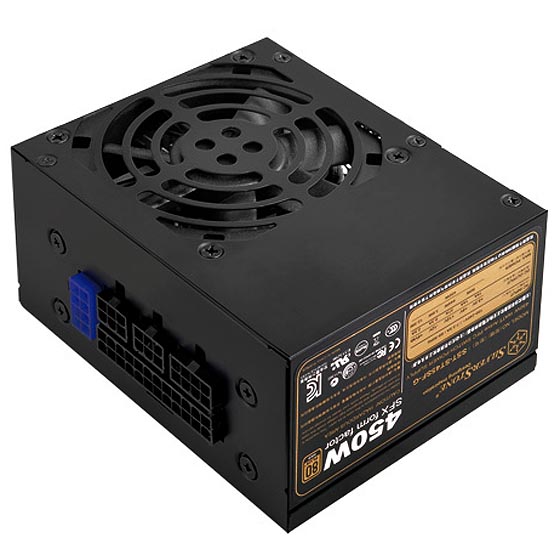

SILVERSTONE SST-ST45SF-G 450W Power Supply is a PSU with 100% modular cables and which supports standard SFX form factor and also ATX via an included bracket. SILVERSTONE SST-ST45SF-G 450W SFX GOLD Full Modular PSU has 80 PLUS GOLD Certification. It can work with 450W of continuous power output at 40 degree C temperature for 24 x 7. It also comes with a running 80mm fan with low ripple and a silent noise operation. It has a single class leading +12V rail with an active PFC Circuit with load greater than 0.95 at the full load. The PSU supports dual PCIe 8 or a dual PCIe 6 pin connector with input voltage of 90V – 264V. The MTBF is 100,000 hours with efficiency ranging from 87% - 90% at 20% - 100% of loading.
It comes with strict -3% voltage regulation with low ripple and low noise. The maximum DC output is 450W with 567W per liter of power density. It is one of the most ideal power supply which has 3 types of power supplies that is the AT power supply, the ATX power supply and the ATX-2 power supply. First the AT power supply which were used in the old systems, second is the ATX power supply are still being used in some of the pc and the third is ATX-2 power supply which is the most common in today life. They are equipped with cables which are flat and provides a greater flexibility with semi modular cables and give a better cable management.
- Support standard SFX form factor and ATX via included bracket
- The SilverStone Power Supply has 100% modular cables
- 450W continuous power output at 40? operating temperature rated for 24/7 operation
- Class-leading single 12V rail with 37A
- Strict / -3% voltage regulation and low ripple & noise
- Silent running 80mm fan with 18dBA minimum
- Single PCI-E 8pin and dual PCI-E 6pin connectors support
- Active PFC
- Color: Black (Lead-Free Paint)
- Over-current protection
- Over power protection
- Over voltage protection
- Under voltage protection
- Short circuit protection
- No Load Operation
Get the best 80 Plus Gold computer SMPS price from us today!
Specifications of SILVERSTONE SST-ST45SF-G
| Brand | SILVERSTONE |
| Model | SST-ST45SF-G |
| Series | SFX |
| Type | SFX12V |
| Maximum Power | 450W |
| Fans | Single 80mm silent fan |
| PFC | Active PFC (PF>0.90 at full load) |
| Main Connector | 20 4Pin |
| 12V Rails | Single |
| PCI-Express Connector | 1 x 6-Pin, 1 x 6 2-Pin |
| SATA Power Connector | 3 |
| Haswell Support | Yes |
| Efficiency | 87% – 90% (20% to 100% loading) |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 90 – 264 V |
| Input Frequency Range | 47 – 63 Hz |
| Output | 3.3V@19A, 5V@14A, 12V@37A, 5VSB@2.5A, -12V@0.3A |
| MTBF | 100,000 hours at 25°C, full load |
| Dimensions | 2.50″ x 4.92″ x 3.94″ (H x W x D) |
| Weight | 3.20 lbs. |
| Connectors | 1 x 24 / 20-Pin motherboard connector (300mm) |
| 1 x 8 / 4-Pin EPS / ATX 12V connector (400mm) | |
| 1 x 8/6-Pin PCIE connector (400mm) | |
| 1 x 6-Pin PCIE connector (400mm / 150mm) | |
| 3 x SATA connector (300mm / 200mm / 100mm) | |
| 2 x 4-Pin Peripheral connector (300mm / 200mm) | |
| 1 x 4-Pin Floppy connector (300mm / 200mm / 200mm) |
