Description
Features of SILVERSTONE RM42-502 EATX Mid Tower Cabinet (Black)
The door is made of premium aluminum with locks. Also, there are individual metal keys to each and every drive safety. Compatibility is an essential feature. SILVERSTONE RM42-502 EATX Cabinet is compatible with Mini-ITX motherboard & SFX PSU. The limitations of the CPU cooler are 65 mm. The SilverStone RM42-502 Cabinet supports expansion cards up to 4.41" and low profile expansion cards up to 8.66". In order to use the SAS drive, it’s compulsory to have a motherboard or expansion card with a hardware SAS controller. The warranty of this incredible SilverStone RM42-502 Cabinet is one whole year. So you have no worries!
- Supports up to SSI-EEB motherboards
- The front panel features an anti-theft lock design providing additional security
- Supports 240mm liquid cooling radiators
- Two 5.25" drive bays directly compatible with 3.5" or 2.5" drives
- Includes one USB Type-C interface
- Includes sliding rail mounting holes for quick rail installation
- Can be placed upright or horizontal
Dual-purpose chassis - Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal placements

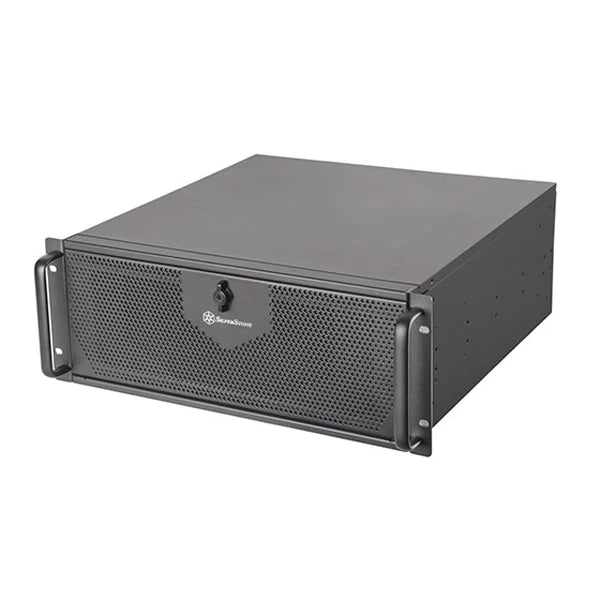

Distinctive exterior

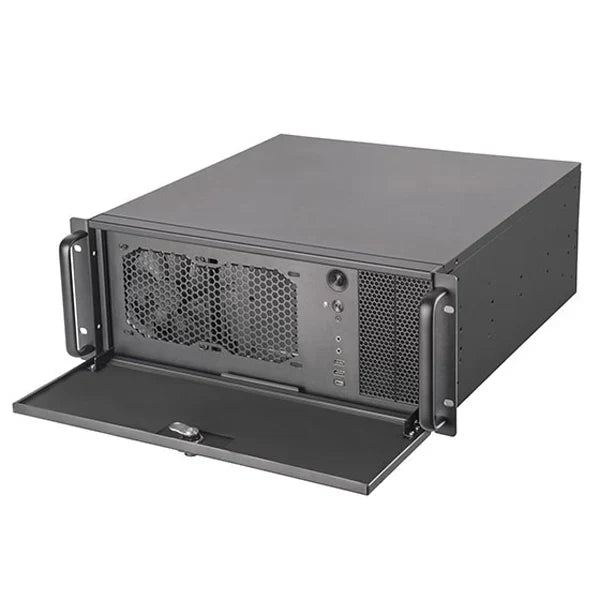

Distinctive front panel features anti-theft lock design to provide additional security along with one USB Type-C interface
Cooling capabilities

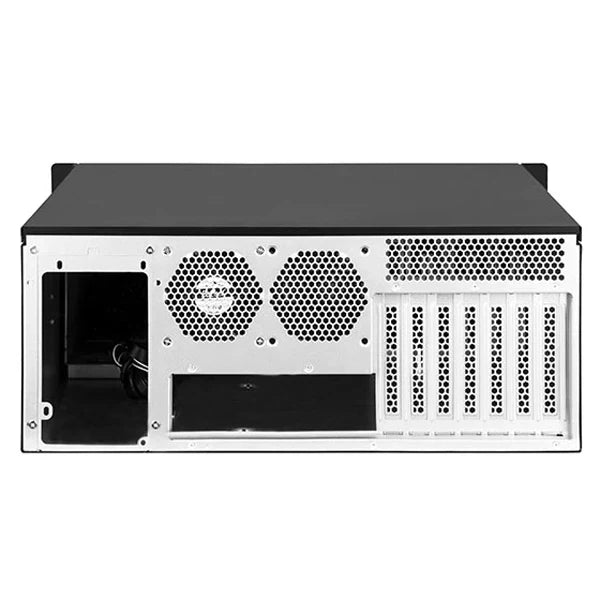

Silverstone cabinet RM42-502 comes pre-installed with 1 x 120mm fan at the front and 1 x 80mm fan at the rear achieving front-to-back directional airflow out of the box, and unlike most rackmounts cases on the market, RM42-502 supports up to 240mm liquid cooling radiators
Expansion card protection

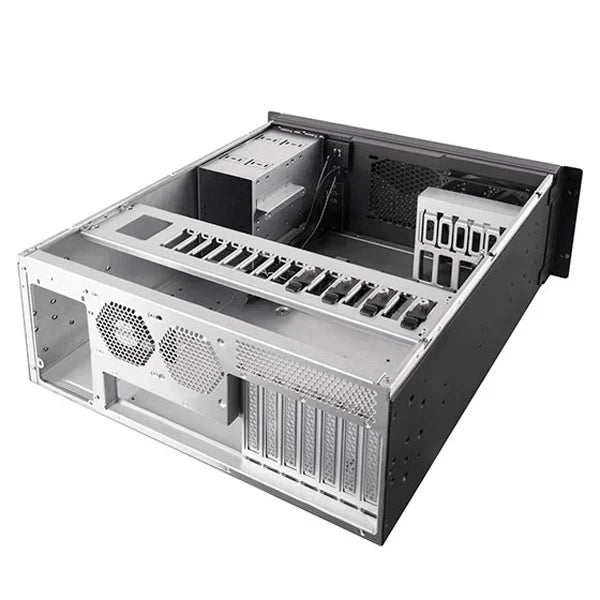

Expansion card holder and retainer* are included for total support of expansion / graphics card. They help prevent dislodging during movement and transport.
Specifications of SILVERSTONE RM42-502 EATX Mid Tower Cabinet (Black)
| Model No. | SST-RM42-502B (Black) |
| Chassis form factor | 4U |
| Material | Steel |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX |
| Drive bay | |
| External | 5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2) |
| Internal | 2.5" x 1 |
| Cooling system | |
| Front | 120mm x 2 (120mm x 1 fan included) |
| Rear | 80mm x 2 (80mm x 1 fan included) |
| Side | 120mm / 140mm x 2 |
| Radiator support | |
| Front | 120mm x 2 / 240mm x 1 |
| Expansion card |
Length w/ expansion card retainer: 337mm Length w/o expansion card retainer: 426mm Width w/ GPU holder: 116mm Width w/o GPU holder: 154mm |
| Front I/O port | USB Type-C x 1, USB 3.0 x 2, Audio x 1, MIC x 1 |
| Power supply | PS2 (ATX) (PSU + optical drives / 5.25" devices = 442mm) / Mini Redundant |
| Limitation of CPU cooler |
Air cooler: 182mm (without top fan) 240mm AIO water block: 55mm |
| Expansion Slot | 7 |
| LED indicator | Power status x 1, HDD activity x 1 |
| Dimension |
430mm (W) x 176mm (H) x 468mm (D) 16.93" (W) x 6.93" (H) x 18.43" (D) |
| Extra | Side switch for chassis intrusion security |
| Warranty | 1 Year |
