Description

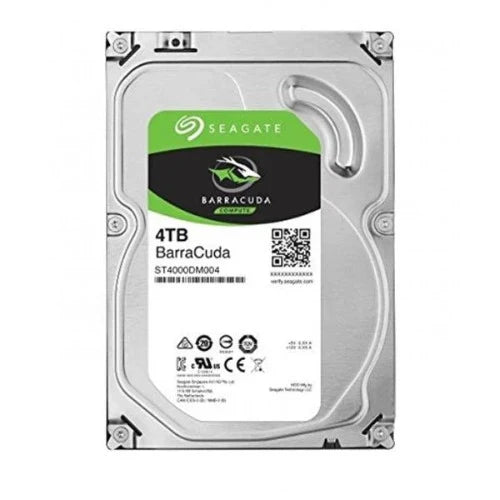

Features of Seagate Barracuda 4TB 5400 RPM Internal HDD
- Compliant with RoHS requirements in China and Europe.
- High instantaneous (burst) data-transfer rates (up to 600MB per second).
- Native Command Queuing with command ordering to increase performance in demanding applications.
- Quiet operation.
- SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
- State-of-the-art cache and on-the-fly error-correction algorithms.
- Support for S.M.A.R.T. drive monitoring and reporting.
- Supports latching SATA cables and connectors.
- TGMR recording technology provides the drives with increased areal density.
- Worldwide Name (WWN) capability uniquely identifies the drive.
The Best Comes From Within
SEAGATE has dominated the data storage industry for 40 years.
We understand your unique data storage challenges, and crafted BarraCuda Pro 14 TB 3.5 inch desktop hard drives to help you achieve your goals.
3.5 INCH BARRACUDA HARD DRIVES
Unrivalled Desktop Legacy
Built on proven reliability and innovation, SEAGATE Barracuda hard drives are available in a versatile mix of capacity and price point options to fit any budget.
MULTI-TIER CACHING TECHNOLOGY
Optimised Read and Write Data Flow
All hard drives in the Seagate BarraCuda family come equipped with Multi-Tier Caching Technology (MTC). MTC takes your PC to new performance levels so you can load applications and files faster than ever before. Seagate BarraCuda delivers improved read and write performance by optimising data flow with intelligent layers of NAND Flash, DRAM, and media cache technologies.
RESCUE DATA RECOVERY PLANS
Just in Case
Rescue Data Recovery Plans provide peace of mind for creative pros and performance PC users alike. Gain access to experienced data recovery experts who deliver a 95% customer satisfaction rating
1. Rescue Data Recovery Plans may require registration.
YOUR DATA MATTERS TO US
Trusted Dependability
The Seagate Barracuda family of reliable hard drives is here to stay, for years to come.
For more than 20 years, Seagate has manufactured and delivered the reliable BarraCuda family of drives. Your positive hard drive experience matters to us, which is why we offer robust limited warranties on all BarraCuda drives.
Key Advantages
1. Versatile HDDs for all your PC needs bring you industry-leading excellence in personal computing.
2. For over 20 years the BarraCuda family has delivered super-reliable storage for the hard drive industry.
3. Capacities up to 8TB for desktops, BarraCuda leads the market with the widest range of storage options available.
4. Advanced Power modes help save energy without sacrificing performance.
5. SATA 6Gb/s interface optimises burst performance.
Best-Fit Applications
1. Desktop or all-in-one PCs
2. Home servers
3. Entry-level direct-attached storage devices (DAS)
Specifications of SEAGATE Barracuda 4TB 5400 RPM Internal HDD
| Model | ST4000DM004 |
| Formatted capacity (512 bytes/sector)** | 4000GB (4TB) |
| Guaranteed sectors | 7814037168 |
| Heads | 4 |
| Disks | 2 |
| Bytes per sector | 4096 |
| Default sectors per track | 63 |
| Default read/write heads | 16 |
| Default cylinders | 16383 |
| Recording density (max) | 2294 kB/in |
| Track density (avg) | 540 ktracks/in |
| Areal density (avg) | 1203 Gb/in |
| SATA interface transfer rate | 600 MB/s |
| Maximum data transfer rate | 190 MB/s |
| ATA data-transfer modes supported | PIO modes: 0 to 4 Multiword DMA modes: 0 to 2 Ultra DMA modes 0 to 6 |
| Cache buffer | 256MB |
| Height (max) | 20.17mm / 0.794 in |
| Width (max) | 101.6mm (± 0.25) / 4.0 in (± 0.010) |
| Length (max) | 146.99mm / 5.787 in |
| Weight (typical) | 490g / 1.08 lb |
| Average latency | 6.0 ms |
| Power-on to ready (typ) | 10.0s |
| Standby to ready (typ) | 10.0s |
| Startup current (typical) 12V | 2.0A |
| Voltage tolerance (including noise) | 5V ±5% 12V ±10% |
| Non-Operating (Ambient °C) | –40° to 70° |
| Operating ambient temperature (min °C) | 0° |
| Operating temperature (drive case max °C) | 60° |
| Temperature gradient | 20°C per hour max (operating) 30°C per hour max (non-operating) |
| Relative humidity | 5% to 90% (operating) 5% to 95% (non-operating) |
| Relative humidity gradient (max) | 30% per hour |
| Wet bulb temperature (max) | 30°C max (operating) 40°C max (non-operating) |
| Altitude, operating | –304m to 3048m (–1000 ft to 10,000 ft) |
| Altitude, non-operating (below mean sea level, max) |
–304m to12,192m (–1000 ft to 40,000+ ft) |
| Operational shock (max) | 80 Gs (read) / 70 Gs (write) at 2ms |
| Non-operational shock (max) | 300 Gs at 2ms |
| Vibration, operating | 10Hz to 22Hz: 0.25 Gs, Limited displacement 22Hz to 350Hz: 0.50 Gs 350Hz to 500Hz: 0.25 Gs |
| Vibration, non-operating | 5Hz to 22Hz: 3.0 Gs 22Hz to 350Hz: 3.0 Gs 350Hz to 500Hz: 3.0 Gs |
| Idle | 2.2 bels (typical) 2.4 bels (max |
| Seek | 2.4 bels (typical) 2.7 bels (max) |
| Non-recoverable read errors | 1 per 1015bits read |
| Load/unload cycles | 600,000 at 25°C, 50% rel. humidity |
| Warranty | 2 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
