Description
Features of SAPPHIRE Radeon Pure RX 9070 OC 16GB AMD Graphic Card
Honeywell PTM7950 TIM
The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.
Free Flow
The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.
AeroCurve Fan Blade
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

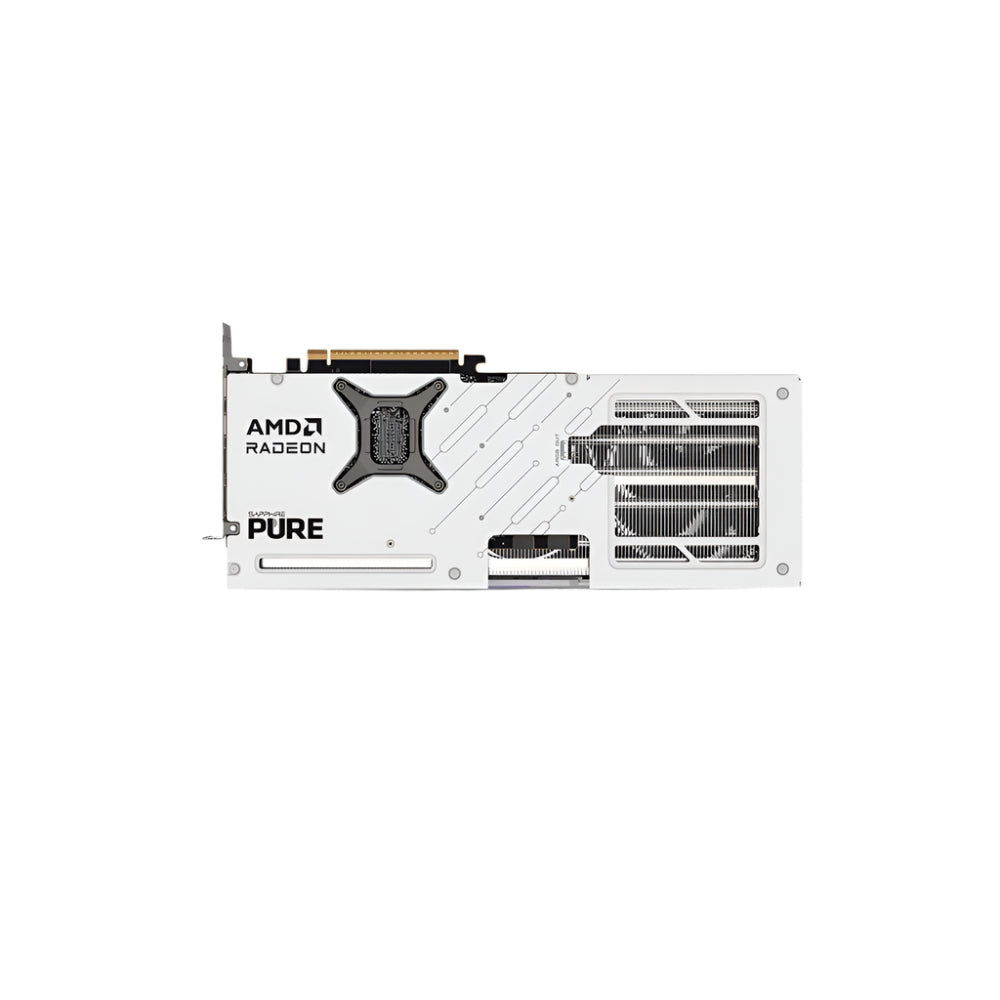

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
Integrated Cooling Module
Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use.
L-Shape Graphics Card Supporter
The L-Shaped Graphics Card Holder is a versatile solution designed to secure heavy GPUs, prevent sagging, and simplify removal of the graphics card from the PCIe slot during upgrades or maintenance. Crafted from durable materials with a sleek design, it ensures stability, longevity, and seamless integration into any modern PC build. Use the rubber tip of the bracket to help conduct the extraction of the graphics card easily and safely when removing for cleaning and maintenance.
ARGB LED SAPPHIRE Logo
The newly integrated ARGB LED SAPPHIRE Logo grants customization opportunities for a more personalized aesthetic for the build integration of the graphics card. Simply use the Glow! Feature in the SAPPHIRE TriXX Software to create the ultimate lighting solution.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
FrameDefense
The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
High TG Copper PCB
The GPU is mounted on to the high-density 12 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
External ARGB Control Sync
Enable the external synchronization of RGB LEDs between the graphics card and the motherboard using the 3-pin header in the tail. Gamers can then choose if the graphics card performs the RGB LED effects independently or if the motherboard acquires control.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Digital Power Design
SAPPHIRE PURE AMD Radeon™ RX 9000 Series are designed with digital power which provides accurate power control and excellent power efficiency
Specifications of SAPPHIRE Radeon Pure RX 9070 OC 16GB AMD Graphic Card
| Product Code | 11349-02-20G |
| GPU | AMD Radeon™ RX 9070 Graphics Card AMD RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 2700 MHz Game Clock: Up to 2210MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. |
| Stream Processors | 3584 |
| Compute Units | 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 64MB |
| Ray Accelerators | 56 |
| AI Accelerator | 112 |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |
| Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate ARGB SAPPHIRE Logo Two-Ball Bearing Fans 12-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported Performance vs. Efficiency Quicksets Glow! TriXX Boost External RGB LED MB Synchronization |
| Accessories Bundled | L-Shape Support Bracket 3pin 5V ARGB Cable |
| AMD Features | AMD RDNA™ 4 Architecture 56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology 16 GB of GDDR6 on 256-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application |
| Cooler Type | Tri-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor | 3 slot, ATX Dimension: 320(L)X 120.25(W)X 61.6 (H)mm |
| Power Consumption | 245W Typical Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 650 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
