Description

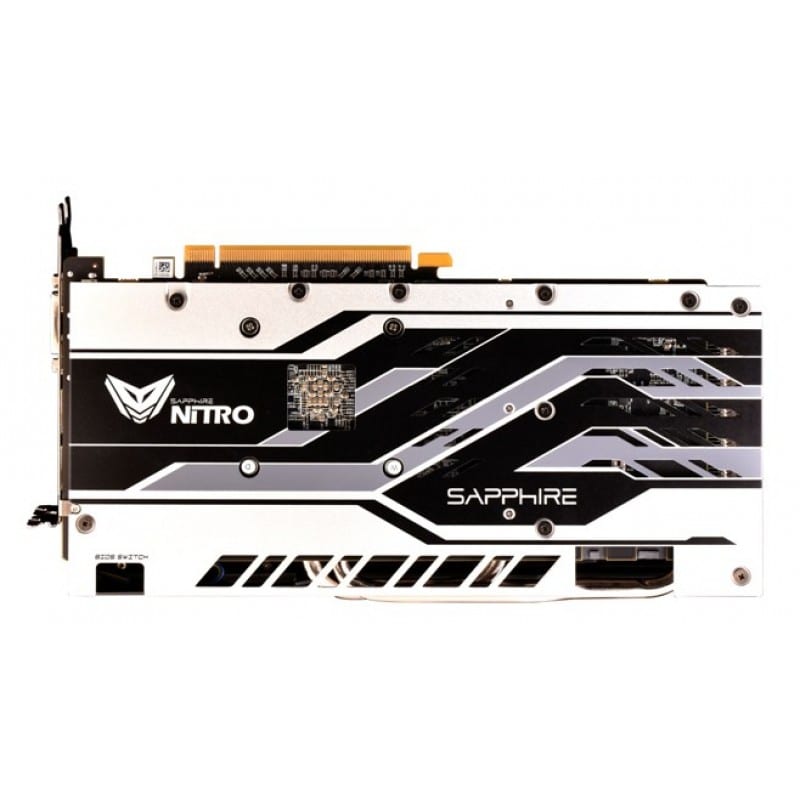

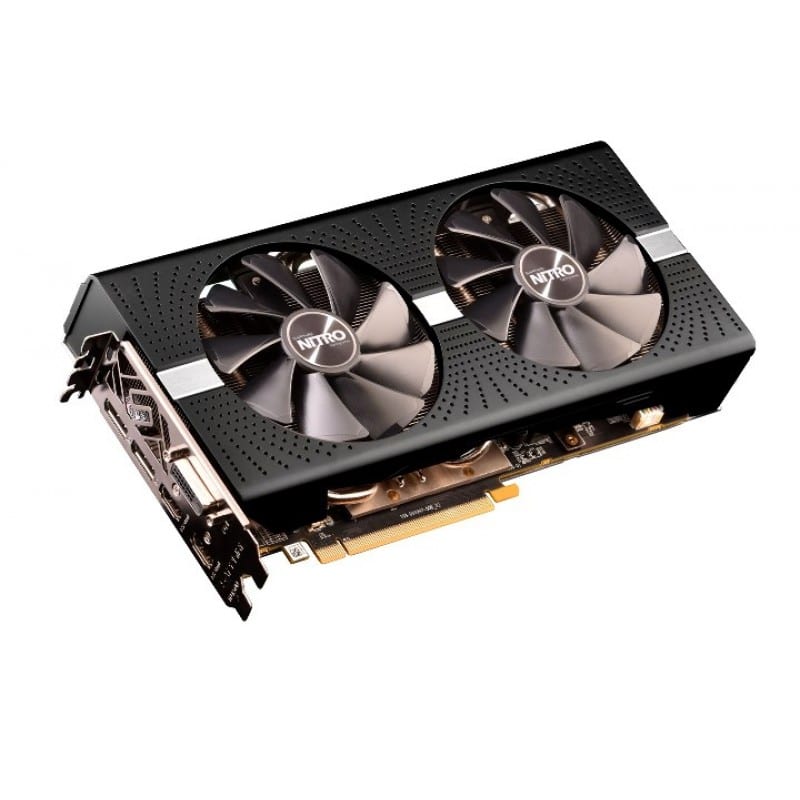

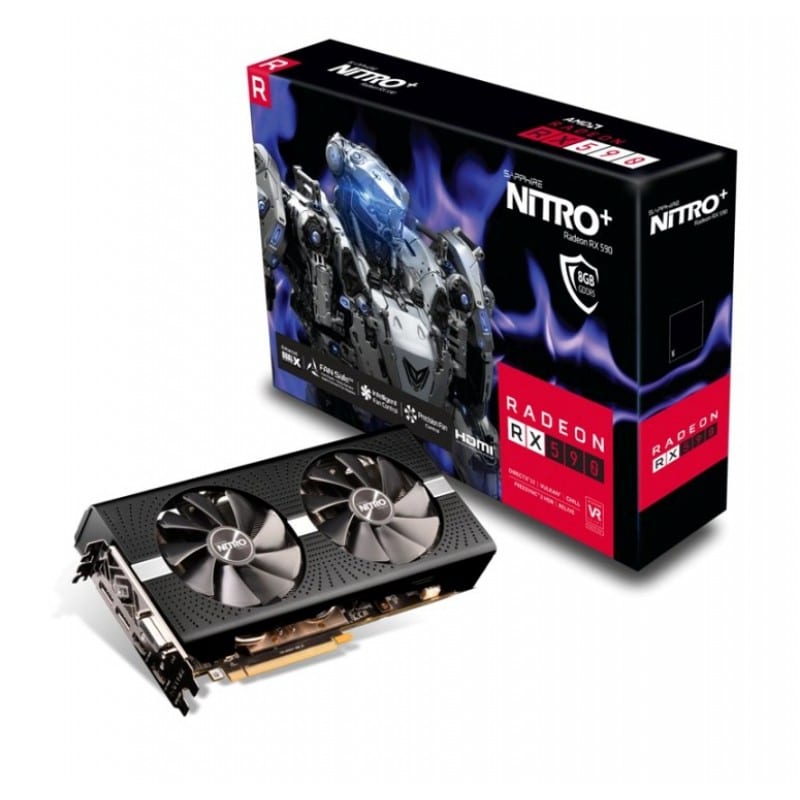

Features of SAPPHIRE Radeon Nitro+ RX 590 8GB AMD Graphic Card
All-NEW DUAL-X COOLER
The Dual-X cooler featured in the latest SAPPHIRE Radeon Nitro+ RX 590 8GB AMD Graphic Card is an all-new design. Dual-X Cooling is powered by two massive yet silent fans and state-of-the-art radiator design. The new form of our 95mm blades mean greater airflow and superior heatsink coverage at lower noise compared to standard cooling designs. These feature dual ball bearing fans, which have an 85% longer lifespan than sleeve bearings in our tests.
Radeon Chill
Radeon™ Chill, the dynamic power-saving tool, just got even cooler. Radeon™ Chill has been revamped to fine-tune power savings per DPM state, saving even more power 5 while delivering the same amazing experience.
Intelligent Fan Control III
ZERO DB COOLING
Enjoy complete silence under light workloads with entirely passive cooling. No spinning fans means no distractions while you work or chill.
PRECISE FAN CONTROL
Traditional fan may have up to 10% difference on fan RPM from fan to fan at the same fan duty cycle. Now with the new fan controller on the SAPPHIRE NITRO+, this tolerance is reduced to 3.2%. This improvement on the accuracy ensures the cooling and noise performance of every card is up to the standard.
NITRO GLOW
The Graphics card is more than just another component; it’s the beating heart of your gaming system. With tasteful shroud design augmented by RGB LEDs', each card is practically a piece of art.
GPU
Built on the future-proof Polaris architecture, the NITRO Gaming Series Graphics Cards+ play games at a smooth 1080p and beyond.
VR Friendly
The SAPPHIRE NITRO Gaming Series cards come with Dual HDMI ports, specifically designed to work with VR.
Cooling
Innovative cooling technologies to ensure optimal performance and airflow.
ROBUST VRM COOLING
On the cooling module, heatsink is stamped to the shape of the MOSFET with high thermal conductivity pad to take away the heat efficiently. On the backplate, same idea is also implemented around the back side of the MOSFET area.
- Engine Clock: Up to 1560 MHz (Boost)
- Memory: 8GB GDDR5 8400 MHz Effective
- 2304 Stream Processor
- 1440p Gaming
- Dual-X Cooling
- NITRO Glow, Quick Connect
Get the Best video card prices from us today!
Specifications of SAPPHIRE Radeon Nitro+ RX 590 8GB AMD Graphic Card
| MEMORY SIZE | 8GB |

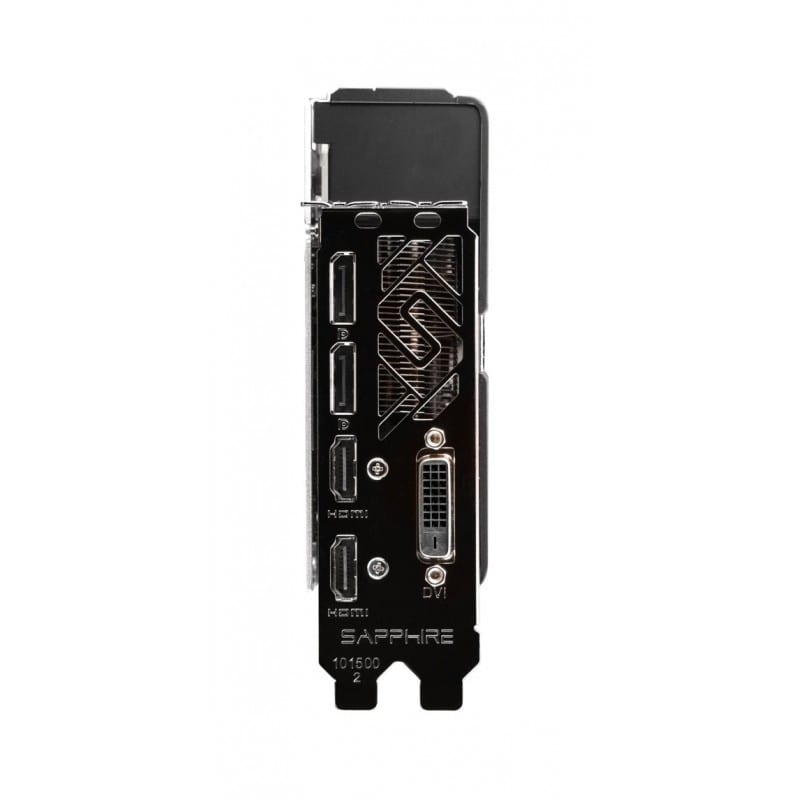

| Output | 1 x DVI-D 2 x HDMI 2.0b 2 x DisplayPort 1.4 |
| BIOS Support | UEFI BIOS |
| Memory | 256 bit Memory Bus GDDR5 Memory Type 2100 MHz, 8400 MHz Effective 8 GB Size |
| MEMORY TYPE | GDDR5 |
| GPU | 2304 Stream Processors 12 nm FinFET 4th Graphics Core Next (GCN) 1560 MHz Boost Engine Clock |
| Power* | <250W |
| Displays | Maximum 5 Outputs |
| SERIES | RX 590 |
| API | OpenGL® 4.5 OpenCL 2.0 DirectX® 12 Shader Model 5.0 Cooling Dual-X fans : Two ball bearing |
| Feature | AMD CrossFire AMD PowerTune FreeSync Technology AMD Eyefinity Quad HD Display (4K*2K Support) Video Codec Engine (VCE) AMD HD3D Technology Passive Cooling for Zero-noise Operation Component Heat Spreader 16K Hours Capacitor Dual BIOS AMD Tress FX Technology AMD Liquid VR Technology AMD Virtual Super Resolution(VSR) AMD TrueAudio™ Next Technology AMD Xconnect ready Universal Video Decoder (UVD) DirectX™ 12 Optimized Radeon VR ready Premium HDR Ready Frame Rate Target Control NITRO Fan Check NITRO Quick Connect system NITRO Glow RGB LED NITRO CoolTech(NCT) NITRO Free Flow Dual-X Cooling NITRO Boost Intelligent Fan Control III Black Diamond Choke 4 Fuse protection Precision fan control Robust VRM Cooling Radeon Chill Radeon Relive |
| Resolution | 5120×2880(60Hz) Pixel DisplayPort Resolution 2560×1600(60Hz) Pixel Dual Link DVI Resolution 4096×2160(60Hz) HDMI Resolution |
| CHIPSET | AMD Radeon |
| Form Factor | 2.2 Part Slot Occupied 260(L)X 135(W)X 43 (H) Dimension /mm |
| System Requirement | 500 Watt Power Supply (Suggestion) 1 x 6-pin AUX Power Connector 1 x 8-pin AUX Power Connector is required for CrossFireX™ system. Blue-ray™ / HD DVD playback requires Blu-ray / HD DVD drive. PCI Express® 2.0 or higher version based PC is required with one X16 lane graphics slot available on the motherboard in order for the card to be compatible with. |
| OS Certification | Windows 10, Windows 7 |
| WARRANTY | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
