Description

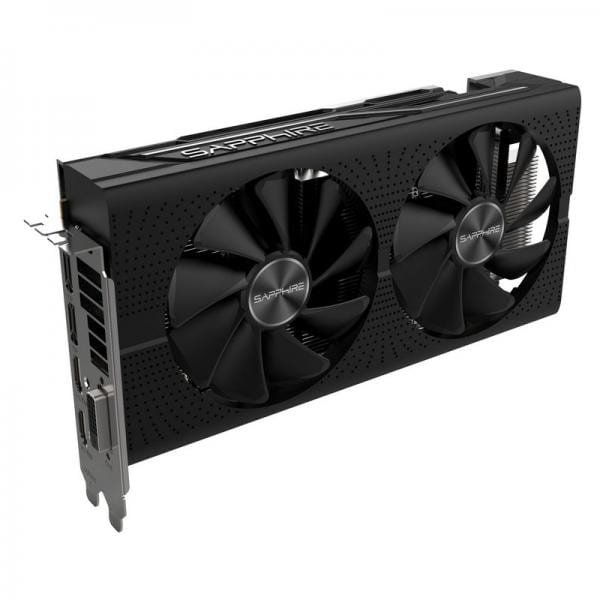

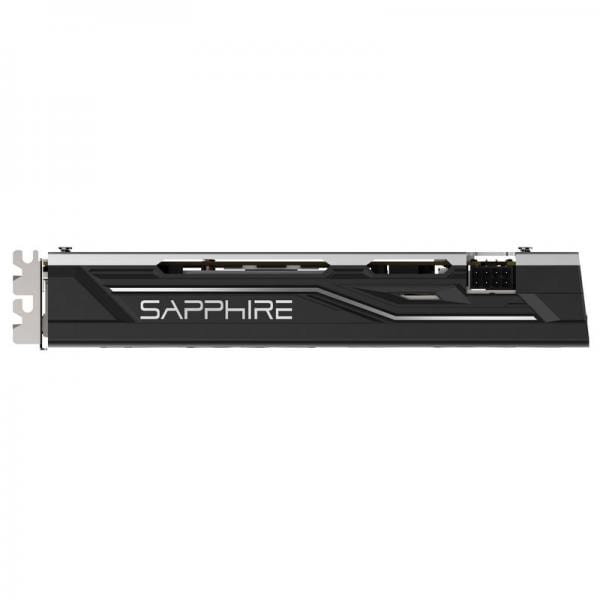

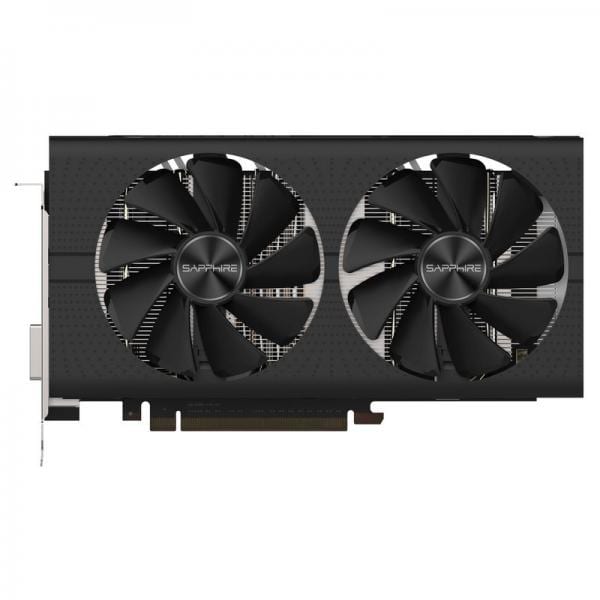

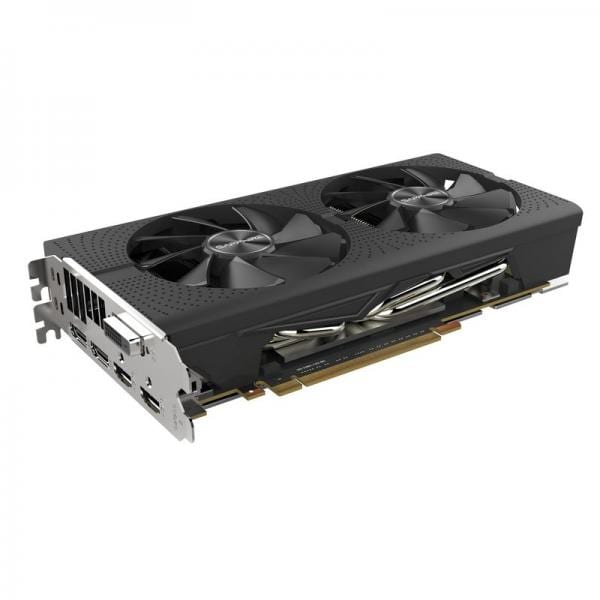

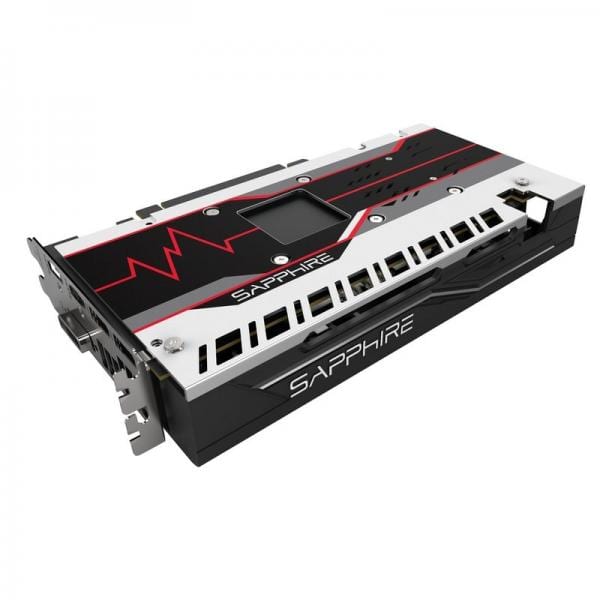

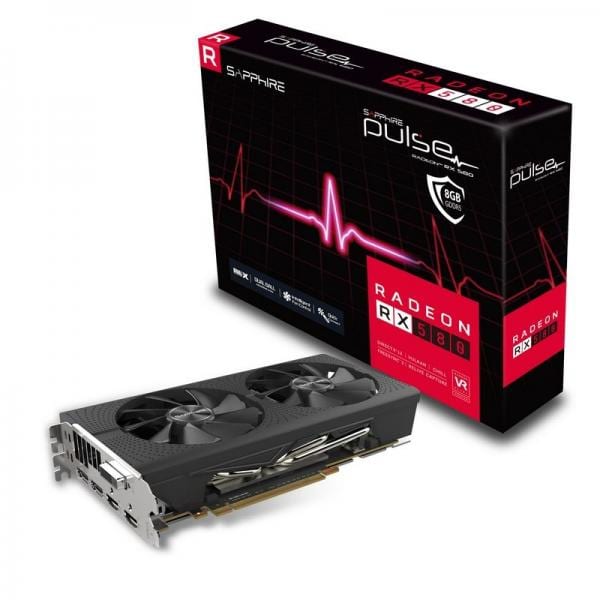

Features of SAPPHIRE Radeon RX 580 Pulse 8GB AMD Graphic Card
Fuse protection
In order to protect your card, the SAPPHIRE Radeon RX 580 Pulse 8GB AMD Graphic Card have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe
Precision fan control
Standard industry fans may have up to 10% difference between their fan rotation cycles (RPM). With the new Fan IC Control on SAPPHIRE NITRO graphics cards, this differential is reduced to 3%. This 70% improvement on accuracy ensures that cooling and noise performance of every NITRO card is up to scratch.
Robust VRM Cooling
The SAPPHIRE NITRO cards are designed with robust VRM cooling and have a high thermal conductivity pad on the backplate to take away the heat efficiently and effectively.
Black Diamond Choke 4
Our Black Diamond Chokes are 10% cooler and 25% more power efficient than a normal choke - and these Mark 4 Chokes reduce the coil temperatures by other 15% over the Mark 3s.
These exclusive chokes will maintain gaming stability using their built-in heatsinks and help minimize coil whine
Dual Ball Bearing - 1.85X longer life
Dual ball bearings on the fan spindles ensure smooth running and long life and are designed to keep out dust. A quiet cooling solution, Two ball-bearing fan features a high-efficiency blade design.
Long life black polymer cap
High quality aluminum-made long life capacitor is not only to extend the component life time, the product reliability and overclocking ability are also improved. When operational temperatures dropped by 20°C, the product life span is going to be extended up to a factor of ten. In addition, when the operational temperature increased by 20°C, the product life span only decreased by 10%.
NITRO Quick Connect
SAPPHIRE’s Quick Connect System provides a quick and easy solution. If there’s a fan issue detected, the user doesn’t need to return the entire card – SAPPHIRE’s partners will send out a replacement fan directly to the customer or the retailer. Please contact your place of purchase to request a fan replacement. SAPPHIRE’s channel partner will arrange the ideal solution for you to receive your replacement fan.
VR Friendly
The SAPPHIRE NITRO Gaming Series cards come with Dual HDMI ports, specifically designed to work with VR. By having two HDMI ports, you can have both an HD monitor and cutting-edge VR headset running at the same time.
The ports are HDMI 2.0b, the latest update, with an 18Gbps bandwidth, up to 32 audio channels, and is able to support 4K 50/60 resolutions like 2160P, whilst remaining entirely backwards compatible with older HDMI specifications.
Frame Rate Target Control
Frame Rate Target Control (FRTC) enables users to set a target maximum frame rate when playing an application in full screen mode; the benefit being that FRTC can reduce GPU power consumption (great for games running at frame rates much higher than the display refresh rate) and therefore reduce heat generation and fan speeds/noise on the graphics card.
Specifications of SAPPHIRE Radeon RX 580 Pulse 8GB AMD Graphic Card
| Memory size | 8gb |
| Output | 2x hdmi 2x displayport 1.4 |
| Bios support | Uefi |
| Memory type | Gddr5 |
| Engine clock | Up to 1350 mhz, boost |
| Gpu | Rx 580, 14 nm finfet 4th graphics core next (gcn) |
| Displays | Maximum 4 outputs |
| Series | Rx 580 |
| Stream processors | 2304 |
| Memory clock | 8000 mbps effective |
| Api | Opengl® 4.5 opencl 2.0 directx® 12 shader model 5.0 |
| Resolution | Displayport: 5120×2880@60hz hdmi: 4096×2160@60hz |
| Interface | Pci-express 3.0 |
| Memory size | 8gb gddr5/256-bit |
| Chipset | Amd radeon |
| Form factor | 2 slots occupied 230x125x40 dimension/mm |
| Power consumption | <225w |
| Amd features | Radeon™ vr ready premium radeon™ software radeon™ freesync technology amd liquidvr™ technology 4th gen gcn architecture radeon™ chill radeon™ relive directx® 12 technology amd eyefinity technology (gaming) amd app acceleration amd crossfire™ technology amd crossfire™ (bridgeless) 3rd gen 14nm process technology opencl 2.0 opengl 4.5 amd powertune technology trueaudio next unified video decoder (uvd) video code engine (vce) virtual super resolution the vulkan® api |
| System requirement | 500 watt or greater power supply (recommended) 1 x 8-pin power connector pci express® compliant motherboard with one x16 graphics slot |
| Game index | 1440p gaming |
| Os certification | Windows® 10, windows® 7, 64bit operating system required |
| Cooler | Dual-x cooling technology two ball bearing fan fan quick connect |
| Warranty | 3 years |
| Note* | Price, feature and specifications are subject to change without notice. |
