Description
Features of PROLAB DESIGN AI360LCD ARGB 360mm CPU Liquid Cooler ( With LCD Display ) ( Black )
- Class Leading Pump and Radiator FAN Specifications 2700 RPM Pump, which rivals the performance of the latest Gen Pumps, with 2200 RPM, Non-RGB, 120mm FANs with 73.53 CFM Airflow and 4.5 mmH2O of Static Pressure, delivers class-leading cooling performance.
- Unmatched Cooling Potential – Support for Intel & AMD Desktop and HEDT CPUs : Get maximum cooling for LGA1851/LGA1700/LGA1200/LGA115X/LGA1366, AM5/AM4/AM3+/AM3/AM2+/AM2/AM1/FM2+/FM2/FM1 and TR4/SP3/sTRX4/sWRX8 sockets.
- Industry First Ultra-Tight Radiator Design The Ultra-tight Radiator Finstack Design packs radiator fins more densely, allowing for greater, rapid cooling for higher TDP CPUs.
- Minimalistic Connection, Ease of USE! Only two PWM ports are needed for cooler connection, the wire-free daisy chain FANs connect together into a single 4-Pin PWM connector, and another 3-Pin PWM connector on the Pump Block.
- Rectangular Coldplate for Better Coverage of CPU IHS With one-of-a-kind 3348 Sq-mm of Cold Plate area, the AI360LC & AI360LC LCD covers most of the IHS of the bigger LGA 17xx/18xx or Threadripper CPUs for superior cooling.
- No Fuss, No Flash – Only Performance With absolutely no RGB on any part of the cooler, get the ultimate muted look with top-class, silent performance.
- Keeping your VRMs Cool! The CPU block features a 60mm PWM FAN, capable of delivering a maximum of 50CFM airflow to keep the motherboard VRMs cool for optimal performance.
- HD Display in a Cooler – India’s First! The CPU pump block also features a 4″ HD(720×720) Detachable IPS LCD Screen, which is customizable through the provided software suite.
- 5 Years of Limited Warranty: Complete Peace of Mind Get the Class-leading 5 Years of Warranty with doorstep pickup and drop via the website.

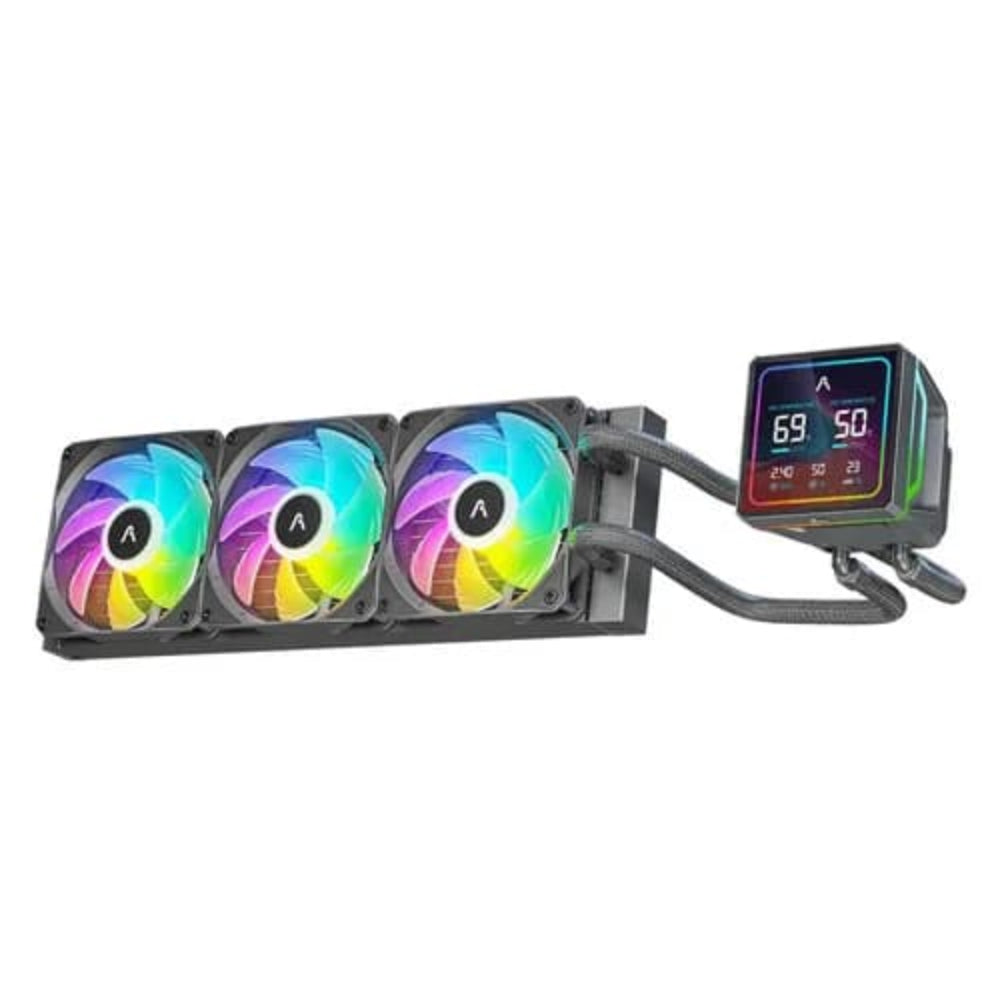

The AI360 LCD is a 360mm AIO Liquid cooler designed for high-performance Workstations and PCs. The cooler features an Ultra-tight radiator design, a bigger 3348 Sq-mm cold plate, and kink-free braided tubes.
The cooling Fans are also one of a kind, with seamless interconnection for wire-free daisy chain, up to 2500 RPM of revolution speed, 4.5 mmAq of static pressure, and 73.5 CFM of airflow.
The cooler is compatible with all the latest AM5 and LGA1851 CPUs, as well as the AMD HEDT Threadripper CPUs, making this the only cooler in the price segment to feature Threadripper support out of the box.
The pump is an efficient 2700 RPM unit, at par with the flagship cooler pumps in the market, while the radiator has the highest FPI (~30) due to the high fin-density design.
Tasteful ARGB with 4″ HD Display for Endless Customization
High-performance ARGB Fans, subtle ARGB on the CPU block, and a 4″ detachable HD display make this cooler perfect for a workstation or a consumer build.
Flagship performance, with all the bells and whistles
With compatibility for the latest High TDP CPUs, Ultra-tight radiator fin density, leak-proof design, and rapid, efficient cooling, the AI360 LC checks all the boxes for a flagship cooler.
Heat-ressistant, kink free tubing
The braided high-quality PTFE tubing ensures great performance and longevity during prolonged, intense workloads
More FPI compared to any other cooler in the market!
White conventional radiators have ‘V’ shaped fins, which make the radiator FPI top out ~25, while the radiator of AI360 LC has a whopping 30 FPI for superior cooling.
Cooling for the latest consumer CPUs
The AI360 supports all the latest CPUs, including the latest AM5 & LGA1851 CPUs.
Threadripper : Conquered!
The AI360 LC comes with support for Threadripper CPUs out of the box, making this ready for the highest TDP HEDT CPUs.
Largest Cold-Plate Area in Segment!
To ensure better compatibility with the larger IHSs of the current CPUs, the AI 360 LC features a 3348 sq-mm of large cold plate surface area.
2700 RPM hevy-duty Pump
The 2700RPM pump in the CPU block ensures noise-free, long-term performance for all workloads.

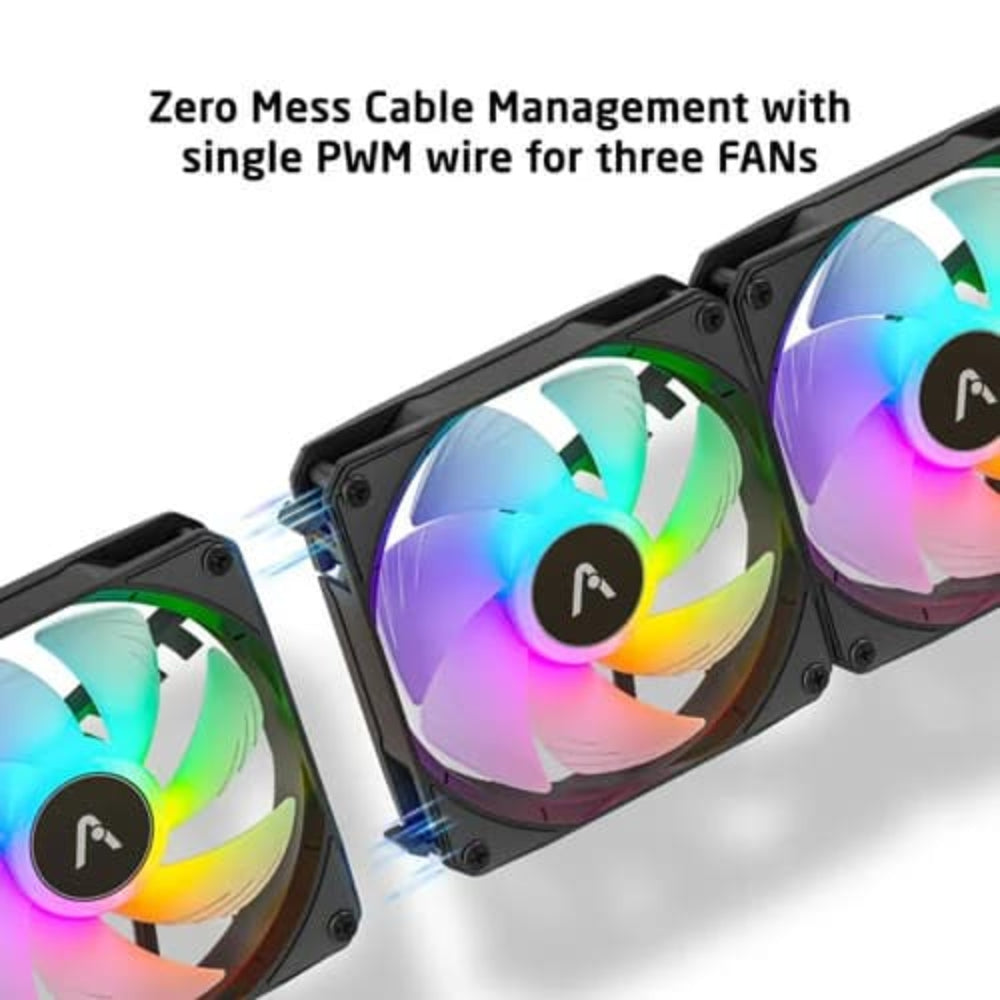

Interconnecting Wire-Free Daisy Chain FANs
The Radiator FANs feature an interlocking mechanism, making them controllable through a single PWM & ARGB connection while reducing cable clutter.
The 4″ 720p Detachable IPS-LCD Display
The 4″ Detachable 720p IPS Display with magnetic back can be attached to any metal surface, or the top of the pump head, the single Type C Connection makes it easy to connect the internal motherboard header or any external USB port.
Class-leading Radiator FANs
With up to 2500 RPM speed, 73.5 CFM Airflow, and 4.5 mm-Aq Static Pressure, the AI360 LC features one of the best radiator FANs for high-TDP use cases.
- Intel Socket Support: LGA1851/LGA1700/LGA1200/LGA115X/LGA1366
- AMD Socket Support: AM5/AM4/AM3+/AM3/AM2+/AM2/AM1/FM2+/FM2/FM1
- Threadripper Socket Support: TR4/SP3/sTRX4/sWRX8
Specifications of PROLAB DESIGN AI360LCD ARGB 360mm CPU Liquid Cooler ( With LCD Display ) ( Black )
| Product Code | AI360LCD |
| Intel Socket Support | LGA1851/LGA1700/LGA1200/LGA115X/LGA1366 |
| AMD Socket Support | AM5/AM4/AM3+/AM3/AM2+/AM2/AM1/FM2+/FM2/FM1 |
| Threadripper Socket Support | TR4/SP3/sTRX4/sWRX8 |
| Pump Speed (RPM) | up to 2700 RPM |
| Pump Noise (db) | 23 Max. |
| Pump Connector | 3-Pin PWM |
| Fan Speed (RPM) | 500-2500 |
| Fan Airflow (CFM) | 73.5 |
| Fan Static Pressure (MM-AQ) | 4.5 |
| FAN Noise (dB) | 33.5 |
| Fan Connector | 4-Pin PWM |
| Tube Length (mm) | 395 mm ±5 mm |
| Pump Embedded VRM FAN | 500-2100 RPM, 50 CFM, 1.2 mm-Aq |
| Radiator Dimensions (LxWxH) | 396 x 120 x 27 mm |
| Radiator Material | Aluminium Alloy |
| Net Weight / Gross Weight | 1.6/2.2 Kg |
| Warranty | 1 Year |
| Note** | **Prices, Specifications & Features are subject to change without notice |
