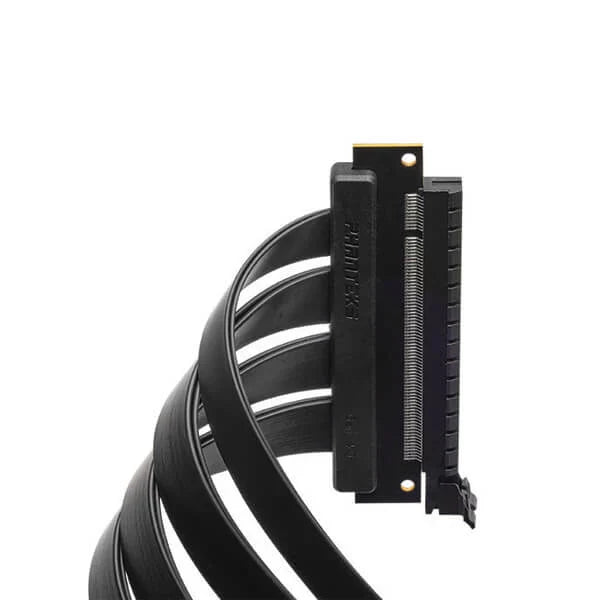

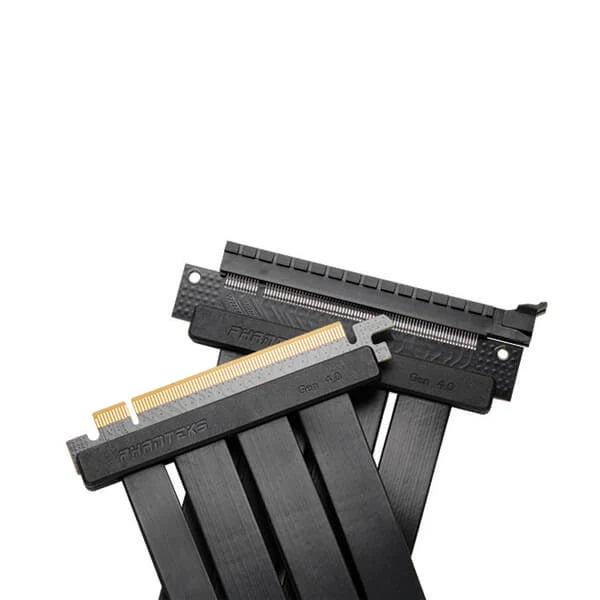

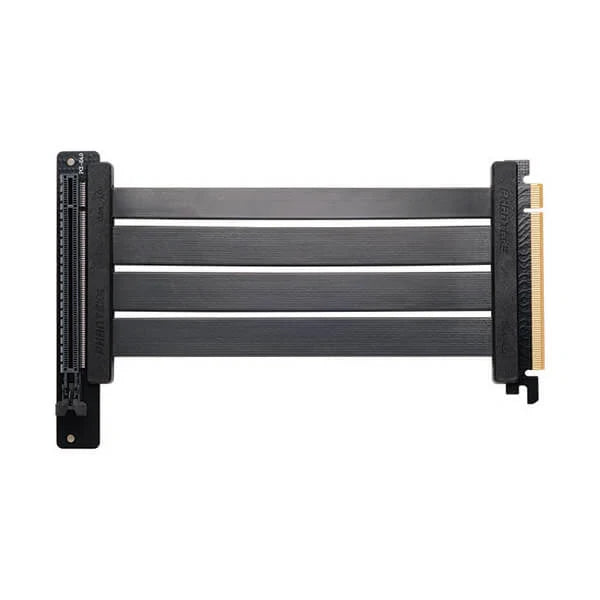

Features of PHANTEKS PCI-E 4.0 X16 220mm Riser Cable (Black)
Dual layer design for high stability and full PCI-e Gen4 x16 speeds
• Individual laneway shielding to prevent external EMI/EFI and interference between channels
• High-quality soldered contacts for better signal integrity
• Flexible form factor allows for easier installation and orientation
• Gold-plated connectors for durable and lossless signals
The Phanteks Flat Line PCI-e Gen4 x16 Riser Cable unlocks the full potential of any high-end Gen4 graphics card. The dual layer design improves the performance and stability of the high bandwidth signals ensuring the system is running stable and reliable. Each individual laneway is shielded from EMI/EFI interference to prevent interference between channels to further improve signal integrity
Specifications of PHANTEKS PCI-E 4.0 X16 220mm Riser Cable (Black)
| Model No | PH-CBRS4.0-FL22 |
| UPC Code | 886523002277 |
| Product Name | Flat Line 220mm PCI-E 4.0 x16 Riser Cable 90 |
| Chassis support | Evolv X, P500, P600, VGPU kit, other future chassis |
| Application | Vertical GPU riser extender |
| Length | 220mm / 8.66 in |
| Weight | 92.2 g |
| PCI-e generation | PCI-E 4.0 |
| Operation Voltage / Current | 12V / 5.5A |
| Wattage throughput | 66W |
| PCB / Wire UL Numbers | E189572 / E252840 |

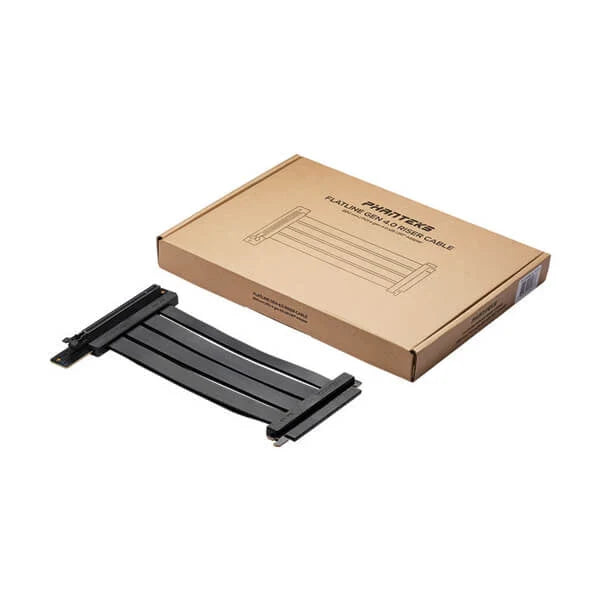

| Packaging Information | |
| Package Dimension | 273 x 198 x 29.7 mm |
| Package Weight | 202.5 g |
| Outer box Dimension | 305 x 286 x410 mm |
| Outer box Weight | 4.8 kg |
| Quantity (per outer box) | 20 pcs |
| Warranty | 2 Years Limited |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
