Description
Features of PHANTEKS EVOLV Shift XT ITX Mini Tower Cabinet (Satin Black)

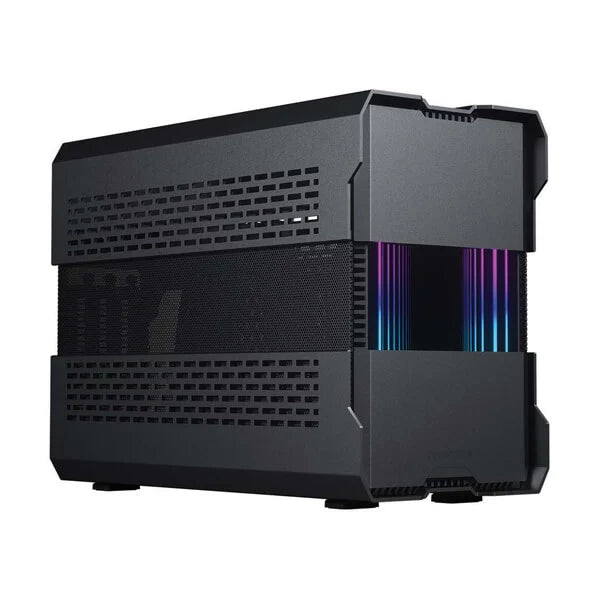

The PHANTEKS EVOLV Shift XT mini pc cabinet is a truly unique small form-factor chassis that extends to tailor the cooling performance to your need. Even in its ultra-compact mode there is no compromise on performance with support for powerful hardware such as 324mm long triple-slot GPUs and 72mm tall CPU air coolers. Phanteks CPU Case Evolv Shift XT has the unique capability to extend the height of the chassis to boost the air-cooling performance with two 120 or 140 fans at the top. When fully extended the Evolv Shift XT can house a 240 radiator in the top to cool even the most powerful systems.

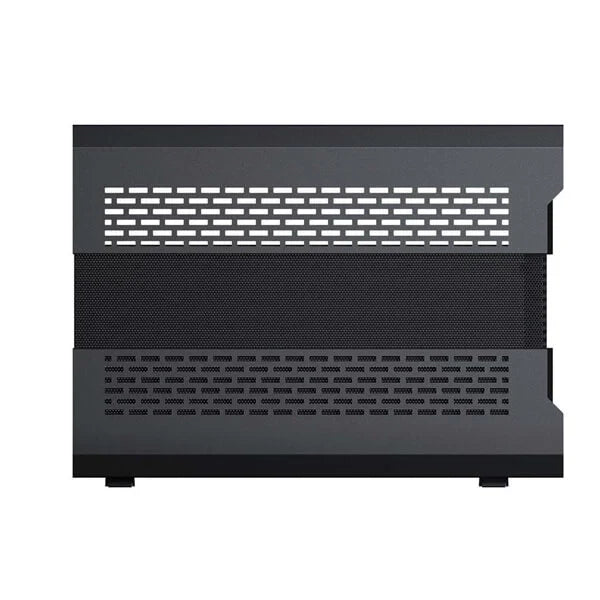

Being part of the Phanteks Evolv series, the Evolv Shift XT offer premium build quality and components using thick anodized aluminum panels, PCI-e X16 Gen4 riser cable and USB-C Gen2 front IO. Performance is uncompromised with Ultra-Fine Mesh panels and vented aluminum panels while providing a clean and stylish appearance with the tempered glass infinity mirror.
- Super compact small form-factor chassis that can be extended to tailor the cooling performance to your needs with 2x 120/140mm fans and/or a 240 AIO liquid cooler support.
- No compromise on performance with support for large 3-slot 324mm GPU’sandbuilt in PCI-e x16 Gen4 Riser Cable.
- Premium build quality known from the Phanteks Evolv series using 2.5mm thick anodized aluminum panels.

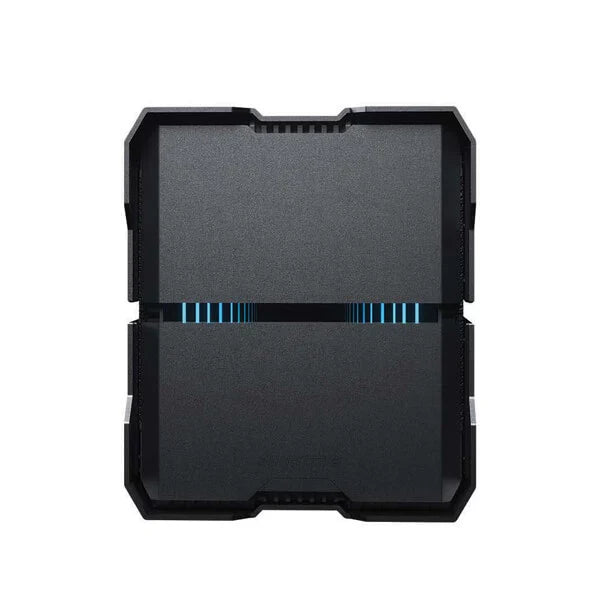

- Integrated D-RGB Infinity mirror with built-in lighting effects that can be expanded and/or synced with other system components.
- Well-thought-out component layout and removable radiator bracket to provide a smooth building process in a small form-factor.

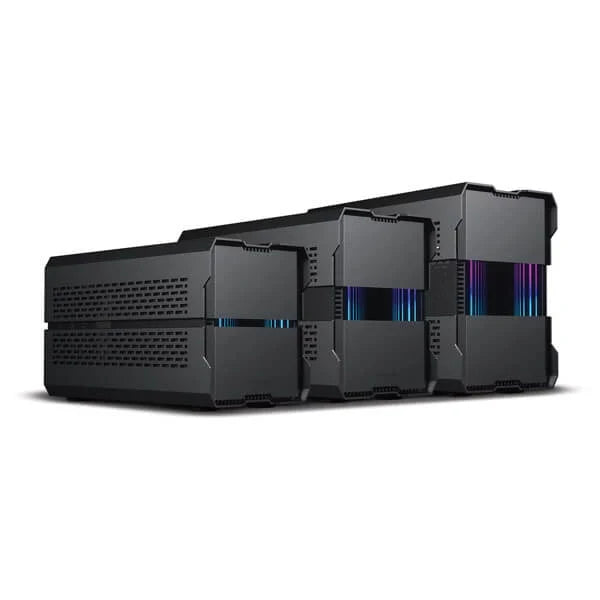

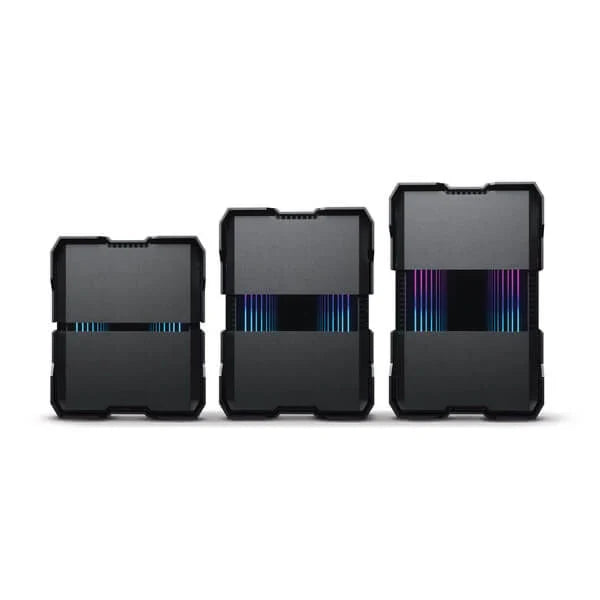

- Unique small form-factor chassis that extends into 3 sizes

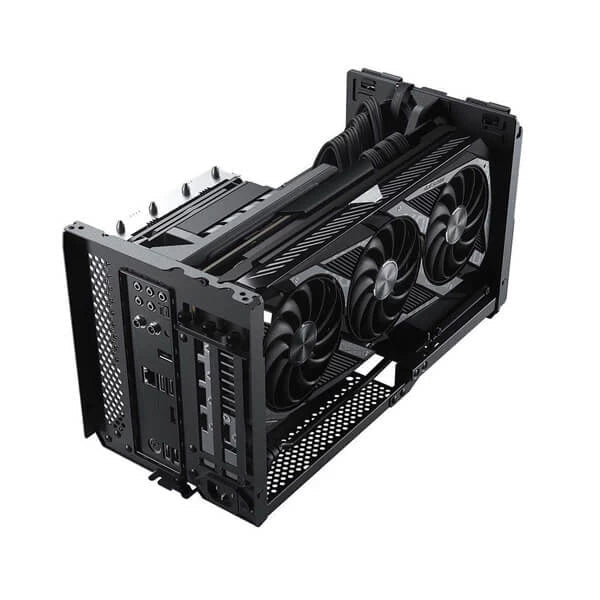

- Full Size GPU Support with Gen4 Riser Cable

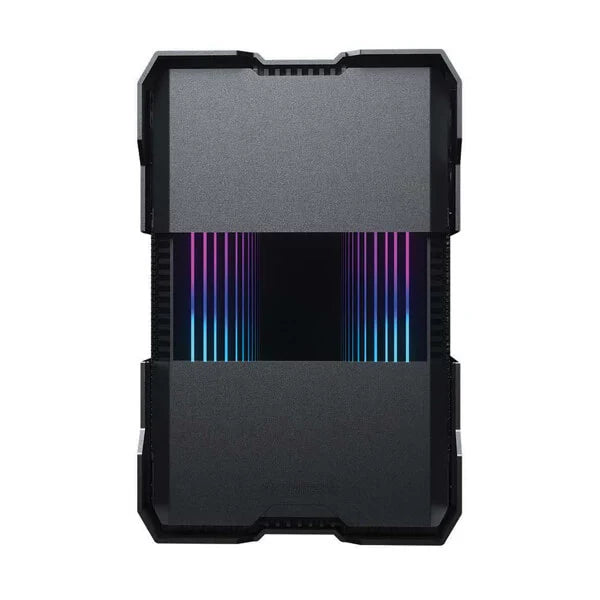

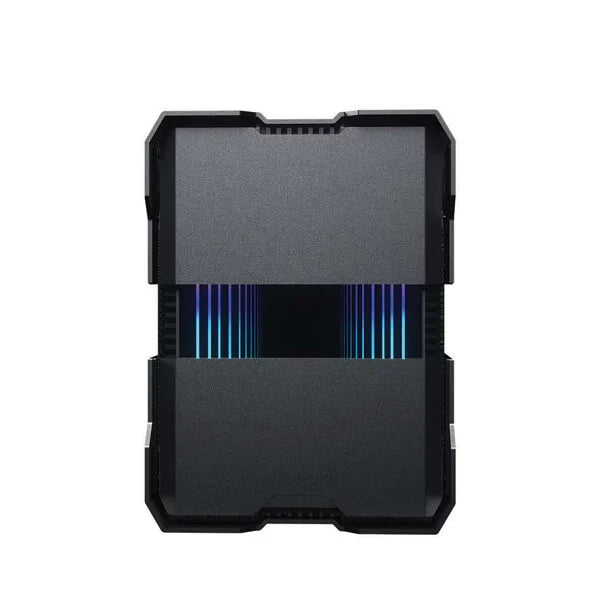

- Premium Aluminum Exterior and Tempered Glass Infinity Mirror
EXTENDING COOLING PERFORMANCE
CHOOSE YOUR MODE

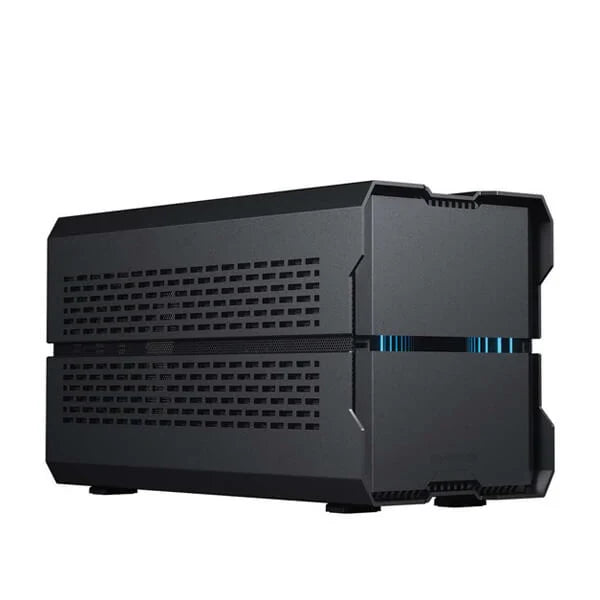

COMPACT
DIRECT FRESH AIR TO ALL SYSTEM COMPONENTS
AIR BOOST
BOOSTED AIR COOLING WITH 2X 120 | 140 FANS IN THE TOP

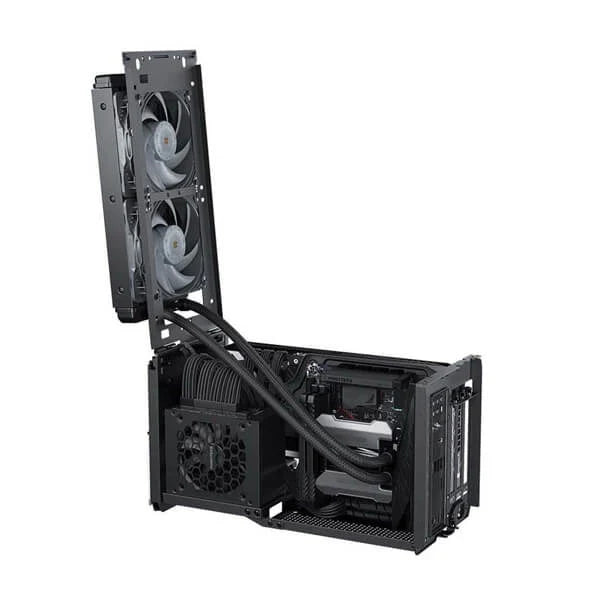

LIQUID COOLED
MAXIMUM COOLING PERFORMANCE WITH A 240 AIO LIQUID COOLER IN THE TOP
FULL SIZE GPU SUPPORT GEN4
BUILD WITH EASE
PREMIUM EXTERIOR
INTEGRATED D-RGB LIGHTING
ADDITIONAL SSD STORAGE
Specifications of PHANTEKS EVOLV Shift XT ITX Mini Tower Cabinet (Satin Black)
| Product Name | Evolv Shift XT |
| Model NO | PH-ES121XT-DBK01 |
| UPC Code | 886523302308 |
| Dimension (DxWxH) |
Small: 371 mm x 173 mm x 211 mm / 14.60 in x 6.81 in x 8.31 in Medium: 371 mm x 173 mm x 244 mm / 14.60 in x 6.81 in x 9.61 in Large: 371mm x 173 mm x 272 mm / 14.60in x 6.81 in x 10.71 in |
| Volume |
Small: 13.5L Medium:15.6L Large:17.4L |
| Form Factor | Small Form-Factor Mini-ITX Chassis |
| Material(s) | Aluminum Panels, Steel Chassis, Tempered Glass Infinity Mirror |
| Motherboard Support | mini-ITX |
| Front I/O | USB-C GEN 2, 1x USB 3.0, LED Mode Button, LED Color Button, Power Button |
| Internal Connectors | Power Switch, D-RGB Expansion, D-RGB Third Party, D-RGB MB Adapter, USB 3.0, USB 3.2 GEN 2 Type-E |
| Riser Cable | PCI-e 4.0 X16 pre-installed |
| Side Window | No, mesh side panels |
| PCI slots &Storage Bays | |
| PCI slots | 3 |
| Internal 3.5” bay | - |
| Internal2.5" bay | 1 |
| Fan Positions | |
| Top |
2x120mm fan 2x140mm fan |
| Radiator Positions | |
| Top | Up to240(120mm Radiator) |
| Clearances | |
| GPU length | 324mm / 12.76in |
| GPU thickness | 3-slot, 62mm / 2.44 in |
| GPU height (from PCI fingers) | 147mm / 5.79 in |
| CPU cooler height | 72mm / 2.83 in |
| Top Radiator Clearance | 315x150mm |
| Top fan Clearance | 32mm thickness |
| Top radiator+fan Clearance | 60mm thickness |
| PSU size | SFX, SFX-L (SFX is recommended) |
| Packaging & Shipping | |
| Dimensions (LxBxH) | 444 x 245 x 285 mm / 17.5 x9.6 x 11.2 in |
| Net Weight | 4.20kg / 9.26lbs |
| Gross Weight | 5.00kg / 11.02lbs |
| 40HQ (without pallet) | 2106 |
| 40FT (without pallet) | 1872 |
| 20FT (without pallet) | 936 |
| Warranty | 5 Years Limited |
| Note | *** Features, Price, Specifications are subject to change without notice. |
