Description

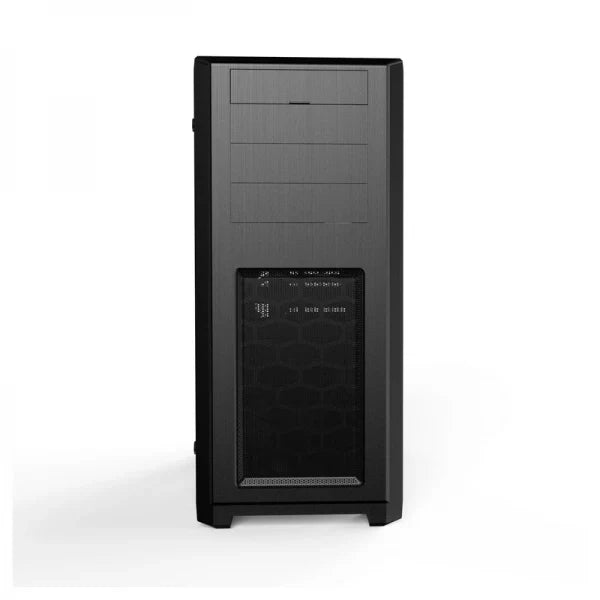

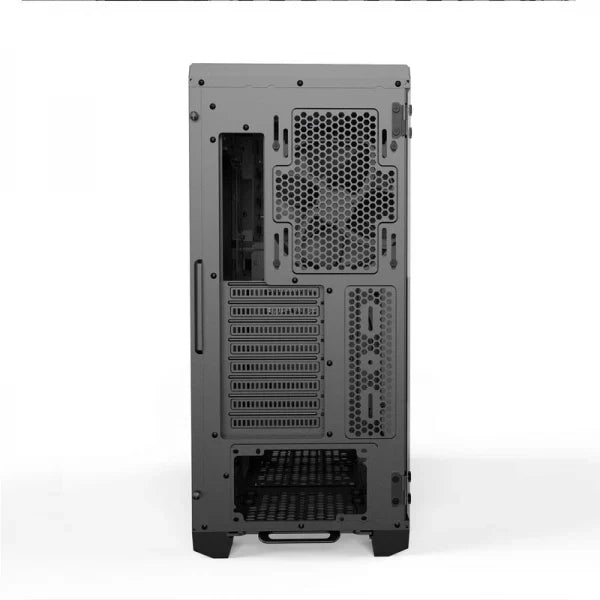

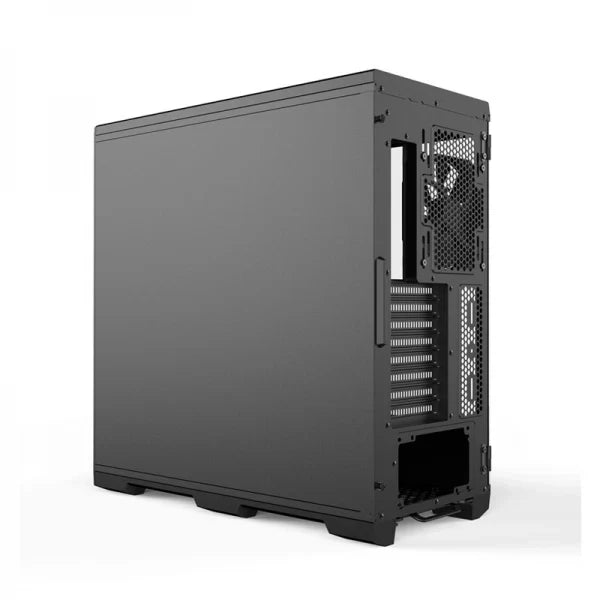

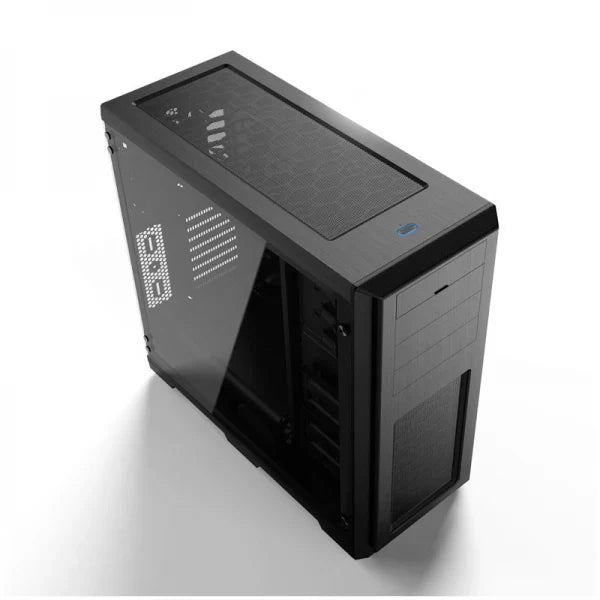

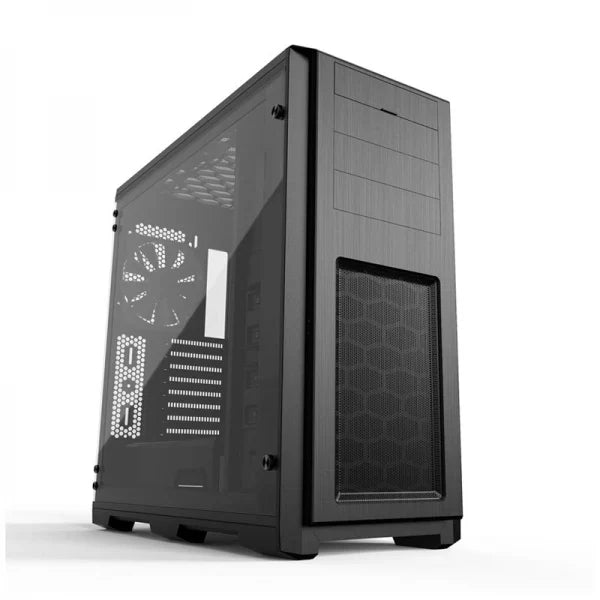

Features of PHANTEKS Enthoo Pro EATX TG Full Tower Cabinet (Black)
The award-winning Enthoo Pro was designed with high performance and flexibility in mind, offering optimized airflow and extensive (water) cooling possibilities for enthusiast systems without the premium price tag. Phanteks CPU Case new Enthoo PRO variant now includes a full Tempered Glass side panel on hinges that makes showcasing your build even better.
Beautifully crafted and engineered to maximize cooling potential with its amazing expansion flexibility, the Enthoo Pro EATX Cabinet is the budget friendly full-tower from Phanteks. Embracing many features from the Enthoo Primo, without the price tag. This case has multiple radiator support, removable ssd bracket, closed HDD panel, and velcro cable management. The Enthoo Pro, trying to establish its own solid reputation like the award winning Enthoo Primo.
Clearances
- Max GPU Length: 347mm (472mm without HDD cages)
- Max CPU Cooler Height: 193mm
- Max PSU Depth: 318mm (inc. cables)
- Cable Management Space: 27 ~ 39mm
- Radiator Clearance: 65mm
- Best cpu case with fan at affordable prices at Brain Tech PC!
Specifications of PHANTEKS Enthoo Pro EATX TG Full Tower Cabinet (Black)
| Dimention | 235mm x 535mm x 550mm (W x H x D) 9.25 in x 21.1 in x 21.7 in |
| Form Factor | Full Tower |
| Material(s) | Brushed Plastic, Steel, Tempered Glass |
| Motherboard Support | E-ATX, ATX, Micro ATX, Mini ITX, SSI EEB |
| Front I/O | 2x USB 3.0, 2x USB 2.0, Mic, Headphone, Reset, LED Control |
| Side Window | Yes, Tempered Glass |
| Expansion & Drive Bays | |
| 5.25" ODD Bays | 3x |
| Expansion Slots | 8x |
| 3.5" / 2.5" bays | 6x |
| Dedicated 2.5" bays | 4x (2x included) |
| Cooling | |
| Front |
2x 120mm (2x Included) 2x 140mm 1x 200mm |
| Top |
3x 120mm 3x 140mm 1x 200mm |
| Rear |
1x 120mm 1x 140mm (1x Included) |
| Bottom |
2x 120mm 1x 140mm (1x Included) |
| HDD Cage | 2x 120mm |
| Liquid Cooling | |
| Front |
120mm Radiator - up to 240mm 140mm Radiator - 140 |
| Top |
120mm Radiator - up to 360mm 140mm Radiator - up to 420mm |
| Rear | 120mm Radiator - 120mm |
| Bottom |
120mm Radiator - up to 240mm 140mm Radiator - 140 |
| Clearence | |
| Graphics Card |
347mm (13.6 in) 472mm (18.5 in) without HDD Cages |
| CPU Cooler | 193 mm (7.6 in) |
| Cable Management | 27 mm (1.06 in) (39 mm / 1.5in at PSU area) |
| PSU (including cable) | 318 mm (12.5 in) |
| Radiator clearance | 65 mm to motherboard (2.55 in) |
| Packaging | |
| Model | PH-ES614PTG |
| Net Weight | 11 KG |
| Gross Weight | 15 KG |
| Package Dimension | 340 mm x 620 mm x 660 mm (W x H x D) |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
