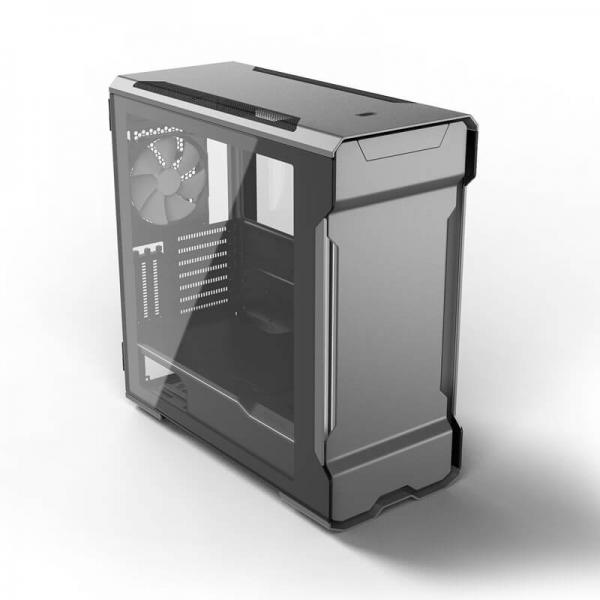

Features of PHANTEKS Enthoo Evolv X EATX Mid Tower Cabinet (Anthracite Grey)

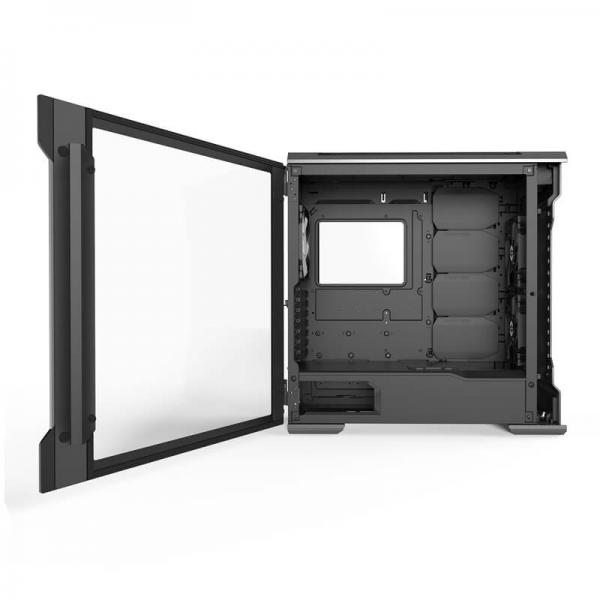

Phanteks Evolv X is a EATX Cabinet that offers dual system capabilities, massive storage, and extensive water-cooling support. The Evolv X features 3mm aluminum exterior with hinged tempered glass for convenient handling. The case has been refined for enhanced airflow by including effective spacing and additional mesh elements. Whether it’s a high-end water-cooling build, professional data storage system or even a dual system PC, the Evolv X can accommodate your desired configuration thanks to the smart interior design that utilized the space efficiently.
- The Evolv X interior is designed in such way that no space is lost, providing you with the ultimate flexibility to customize your desired configuration.
- Whether it’s a high-end watercooling show case, professional data storage system or even a dual-system PC.
- The Evolv X has got you covered while keeping a mid tower form-factor.
EVOLV X
The Phanteks Evolv X is design to utilize space efficiently, providing you with the ultimate flexibility to customize your desired configuration. Whether it's a high-end water-cooling showcase, professional data storage system or even a dual-system pc, the Evolv X makes it possible while maintaining a mid-tower form factor.
Premium
Assembled with premium materials, the Evolv X is the perfect place to display your beautiful work.
Enhanced Cooling
The new Evolv X has been refined with strongly enhanced airflow while maintaining its distinctive character. This includes effective spacing and mesh elements to ensure an impeccable balance between airflow and clean aesthetics.
Universal Fan HUB
Sync your 3-pin or 4-pin fans with your motherboard through one central hub and configure them with the performance and acoustics of your preference.
Design for Water - Cooling
Supports high-end water cooling for both 120 mm and 140 mm form factors.
Dual-Lane Cable ties with a new quick release and fastening system keep your cables organised and accessible at all times.

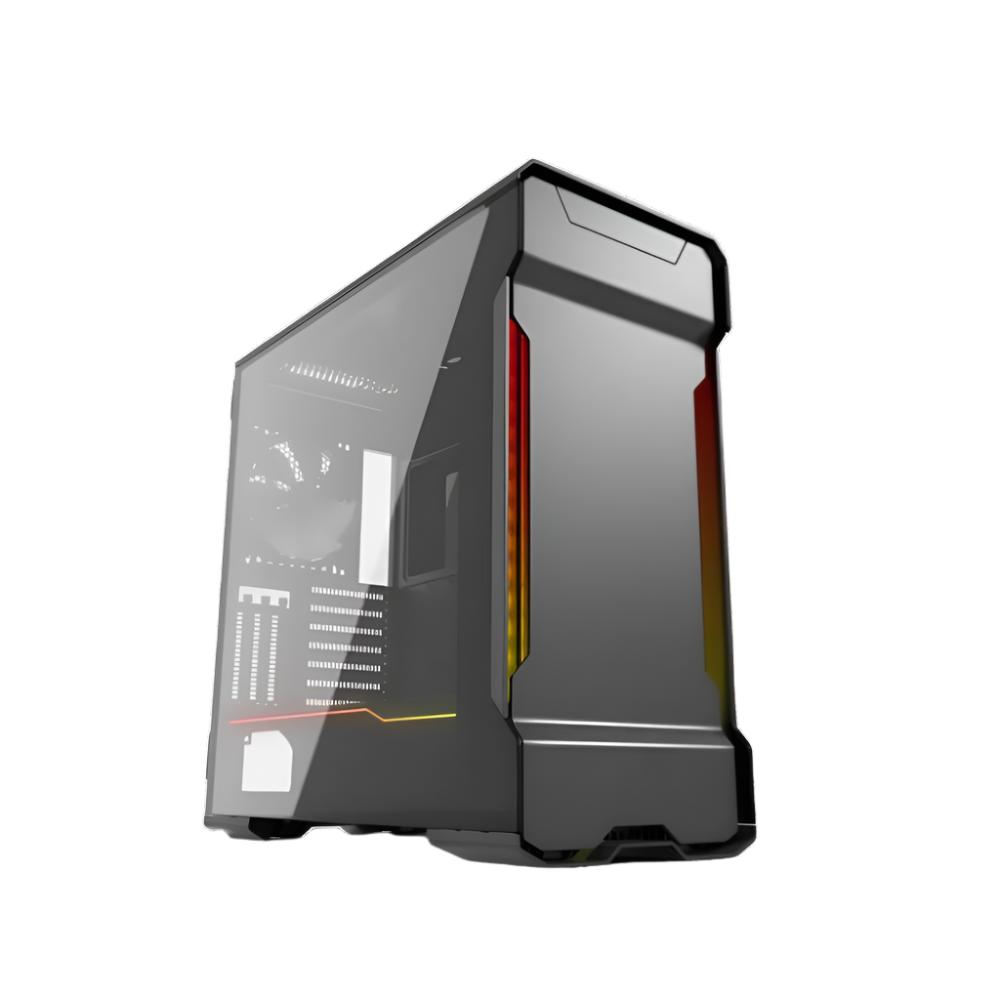

Digital RGB
The Evolv X comes with integrated Digital RGB illumination with tastefully color profiles that leaves an impression.
Dual System Upgrade
The Evolv X supports dual-system computing when combined with the Phanteks Revolt X (dual-system) power supply. it can *support an ITX motherboard installations in the top, allowing for a second system to run simultaneously with your main system. Perfect for a professional streaming setup or home server.
Specifications of PHANTEKS Enthoo Evolv X EATX Mid Tower Cabinet (Anthracite Grey)
| Model | PH-ES518XTG-DAG01 |
| Dimension (WxHxD) | 240 mm x 520 mm x 520 mm (9.45 in x 20.5 in x 20.5 in) |
| Form Factor | Midtower Chassis |
| Material(s) |
Anodized aluminium panels, Powder coated steel chassis,
Tempered glass side panels |
| Motherboard Support | E-ATX, ATX, Micro ATX, Mini ITX |
| Front I/O |
1x USB 3.1 GEN 2 Type-C, 2x USB 3.0, Power button, Microphone, Headphone, D-RGB Mode button, D-RGB Color button |
| Side Window | Yes, Tempered glass (tinted) both sides |
| PCI slots | 7 |
| Internal 3.5'' | 10 (4 Included) |
| Internal 2.5'' | 9 (6 Included) |
| Fan Support |
|
| Radiator Support |
|
| CPU Cooler Clearance | 190mm |
| GPU Clearance | 435mm |
| Front Radiator Fan (thickness) | 95mm |
| Top Radiator Fan (thickness) | 65mm |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
