Description

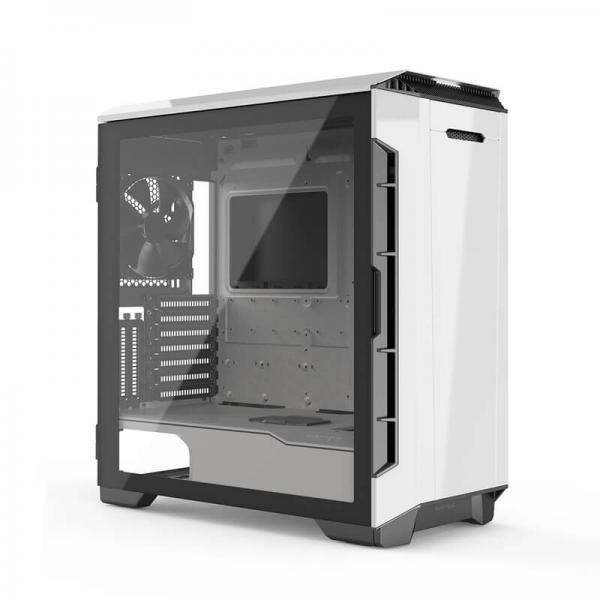

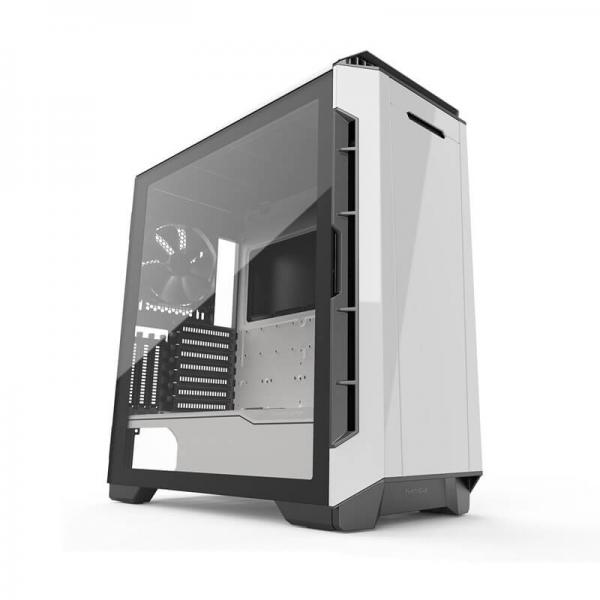

Features of PHANTEKS Eclipse P600S EATX Mid Tower Cabinet (White)
The Phanteks Eclipse P600S is designed to bring you the best of two worlds. A hybrid forged between silent and high-performance chassis. Find the optimal configuration in any situation by switching between quiet or performance mode. Designed with effective soundproofing panels and Phanteks’ new high airflow fabric, the Eclipse P600S offers the full potential of two opposites, minimum noise and maximum airflow.

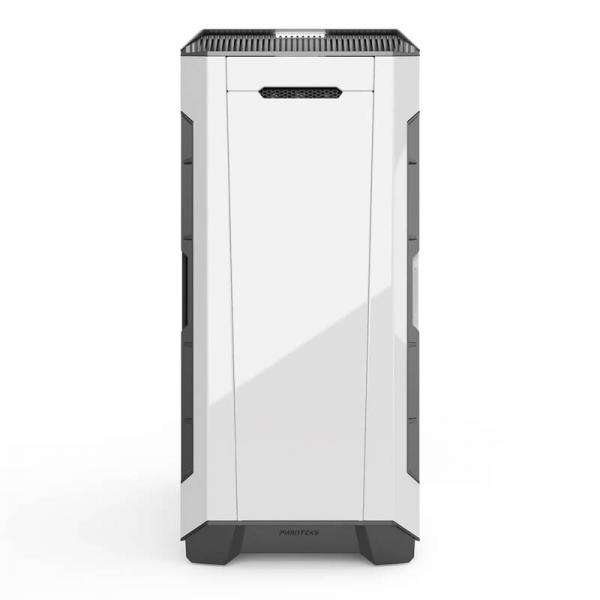

Silent Mode
Find peace and quiet with the P600S EATX Cabinet in silent mode. Weight-reinforced acoustic panels reduces all unwanted noise.
High-Performance Mode
Instantly switch to high-performance mode by removing the acoustic panels to reveal Phanteks' High-Airflow Fabric Mesh for maximum Case Airflow.
Silent Mode Effective Soundproofing
The P600S can be set in silent mode that dampens internal hardware sound considerably while allowing sufficient case airflow, thanks to the effective soundproofing panel design.
Multiple Layers of sound insulations stops high-frequency and low-frequency soundwaves.
The effective soundproofing panel design breaks down internal sound waves in multiple sections before they can exit the case, while allowing sufficient airflow to pass through.

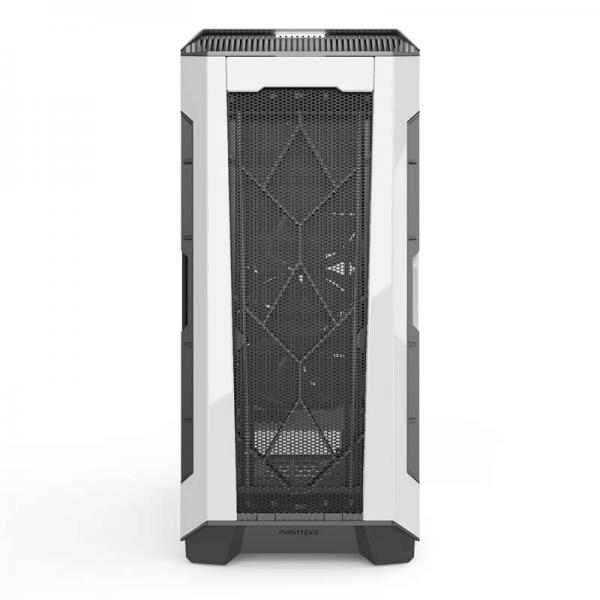

High-Airflow Mode Maximum cooling capacity
The Eclipse p600S can be easily switched silent mode to High-Airflow mode and vice versa. In High-Airflow Mode, the case airflow can be maximised when soundproofing panels are remove to reveal Phanteks' High-Airflow Fabric Mesh.
Phanteks' new High-Airflow Fabric Mesh is made from highly breathable technical textile, that allows even more airflow pass-through than traditional mesh panels.
Cooling Capacity
The Eclipse P600S utilizes it's chassis size and form to provide a range of possibilities when it comes to installing radiators and fans. This case supports 120 mm and 140 mm fans and radiators in the following arrangements and flexible to mix-and-match sizes.
Universal Fan HUB
Sync Your 3-pin or 4-pin fans with your motherboard through one central hub and configure them with the performance and acoustics of your preference.
Storage Capacity
With the Capacity to install up to 10x 3.5'' hard drives and a more than capable 3x SSD drives, you will never run out of space. with all of this flexibility you are free customize your build even further.
Specifications of PHANTEKS Eclipse P600S EATX Mid Tower Cabinet (White)
| Model | PH-EC600PSTG_WT01 |
| Dimension | 240 mm x 520 mm x 510 mm (W x H x D) 9.5 in x 20.5 in x 20.1 in |
| Form Factor | Midtower |
| Materials |
Powder coated steel chassis, Tempered glass side panel,
Sound Dampening Panels |
| Motherboard | ATX, Micro ATX, Mini ITX,E-ATX *(up to 280mm wide) |
| Front I/O |
1x USB 3.1 GEN 2 Type-C, 2x USB 3.0, Power button, Microphone,
Headphone, Reset |
| Side Window | Tempered Glass (also available with closed panel) |
| PCI Slots | 7 |
| Internal 3.5'' | 10 (4 Included) |
| Internal 2.5'' | 3 (3 Included) |
| Fan Support |
|
| Radiator Support |
|
| CPU Cooler Clearance | 190mm |
| GPU Clearance | 435mm |
| With 3.5'' HDD bracket installed | 294mm |
| Front Radiator Fan (thickness) | 95mm |
| Top radiator Fan (thickness) | 65mm |
| Motherboard | E-ATX up to 280mm wide |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
