Description
Features of PHANTEKS Eclipse G500A DRGB EATX Mid Tower Cabinet (Black)

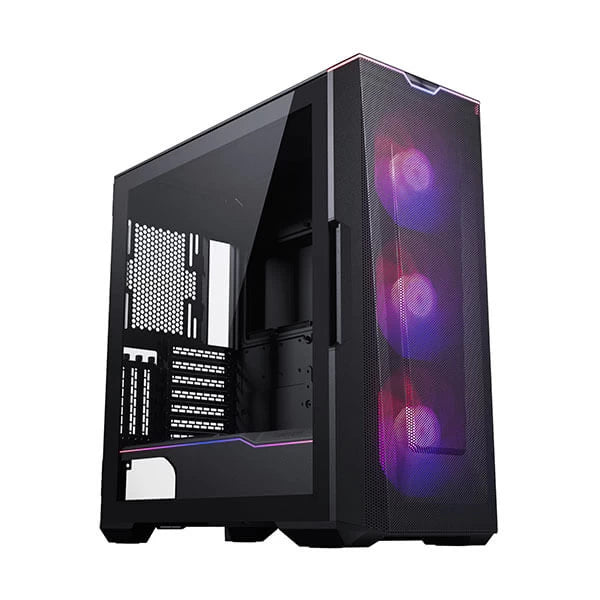

The PHANTEKS Eclipse G500A DRGB EATX Cabinet pushes the limit with its high airflow design to unlock next-gen CPU and GPU performance. Both the front and top panels feature Phanteks' Ultra-fine Performance Mesh design that combines high airflow performance with excellent dust filtration, all-in-one. With its spacious interior, the G500A is ready for powerful gaming setups, offering 420 radiator in the front, 360 radiator in the top, while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and a vertical GPU mounting option.

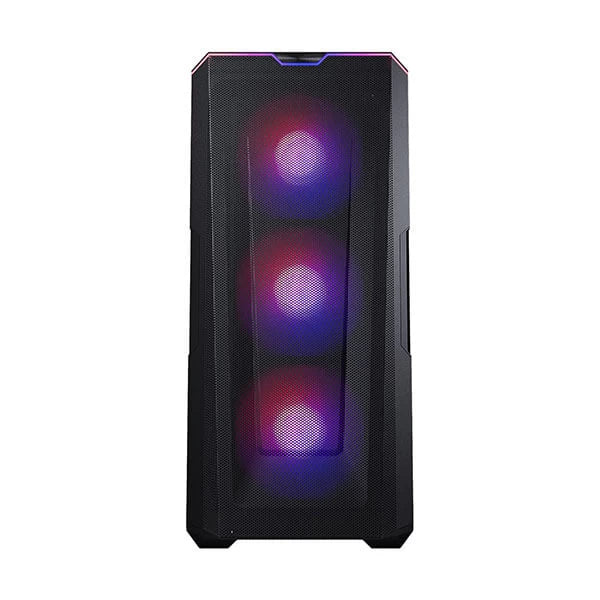

The integrated D-RGB lighting can be easily connected to a A/D-RGB equipped motherboards and expanded with more D-RGB products. The G500A Base comes with 2 LED strips built into the front and side pre-installed.
- High airflow design

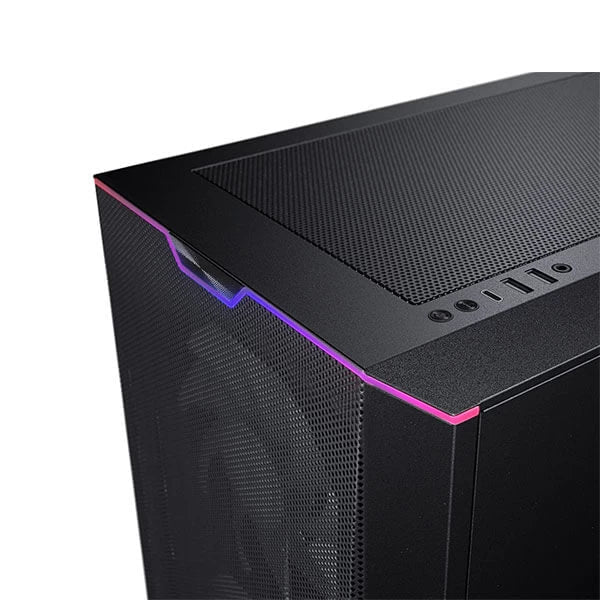

- Both the front and top panels feature Phanteks' Ultra-fine Performance Mesh design that combines high airflow performance with excellent dust filtration, all-in-one. The Ultra-fine Performance Mesh lowers flow restriction while being easy to clean.
- Extensive radiator support
- With its spacious interior, the G500A is ready for powerful gaming setups. Offering up to 420 radiators in the front, 360 radiators in the top, while having plenty of space for full-length GPUs to unlock next-gen hardware performance.
- Clean cable management and flexible storage options
- The G500A provides plenty of Velcro ties to tie down all cables with cover doors to keep everything clean and convenient. In addition to the 3x dedicated SSD brackets, the cover doors also offer space for 3x SSDs each to offer more flexibility. Two Stackable HDD bays are included and can be further upgraded up to a total of 10 HDD bays.

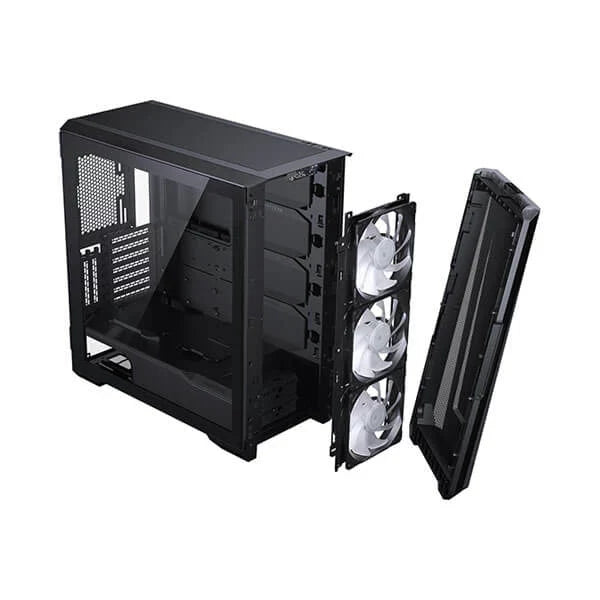

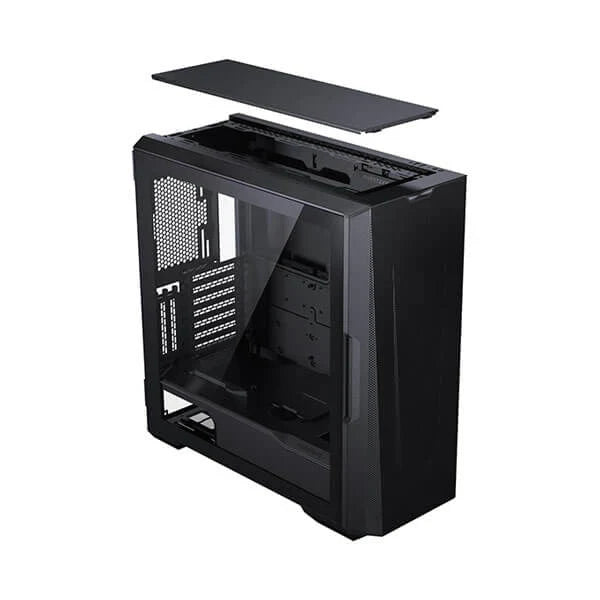

High airflow design
Both the front and top panels feature Phanteks' Ultra-fine Performance Mesh design that combines high airflow performance with excellent dust filtration, all-in-one. The Ultra-fine Performance Mesh lowers flow restriction while being easy to clean.

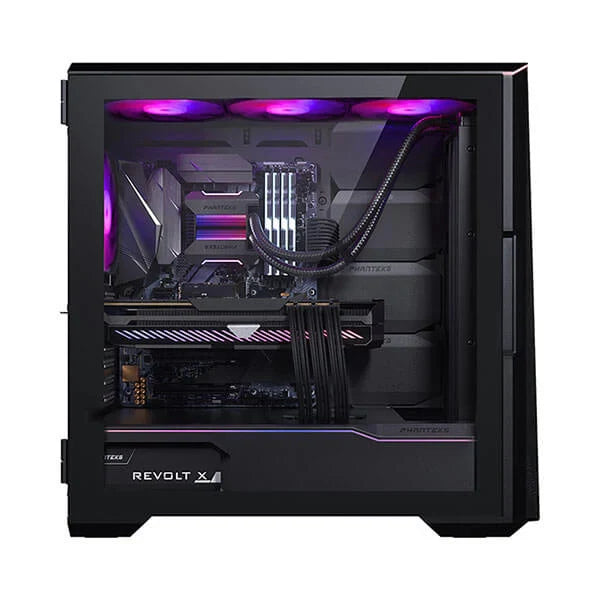

Extensive radiator support
With its spacious interior, the G500A Phanteks CPU Case is ready for powerful gaming setups. Offering up to 420 radiators in the front, 360 radiators in the top, while having plenty of space for full-length GPUs to unlock next-gen hardware performance.

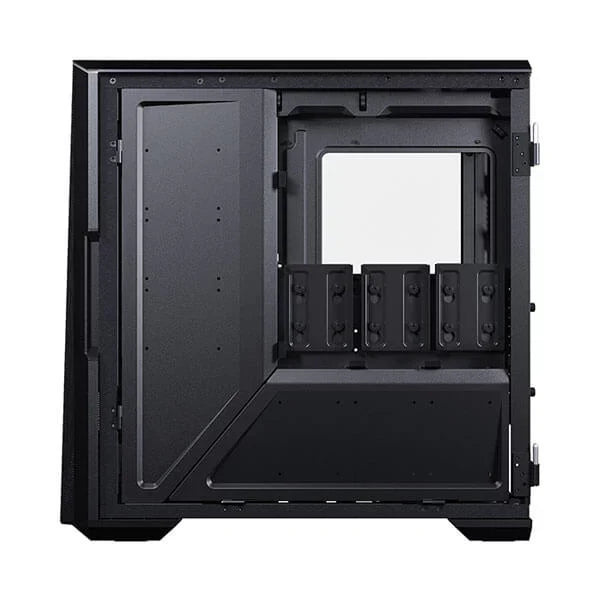

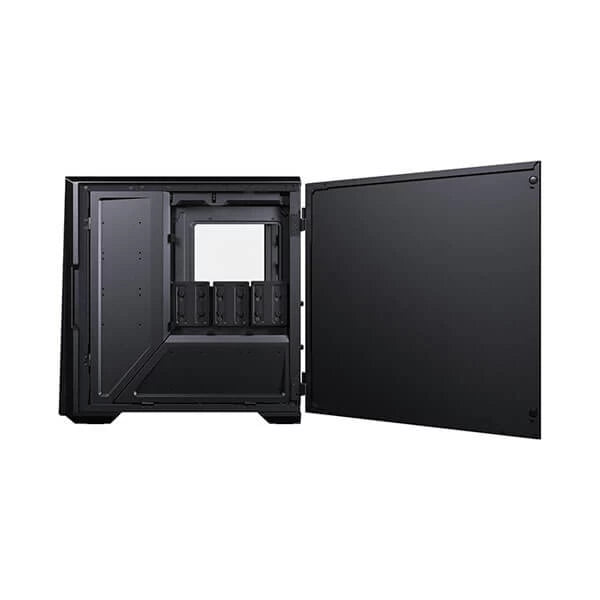

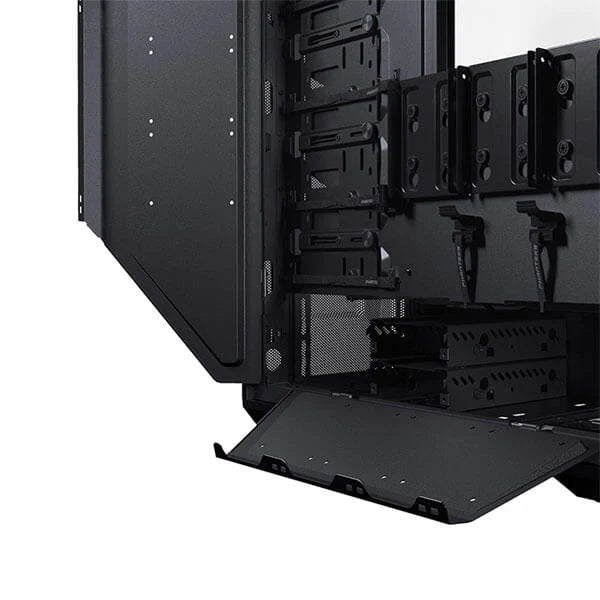

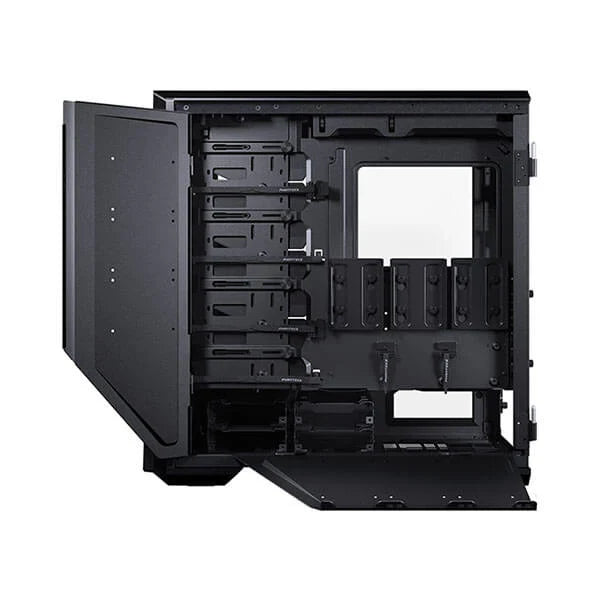

Clean cable management and flexible storage options
The G500A provides plenty of Velcro ties to tie down all cables with cover doors to keep everything clean and convenient. In addition to the 3x dedicated SSD brackets, the cover doors also offer space for 3x SSDs each to offer more flexibility. Two Stackable HDD bays are included and can be further upgraded up to a total of 10 HDD bays.
Get the affordable cpu case with fan with the huge variety with us!
Specifications of PHANTEKS Eclipse G500A DRGB EATX Mid Tower Cabinet (Black)
| Model Name | Eclipse G500A Black |
| Model No. | PH-EC500GA-DBK01A |
| Case Dimention | 500 x 240 x 515 mm/ 19.7 x 9.4 x 20.3 in |
| Form Factor | Mid Tower |
| Materials | Steel Chessis,Tempered Glass |
| MotherBoard Support | E-ATX(up to 280mm wide), ATX, micro-ATX, mini-ITX |
| Front IO | 1x USB 3.2 GEN 2 Type-C 2x USB 3.0 Microphone/Headphone combo Power Button DRGB Mode Button DRGB Colour Button |
| Connectors | Power Switch D-RGB Expansion D-RGB Third Party D-RGB Motherboard HD-Audio USB 3.0 USB 3.2 GEN 2 Type-E SATA Power |
| Side Window | Tempered Glass Side Panel |
| PCle Slots | 7 |
| Vertical GPU | Yes, With Optional Vertical GPU Bracket |
| Internal 3.5'' bay | 10(2xincluded) |
| Internal 2.5'' bay | 9(2xincluded) |
| Total Fan Mounts | 7x 120mm/ 7 x 140mm |
| Front Fan | 3 x 120mm/ 3 x 140mm(3x140mm D-RGB included) |
| Top Fan | 3 x 120mm/ 3 x 140mm |
| Rear Fan | 1 x 120mm/1 x 140mm |
| Included Fans | 3 x M25-140 PWM D-RGB Black |
| Front Radiator | up to 360mm/ up to 420 mm |
| Top Radiator | up to 360mm/ up to 280 mm |
| Rear Radiator | 120 |
| GPU Length | 435mm/17.2in |
| CPU Cooler Height | 185mm/7.3in |
| PSU | 195 mm or 250 mm(4 HDD brackets/2 HDD brackets used) |
| Front Panel fan thickness | 33mm for fan or radiator |
| Front 360 radiator thickness | 90mm thickness |
| Front 420 radiator | Maximum size: 142 x 475 x 90 mm |
| Top 360 radiator thickness | 70mm thickness |
| Package Dimension | 325 x 610 x 610 mm |
| Net Weight | 10.53 /10.68 KG |
| Gross Weight | 12.70 / 12.85 KG |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
