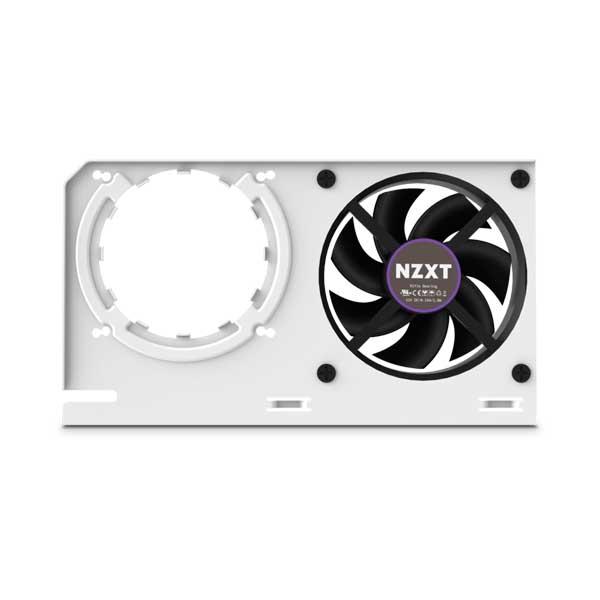

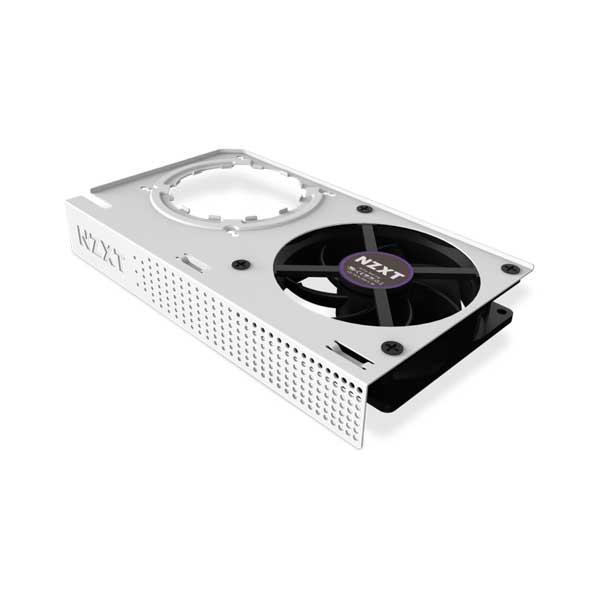

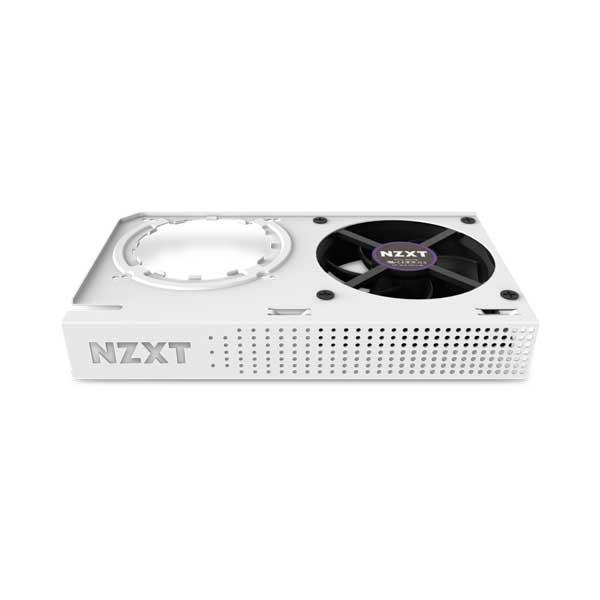

Features of NZXT Kraken G12 Mounting Kit ( Matte White )

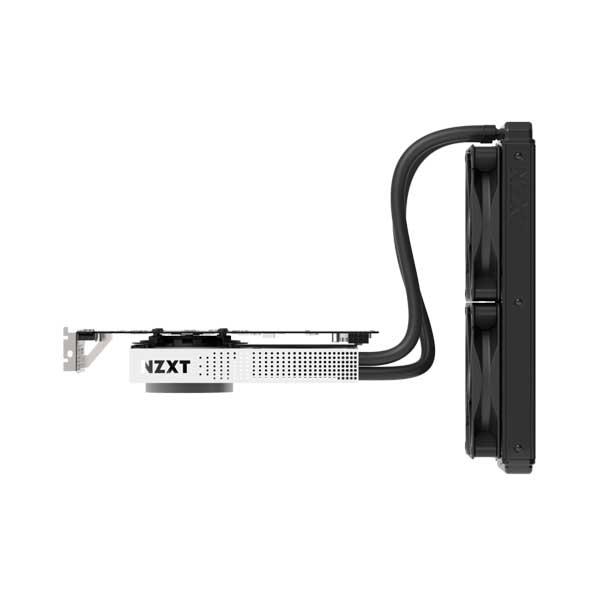

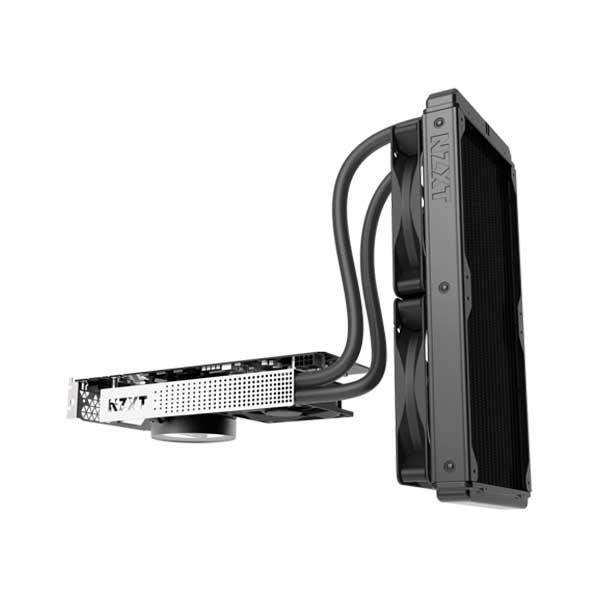

This installation bracket allows NZXT Kraken AIOs to be directly mounted to a GPU without the maintenance of a custom loop.
- Supports the latest Krakens Z53/Z63/Z73/X53/X63/X73/X42/X52/X62/72
- Converts GPU’s stock cooling to liquid cooling with average 40% increase in cooling capacity
- Supports both AMD and NVIDIA graphics cards–reference and most non-reference design
- Compatible with over 30 liquid coolers and 40 different GPUs
- 92mm fan for active VRM cooling with space for aftermarket VRM heatsinks
Nvidia GPU Compatibility
- GeForce RTX* 2080**, 2080 Ti**, 2070**, Titan X, Titan, Geforce GTX 1080 Ti, 1080, 1070, 1060, 980 Ti, 980, 970, 960, 780 Ti, 780, 770, 760***, 680, 670, 660Ti, 660, 580, 570 *RTX uses the ""A"" brackets for mounting **Supports referenced-based design only. ***Supports long PCB variant only due to PCIe power connector interference.
AMD GPU Compatibility
- RX 590, 580, 570, 480, 470, R9 390X**, 390*, 380X**, 380, 290X**, 290**, 285*, 280X**, 280**, 270X, 270, R7 370, HD7970**, 7950**, 7870, 7850, 6970, 6950, 6870, 6850, 6790, 6770, 5870, 5850, 5830 *Supports long PCB variant only due to PCIe power connector interference. **Some variations in AMD die height may require the use of a copper shim which is not included.
GPU Known Incompatibility
- Nvidia GeForce RTX 2060
- AMD RX Vega 64
AIO Liquid Cooler Compatibility
- NZXT: Kraken Z73, Z63, Z53, X73, X63, X53, X72, X62, X52, X42, X61, X41, X31, X60, X40
- Corsair: H105, H110, H90, H75 (CW-9060015-WW only), H55, H50 (CW-906006-WW only)
- Thermaltake: Water 3.0 Riing RGB 360, 280, 240, Red 280, 140 - Water 3.0 Ultimate - Extreme S, Extreme, Pro, Performer - Water 2.0 Extreme, Pro, Performer
- Antec: KUHLER H2O 920V4, 620V4, 920, 620
- Zalman: LQ-320, LQ-315, LQ-310
NZXT Kraken G12 Mounting Kit ( Matte White )
- Enhance Your Gpu Cooling
- Comprehensive Compatibility
- Active Cooling For VRM
- Easy Installation
Specifications of NZXT Kraken G12 Mounting Kit ( Matte White )
| Model Number | RL-KRG12-W1 |
| Dimensions | 201 x 113 x 32 mm |
| Material(s) | Steel and Plastic |
| Fan Dimensions | 92 x 92 x 25 mm |
| Fan Speed | 1,500 RPM |
| Fan Connector | 3-pin |
| Fan Bearing | Rifle Bearing |
| Fan Rated Voltage | 12V DC, 0.18A, 2.16W |
| Compatibility - Graphic Cards |
Nvidia Geforce RTX 2080*, 2080 Ti*, Titan X, Titan, Geforce GTX 1080 Ti, 1080, 1070, 1060, 980 Ti, 980, 970, 960, 780 Ti, 780, 770, 760, 680, 670, 660Ti, 660, 580, 570 AMD RX 480, 470, R9 390X**, 390**, 380X**, 380, 290X**, 290**, 285**, 280X**, 280**, 270X, 270, R7 370, HD7970**, 7950**, 7870, 7850, 6970, 6950, 6870, 6850, 6790, 6770, 5870, 5850, 5830 *RTX uses the "A" brackets for mounting. **Some variations in AMD die height may require the use of a copper shim which is not included. |
| Compatibility - AIO Liquid Coolers |
NZXT Kraken X72, X62, X52, X42, X61, X41, X31, X60, X40 Corsair H105, H110, H90, H75 (CW-9060015-WW only), H55, H50 (CW-906006-WW only) Thermaltake Water 3.0 Riing RGB 360, 280, 240, Red 280, 140, Water 3.0 Ultimate, Extreme S, Extreme, Pro, Performer Water 2.0 Extreme, Pro, Performer Antec KUHLER H2O 920V4, 620V4, 920, 620 Zalman LQ-320, LQ-315, LQ-310 |
| Warranty | 2 years |
| Note | ***Features, Price, and specifications are subject to change without notice. |
