Description

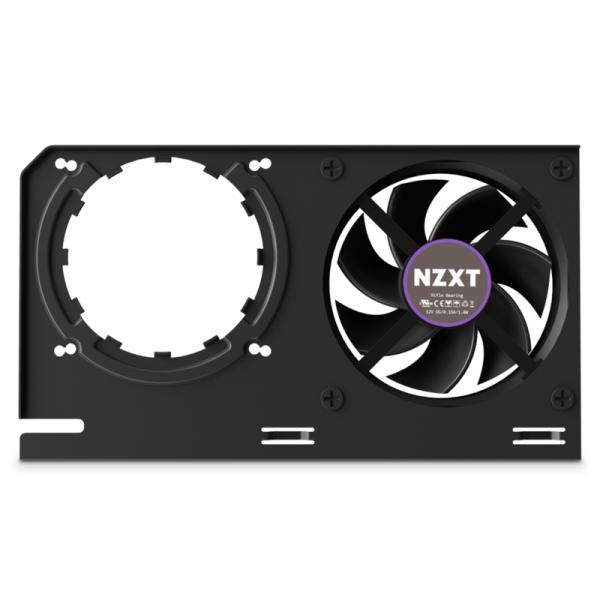

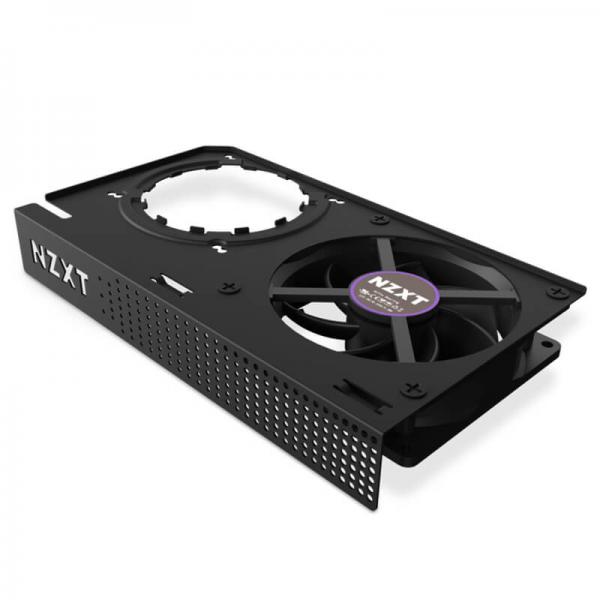

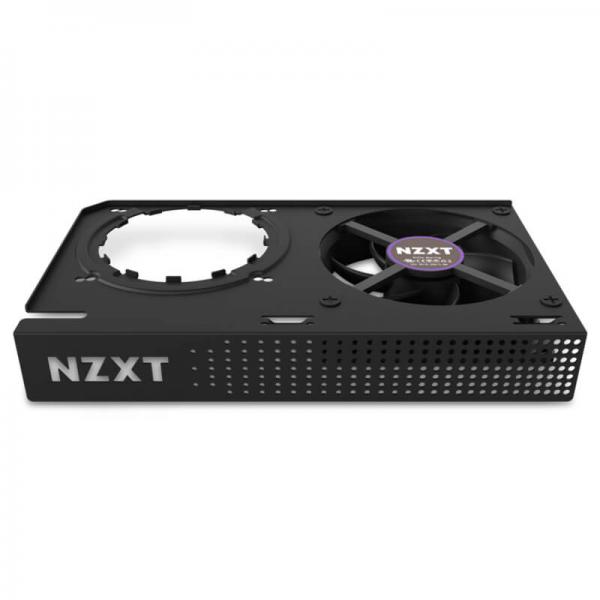

Features of NZXT Kraken G12 Mounting Kit
Quickly mount any Kraken X-Series liquid cooler onto graphics cards with the Kraken G12 mounting kit. It delivers a 40% increase in cooling capacity over stock cooling, and features a newly designed bracket with an easier installation process versus the Kraken G10. Plus, the G12 is compatible with more than 30 liquid coolers on the market.
ENHANCE YOUR GPU COOLING
With a 40% increase in cooling capacity compared to stock cooling, you’ll maximize your GPU clock speeds for higher performance and better frame rates from your graphics processor. COMPREHENSIVE COMPATIBILITY
The G12 supports both reference and non-reference design AMD and NVIDIA GPUs, for more than 30 liquid coolers, including aftermarket VRM heatsinks. ACTIVE COOLING FOR VRM
Comes with a 92mm fan, providing active cooling for the VRM and memory on the graphics card. EASY INSTALLATION
Designed for a fast and easy installation, you can now lay the graphic card flat as you install the Kraken G12. Score serious liquid cooling on your GPU in a matter of minutes.
This installation bracket allows NZXT Kraken AIOs to be directly mounted to a GPU without the maintenance of a custom loop.
- Supports the latest Krakens Z53/Z63/Z73/X53/X63/X73/X42/X52/X62/72
- Converts GPU’s stock cooling to liquid cooling with average 40% increase in cooling capacity
- Supports both AMD and NVIDIA graphics cards–reference and most non-reference design
- Compatible with over 30 liquid coolers and 40 different GPUs
- 92mm fan for active VRM cooling with space for aftermarket VRM heatsinks
Nvidia GPU Compatibility
- GeForce RTX* 2080**, 2080 Ti**, 2070**, Titan X, Titan, Geforce GTX 1080 Ti, 1080, 1070, 1060, 980 Ti, 980, 970, 960, 780 Ti, 780, 770, 760***, 680, 670, 660Ti, 660, 580, 570 *RTX uses the ""A"" brackets for mounting **Supports referenced-based design only. ***Supports long PCB variant only due to PCIe power connector interference.
AMD GPU Compatibility
- RX 590, 580, 570, 480, 470, R9 390X**, 390*, 380X**, 380, 290X**, 290**, 285*, 280X**, 280**, 270X, 270, R7 370, HD7970**, 7950**, 7870, 7850, 6970, 6950, 6870, 6850, 6790, 6770, 5870, 5850, 5830 *Supports long PCB variant only due to PCIe power connector interference. **Some variations in AMD die height may require the use of a copper shim which is not included.
GPU Known Incompatibility
- Nvidia GeForce RTX 2060
- AMD RX Vega 64
AIO Liquid Cooler Compatibility
- NZXT: Kraken Z73, Z63, Z53, X73, X63, X53, X72, X62, X52, X42, X61, X41, X31, X60, X40
- Corsair: H105, H110, H90, H75 (CW-9060015-WW only), H55, H50 (CW-906006-WW only)
- Thermaltake: Water 3.0 Riing RGB 360, 280, 240, Red 280, 140 - Water 3.0 Ultimate - Extreme S, Extreme, Pro, Performer - Water 2.0 Extreme, Pro, Performer
- Antec: KUHLER H2O 920V4, 620V4, 920, 620
- Zalman: LQ-320, LQ-315, LQ-310
Specifications of NZXT Kraken G12 Mounting Kit
| Model Number | RL-KRG12-B1 |
| Dimensions | 201 x 113 x 32 mm |
| Material(s) | Steel and Plastic |
| Fan Dimensions | 92 x 92 x 25 mm |
| Fan Speed | 1,500 RPM |
| Fan Connector | 3-pin |
| Fan Bearing | Rifle Bearing |
| Fan Rated Voltage | 12V DC, 0.18A, 2.16W |
| Compatibility - Graphic Cards |
Nvidia
Geforce RTX 2080*, 2080 Ti*, Titan X, Titan, Geforce GTX 1080 Ti, 1080, 1070, 1060, 980 Ti, 980, 970, 960, 780 Ti, 780, 770, 760, 680, 670, 660Ti, 660, 580, 570 AMD RX 480, 470, R9 390X**, 390**, 380X**, 380, 290X**, 290**, 285**, 280X**, 280**, 270X, 270, R7 370, HD7970**, 7950**, 7870, 7850, 6970, 6950, 6870, 6850, 6790, 6770, 5870, 5850, 5830 *RTX uses the "A" brackets for mounting. **Some variations in AMD die height may require the use of a copper shim which is not included. |
| Compatibility - AIO Liquid Coolers |
NZXT
Kraken X72, X62, X52, X42, X61, X41, X31, X60, X40 Corsair H105, H110, H90, H75 (CW-9060015-WW only), H55, H50 (CW-906006-WW only) Thermaltake Water 3.0 Riing RGB 360, 280, 240, Red 280, 140, Water 3.0 Ultimate, Extreme S, Extreme, Pro, Performer Water 2.0 Extreme, Pro, Performer Antec KUHLER H2O 920V4, 620V4, 920, 620 Zalman LQ-320, LQ-315, LQ-310 |
| Warranty | 2 years |
| Note | ***Features, Price, and specifications are subject to change without notice. |
