NZXT H9 Flow RGB Plus 2025 Edition EATX Mid Tower Cabinet (Black)

Features of NZXT H9 Flow RGB Plus 2025 Edition EATX Mid Tower Cabinet (Black)

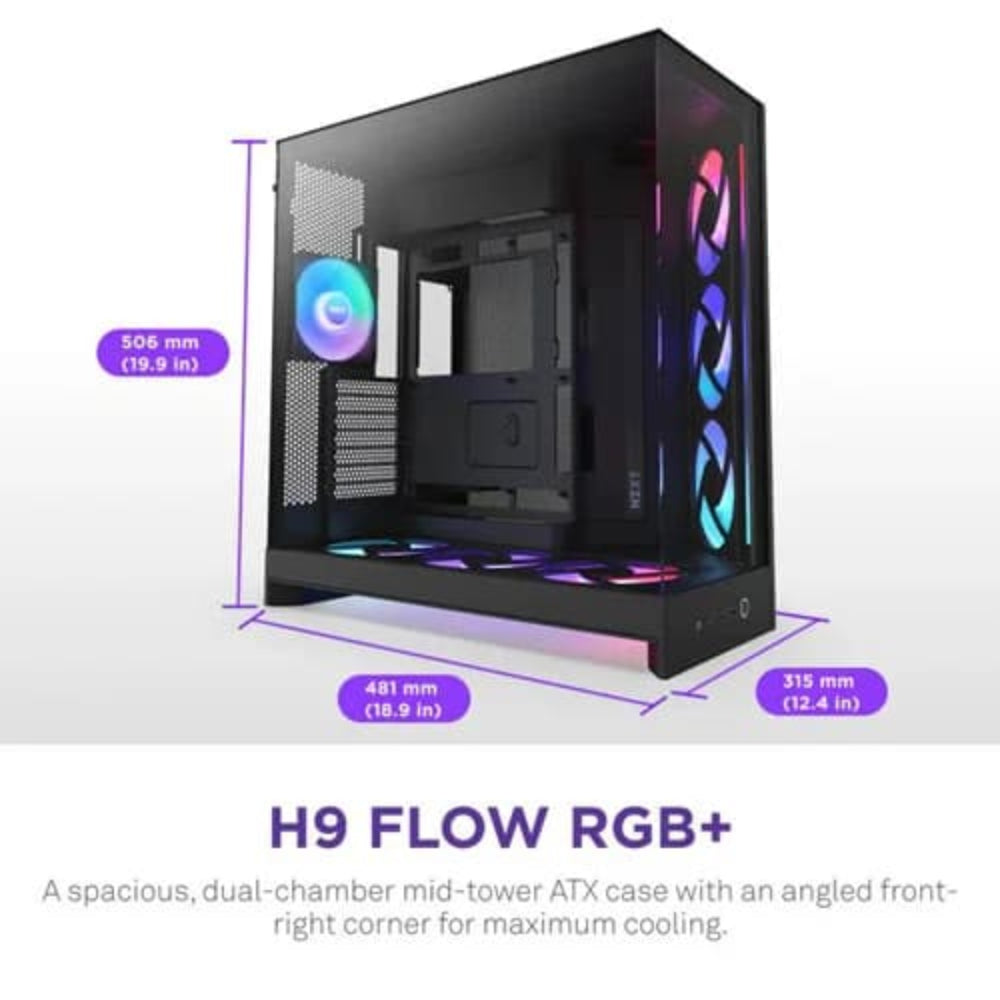

H9 Flow RGB+Large Dual-Chamber Mid-Tower ATX Airflow Case with RGB and Control Hub

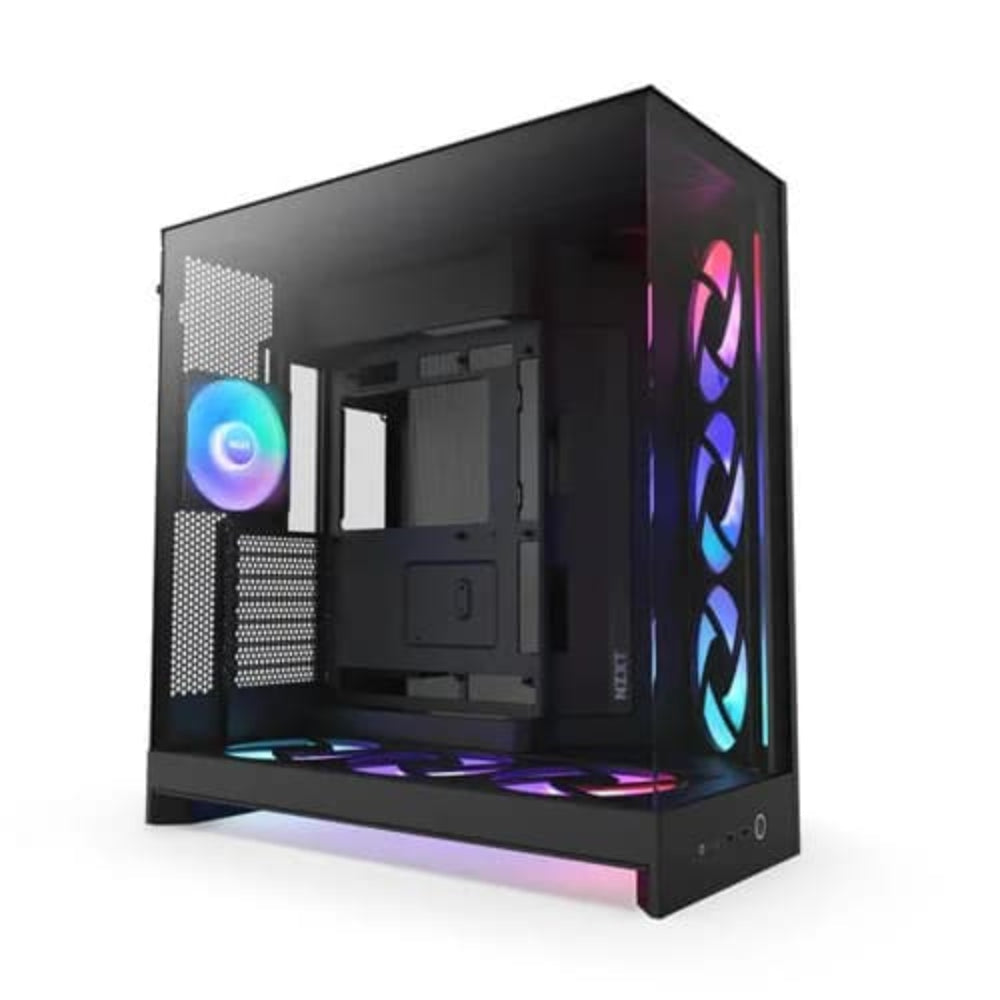

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

• Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
• Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

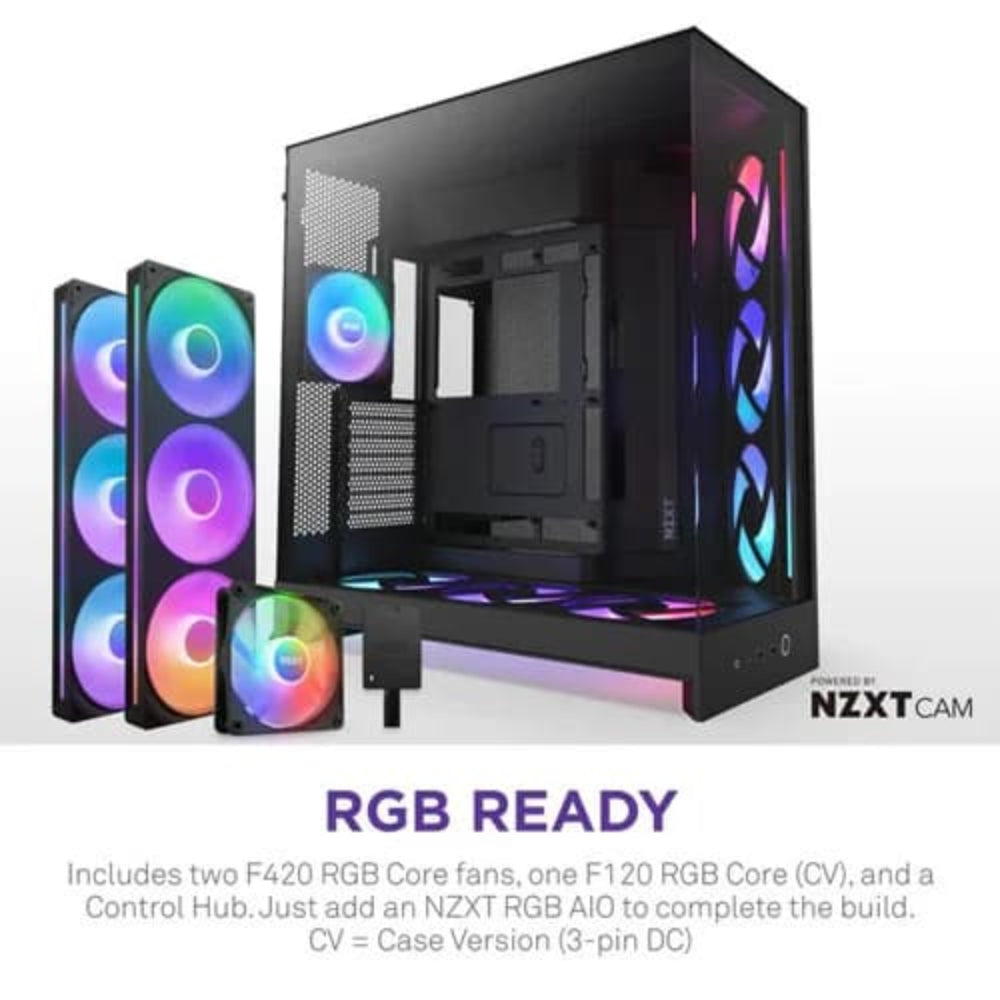

• RGB Ready: Includes two F420 RGB Core single-frame fans, one F120 RGB Core (CV) fan in the rear, and an NZXT Control Hub. CV = Case Version (3-pin DC)
• Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
• Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
• Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
• Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
• Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

Optimized Airflow

Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.

Mesh Panels

Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.

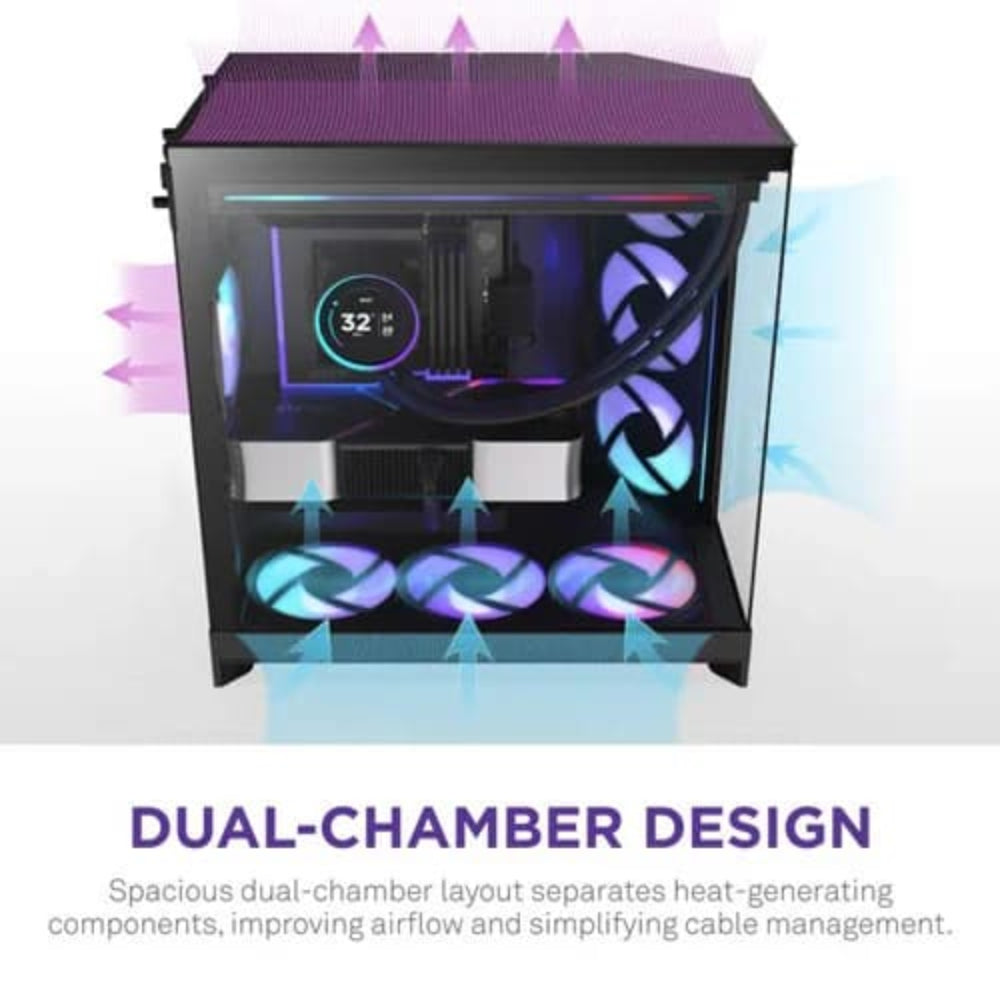

Spacious Dual-Chamber

Separates heat-generating components for improved airflow and a cleaner build.

10-Fan Cooling

Fits up to nine 140 mm fans and one 120 mm rear fan.

Large Radiator Support

Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.

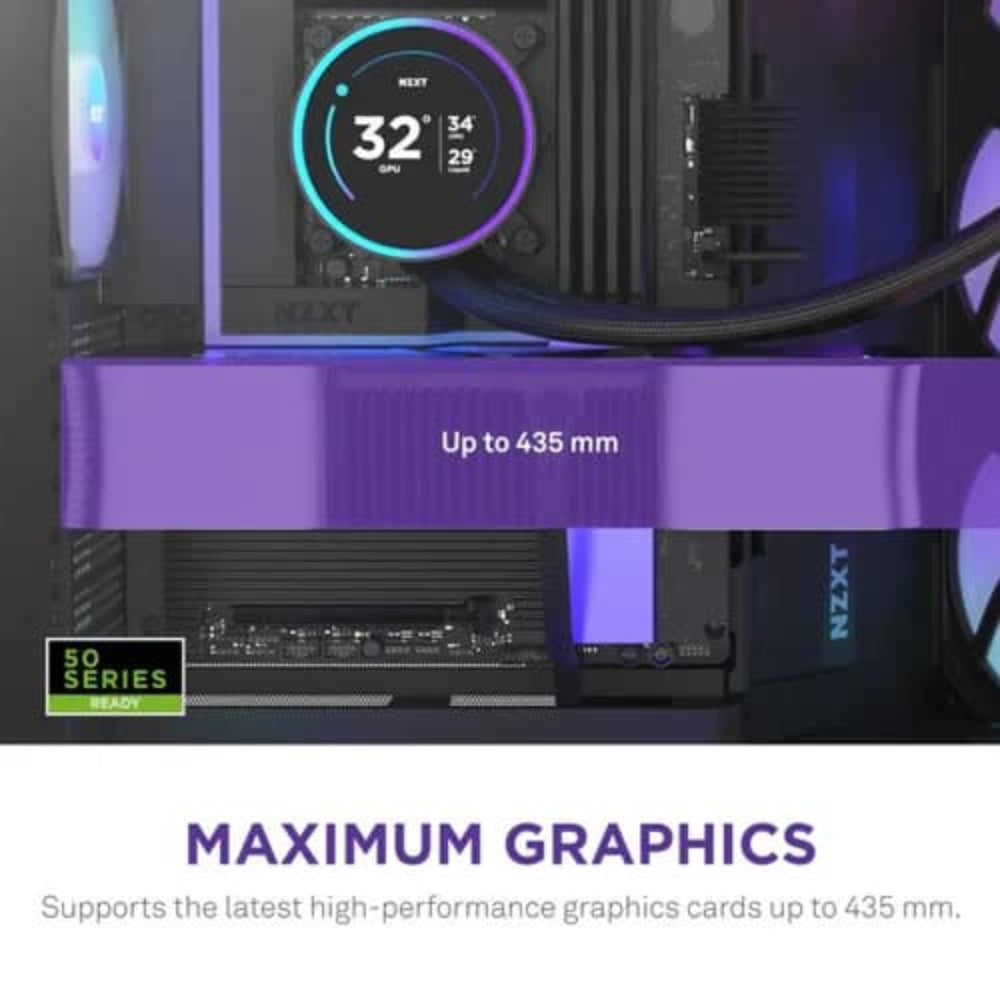

Maximum Graphics

Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.

Back-Connect Ready

Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

Easy Cable Management

Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.

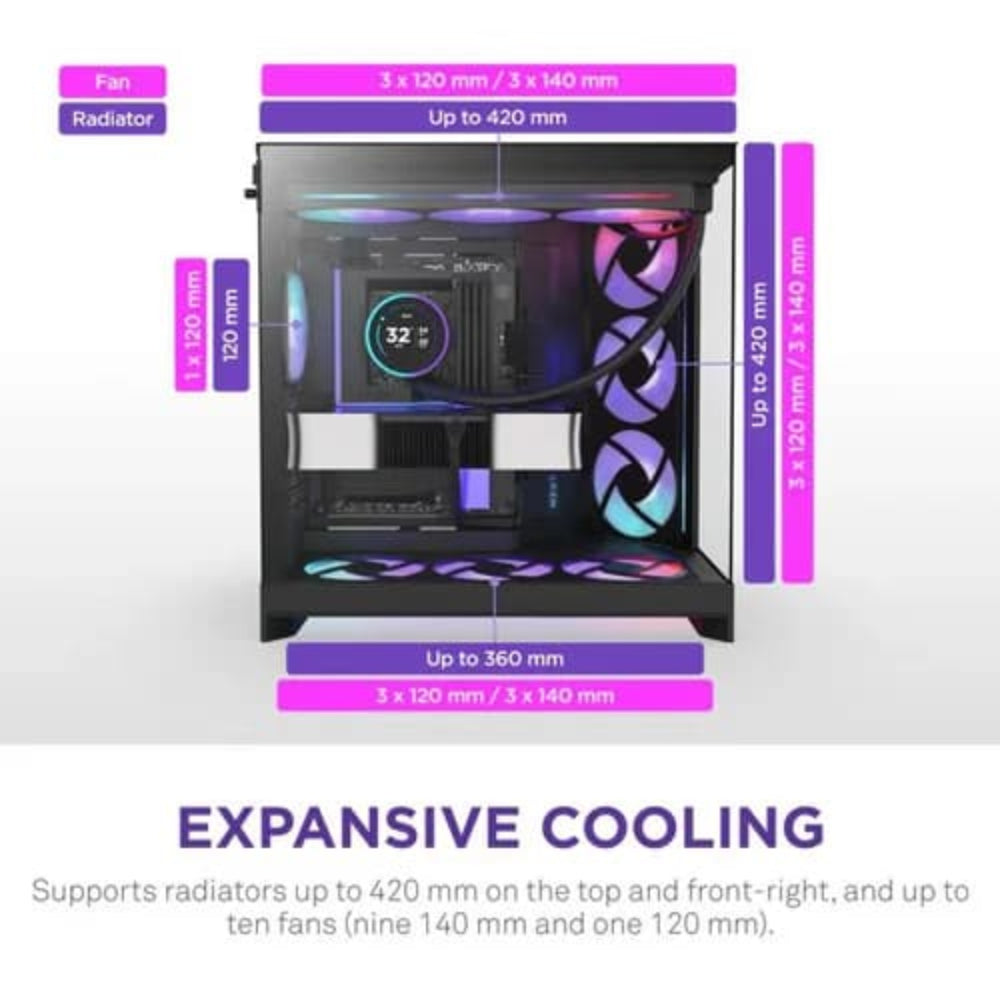

Fan Support

• Front-Right: 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
• Top: 3 x 120 mm / 3 x 140 mm
• Bottom: 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
• Rear: 1 x 120 mm (1 x F120 RGB (CV) included)

Radiator Support

• Front-Right: Up to 420 mm
• Top: Up to 420 mm
• Bottom: Up to 360 mm
• Rear: Up to 120 mm

Fan Specs - F420 RGB Core

• Model: F420 RGB Core
• Speed: 2,000 ± 200 RPM
• Airflow: 98.61 CFM
• Static Pressure: 3.2 mmH2O
• Noise: 34.5 dBA
• Fan Connector: 8-pin

Fan Specs - F120 RGB Core (CV)

• Model: F120 RGB Core (CV)
• Speed: 1,300 ± 130 RPM
• Airflow: 55.17 CFM
• Static Pressure: 1.27 mmH2O
• Noise: 26.1 dBA
• Fan Connector: 3-pin

Specifications of NZXT H9 Flow RGB Plus 2025 Edition EATX Mid Tower Cabinet (Black)
