Feature of NZXT H7 Flow RGB EATX Mid Tower Cabinet 2024 Edition (White)
NZXT H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
- Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

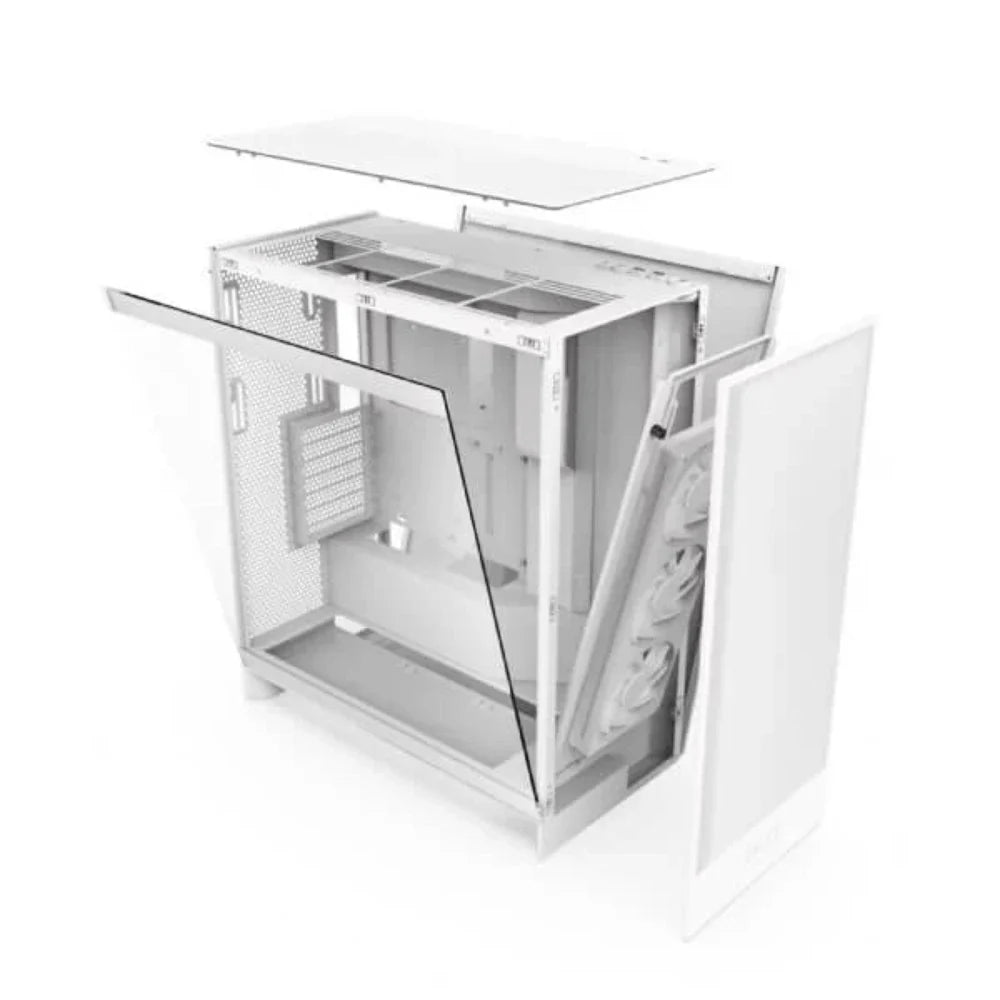

- Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Specifications of NZXT H7 Flow RGB EATX Mid Tower Cabinet 2024 Edition (White)
| Model: | CM-H72FW-R1 |
| Colour: | White |
| Key Specs | |
| Motherboard Support: | E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type: | Mid-Tower |
| Case Material: | SGCC Steel, Ultra-Clear Tempered Glass (White) |
| Dimensions | |
| Height (With Feet): | 544 mm |
| Width: | 244 mm |
| Depth: | 468 mm |
| Weight: | 11.13 kg |
| Fan Support | |
| Front: | 3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included) |
| Top: | 3 x 120 mm / 2 x 140 mm |
| Bottom: | 3 x 120 mm |
| Rear: | 1 x 120 mm / 1 x 140 mm |
| Filters: | High-Performance Mesh |
| Compatibility & Clearance | |
| CPU Cooler Height: | Up to 185mm |
| GPU Length: | Up to 410 mm |
| PSU Length: | Up to 200 mm |
| Cable Management: | Up to 34.5 mm |
| Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: | Up to 57 mm |
| Radiator Support | |
| Front: | Up to 420 mm |
| Top: | Up to 360mm |
| Rear: | Up to 140mm |
| Fan Specs | |
| Model: | F360 RGB Core Fan (Case Version) |
| Speed: | 1,700 ± 200 RPM |
| Airflow: | 50.1 CFM |
| Static: | 1.27 mm-H₂O |
| Noise: | 23.3 dBA |
| Fan Connector: | 3-pin |
| Expansion Slots | |
| Standard: | 7 |
| Vertical: | 0 |
| Drive Bays | |
| 2.5" | 2+2 |
| 3.5" | 2 |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Warranty: | 2 Years |
| Note: | *** Features, Price, Specifications are subject to change without notice. ***Images are for representation purpose only |
