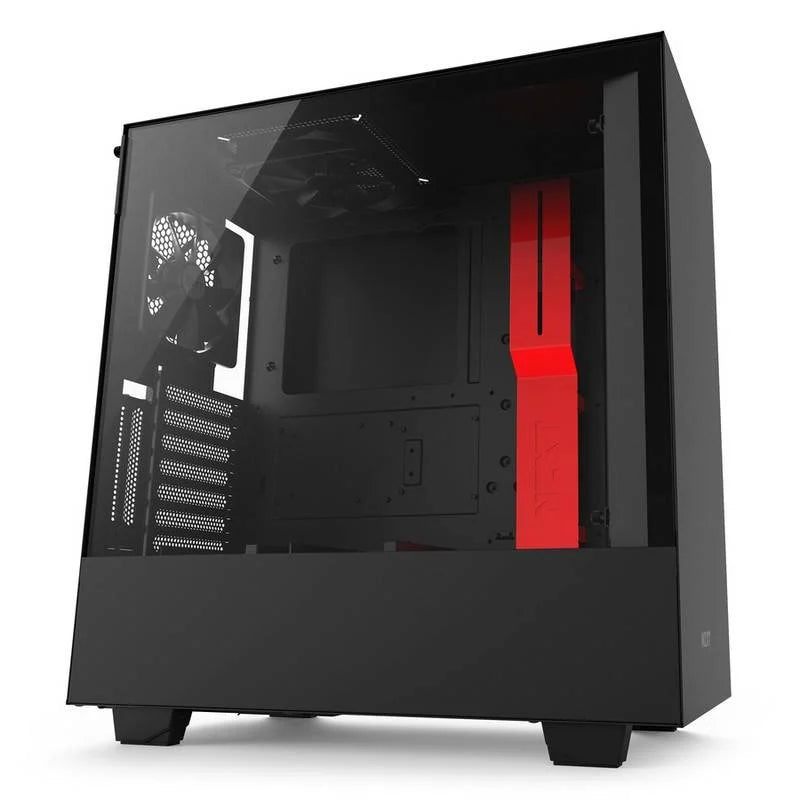

Features of NZXT H500i ATX Mid Tower Cabinet ( Black-Red )
The H500i compact ATX Cabinet features a unique CAM-powered Smart Device that digitally drives RGB lighting and fan performance. You can effortlessly control RGB lighting and fans, while Adaptive Noise Reduction optimizes your build’s acoustics delivering ideal fan settings through machine learning. Includes two Aer F fans* and two RGB LED strips to enhance the aesthetics of your build as seen through the H500i’s stunning tempered glass panel.
- CAM-powered Smart Device to simplify installation and manage use of RGB lighting and fans
- Premium, all-steel construction with the sleek H Series design; available in four color combinations
- Tempered glass panel showcases custom RGB lighting along with the vertical GPU mount
- Water-cooling installation simplified for both AIO and custom loop
- Adaptive Noise Reduction optimizes cooling and noise balance for best gaming comfort
- System installation and expansion made easy with all-new cable management system
SMART CONTROLS THAT MATTER
The H500i’s NZXT Case unique Smart Device includes features from our HUE+ and GRID+ V3 digital controllers, allowing for effortless control of RGB lighting and fans through CAM software. Customized lighting is streamlined with two integrated and individually addressable RGB LED strips. Don’t waste time checking compatibility, installing, or manipulating physical buttons; our out-of-the box, elegantly controlled CAM software is all you need.
BEAUTIFUL CRAFTSMANSHIP

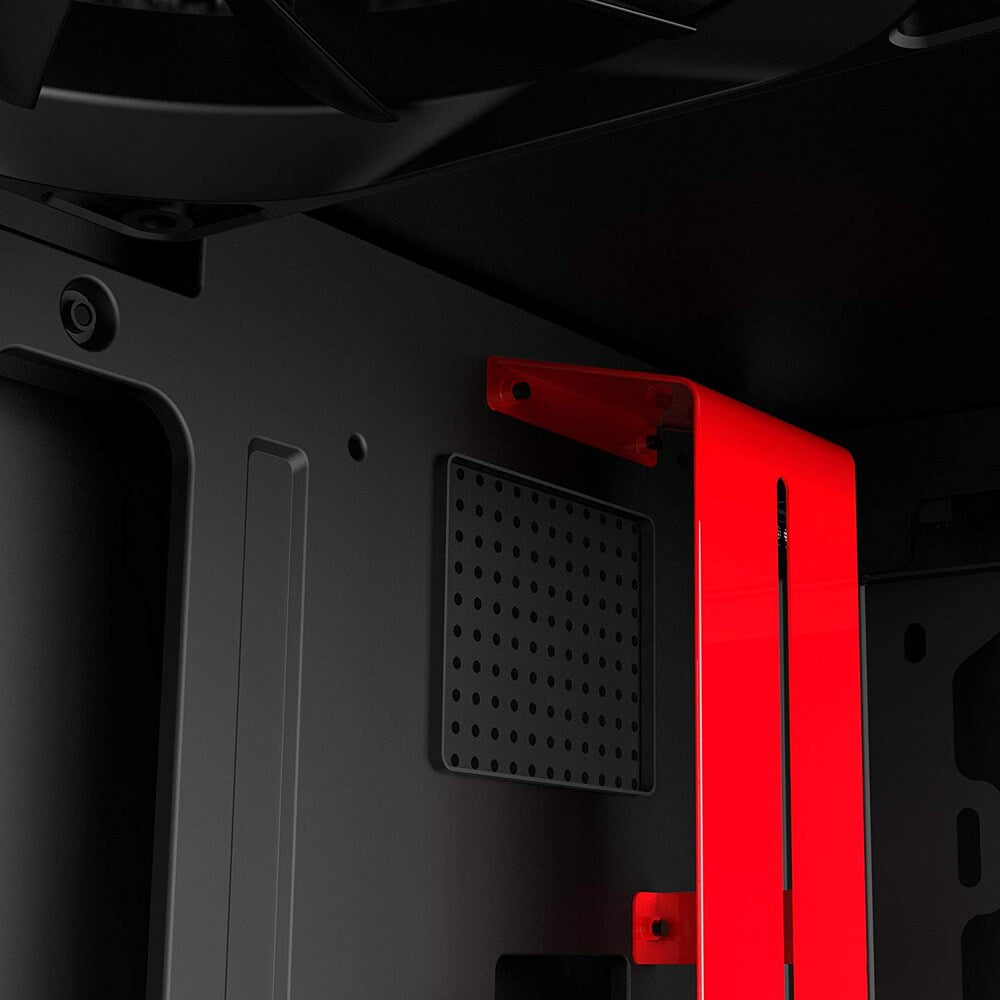

The H500i is available in four color combinations to match your taste. Its all-steel construction is beautified by the tempered glass panel, signature PSU shroud and iconic cable bar to showcase your beautiful build. You can even showcase your GPU using the vertical GPU mount bracket included.
ENJOYABLE BUILDS FOR ALL

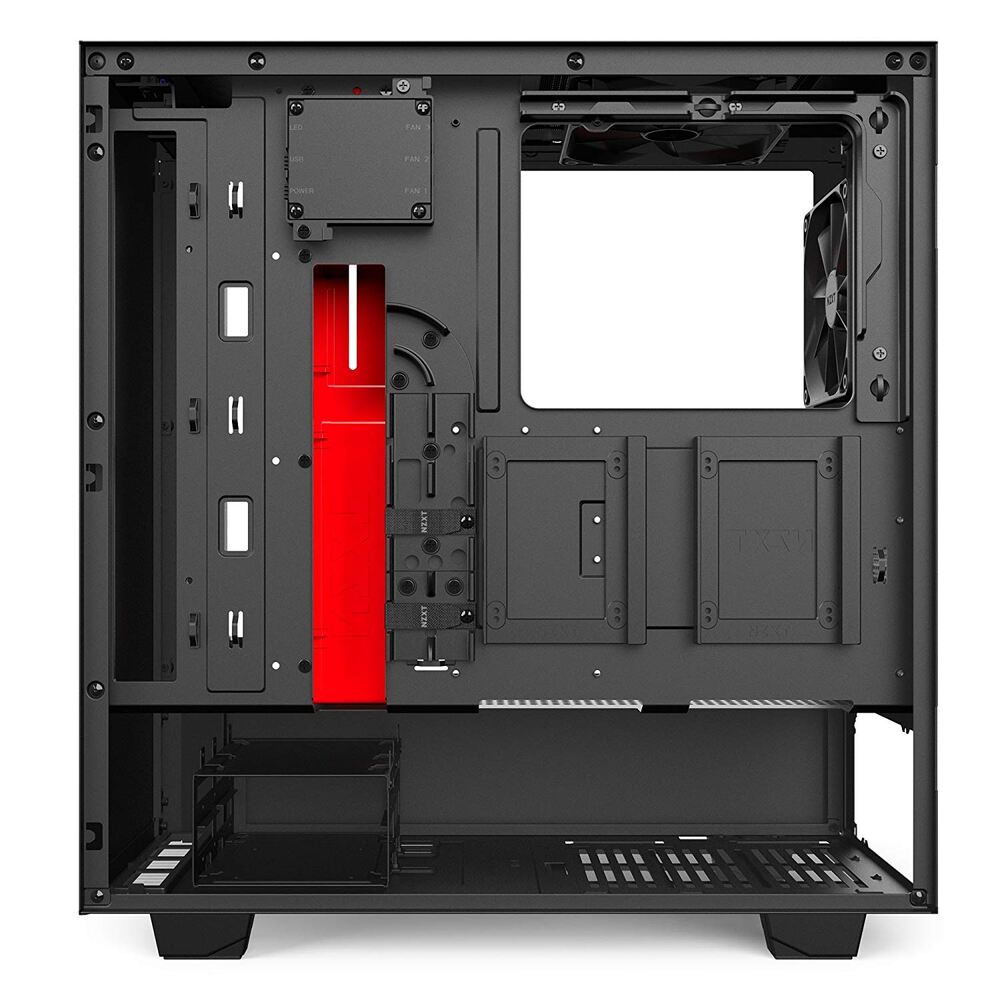

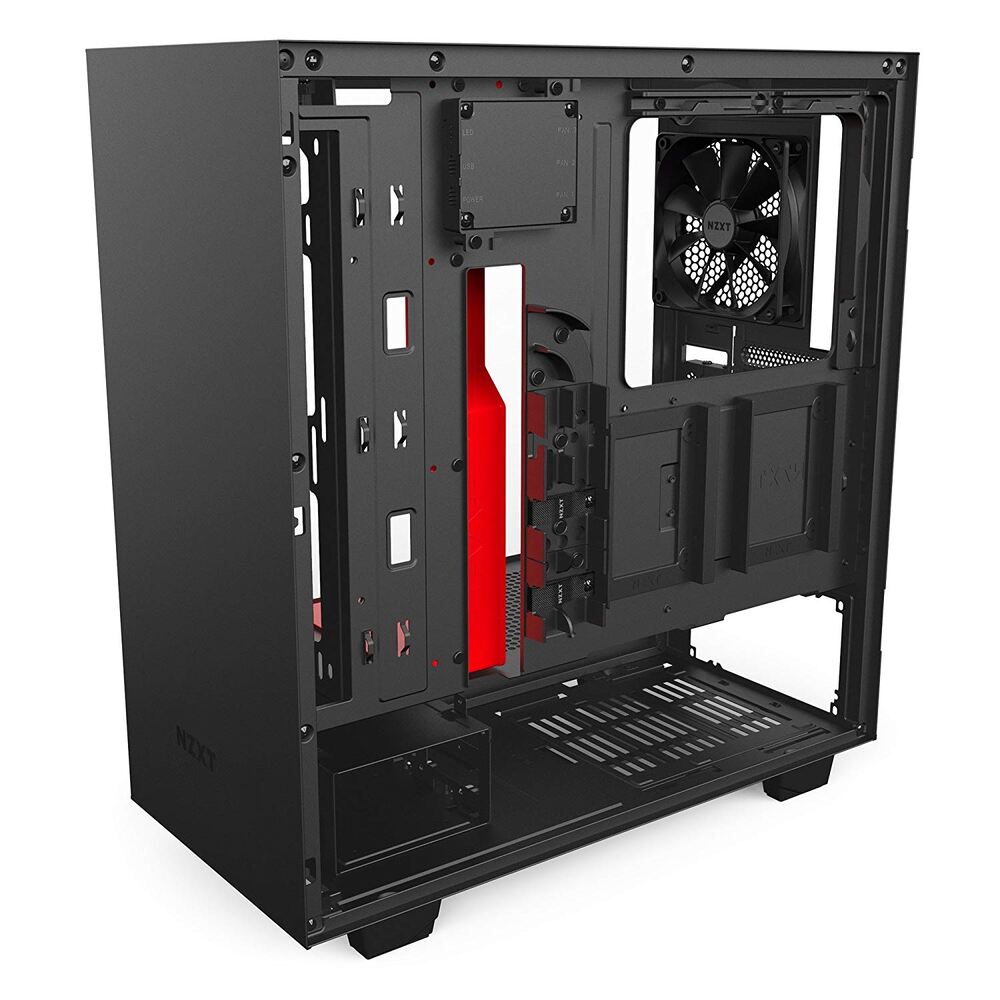

We designed a cable routing system with pre-installed channels and straps on the back of the motherboard tray, for intuitive and easy wiring. We also upgraded our signature cable bar to be adjustable to simplify the building process.
STREAMLINED COOLING
A front bracket designed for radiators up to 280mm makes installing water-cooling simple. There’s also an integrated reservoir mount for custom-loop systems. Two Aer F 120mm fans* are included for optimal internal airflow and the front and PSU intakes include removable filters.
MODERN STORAGE
The H500i’s layout for storage optimizes airflow and interior space for a clean-looking build. The two quick-release 2.5” SSD trays on the PSU shroud can also be mounted behind the motherboard tray.
ADAPTIVE NOISE REDUCTION
Our unique Adaptive Noise Reduction uses an on-board noise sensor to measure and learn the specifics of your system to find the ideal balance between fan speed and cooling. With up to a 40% reduction in fan noise level, you won’t need to waste time designing custom fan curves. Leveraging machine learning to improve its results, this will ensure your fan settings are always optimal, even if you change hardware.
Specifications of NZXT H500i ATX Mid Tower Cabinet ( Black-Red )
| Dimensions |
W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) |
| Material(s) | SECC Steel and Tempered Glass |
| Weight | 7 kg |
| Motherboard Support | Mini-ITX, MicroATX, and ATX |
| I/O Ports |
2 x USB 3.1 Gen 1 1 x Audio/Mic |
| Filters | Front right side panel, bottom front and PSU intake |
| Expansion Slots | 7 |
| Smart Device |
3 x Fan channels with Max 10W per channel output* 1 x RGB LED port support up to 4 x HUE LED strips or 5 x Aer RGB fans Built-in noise detection module *Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters. |
| System Requirements |
PC with open internal USB 2.0 port and Windows® 10 operating system recommended. Internet connection is needed to download CAM.Some CAM features require Internet access, a valid email address and acceptance of our current Terms of Service. |
| Vertical GPU Mount |
Support 2 slot GPUs Riser card with 30cm length recommended. Riser card not included. |
| Drive Bays |
2.5”: 2 1 3.5”: 2 1 |
| Radiator Support |
Front: Up to 280mm Rear: 120mm |
| Fan Support |
Front: 2 x 120/2 x 140mm Top: 1 x 120mm (1 Aer F120 Case Version included) / 1 x 140mm Rear: 1 x 120mm (1 Aer F120 Case Version included) |
| Fan Specs |
Aer F120 (Case Version) Speed: 1200 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
| Clearance |
Cable Management: 19-23mm GPU Clearance: Up to 381mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) |
| Warranty | 2 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
