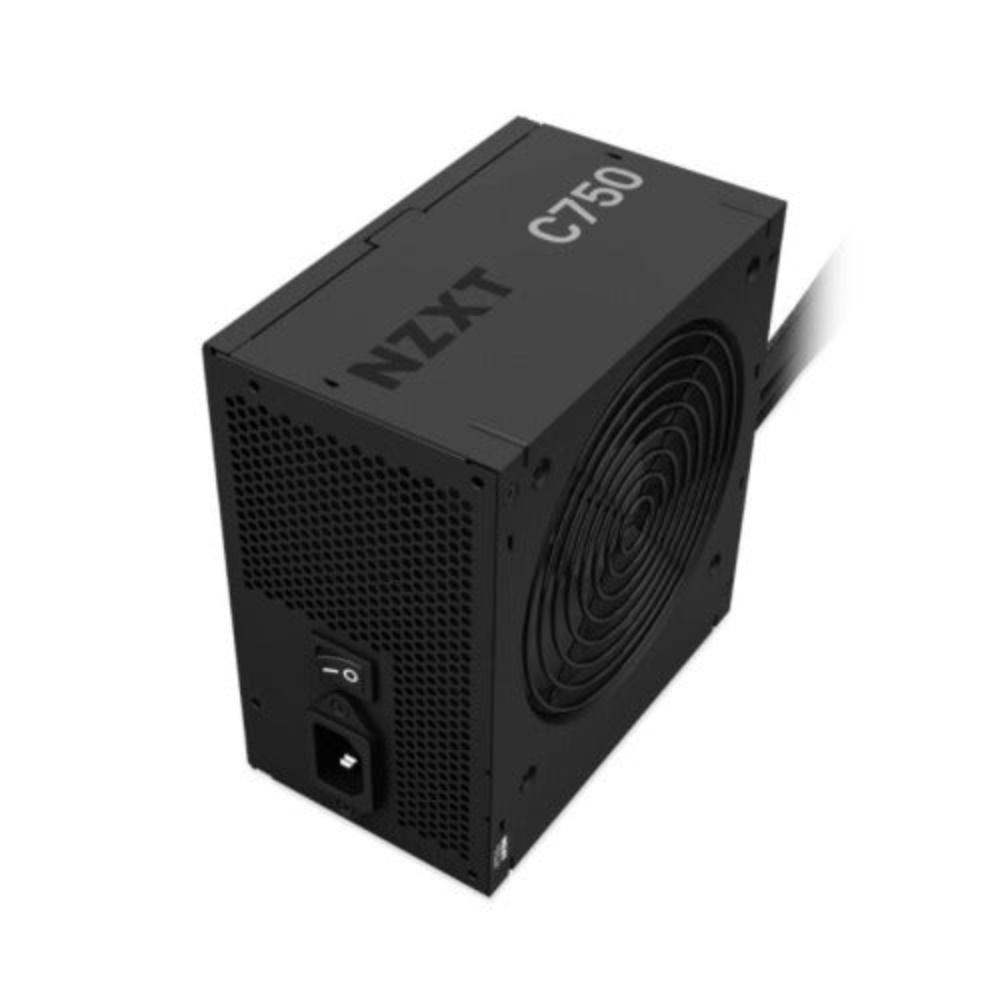

Features of NZXT C750 750W Bronze Non Modular 2.0 ATX Power Supply (750W)
- Up to 88% efficiency at 50% of NZXT Power Supply load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
- A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
- DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
- Tested for safety at up to 40°C, and features over-temperature and over-current protections.
- The Main PSU cables of NZXT C750 750W Power Supply are nylon-sleeved for durability with a matte black finish to match any build.
Reliable Power
DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
Highly Efficient
Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.

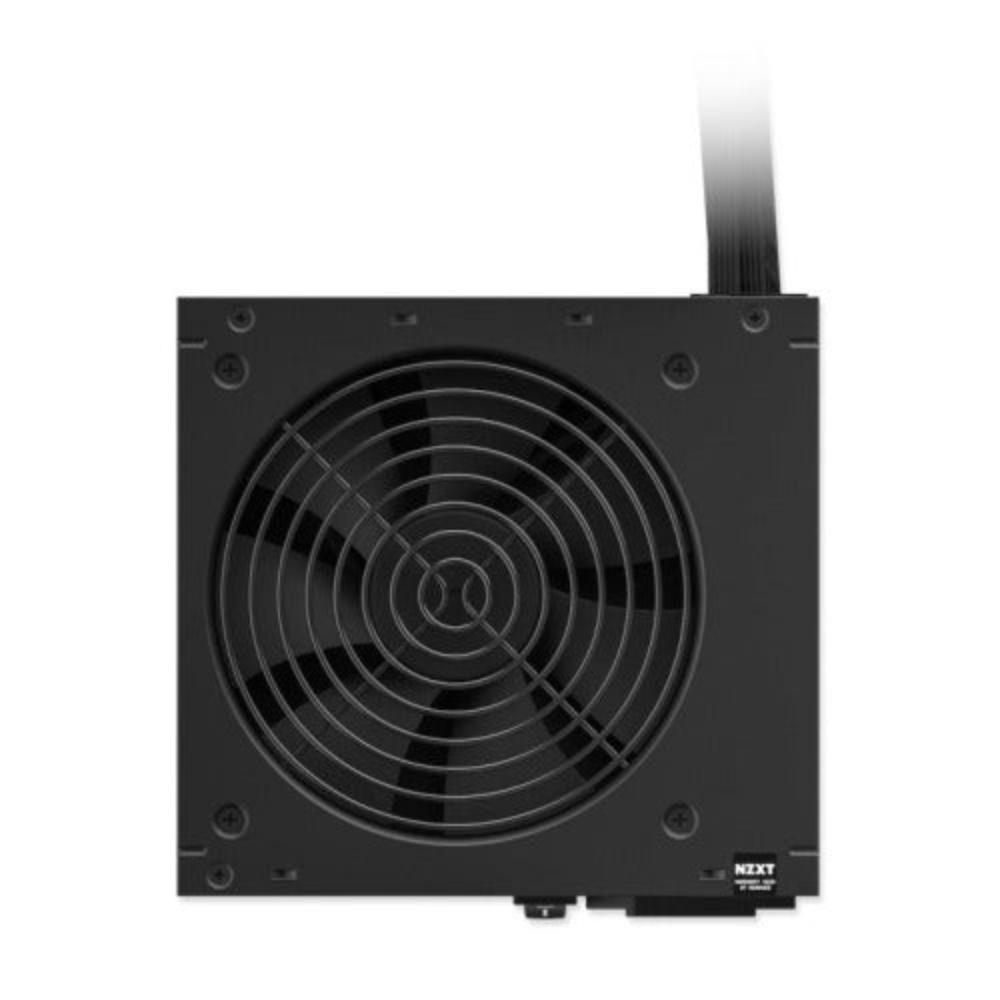

Quiet Cooling
A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
Enhanced Safety
Tested for safety at up to 40°C, and features over-temperature and over-current protections.
Durable & Sleek
Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.
Get the best 80 Plus Bronze computer smps price from us today!
Specifications of NZXT C750 750W Bronze Non Modular 2.0 ATX Power Supply (750W)
| Model Number | PA-7B2BB-UK |
| OUTPUT CONNECTOR(S) |
24-pin ATX Power: 1 4+4-pin CPU power: 2 6+2-pin PCIe power: 2 SATA Power: 4 Peripherals: 4 |
| CABLE SPECS |
24-pin ATX power: 600mm, Nylon sleeving 4+4-pin CPU power: 700mm, Nylon sleeving 6+2-pin PCIe power: 650 + 150mm, Nylon sleeving SATA power: 500 + 150 mm Peripherals: 500 + 150 mm |
| AC INPUT RATING | 100 - 240Vac: 10A-5A 50Hz-60Hz |
| DC OUTPUT RATING | #ERROR! |
| OPERATION |
PF Correction: Active@0.96 MTBF: 100,000 hours Operation Temperature: 0 to 40°C |
| ENERGY EFFICIENCY |
Rating: 80 Plus Bronze 10% loading: 86.2% @115Vac 20% loading: 88.97% @115Vac 50% loading: 88.7% @115Vac 100% loading: 83.2% @115Vac |
| FAN SPECS |
Dimensions: 120 x 120 x 25 (mm) Speed: 2400 ±10% RPM Airflow: 64.4 CFM (Tpy.) Noise: 39.92 dBA max Bearing: FDB (Fluid Dynamic Bearing) |
| GENERAL |
Dimensions (W x L x H): 150 x 140 x 86mm Material(s): Steel, PCB and Plastic Compliance Standard: ATX12V v2.53 / EPS12V v2.92 Regulation & Certification: FCC, Canada, CE, CB(IEC 62368-1), BIS, UKCA, CCC, BSMI, Mexico NOM Hazardous Materials: Taiwan and China RoHS Table, CP65, EU REACH Protections: OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP (Short Circuit Protection) OTP (Over Temperature Protection) OPP (Over Power Protection) OCP (Over Current Protection) |
| Warranty | 3 years |
| Note* | Price, feature and specifications are subject to change without notice. |
