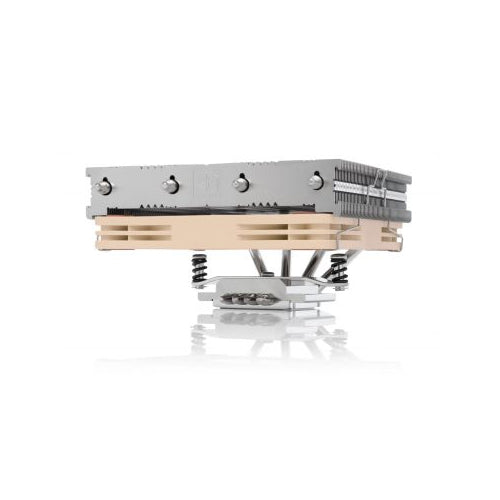

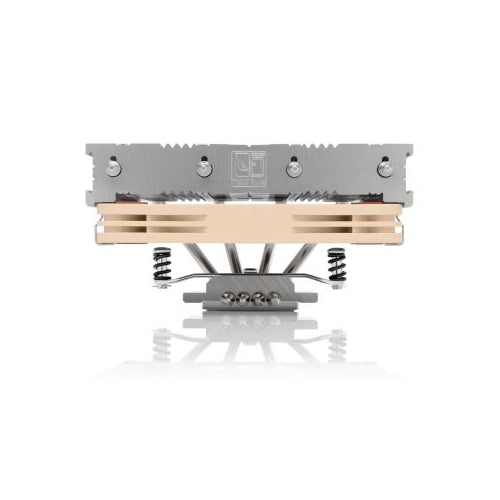

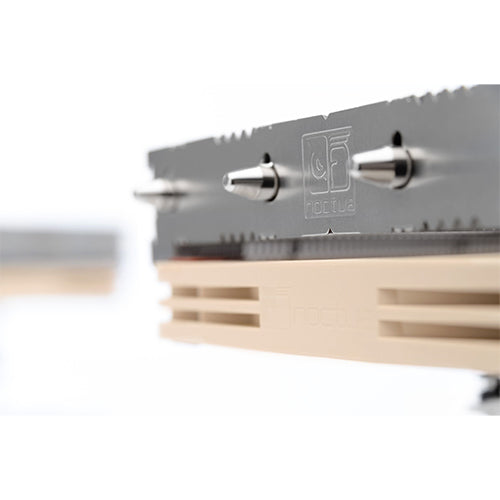

Features of NOCTUA NH-L12S Single Tower CPU Air Cooler (Black)
Successor to the award-winning NOCTUA NH-L12, the NH-L12S is a compact low-profile CPU cooler that combines excellent compatibility, surprising efficiency and remarkable flexibility. Thanks to its NF-A12x15 PWM, slim 120mm fan, the NH-L12S provides even better quiet cooling performance than the previous model with its 92mm fan. At the same time, the NH-L12S is highly versatile: with the fan installed on top of the fins, the cooler is compatible with RAM modules of up to 48mm in height. With the fan installed underneath the fins, the total height of the cooler is only 70mm, making it suitable for use in many HTPC and Small Form Factor cases. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L12S is a premium-quality low-profile solution for the highest demands.
- Based on the award-winning NH-L12
- Low-profile mode
- High-clearance mode
- NF-A12x15 slim 120mm premium fan
- 120x25mm fan support
- SecuFirm2™ mounting system
- NT-H1 thermal compound
- 6-year manufacturer’s warranty
Specifications of NOCTUA NH-L12S Single Tower CPU Air Cooler (Black)
| Important info | The NH-L12S is a low-profile quiet cooler designed for use in Small Form Factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 95W TDP (Thermal Design Power). Please consult our CPU compatibility list and TDP guidelines to find out whether the NH-L12S is recommended for your CPU |
| Socket compatibility | Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+ (backplate required) |
| Height (without fan) | 70 mm |
| Width (without fan) | 128 mm |
| Depth (without fan) | 146 mm |
| Weight (without fan) | 390 g |
| Height (with fan) | 70 mm |
| Width (with fan) | 128 mm |
| Depth (with fan) | 146 mm |
| Weight (with fan) | 520 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Fan compatibility | 120x120x15 & 120x120x25 |

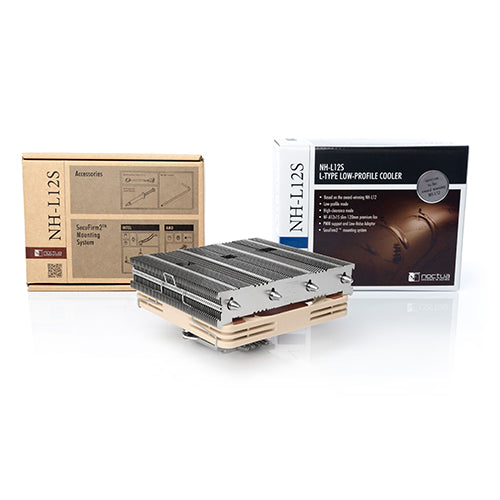

| Scope of delivery | 1x NF-A12x15 PWM premium fan Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ mounting kit Noctua metal case-badge |
| Fan Specificaitons | Model 1x Noctua NF-A12x15 PWM Bearing SSO2 Max. rotational speed (+/- 10%) - 1850 RPM Max. rotational speed with L.N.A. (+/- 10%) - 1400 RPM Min. rotational speed (PWM, +/-20%) - 450 RPM Max. airflow - 94,2 m³/h Max. airflow with L.N.A. - 70,8 m³/h Max. acoustical noise - 23,9 dB(A) Max. acoustical noise with L.N.A. - 16,8 dB(A) Input power - 1,56 W Voltage range - 12 V MTTF - >150.000 h |
| Warranty | 6 Years |
| Special Note | LGA1700** LGA2066*, LGA2011-0*, LGA2011-3*, FM2+*** ***(backplate required) *(Square ILM) **(included since Q4 2021, older coolers require NM-i17xx-MP78) |
| Note | *** Features, Price, Specifications are subject to change without notice. |
