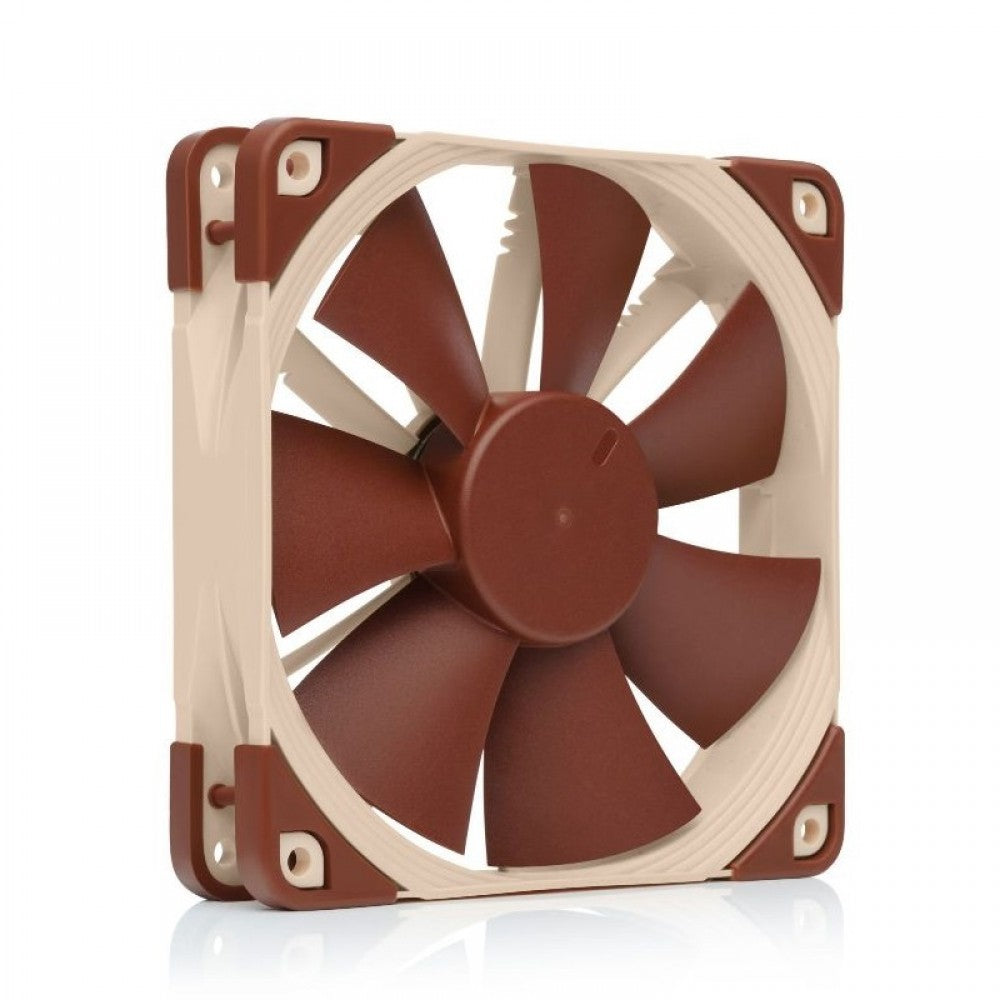

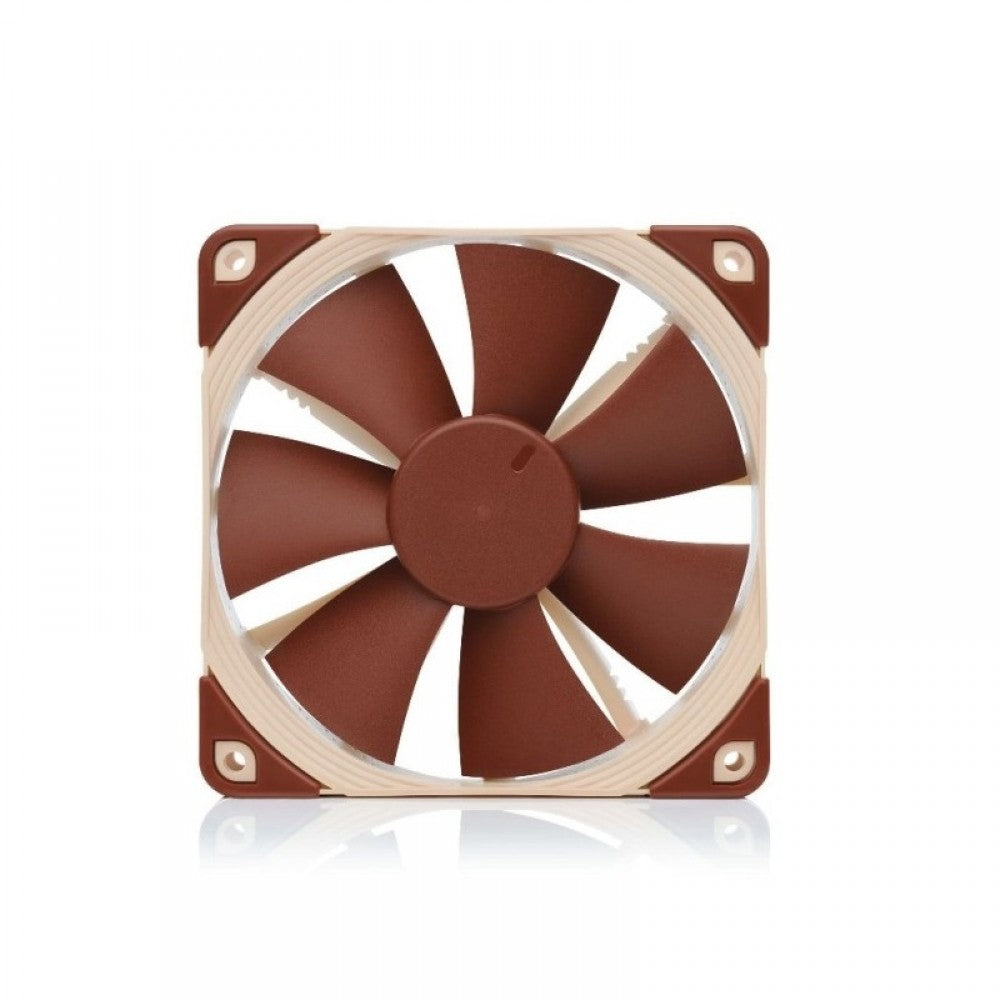

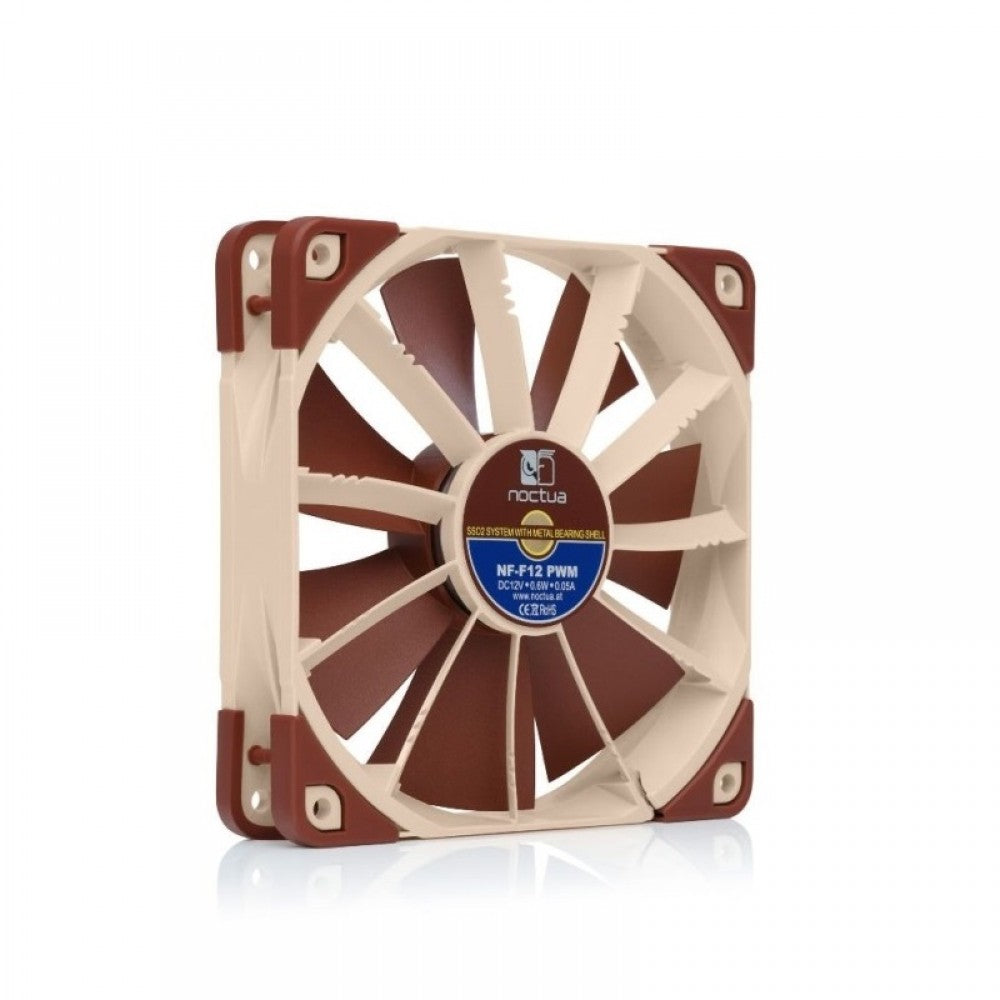

Features of NOCTUA NF-A12 PWM 120mm Non-RGB Cabinet Fan (Single Pack)
Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua’s new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.
Specifications of NOCTUA NF-A12 PWM 120mm Non-RGB Cabinet Fan (Single Pack)
| Notes and warnings |
NF-F12 Feature Overview (PDF) Focused Flow™ System Stepped Inlet Design Inner Surface Microstructures SSO2 Bearing Metal Bearing Shell NE-FD1 PWM IC Which Noctua 120mm fan should I choose? |
| Size | 120x120x25 mm |
| Mounting hole spacing | 105x105 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | Heptaperf™ |
| Frame technology | Focused Flow™ |
| Rotational speed (+/- 10%) | 1500 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1200 RPM |
| Min. rotational speed (PWM, +/-20%) | 300 RPM |
| Airflow | 93,4 m³/h |
| Airflow with L.N.A. | 74,3 m³/h |
| Acoustical noise | 22,4 dB(A) |
| Acoustical noise with L.N.A. | 18,6 dB(A) |
| Static pressure | 2,61 mm H₂O |
| Static pressure with L.N.A. | 1,83 mm H₂O |
| Max. input power | 0,6 W |
| Max. input current | 0,05 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery |

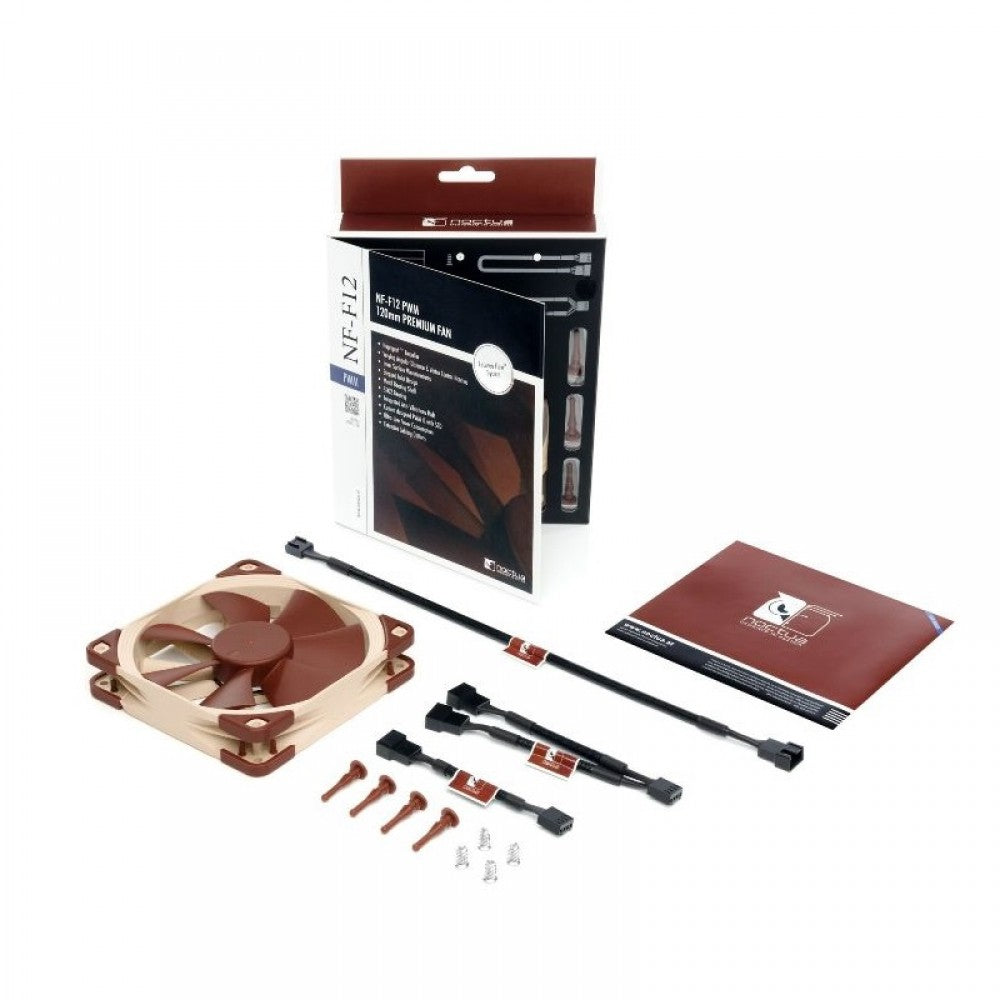

Low-Noise Adapter (L.N.A.) 4-Pin Y-Cable 30cm Extension Cable 4 Vibration-Compensators 4 Fan Screws |
| Warranty | 6 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
