Description

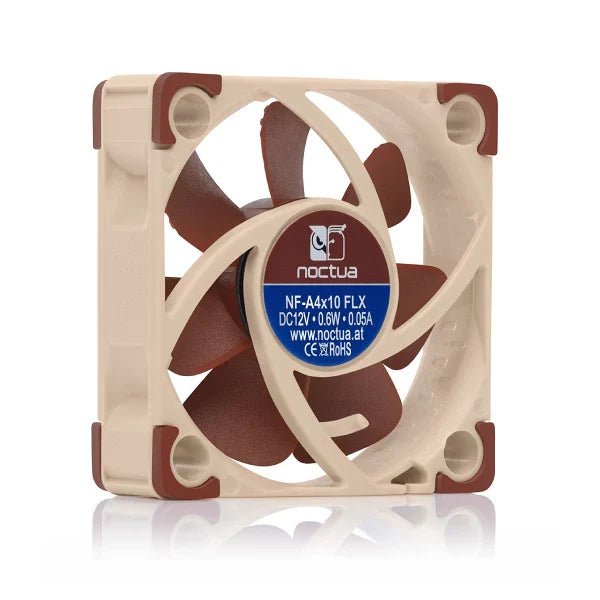

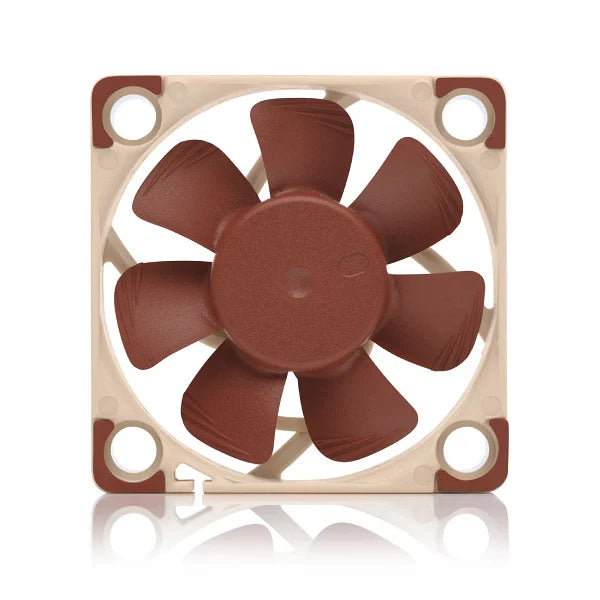

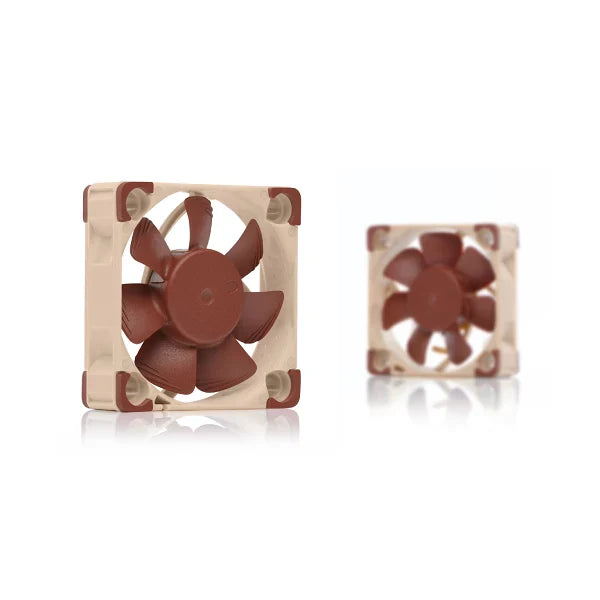

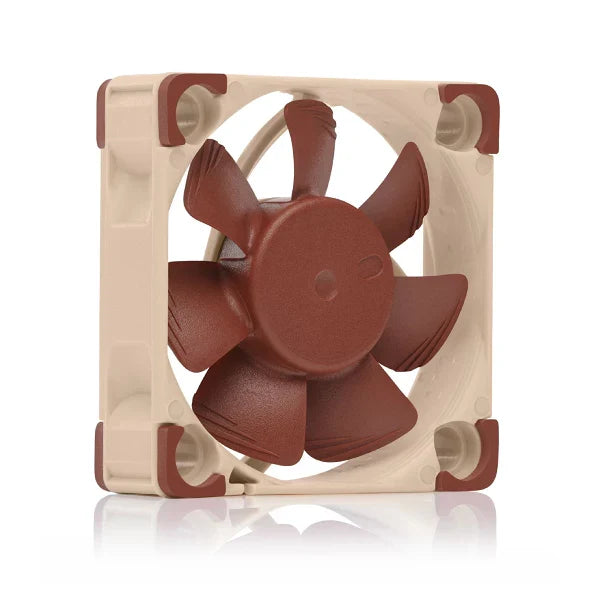

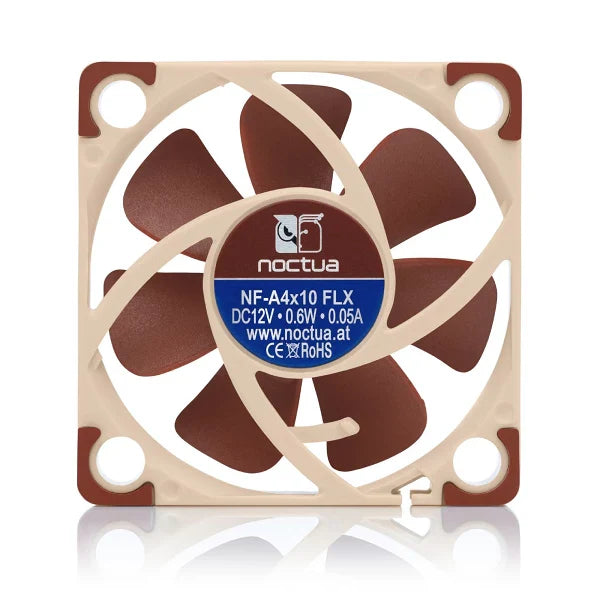

Features of NOCTUA NF-A4x10 FLX 40mm Non-RGB Cabinet Fan (Single Pack)
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua AAO frame, the NF-A4x10 FLX is a highly optimized, premium quality quiet fan in 40x10mm size Smooth Communication Drive technology and Noctua’s reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, a Low-Noise Adaptor and Omni Join Adapter Set as well as 6 years manufacturer’s warranty, the NF-A4x10 is a premium choice for the highest demands.
SSO2 Bearing
The NF-A4x10 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

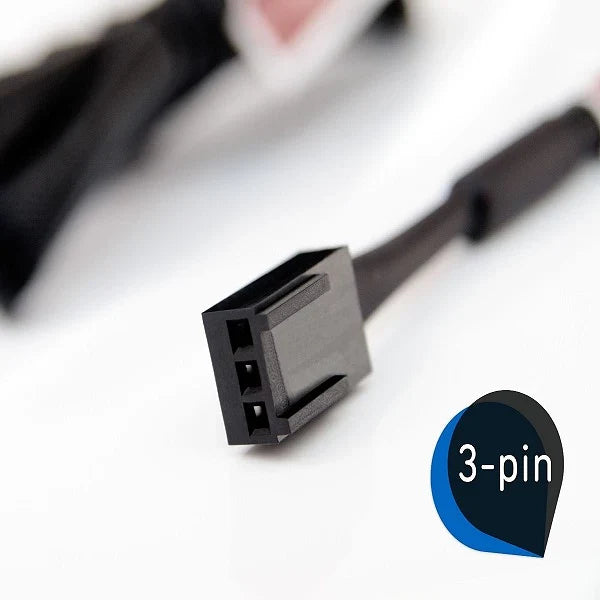

3 to 2-pin Adaptor and Polarity Protection
The NF-A4x10 comes with an adaptor from 3-pin Molex to the 2-pin connectors used on many graphics cards or network and storage devices. An integrated diode provides polarity protection on 2-pin connections.
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A4x10 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer's warranty.
- Connector & pin- configuration : 3 pin I Rotational Speed : 4500 RPM
- Cable length : 20cm + 30cm NA-EC1 extension cable I Low-Noise Adaptor (L.N.A.)
- Frame technology : AAO (Advanced Acoustic Optimization)I Blade geometry : A-Series with Flow Acceleration Channels
- Max. input power : 1,56 W I Operating voltage : 12 V
- 6 Year Warranty
Specifications of NOCTUA NF-A4x10 FLX 40mm Non-RGB Cabinet Fan (Single Pack)
| Brand | Noctua |
| Manufacturer | Noctua, Noctua |
| Series | NF-A4x10 FLX |
| Colour | Brown |
| Item Height | 40 Millimeters |
| Item Width | 10 Millimeters |
| Product Dimensions | 4 x 1 x 4 cm; 160 Grams |
| Item model number | NF-A4x10 FLX |
| Voltage | 12 Volts |
| Are Batteries Included | No |
| Manufacturer | Noctua |
| Item Weight | 160 g |
| FAN Specification | |
| Size | 40x40x10 mm |
| Mounting hole spacing | 32x32 mm |
| Connector & pin-configuration | 3-pin |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Rotational speed (+/- 10%) | 4500 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 3700 RPM |
| Airflow | 8,2 m³/h |
| Airflow with L.N.A. | 6,6 m³/h |
| Acoustical noise | 17,9 dB(A) |
| Acoustical noise with L.N.A. | 12,9 dB(A) |
| Static pressure | 1,78 mm H₂O |
| Static pressure with L.N.A. | 1,21 mm H₂O |
| Max. input power | 0,6 W |
| Max. input current | 0,05 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
|

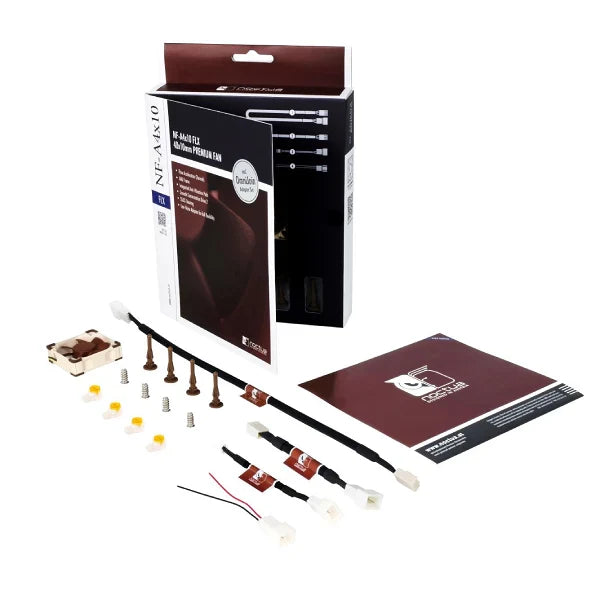

Scope of delivery
|
Low-Noise Adaptor (L.N.A.) |
| 3:2 Pin Adaptor | |
| OmniJoin Adaptor Set | |
| 30cm Extension Cable | |
| 4 Vibration-Compensators | |
| 4 Fan Screws | |
| Warranty | 6 years |
