Description

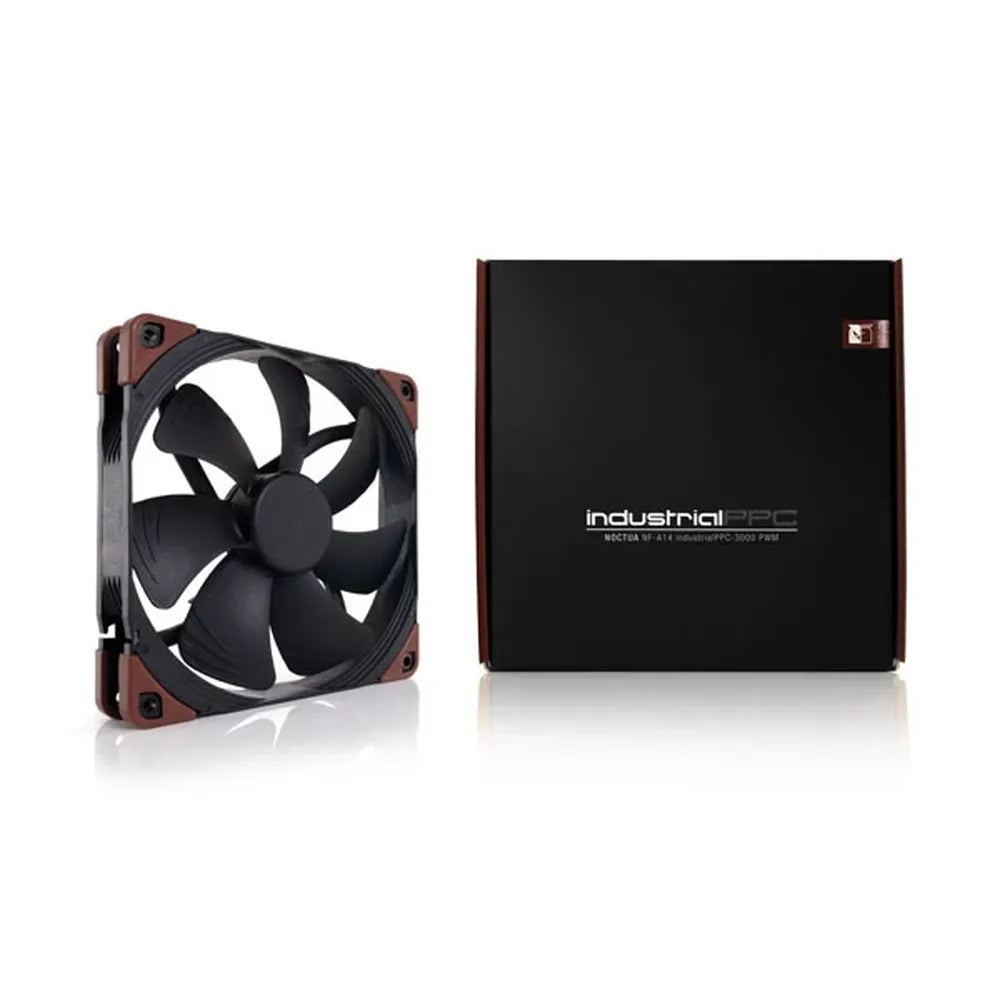

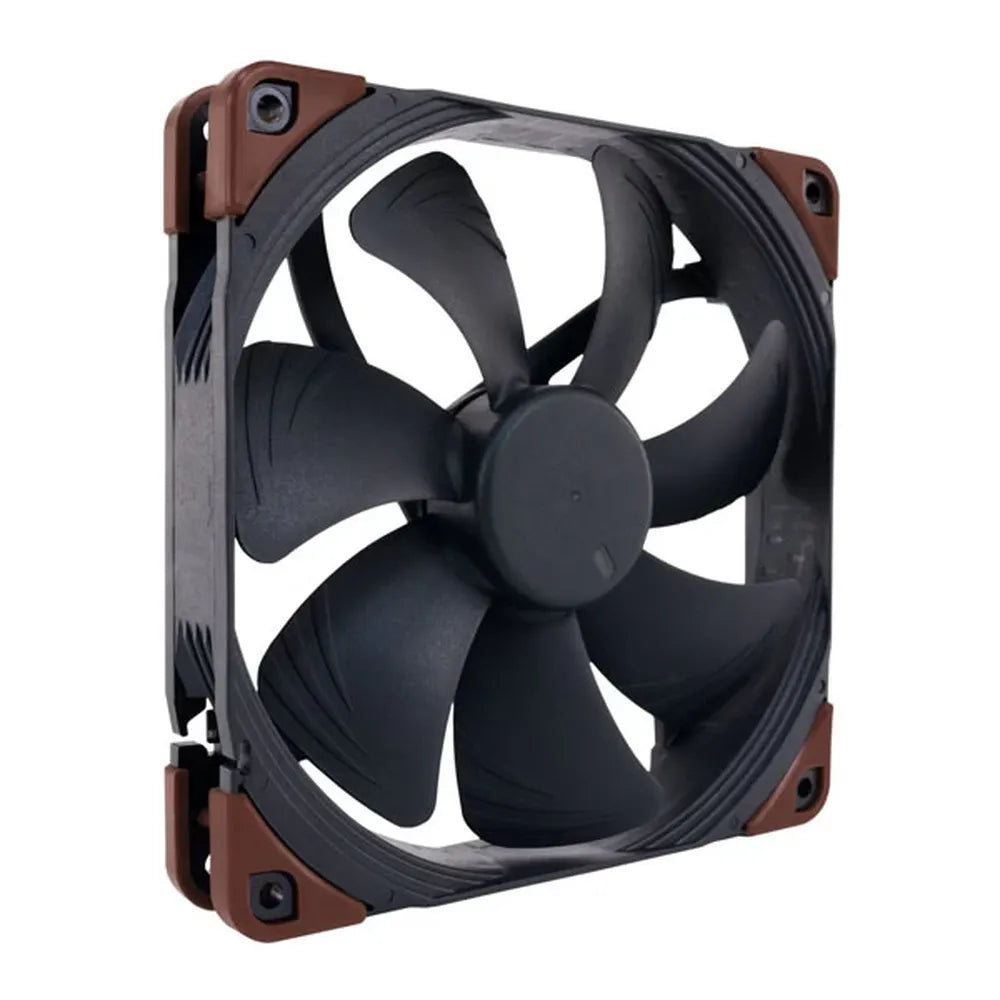

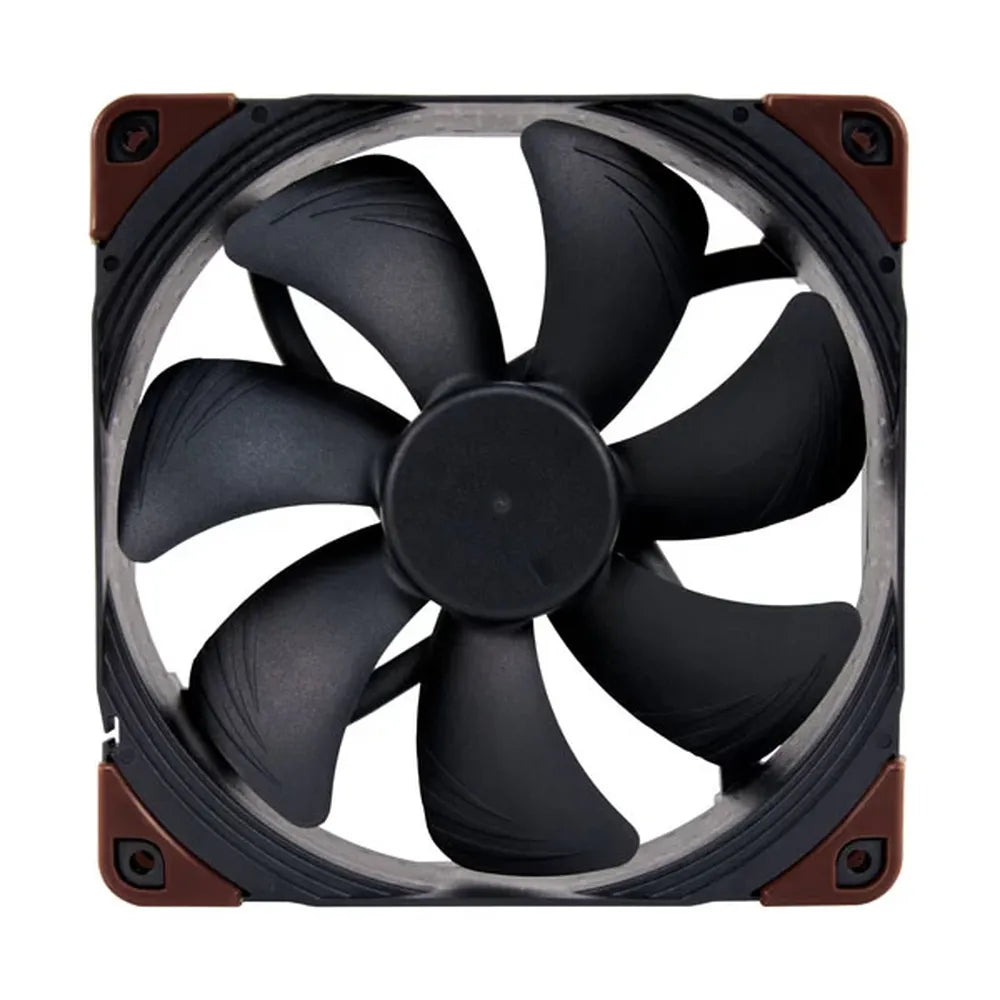

Features of NOCTUA NF-A14 Industrial PPC-3000 Cabinet Fan (Single Pack)
Award-winning NF-A14 design
Having received more than 100 awards and recommendations from the international press, Noctua's NF-A14 has become a proven premium choice for 140mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
3000rpm industrialPPC version
Running twice as fast as the 1500rpm retail version, the NF-A14 industrialPPC-3000 provides extreme airflow and pressure performance. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.
Three-phase motor design
While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.
Class-leading energy efficiency
While the standard NF-A14 is one of the most energy efficient 1500rpm 140mm fans on the market, the industrialPPC version's three-phase motor provides a further 10% reduction in power consumption when compared at 2000rpm.
Fibre-glass reinforced polyamide construction
Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.

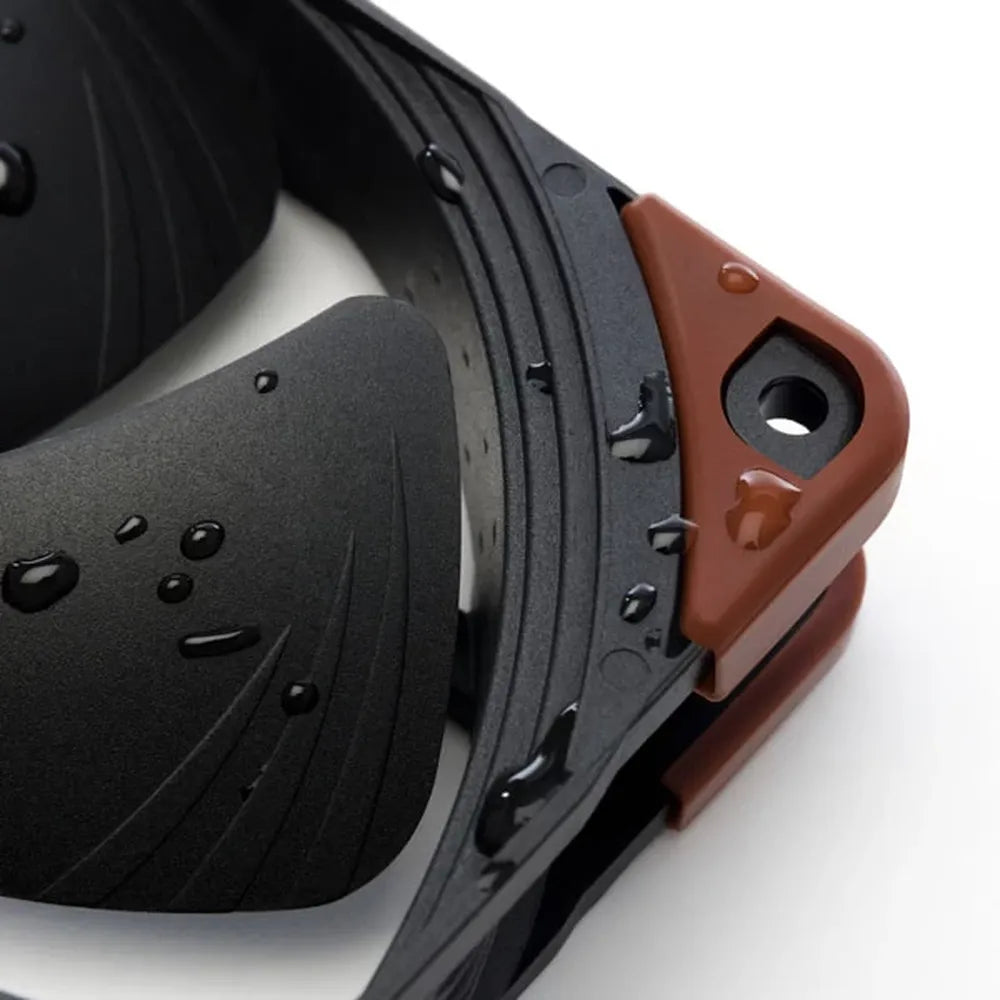

Certified IP52 water- and dust protection
Thanks to a special varnish coating that covers the motor and PCB, the NF-A14 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.
Flow Acceleration Channels
The NF-A14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
SSO2 Bearing
The NF-A14 industrialPPC features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-A14 industrialPPC sports a CNC milled bearing shell made entirely from brass.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-A14 industrialPPC uses Noctua's custom-designed NE-FD2 PWM IC for three-phase motors. The NE-FD2 integrates Noctua's proprietary Smooth Commutation Drive (SCD) technology, which suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A14 industrialPPC features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer’s warranty.
Customisable for industry clients
For industry clients, various features, certificates, packaging options and accessories can be customised on requests. For example, we can provide 24V versions, different connectors and speeds, different cable length or UL and TÜV certification. Please feel free to contact us for customised offers!
Specifications of NOCTUA NF-A14 Industrial PPC-3000 Cabinet Fan (Single Pack)
| Product Details | |
| Notes and warnings | The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds. Unless you specifically require the higher speeds and performance of the industrialPPC versions, we recommend using models of our other product lines (chromax if you prefer black fans) instead. |
| FAN Specification | |
| Size | 140x140x25 mm |
| Mounting hole spacing | 124,5x124,5 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 40cm |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO |
| Material | Fibre-glass reinforced polyamide |
| Ingress protection | IP52 |
| Motor type | Three-phase |
| Rotational speed (+/- 10%) | 3000 RPM |
| Min. rotational speed (PWM, +/-20%) | 800 RPM |
| Airflow | 269,3 m³/h |
| Acoustical noise | 41,3 dB(A) |
| Static pressure | 10,52 mm H₂O |
| Max. input power | 6,6 W |
| Max. input current | 0,55 A |
| Operating voltage | 12 V |
| MTTF | > 150.000 h |
| Scope of delivery | Fan 4 Fan Screws |
| Warranty | 6 years |
| Note | ***Features, Price, and specifications are subject to change without notice. |
