Features of NOCTUA NF-A12x25R 120mm Non-RGB Cabinet Fan (Single Pack)
The NOCTUA NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua’s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimisation) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox® liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua’s A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.
- Award-winning NF-A12x25 impeller
- Round frame design
- Next-generation performance
- Highly optimised P/Q curve for all applications
- Excellent on-application acoustics
- Flow Acceleration Channels
- Ultra-tight tip clearance
- Metal-reinforced motor hub
- Sterrox® liquid-crystal polymer compound
- AAO frame
- Stepped Inlet Design
- Inner Surface Microstructures
- Integrated anti-vibration pads
- SSO2 bearing
- Metal bearing shell
- Custom-designed PWM IC with SCD
- Stops at 0% PWM
- Smooth Commutation Drive 2
- Low-Noise Adaptor
- Extensive cabling options
- 6-year manufacturer’s warranty
Specifications of NOCTUA NF-A12x25R 120mm Non-RGB Cabinet Fan (Single Pack)
| Size | 120x120x25 mm |
| Mounting hole spacing | 93x83 mm |
| Connector & pin-configuration | 4-pin PWM |
| Cable length | 20cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade geometry | A-Series with Flow Acceleration Channels |
| Frame technology | AAO (Advanced Acoustic Optimisation) |
| Material | Sterrox® LCP |
| Rotational speed (+/- 10%) | 2000 RPM |
| Rotational speed with L.N.A. (+/- 10%) | 1700 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) | 450 RPM |
| Airflow | 102,1 m³/h |
| Airflow with L.N.A. | 84,5 m³/h |
| Acoustical noise | 22,6 dB(A) |
| Acoustical noise with L.N.A. | 18,8 dB(A) |
| Static pressure | 2,34 mm Hâ‚‚O |
| Static pressure with L.N.A. | 1,65 mm Hâ‚‚O |
| Max. input power | 1,68 W |
| Max. input current | 0,14 A |
| Operating voltage | 12 V |
| Voltage PWM signal | 5 V |
| MTTF | > 150.000 h |
| Scope of delivery |

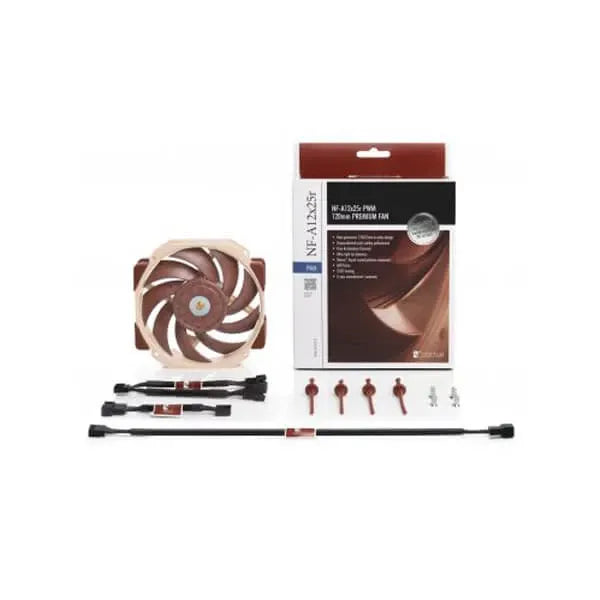

NA-RC14 Low-Noise Adaptor (L.N.A) NA-YC1 4-pin PWM y-cable NA-EC1 30cm extension cable 4x NA-AV2 anti-vibration mounts Fan screws |
| Warranty | 6 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
