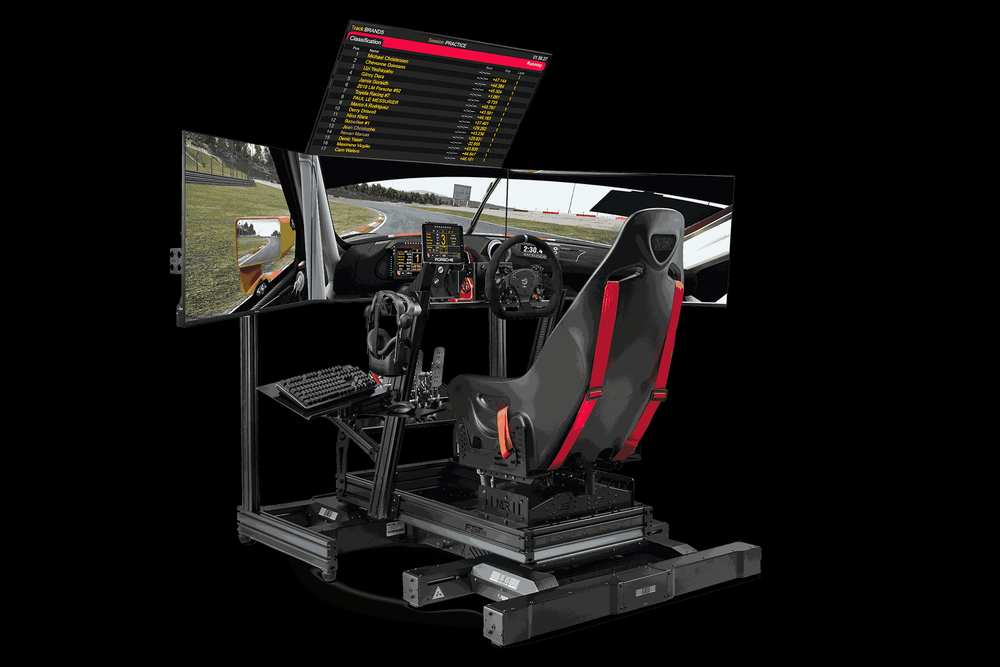

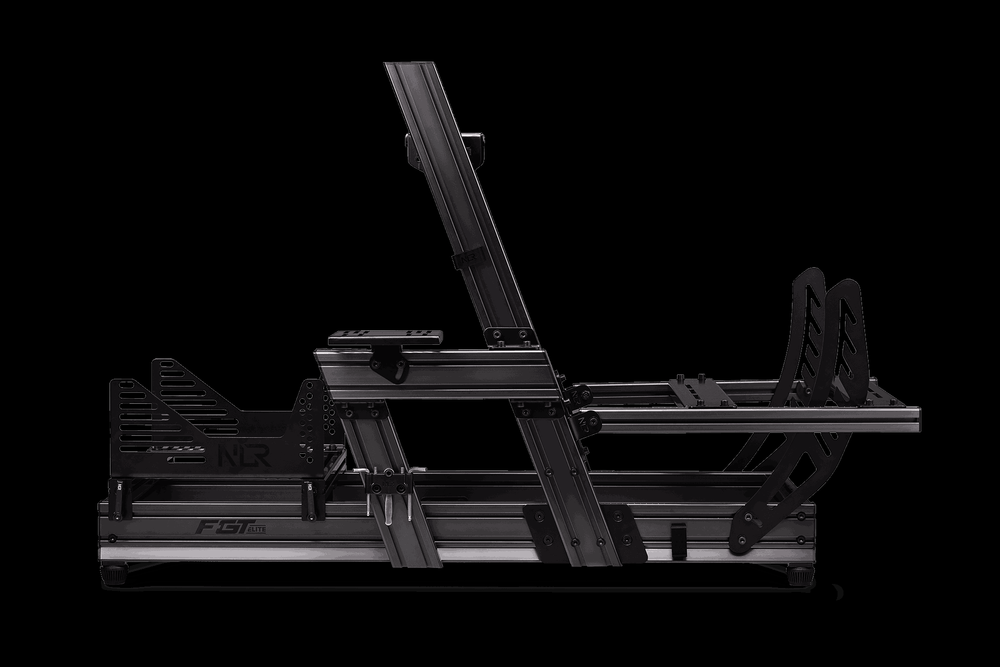

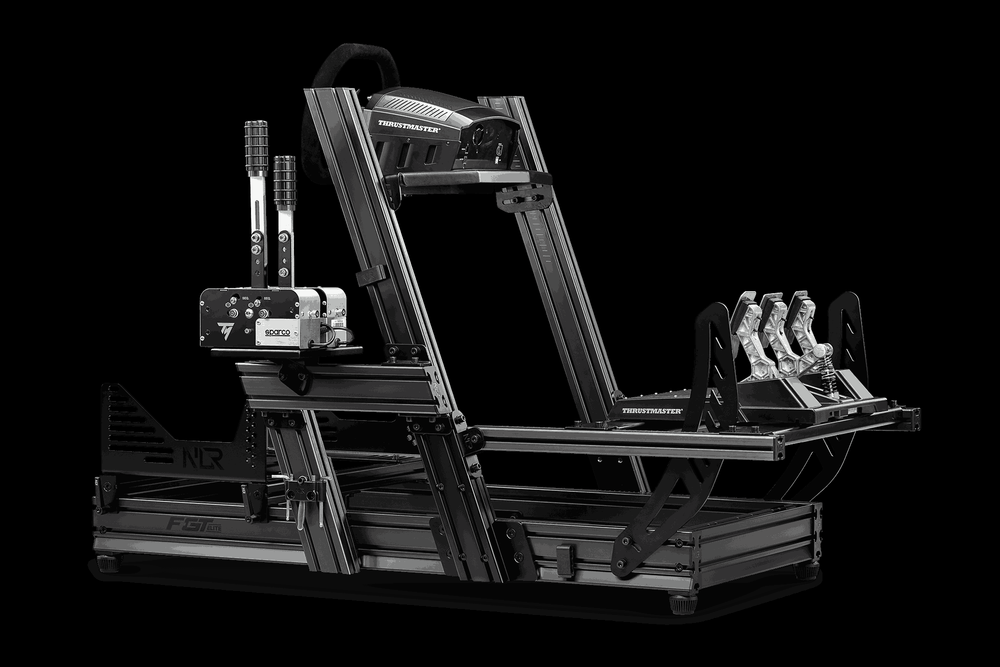

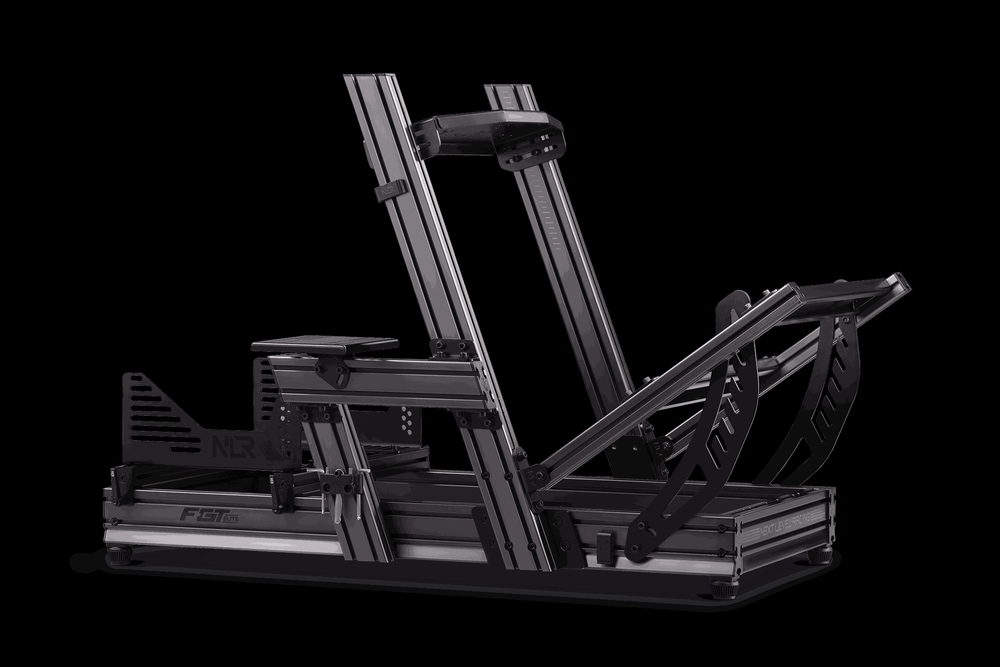

Features of NEXT LEVEL RACING F-GT Elite Aluminum Simulator Cockpit Wheel Plate Edition NLR-E001
- All in one cockpit with quick adjustments for all driving positions including true formula, GT, hybrid, truck, and tank
- Rigid and highly adjustable mounting support included for your seat, wheel, pedals, shifter, handbrake
- Post anodized custom carbon grey (scratch resistant) aluminium profile with premium carbon steel powder coated components
- Pedal position height, angle and distance adjustable
- Pre-machined holes in aluminium profile for rigidity and ease of assembly
- Compatible and easy installation with Next Level Racing® Motion Platforms
- All the extra’s included such as NLR seat slider system, seat brackets, height adjustable shock absorption feet, gear shifter & handbrake support plate, foot step, Buttkicker® gamer 2 adaptor, cable management clips, Motion Platform V3 adaptors, ratchet tool & more
- Premium packaging including double boxing and foam moulded cut outs for aluminium profile and parts
- T-slot extruded aluminium allows compatibility of accessories with other cockpit brands
- Fully enclosed base frame for strength and aesthetics
- Taller aluminium profile for wheel mount uprights allowing for wider range of driving positions and users
- Compatible with all major brands of electronics for major brands of wheels, pedals and shifters including Fanatec, Thrustmaster, Logitech, Simxperience and many more
Designed and engineered by using the feedback from our community, virtual and real motorsport industry feedback; the Next Level Racing® F-GT Elite racing simulator cockpit* is a true all in one formula/GT/Hybrid position racing cockpit pushing the boundaries of what is expected of an aluminium profile cockpit and setting a new standard for sim racing. As well as market leading features the F-GT Elite sets a new benchmark for aesthetics, functionality and quality for an aluminium profile cockpit or what’s commonly referred to as an “8020 racing simulator cockpit”.
The NEXT LEVEL RACING F-GT Elite is a product designed from ground up with attention to detail. The F-GT Elite cockpit is much more than just another aluminium extrusion cockpit by using custom premium parts, finish, components and cutting-edge manufacturing to take aluminium profile cockpits to the Next Level.
Providing a competitive edge to virtual racers, the Elite series will be used by racing professionals globally such as esports teams, race car drivers and sim racers seeking the ultimate in performance.
ALL-IN-ONE, MULTI-POSITION COCKPIT
Whilst providing complete rigidity and ultimate adjustability the F-GT Elite cockpit offers true and comfortable Formula, GT, hybrid, truck and tank driving positions with quick adjustments between positions making it a true one for all cockpit. The increased angle and range provided in the seat brackets, wheel and pedal plate caters for users of all sizes and driving styles by giving more adjustability than ever before.
INNOVATIVE FLEX-FREE NLR SEAT SLIDER AND BRACKET SYSTEM
The innovative Next Level Racing® Seat Sliding System has been designed and engineered to eliminate the issue of flex found in conventional seat sliders used in simulation. The NLR ratchets are used to easily slide your seat back and forth to find the desired position for a flex free racing experience.
The Next Level Racing® Seat Brackets are constructed from 5mm carbon steel to provide the rigidity required for high end sim racers and the new design provides more adjustability than ever before to support multiple seating positions with 98 adjustment options. The optional Next Level Racing® ES1 Elite Sim Racing Seat is the recommended seat to use with the Elite range of cockpits as the seat has been designed and optimised for elite sim racers.
UNIVERSAL SLIDING PEDAL PLATES
The sliding pedal plates have been designed to provide easy and quick distance adjustments for pedals as well as compatibility with the continuously expanding pedal market. Equipped with 2 slotted 5mm carbon steel pedal plates with double precision folds, this setup ensures supreme rigidity but straightforward compatibility. The pedal tray area has been designed to offer more angle, height and distance adjustments to accommodate for a wider range of driving positions. The laser etched markings on the aluminium profile assist with making accurate adjustments.
CUSTOM PROFILE AND POST ANODIZING
When it comes to aluminium profiles, they are not all the same quality and strength. The F-GT Elite features a premium thick-walled profile and a custom NLR 100mm x 40mm profile for the base of the cockpit, with a total weight of 53kg. This custom shape of the base profile provides extra strength and refined aesthetics.
The post anodized carbon grey profile is achieved by a chemical balance and anodizing process that not only looks visually stunning but also provides a scratch resistant finish compared to your typical black profile that is prone to scratching. The premium post anodizing process means that even the ends of the profiles and holes are anodized for visual perfection as well as long term protection. The post anodizing process as a last step also prevents having sharp shavings/edging ensuring safe setup of your new cockpit.
DESIGN SHOULD BE BEAUTIFUL AND FUNCTIONAL
The F-GT Elite cockpit provides a long list of unique custom engineered components to provide users with the highest quality and performing product on the market. Rather than adapting industrial off the shelf components, we are pioneering how aluminium profile cockpits should be designed. No industrial square brackets are required, profile pieces are pre-machined to allow for quicker, easier and stronger connections. We focused on the finer details like the black electroplated premium spring ball T-slot nuts and the custom NLR end caps to combine for improved functionality. The premium finish and materials, custom components and market leading design come together for a visual masterpiece.
MOTION ECOSYSTEM
Adding motion has never been easier as the F-GT Elite cockpit is compatible with all Next Level Racing® Motion products and designed for quick and simple installation with pre machined holes and included brackets.
Specifications of NEXT LEVEL RACING F-GT Elite Aluminum Simulator Cockpit Wheel Plate Edition NLR-E001
- Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions: (L) 120 cm x (W) 70 cm or (H) 84cm (L 47.2inches x W 27.6 inches x H 33.1 inches)
- Box Dimensions: 125 cm (L) X 43cm (W) X 34.5cm (H) 49.2 inches(L) x 16. 9inches (W) x 13.6 inches(H)
- Product Weight: 53kg or 117 lbs
- Boxed Weight – GW: 57kg or 126 lbs / NW: 53 kg or 117 lbs
- Part Number – NLR-E001
