Description
Feature of MSI Z590-A Pro Intel Z590 DDR4
MSI Z590-A Pro Z590 DDR4 Motherboard gives the most immersive audio experience as it comes with studio sound quality. MSI Z590-A PRO Motherboard supports a two-way AMD Crossfire with steel armor PCI-E slots. This helps to set up a multi GPU build.
- USER FRIENDLY DESIGN
- THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
- M.2 SHIELD FROZR
- FULLY CONTROLLABLE IN BIOS AND SOFTWARE
- FROZR AI COOLING
- OPTIMIZED FOR WATER COOLING
- CONNECTIVITY
- HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
- OPTIMIZE NETWORK FOR LOWER LATENCY!
- EXPERIENCE MORE
- 12 + 2 +1 POWER DESIGN
- A HUGE STEP OF DDR PERFORMANCE
- CORE BOOST
PRO SERIES
MSI Z590 A PRO motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, MSI Z590 A PRO motherboard provides not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
MSI Z590 A PRO motherboard features tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding Tweakers. Makes it so easy to install your own motherboard without any issue.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI Z590 A PRO extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI Z590 A PRO motherboard lets you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface.
You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
CONNECTIVITY
The most important thing of DIY is expandability. MSI Z590 A PRO motherboard features plenty possibility for prosumers’ need.
Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI Z590 A PRO LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
EXPERIENCE MORE
MSI Z590 A PRO motherboard is designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality.
Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal.
The extensive features let you fine-tune your system to deliver reliable maximum performance.
12 + 2 +1 POWER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 digital CPU power phases.
Combining 8 + 4 pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.
A HUGE STEP OF DDR4 PERFORMANCE
MSI Z590 A PRO OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z590 .
Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Specifications of MSI Z590-A Pro Intel Z590 DDR4
| Processor |
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200 |
| Chipset | Intel® Z590 Chipset |
| Memory |
4x DDR4 memory slots, support up to 128GBSupports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency:1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot |
2x PCIe x16 slotsSupport x16/ x4 PCI_E1 (from CPU)Supports up to PCIe 4.0 for 11th Gen Intel® CPU Supports up to PCIe 3.0 for 10th Gen Intel® CPUPCI_E3 (from Z590 chipset)Supports up to PCIe 3.02x PCIe 3.0 x1 slots (from Z590 chipset) |
| Onboard Graphics |
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 12 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 12 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Multi-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| Storage |
6x SATA 6Gb/s ports (from Z590 chipset) 3x M.2 slots (Key M)M2_1 slot (from CPU) 1Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0x4 Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_21, M2_32 slots (from Z590 chipset)Support up to PCIe 3.0x4 Support up to SATA 6Gb/s Support 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory ReadySupport Intel® Smart Response Technology for Intel Core™ processors SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot. |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
Intel® Z590 Chipset Intel® Z590 Chipset1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)USB 2.0 Hubs GL850G4x USB 2.0 Type-A ports on the back panel 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
| Audio |
Realtek®ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Intel® I225-V 2.5Gbps LAN controller |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin ATX PCIe power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning controller connector 1x TBT connector (Supports RTD3) |

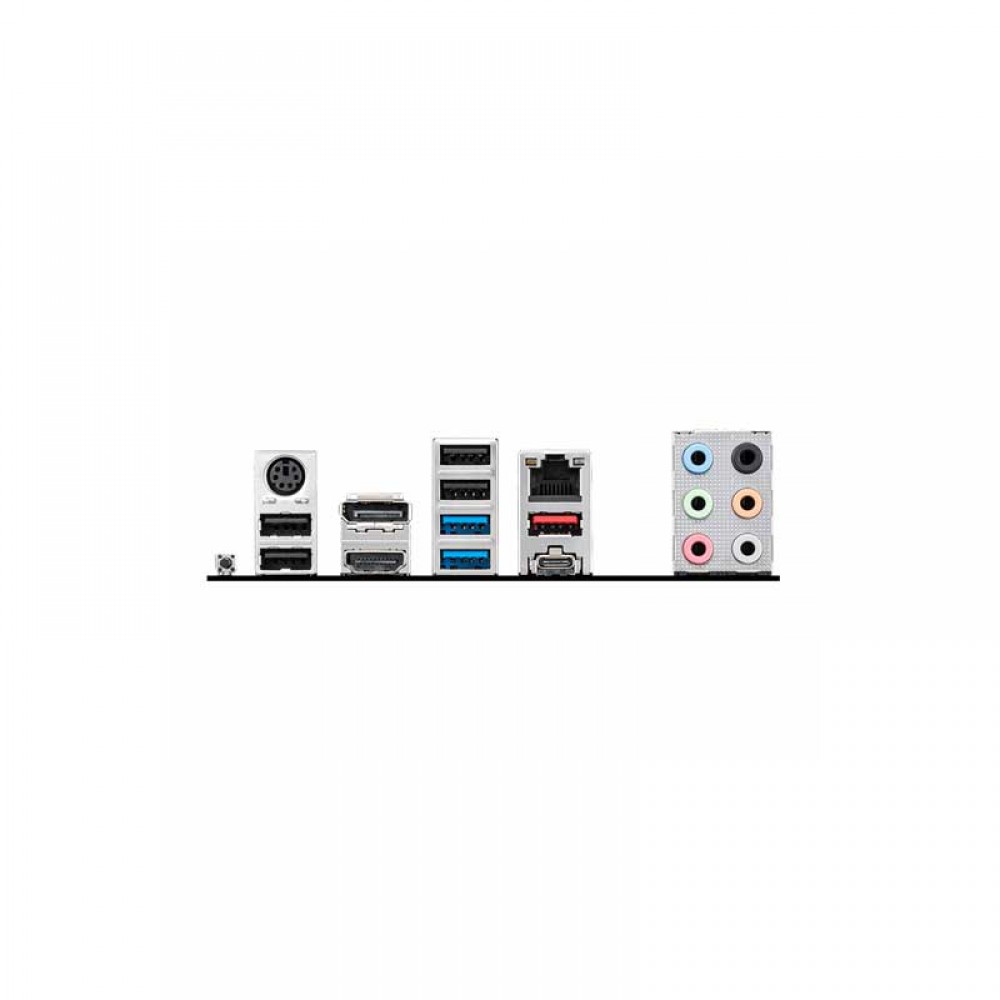

| Back panel ports |
Keyboard / Mouse DisplayPort USB 2.0 LAN port Audio connector Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A |
| Dimensions |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
