Description
Features Of MSI Pro H610M-G Wifi DDR4 Intel Motherboard
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
Video Support
For processors that support integrated graphics, you get access to HDMI and DisplayPort video outputs as well as one VGA port for legacy hardware.
7.1-Channel Audio
Whether you are working on your next presentation or enjoying some of your favorite streaming media, the 7.1-channel audio gives you a deep and immersive experience backed by Realtek’s ALC892 and ALC897 codecs.
Networking
A single RJ45 Gigabit Ethernet port allows you to utilize a wired network connection with enhanced speeds suitable for accessing your network, downloading assets, and conduct online video calls with minimal lag.
Legacy Support
A single PS2 combo port is available so you can connect legacy peripherals such as compatible mice and keyboards, allowing you to still use your previous devices if you prefer.
Power Enhancements
Achieve optimal performance with MSI’s Lightning Gen 4 PCIe, Memory Boost, and Core Boost technologies which enhance the throughput of your system.
USER FRIENDLY DESIGN
MSI Motherboards features tons of ConVenient and smart design for DIY Users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding Tweaker. Makes it so easy to install your own motherboard without any issue.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO SEries motherboard features plenty possibility for prosumers’ need. Stable LAN, faster stroage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
Specifications Of MSI Pro H610M-G Wifi DDR4 Intel Motherboard
| Processor | Processor socket LGA1700 |
| Chipset | Intel® H610 Chipset |
| Memory |
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Expansion Slot |
1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 |
| Wireless LAN & Bluetooth® |
Intel® Wi-Fi 5 Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps Supports Bluetooth® 4.2 |
| Onboard Graphics |
1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| SATA Ports | 4x SATA 6Gb/s ports |
| M.2 SSD Slot |
1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors |
| USB |
Intel® H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Intel® I219V 1Gbps LAN controller |
| Power Connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector |
| Fan Connectors |
1x 4-pin CPU fan connector 1x 4-pin system fan connector |
| System Connectors |
1x Front panel audio connector 2x System panel connector s 1x Chassis Intrusion connector 1x TPM module connector |
| Jumpers | 1x Clear CMOS jumper |
| LED Features |
1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |

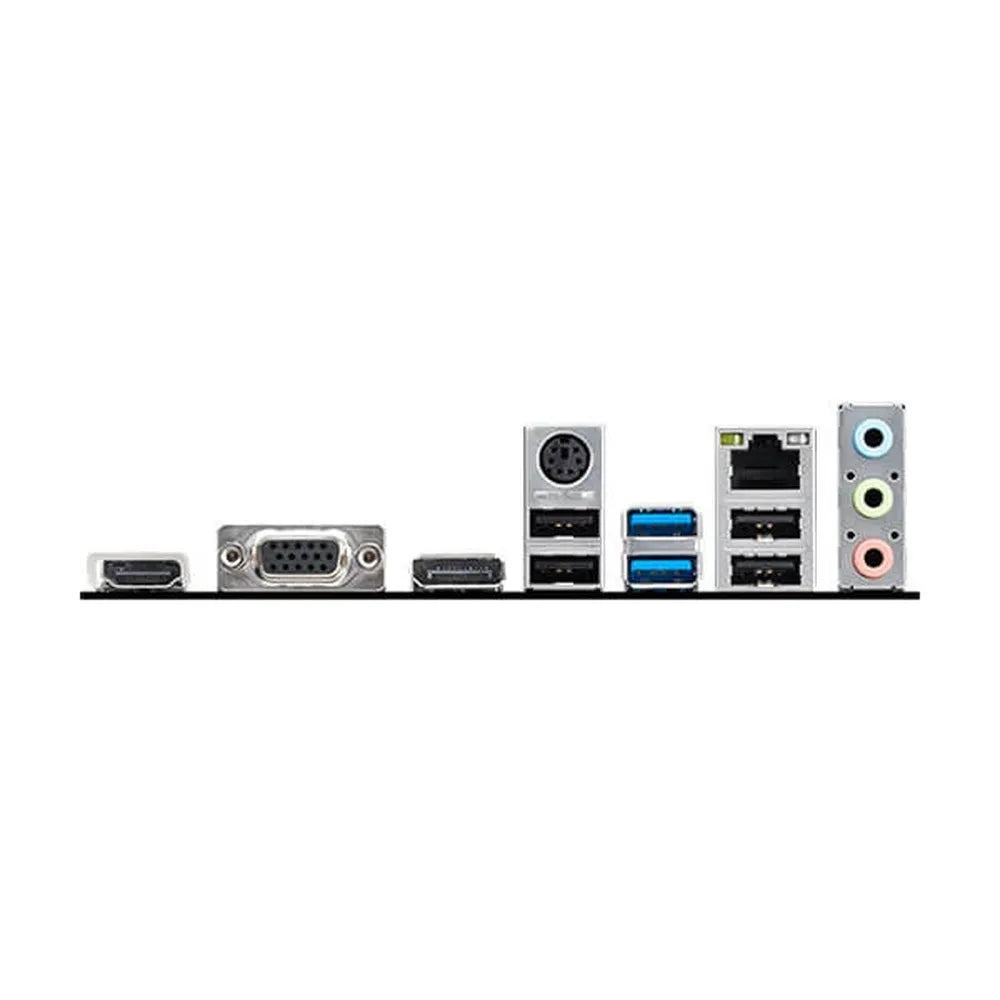

| Back panel ports |
HDMI™ VGA DisplayPort Keyboard/Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 |
| Dimensions |
mATX Form Factor 9.61 x 8.31 in. (24.4 cm x 21.1 cm) |
| Operating System | Support for Windows® 11 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
