Features Of MSI Pro H610M-E DDR5 Intel Motherboard
PRO H610M-E: Business Elegance Designed for value-oriented creative businesses employing the Intel H610 chipset (12th & 13th Gen Intel Core supported, LGA 1700), the MSI PRO H610M-E motherboard includes a primary PCIe 4.0 x16 graphics card slot (with Steel Armor), improved DDR5 memory modules (4800MHz/MAX), and M.2 Gen3 storage.
To ensure reliable power delivery to 12th and 13th Gen Intel Core desktop processors, the MSI PRO H610M-E is a business-oriented Micro-ATX motherboard featuring a fully digital power design VRM platform with Core Boost, augmented with passive & active – Frozr AI – cooling. Connectivity includes 1G LAN, USB 3.2 Gen 1 Type-A (5Gbps), HDMI 1.4 (4K/30Hz) & VGA display support, and 7.1 HD Audio.
For professionals looking for dependable 12th or 13th Gen Intel Core performance with PCIe 4.0 x16 graphics card support, improved DDR5 memory, and M.2 Gen3 storage, the MSI PRO H610M-E epitomizes business elegance.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- MSI Pro H610M-E DDR5 Memory, up to 4800(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.
Allow you to experience faster wireless network connection! The reserved M.2 E-key slot providing the flexibility to upgrade your system with a Wi-Fi module. Breaking the barrier of cables and having more flexibility.
Specifications Of MSI Pro H610M-E DDR5 Intel Motherboard
| Chipset | INTEL H610 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory |
2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 4800 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics |
1x HDMI Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Slot |
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Storage |
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| USB |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |

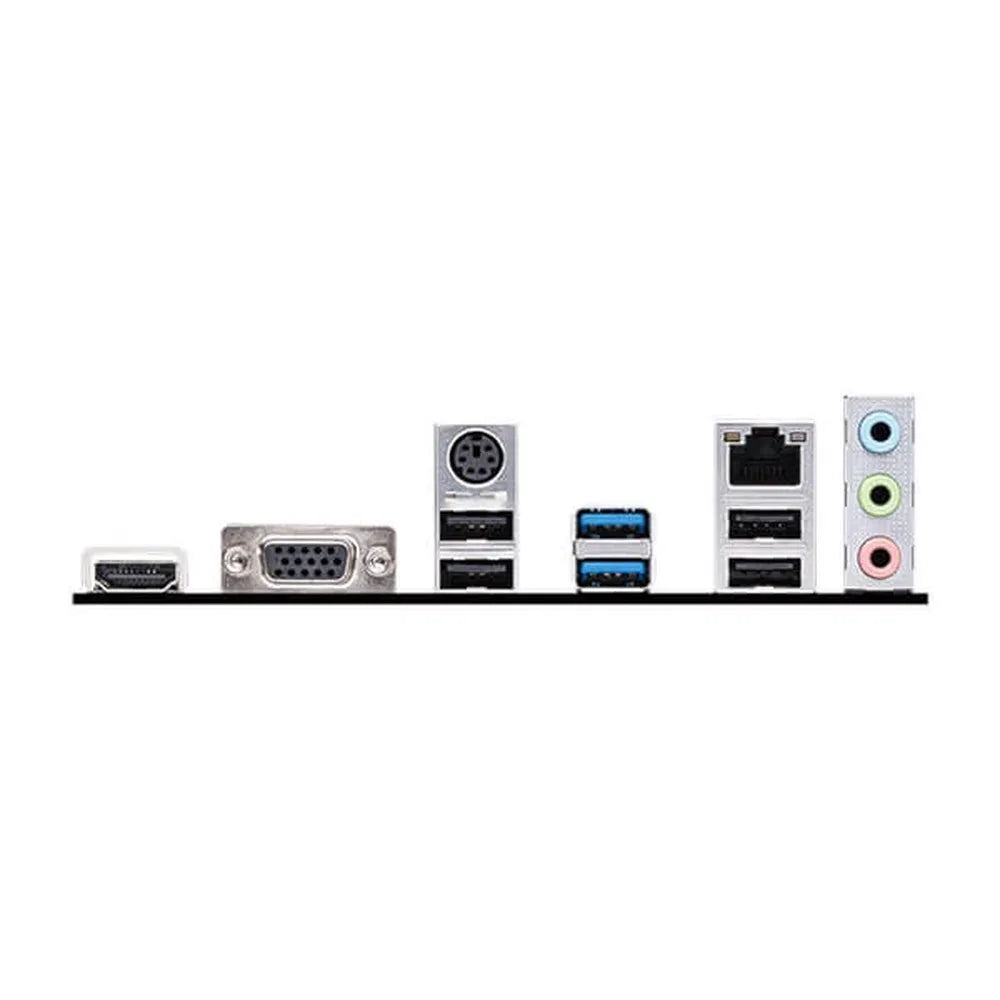

HDMI VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info |
mATX 200mmx236.16mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
