Description

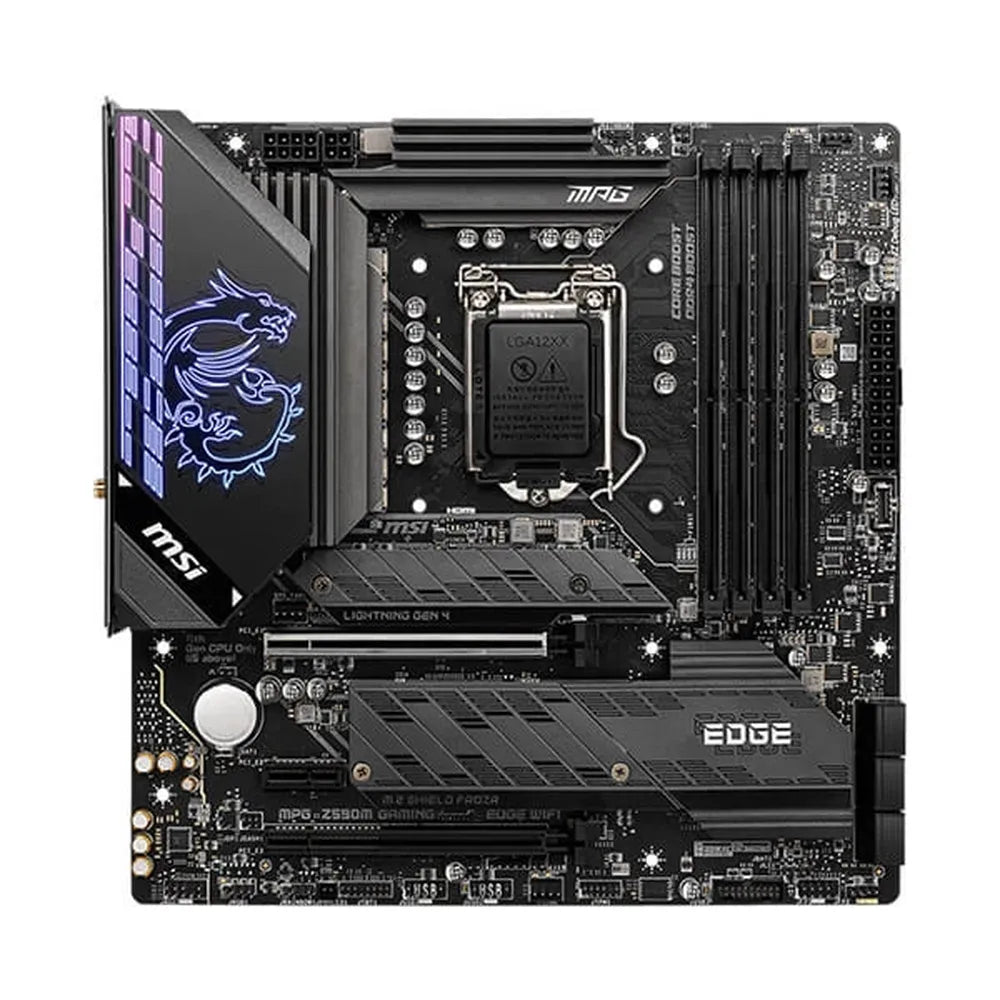

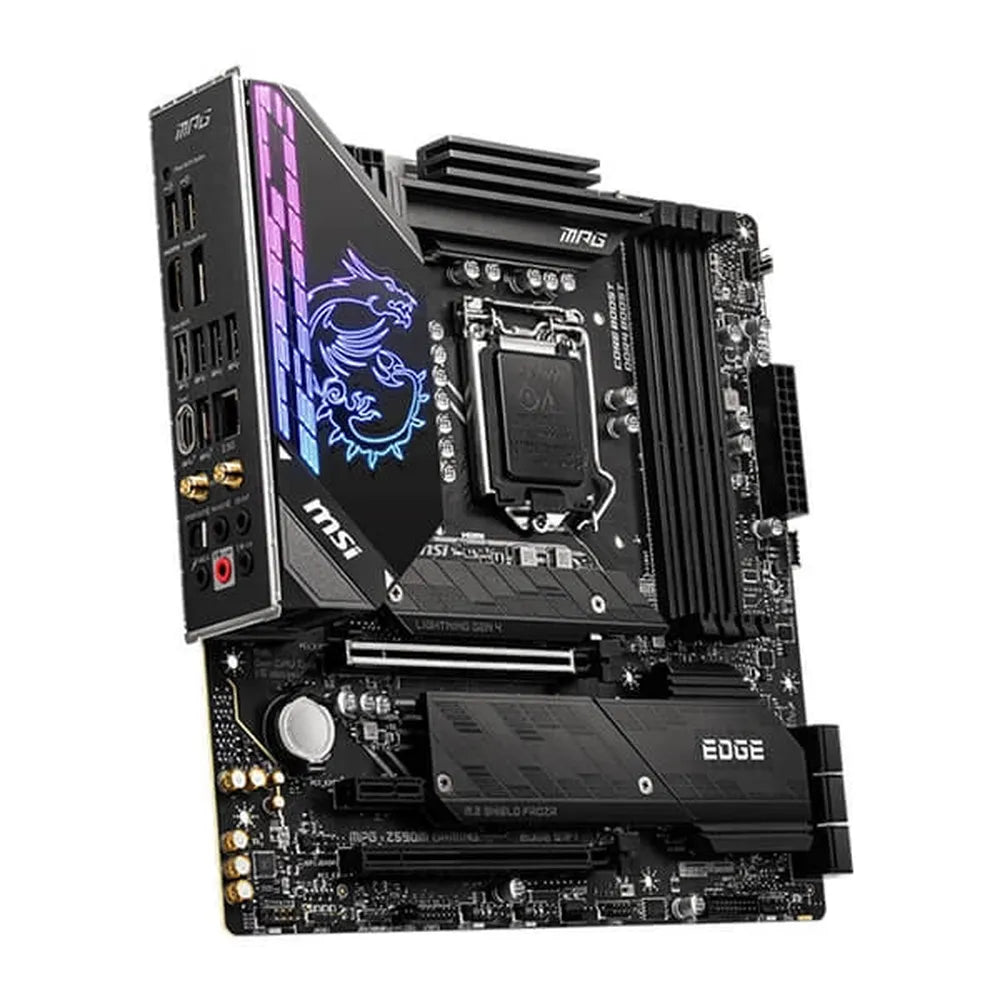

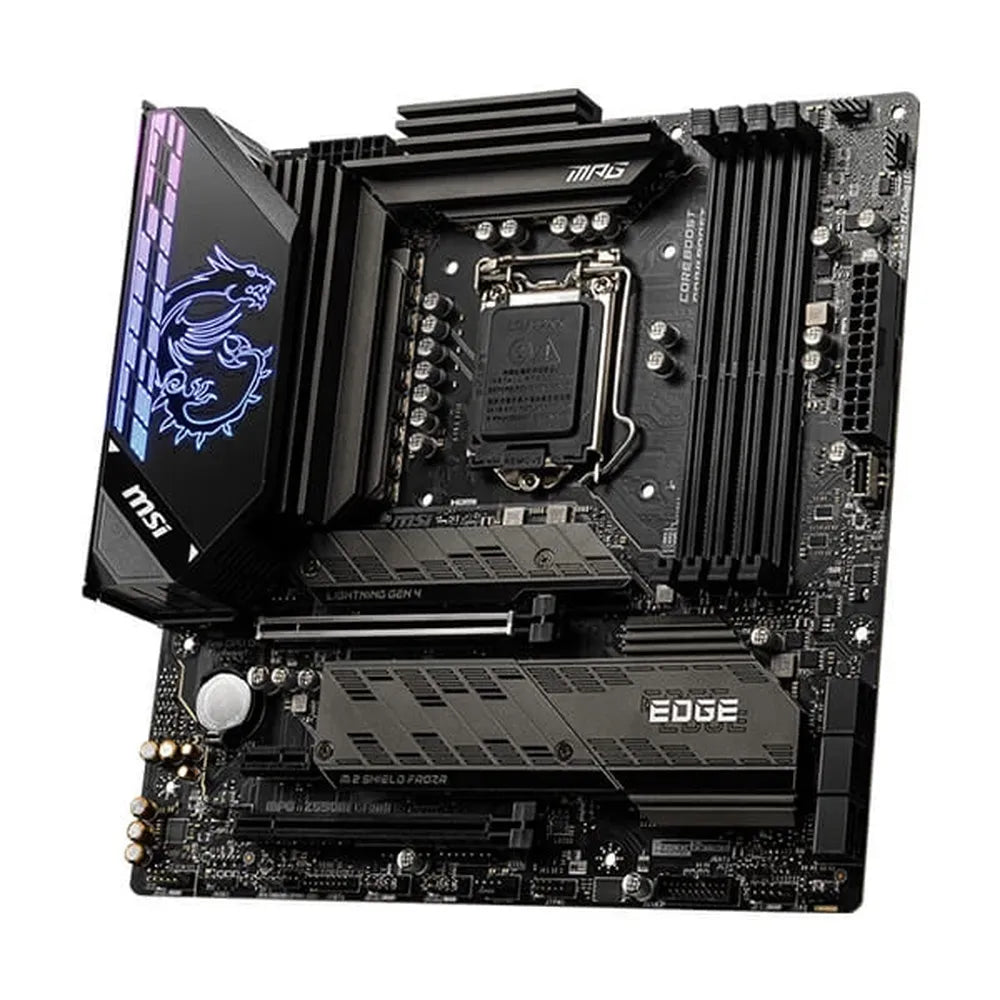

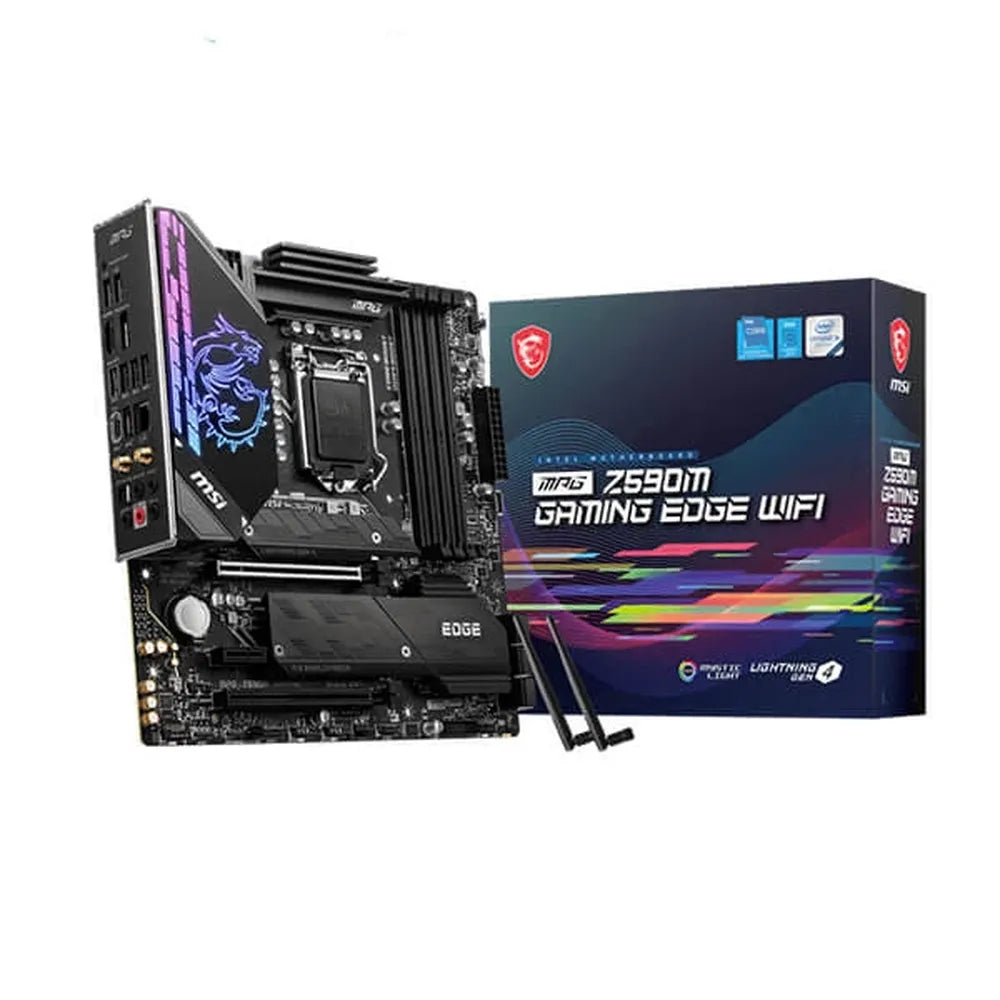

Features of MSI MPG Z590M Gaming Edge WIFI Motherboard
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 2x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Thermal Solutions
The MSI MPG Z590M Gaming Edge WIFI enables you to install fan- or liquid-cooling systems, allowing you to choose a thermal solution that best fits your custom build. An extended heatsink covers essential components and the signature M.2 Shield Frozr keeps your NVMe solid-state drive cool under heavy loads. Frozr AI Cooling automatically detects temperatures across your components and adjusts to meet thermal performance with performance, silent, and manual modes. Fully Fan Control enables you to manually adjust parameters while feeding you information in real-time for proper monitoring.
Power Design
Leveraging a 12+1+1 Duet Rail Power System, the MPG Z590M can deliver ample power while maintaining electrical load for optimal efficiency. Core Boost technology directs power to the CPU quicker, creating proper conditions suitable for overclocking which can be accessed with Game Boost software. Load-line calibration, overvoltage protection, digital power design, and double power connectors all work together to provide additional operational enhancements essential for high-end gaming.
DIY Friendly Design
Whether you are a seasoned or amateur builder, the MPG Z590 is designed for simplicity and durability, giving you everything you need to put together a gaming-optimized PC. A pre-installed I/O shield makes installation easier, while the keep-out zone protects onboard circuitry from contacting case standoffs. The included screwdrivers, USB drive, and cleaning brush allow you to easily install and maintain the look of your MPG Z590. Battery sticker, cable labels, and case badge offer a level of customization and organization to your build. Additionally, an EZ debug LED system tells you if components are experiencing any issues, reducing time spent on troubleshooting.
Power Protection
Sporting a 2oz thickened copper 6-layer printed circuit board, you get improved heat dissipation and enhanced performance reliability for standard and overclocked modes. Double ESD protection prevents shorts by adding another grounding layer to mounting holes. The overall build of the MPG Z590M makes it certified for gaming, ensuring your motherboard can handle fast-paced titles.
Performance Enhancements
DDR4 Boost and XMP capabilities ensure optimal performance with a wide range of memory manufacturers, ensuring proper configurations whether you are in overclocked or standard modes. MSI Lightning Gen 4 connectivity protocol enables enhanced speeds up to 64 Gb/s for PCIe slots and M.2 interfaces when the MPG Z590M is paired with an 11th Gen Intel processor. Intel Optane support is also available, enabling you to install compatible M.2 devices to enhance the speed of your hard-disk drives.
Connectivity
Connect to your network via wireless or wired options with Wi-Fi 6E and 2.5 Gigabit LAN, respectively, each providing viable options when gaming or enjoying your favorite media. LAN Manager automatically prioritizes games above other applications, allows you to change traffic priority, and enables custom bandwidth for each application for low-latency gaming. A USB 3.2 Gen 2×2 Type-C port offers transfer speeds up to 20 Gb/s, allowing you to take advantage of high-powered peripherals such as audio and video interfaces. A front-end USB 3.2 Gen 2 Type-C connector gives you instant access to quick downloads and fast mobile device charging.
High-End Audio
Immerse yourself deep into your virtual worlds with high-definition audio, delivered using Realtek ALC4080 dedicated audio processor, high-quality audio capacitors, five 3.5mm audio jacks, and a dedicated audio amplifier. The isolated audio design separates the audio traces from the rest of the board components to reduce electrical crosstalk. Separated audio layers provide clean left and right channels with a dedicated PCB design. De-pop protection reduces the popping sound when connecting and disconnecting your headphones.
BIOS & Software
Adjust various system parameters with MSI Center, a suite of software utilities that are centralized to give you quick access to advanced motherboard features. True color, live update, user scenario, hardware monitor, OC setting, total fan control, mystic light, and product registration all work together to streamline operations and simplify your overall experience.
Mystic Light Headers
Add a layer of personality to your build with MSI’s Mystic Light software, giving you a choice from 16.8-million colors and 29 LED effects, enabling you to explore your creativity and make a unified aesthetic.
Specifications of MSI MPG Z590M Gaming Edge WIFI
| Model | MPG Z590M GAMING EDGE WIFI |
| Processor |
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200 |
| Chipset | Intel® Z590 Chipset |
| Memory |
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode,, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slots |
2x PCIe x16 slots Support x16/x4 PCI_E1 (From CPU) Supports up to PCIe 4.0 for 11th Gen Intel® CPU Supports up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3(From Z590 Chipset) Support up to PCIe 3.0 1x PCIe 3.0 x1 slots (From Z590 Chipset) |
| Onboard Graphics |
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| Multi-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| Storage |
6x SATA 6Gb/s ports (From Z590 Chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From Z590 Chipset) Support up to PCIe 3.0 x4 Support up to SATA 6Gb/s1 Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready2 Supports Intel® Smart Response Technology for Intel® Core™ processors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
Intel® Z590 Chipset 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel) 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A ports on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 2 ports are available through the internal connectors) 2x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports are available through the internal connectors |
| Audio |
Realtek® ALC4080 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Intel® I225V 2.5Gbps LAN controller |
| WIFI & BLUETOOTH |
Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2z, FIPS, FISMA |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2-pin system fan connectors 1x Front panel audio connectors 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x Tuning Controller connector 1x TBT connector (supports RTD3) |
| LED Feature |
1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |

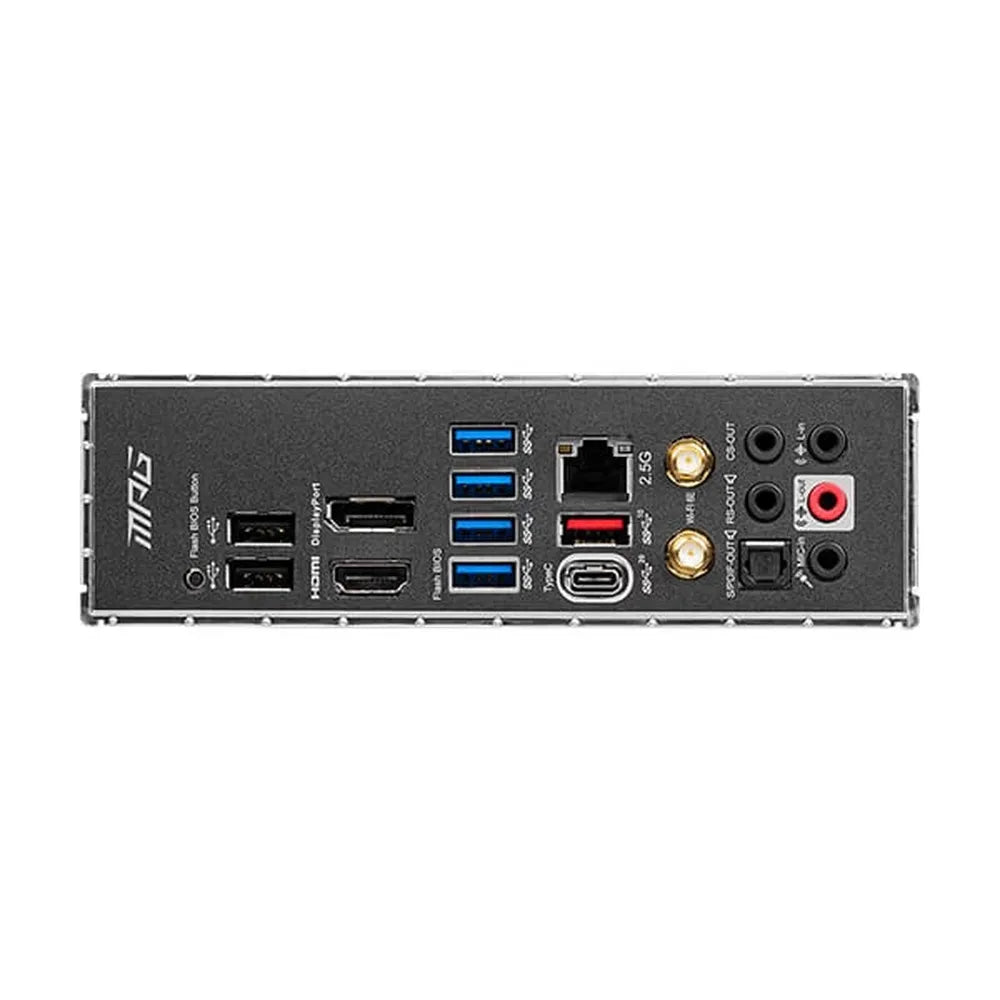

| Back panel ports |
DisplayPort USB 3.2 Gen 1 5Gbps Type-A 2.5G LAN Wi-Fi/Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF Out |
| Dimensions |
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
