Description

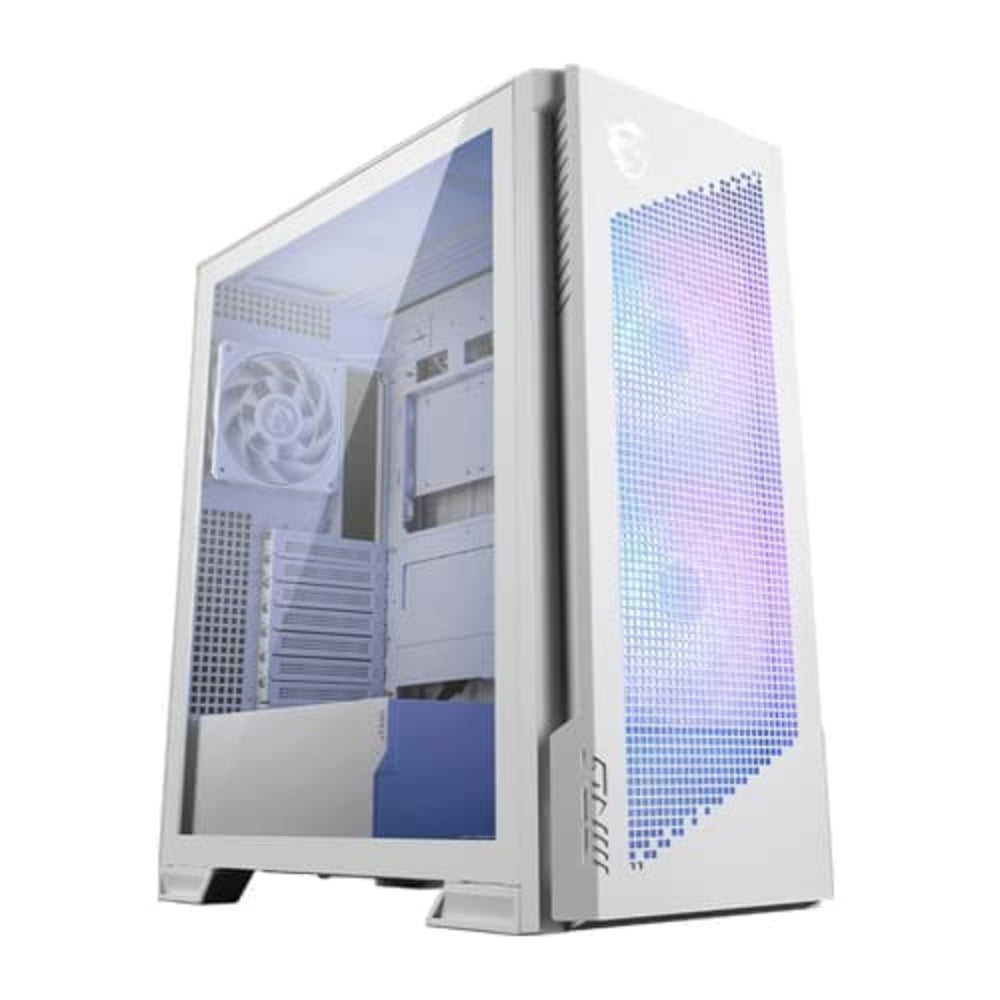

Features of MSI MPG Velox 300R Airflow PZ
MPG VELOX 300R AIRFLOW PZ is designed for high thermal performance, versatile cooling, and effortless assembly—perfect for gaming enthusiasts building powerful rigs.
- Support three setting spaces for 360 mm radiators (Can be equipped with two 360 mm radiators simultaneously), up to thirteen fans, one Pump Reservoir, or one water cooling distro plate.
- Supports regular EATX, ATX, Micro-ATX, Mini-ITX, and Back-connect ATX motherboards, meeting various PC build requirements.
- The Dual Layer Blades Fan consists of outer and inner ring blades that rotate simultaneously, creating concentrated airflow and enhanced heat dissipation.

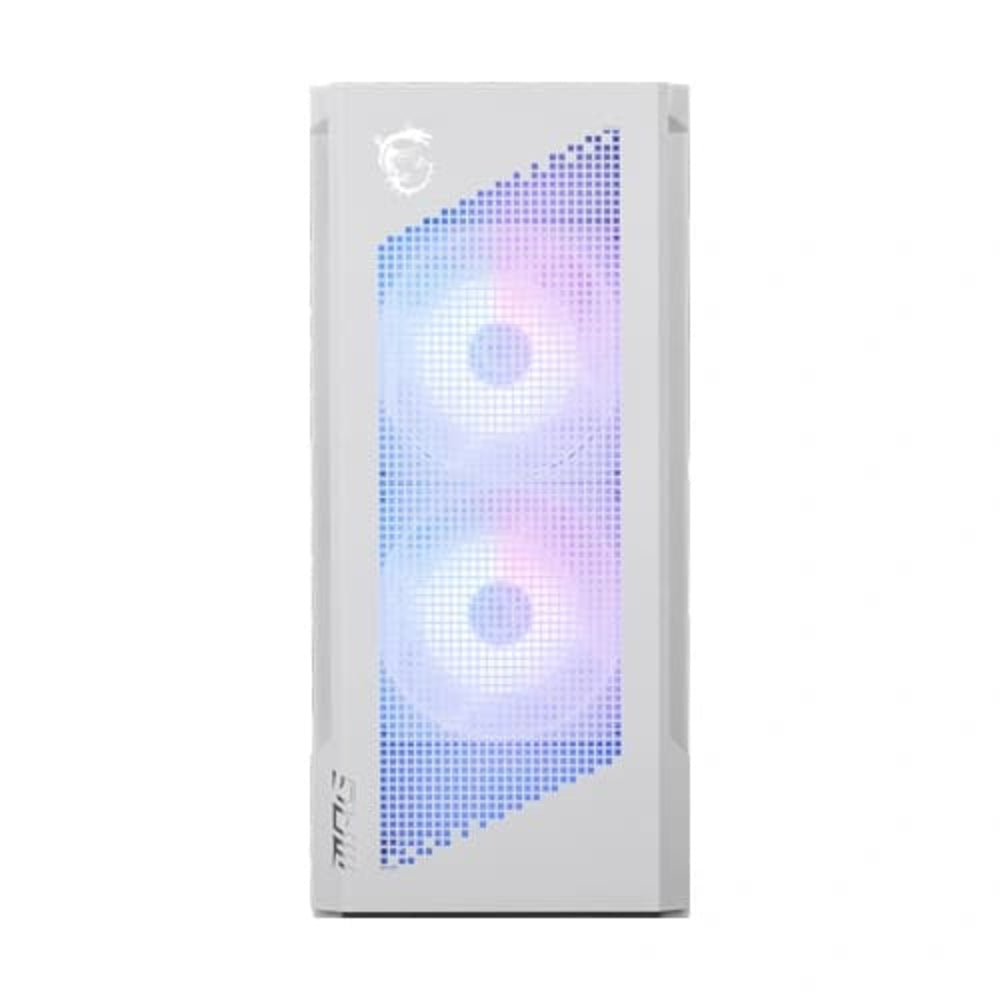

- Pre-installed with 2 x 160 mm ARGB Dual Layer Blades Fan at the front and 1 x 120 mm Dual Layer Blades Fan at the rear.
- The adjustable EZ bracket on the front panel supports fan sizes of 160mm x 2, 140mm x 3, and 120mm x 3, as well as a water cooling distro plate, allowing for flexible installation.
- Quick snap-and-lock PSU cover for easy assembly and streamlined cable management, optimizing the building process.
- Synergizes with compatible MSI motherboards through a USB 20Gbs (Type-C) port for high-speed data transmission.
- Removable dust filters at the top, front, side, and bottom for easy cleaning.
pre-installed Exclusive Dual Layer Blades Fan
The rigid dual-layer structure minimizes vibration and generates concentrated airflow, expanding the heat dissipation range.
Dual Ring Blade Design
Interconnected fan blades enhance rigidity, reducing vibration for smooth operation. Dual-layer blades rotate at varying speeds, optimizing airflow and heat dissipation.
ADJUSTABLE Fan Speed
Three manual fan speed control modes regulate voltage, enabling users to optimize cooling performance - maximize airflow, minimize noise, or achieve the ideal balance.
Heat dissipation performance
Equipped with exclusive Dual Layer Blades Fan for increased airflow intake, the MPG VELOX 300R AIRFLOW PZ enhances heat dissipation efficiency.
Specifications of MSI MPG Velox 300R Airflow PZ
| Product Name | MPG-VELOX-300R-AIRFLOW-PZ-WHITE |
| Case Form Factor | Mid-Tower |
| Motherboard Form Factor Support |
Regular: EATX (up to 305 x 278mm), ATX, Micro-ATX, Mini-ITX Back-connect: ATX |
|
I/O Ports |
1 x USB 20Gbs (Type-C) 2 x USB 5Gbs (Type-A) 1 x Audio-Out / Mic-in 1 x LED Button 1 x Power Button |
|
Drive Mount Support |
4 x 2.5“ 1 x 3.5“ 1 x 2.5"/3.5" combo |
|
Expansion Slots |
7 |
| Maximum GPU Length |
400 mm / 15.75 inches |
|
Maximum CPU Cooler Height |
165 mm / 6.50 inches |
|
Power Supply Support |
ATX |
|
Maximum PSU Length |
200 mm / 7.87 inches |
|
Fan Size Support |
Front: 3 x 120 mm / 3 x 140 mm / 2 x 160 mm Rear: 1 x 120 mm Top: 3 x 120 mm / 3 x 140 mm Side: 3 x 120 mm PSU Shroud: 2x120 mm Bottom: 1 x 120 mm |
|
Pre-installed Fan Size |
Front: 2 x 160 mm Rear: 1 x 120 mm |
|
Pre-installed Fan Type |
Front: 2 x 160 mm Rear: 1 x 120 mm |
|
Pre-installed Fan Type |
Front: 2 x ARGB Fan (Dual Layer Blades Fan, Rifle Bearing) Rear: 1 x Non-ARGB Fan ( Dual Layer Blades Fan, Rifle Bearing) |
|
Radiator Size Support |
Front: 120 / 140 / 240 / 280 / 360 mm Rear: 120 mm Top: 120 / 140/ 240 / 280 / 360 mm Side: 120 / 240 / 360 mm Bottom: N/A |
|
Dimensions (DxWxH) |
485 x 235 x 518 mm / 19.09 x 9.25 x 20.39 inches |
