Description
Feature of MSI MPG B550 Gaming Plus AM4 Wifi DDR4
- Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory, up to 5100+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
- Enhanced Power Design: 10+2+1 Duet Rail Power Design, Core Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mK and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI MPG B550 Gaming Plus AM4 Wifi DDR4 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
10 + 2 + 1 DIGITAL POWER WITH DOUBLER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 10 phases Digital Power with Doubler Design. Combining exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.
CORE BOOST
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while high-loading operation.
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.
MSI CENTER
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
MSI APP PLAYER
Developed under an exclusive partnership with BlueStacks, the MSI APP Player brings seamless gaming experience between mobile games and PC platform, and leverages customized features as specific keyboard lighting and better graphics with multi-task works.
Specifications of MSI MPG B550 Gaming Plus AM4 Wifi DDR4
| CPU | Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update |
| Chipset | AMD B550 Chipset |
| Memory |
4x DDR4 memory slots, support up to 128GBSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Expansion Slots |
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 2x PCIe 3.0 x1 slots The supported specification depends on installed processor. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2. |
| Onboard Graphics |
x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 Maximum shared memory of 16 GB Available for the processor with integrated graphics. |
| Multi-GPU | Supports 2-Way AMD CrossFire™ Technology |
| Storage |
AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 slot (from AMD Processor)Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_2 slot (from AMD B550 chipset)Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devicesThe supported specification depends on installed processor. |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio |
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth® |
Intel® Wi-Fi 6 AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.1 |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper |

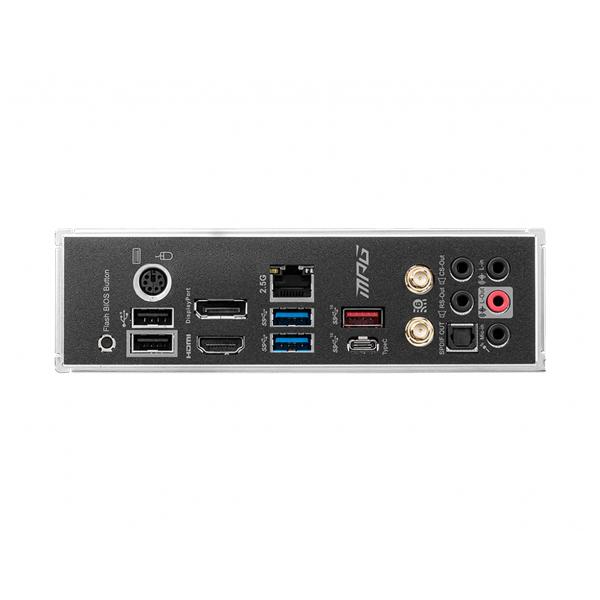

| Back panel ports |
PS/2 Combo Port DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) HD Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Wi-Fi / Bluetooth Optical S/PDIF OUT |
| LED Features |
1x EZ LED Control switch 4x EZ Debug LED |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| Hardware Monitor |
CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control |
| Form Factor |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
