Description

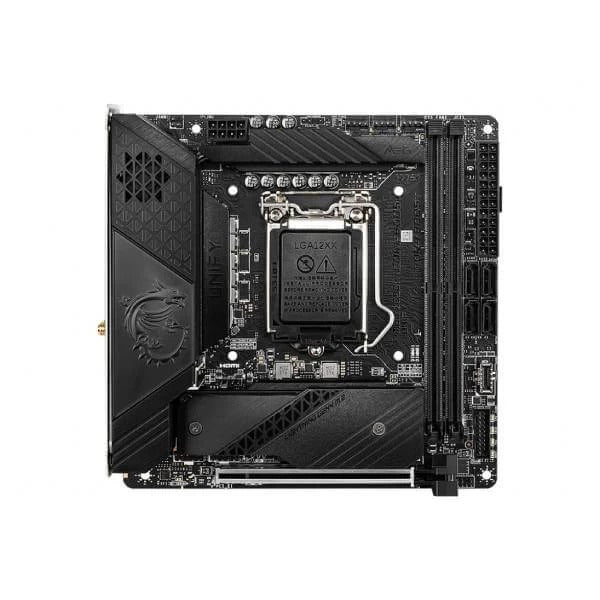

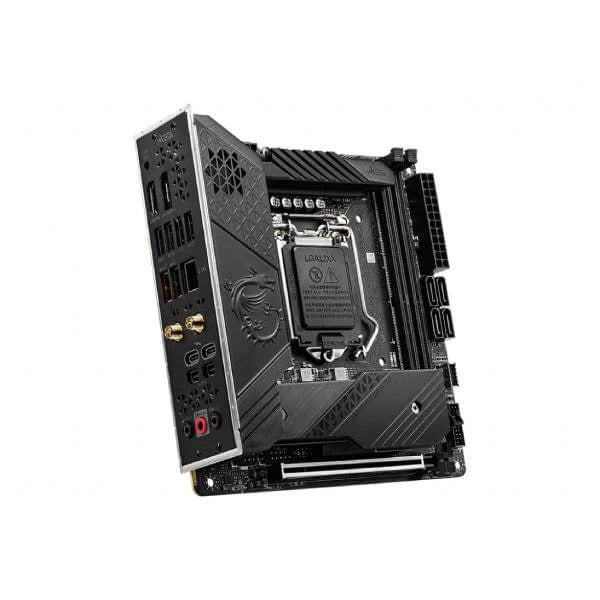

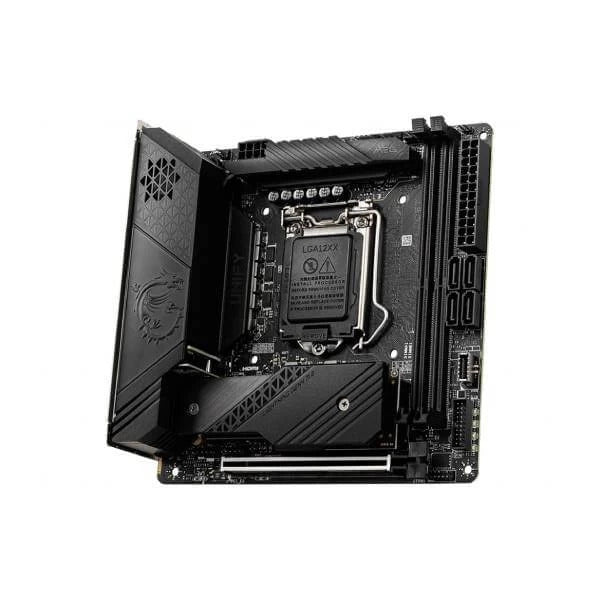

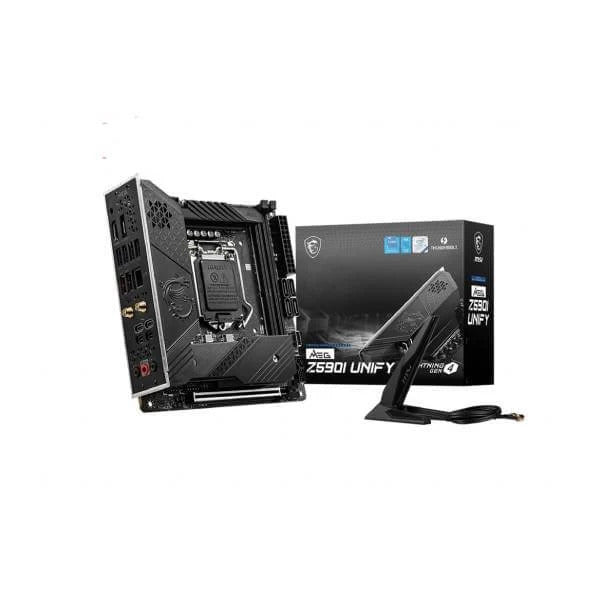

Feature of MSI MEG Z590i Unify Wifi DDR4 Intel Motherboard
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5600(OC) MHz
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
- Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Froze ensure the extreme performance with low temp.
- 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Twin M.2 Connectors : Onboard dual M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution.
- 10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel processors, MSI MEG Z590i Unify Wifi DDR4 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
DUAL THUNDERBOLT™ 4 PORTS
Experience Thunderbolt 4 with unprecedented interface bandwidth speeds up to true 40Gbp and support for up to six daisy-chained devices. Additionally, Maximum 8K display support, Multi-Port Accessory Architecture and USB 4.0 compliant provide reliable connectivity and better user experience.
USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
HIGH DEFINITION ALC1220P AUDIO PROCESSOR
Supports DSD Super Audio CD playback & recording (64x better than regular CD quality)
*120dB SNR / 32-bit
HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
ISOLATED AUDIO DESIGN
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.
Specifications of MSI MEG Z590i Unify Wifi DDR4 Intel Motherboard
| PROCESSOR |
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors Processor socket LGA1200 |
| CHIPSET | Intel® Z590 Chipset |
| MEMORY |
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/2666/2933 MHz for 10th Gen Intel®CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel®CPU (by JEDEC & POR) Max overclocking frequency:1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| EXPANSION SLOTS |
1x PCIe x16 slotSupport up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 11th Gen Intel® CPU |
| ONBOARD GRAPHICS |
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz |
| THUNDERBOLT™ 4 |
Intel® JHL8540Thunderbolt™ 4 Controller 2x Thunderbolt™ 4 (USB-C) ports on the back panelSupport up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A ,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)/li> |
| STORAGE |
4x SATA 6Gb/s ports (from Z590 chipset) 2x M.2 slots (Key M)M2_1 slotSupports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From Z590 chipset) Supports 2280 storage devicesM2_2 slot (from Z590 chipset)Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel® Optane™ Memory ReadySupports Intel® Smart Response Technology for Intel Core™ processors |
| RAID |
Intel® Z590 ChipsetSupports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
Intel® Z590 Chipset3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) |
| AUDIO |
Realtek® ALC1220P Codec 7.1-Channel High Definition Audio |
| LAN | 1x Inte® I225-V 2.5Gbps LAN controller |
| WIRELESS LAN & BLUETOOTH |
Intel Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22, FIPS, FISMA |
| INTERNAL CONNECTORS |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots 1x USB 3.2 Gen2 10Gbps Type-C port 1x USB 3.2 Gen1 5Gbps connector 1x USB 2.0 connector 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector |
| LED FEATURE |
4x EZ Debug LED 1x 3-pin RAINBOW LED connectors |

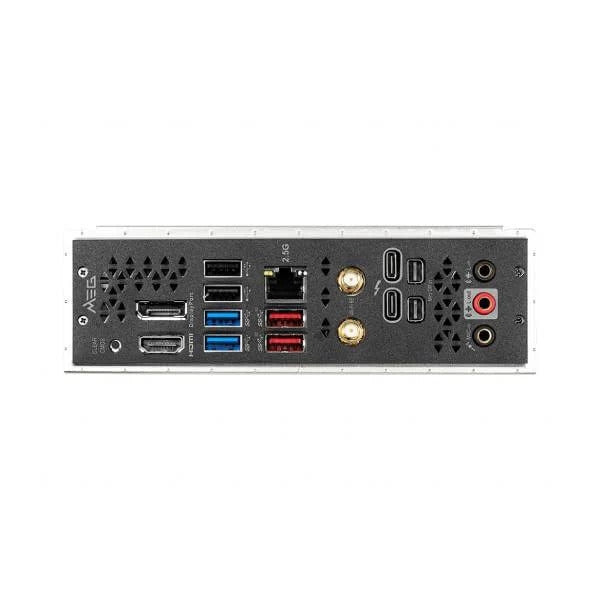

| BACK PANEL CONNECTORS |
DisplayPort USB 2.0 2.5G LAN Wi-Fi /Bluetooth Thunderbolt 4 40Gbps (Type-C) HD Audio Connectors Clear CMOS Button HDMI USB 3.2 Gen1 5Gbps (Type-A) USB 3.2 Gen2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) |
| DIMENSIONS |
6.7 in. x 6.7 in. Mini-ITX Form Factor |
| MOUNTING | 4 Mounting Holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
