Description

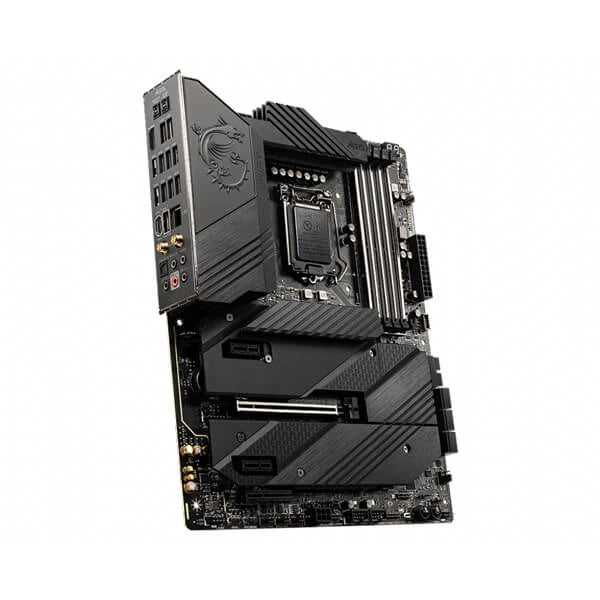

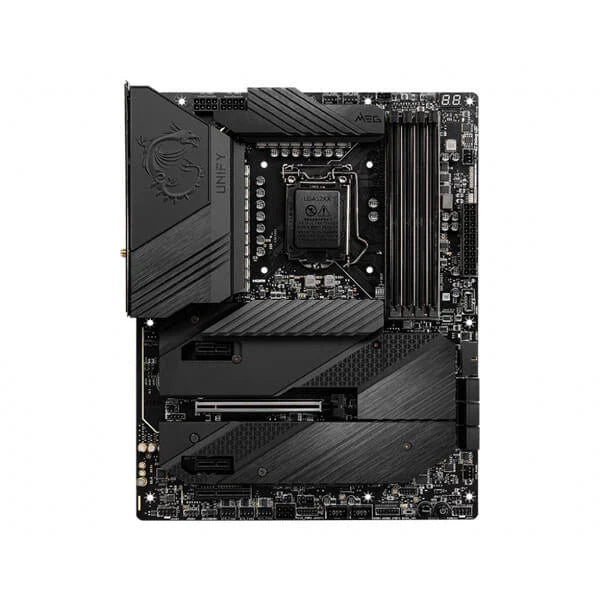

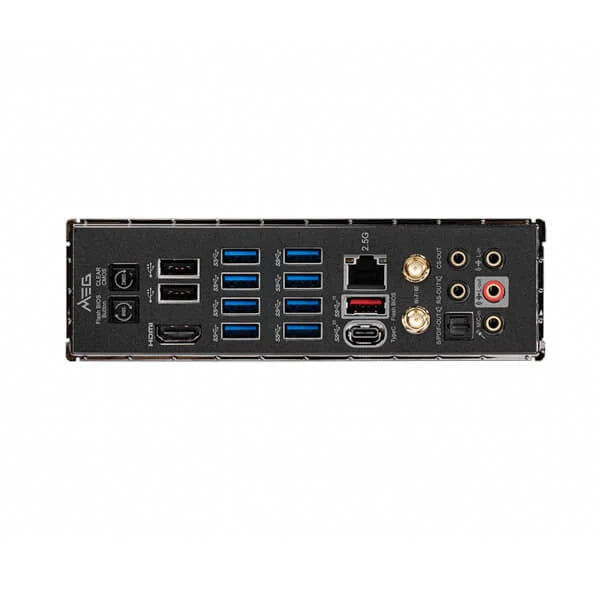

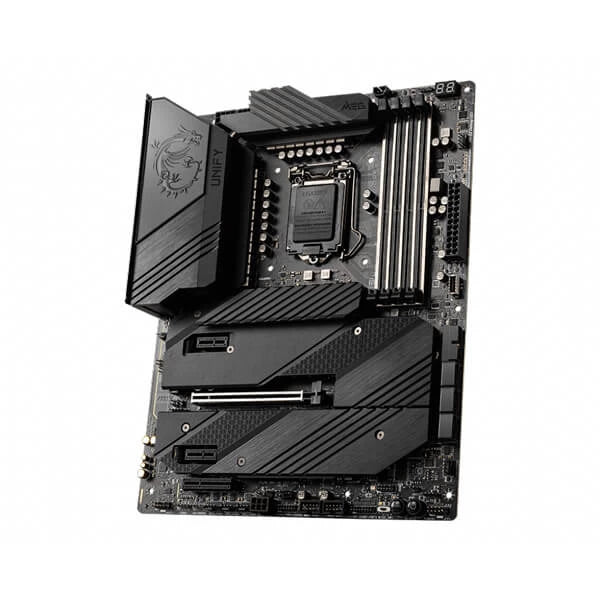

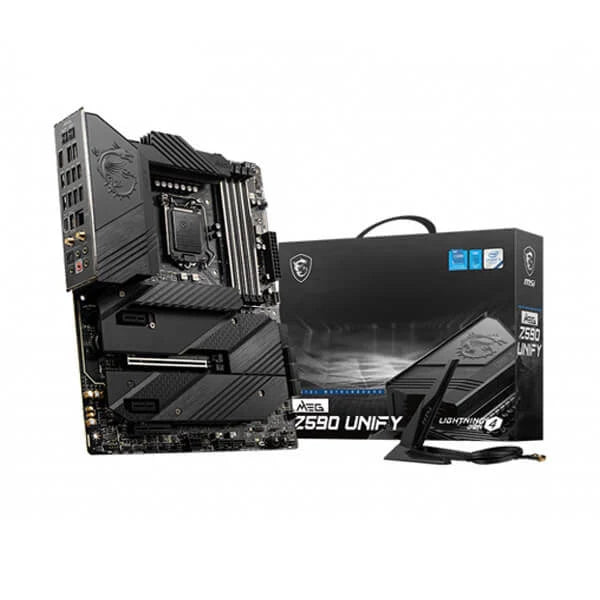

Feature of MSI MEG Z590 Unify Gaming DDR4
- Supports 11th and 10th Gen Intel Core/Pentium/Celeron processors for LGA 1200 Socket
- Supports DDR4 Memory, up to 5600(OC) MHz
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
- Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure extreme performance with low temp.
LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel processors, MSI MEG Z590 Unify Gaming DDR4 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users
MEG Z590 UNIFY
Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5600(OC) MHz
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
Specifications of MSI MEG Z590 Unify Gaming DDR4
| Brand | MSI |
| Manufacturer | MSI COMPUTER |
| Model | MEG Z590 UNIFY |
| Model Year | 2021 |
| Product Dimensions | 30.48 x 24.38 x 6.35 cm; 2.82 Kilograms |
| Item model number | MEG Z590 UNIFY |
| Memory Slots Available | 4 |
| Memory Technology | DDR4 |
| Ram Memory Technology | DDR4 |
| Processor Socket | LGA 1200 |
| Compatible Processor Types | Intel Celeron, Intel Pentium |
| Graphics Card Interface | PCI-E |
| Number Of Items | 1 |
| Batteries Included | No |
| Batteries Required | No |
| Form Factor | Atx |
| Contains Liquid Contents | No |
| Manufacturer | MSI COMPUTER |
| Item Weight | 2 kg 820 g |
