Description

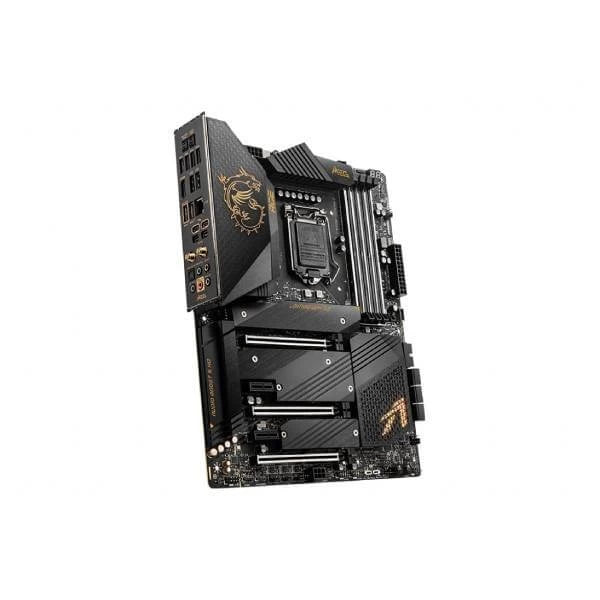

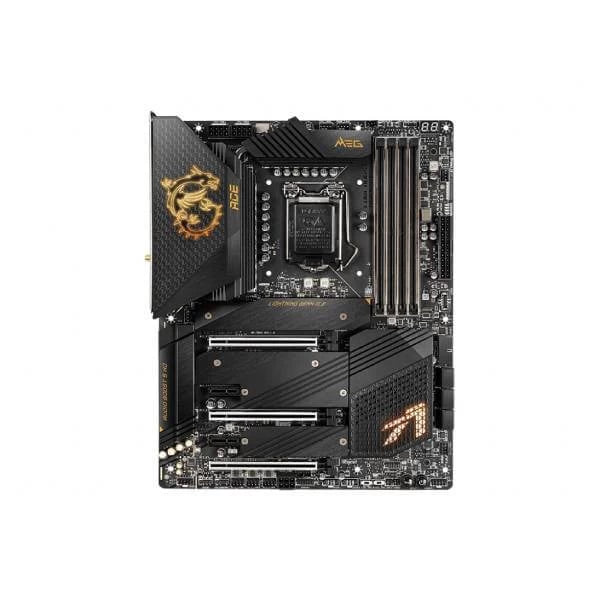

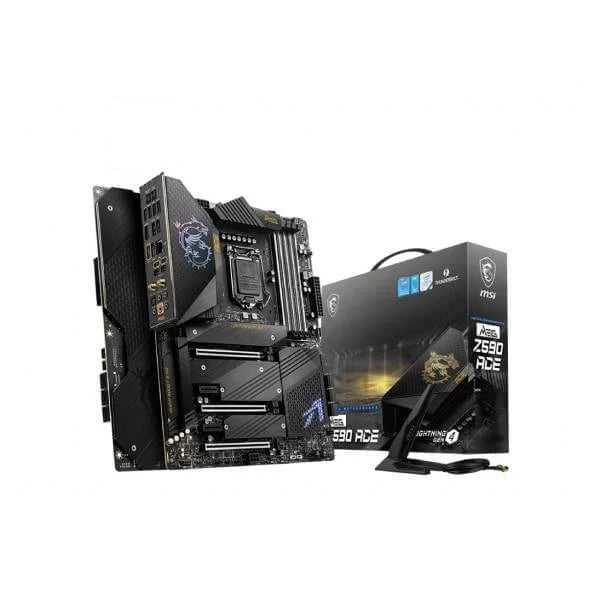

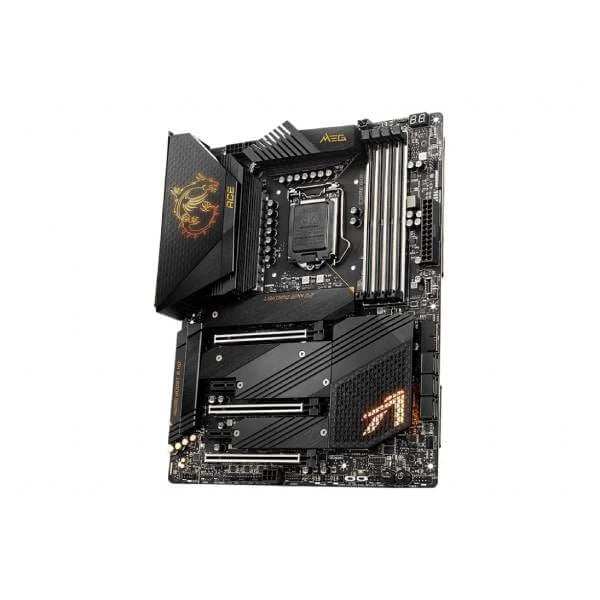

Feature of MSI MEG Z590 ACE Gaming DDR4
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5600(OC) MHz
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
- Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
- 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience
Supports Intel Core 11th Gen Processors
The MSI MEG Z590 ACE Wifi Gaming motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors.
- Form Factor: ATX
- Socket Type: LGA 1200
- Chipset: Intel Z590
16+2+1 Mirrored Power Arrangement
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16+2+1 digital power phases.
Combining dual 8-pin power connectors and an exclusive Mirrored Power Arrangement, the MEG Z590 ACE motherboard is ready for the challenge of high-end processors
Premium Cooling
VRM Cooling: Features aluminum cover, connecting heat pipe, choke and 7W/mK thermal pads.
PCB Cooling
Premium 8-layer printed circuit design with 2 oz. thickened copper and aluminium backplate improves heat dissipation & reliability.
SSD Cooling
M.2 Shield Frozr prevents thermal throttling.
System Cooling
Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.
Chipset Cooling
Includes an enlarged heatsink.
Fortified PCI-e 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
- 2 x PCI-e 4.0/3.0 x16 slots (with Steel Armor)
- 1 x PCI-e 3.0 x16 slot (CrossFire supported)
- 2 x PCI-e 3.0 x1 slots
Specifications of MSI MEG Z590 ACE Gaming DDR4
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z590 Chipset |
| DDR4 MEMORY | 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 3 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 4 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel® I225-V 2.5G LAN |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E AX210 |

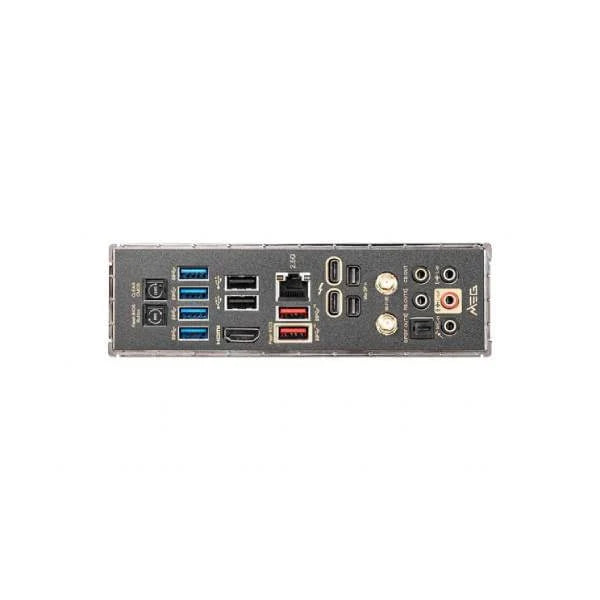

| THUNDERBOLT 4 | 2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports |
| USB 3.2 PORTS (FRONT) | 1(Gen2, Type C), 2(Gen1, Type A) |
| USB 3.2 PORTS (REAR) | 2(Gen2, Type A), 4(Gen1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC4082 Codec + ESS SABRE9018Q2C combo DAC) |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| SLI | Y |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
