Features of MSI MAG Forge 100M RGB ATX MID Tower Cabinet (Black)
MSI also makes various PC cabinets, such as the MSI MAG FORGE 100M RGB ATX Cabinet The MSI MAG FORGE 100M RGB MID TOWER Black Cabinet comes with 2 RGB fans pre-installed on the front panel. The front panel used in this cabinet is a mesh one. Thus, it also allows the front RGB fans to be visible, making it more aesthetically pleasing. The RGB fans do not only improve the appearance of the case but also improve the airflow. Airflow is something that is very much important when it comes to cases. And, the MSI MAG FORGE 100M RGB MID TOWER Black Cabinet has good airflow. This ensures that the temperature inside the cabinet is under check.

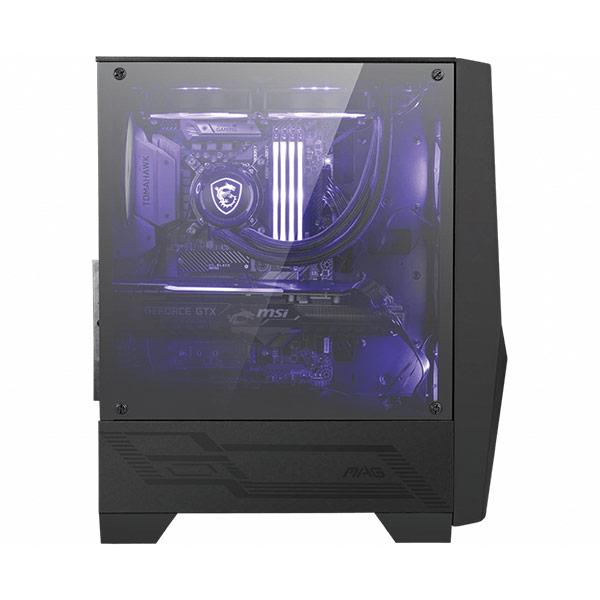

MSI case also has a 4mm tempered glass side panel which allows for seamless viewing and is easy to remove and attach as well. As for motherboard compatibility, this cabinet can support every Mini ITX, M-ATX, and ATX motherboard. As for space, there is ample space inside the MSI MAG FORGE 100M RGB MID TOWER Black Cabinet. It can support up to 240mm radiators on top or front and can hold up to a maximum of 6 fans, and 3 fans come pre-installed. The RGB can be customized via the provided LED button. Even more RGB devices can be controlled using this button, as it comes with a 1 to 6 LED control board.
OPTIMIZED AIR FLOW
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100M Series.
READY FOR OPTIMIZED MOTHERBOARD
Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.
BUILT FOR OPTIMIZED CASE STRUCTURE
The MSI MAG Forge 100M Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.
BUILT FOR A PRIME RADIATOR CAPACITY
Top – support 120 / 240 mm radiator Front – support 120 / 240 mm radiator Rear – support 120 radiator
Specifications of MSI MAG Forge 100M RGB ATX MID Tower Cabinet (Black)
| Model | MAG Forge 100M |
| I/O Ports | 2 x USB 3.2 Gen1 Type-A / 1 x HD Audio / 1 x Mic |
| Driver Bays | 2 x 3.5” (compatible with 2.5”) 3 x 2.5” |
| Case Expansion Slots | 7 |
| Maximum GPU Length | 330 mm |
| Maximum CPU Cooler Length | 160 mm |
| Radiator Compatibility | 120 / 140 / 240 mm |
| Power Supply | Standard ATX 160 mm, max to 200 mm (without 3.5” HDD case installed) |
| Cooling Layout |
Front: Up to 3 x 120 mm / 2 x 140 mm Top: Up to 2 x 120 mm / 2 x 140 mm Rear: Up to 1 x 120 mm |
| Pre-install Fan |
Front：2 x 120 mm RGB LED Fan included Rear：1 x 120 mm System Fan included |
| Radiator Layout |
Front: Up to 240 mm Top: Up to 240 mm Rear: Up to 120 mm |
| Form Factor | Mid-Tower |
| Support MB Form Factor | ATX / mATX / Mini-ITX |
| Dimension |
421(D) x 210(W) x 499(H) mm 17.05(D) x 8.27(W) x 19.65(H) inch |
| Weight | 5.64 kg |
| Warranty | 1 Year |
| Note | ***Features, Price and specifications are subject to change without notice. |
