Description

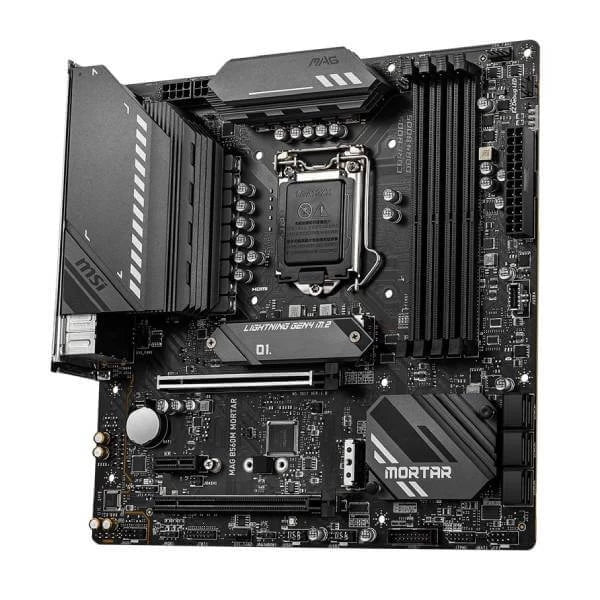

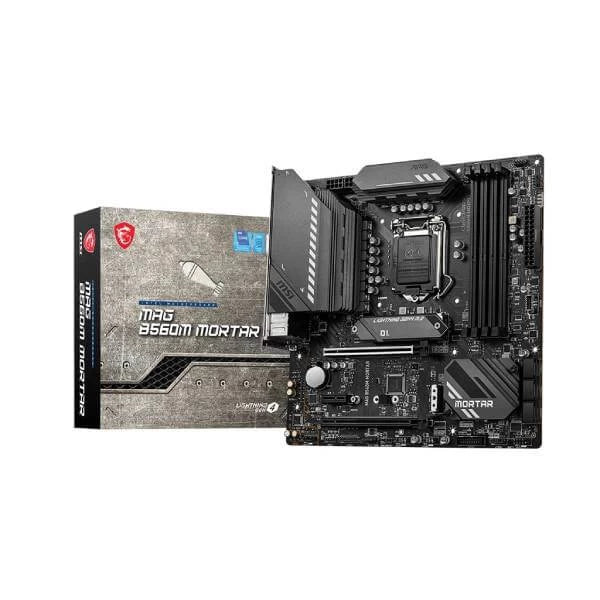

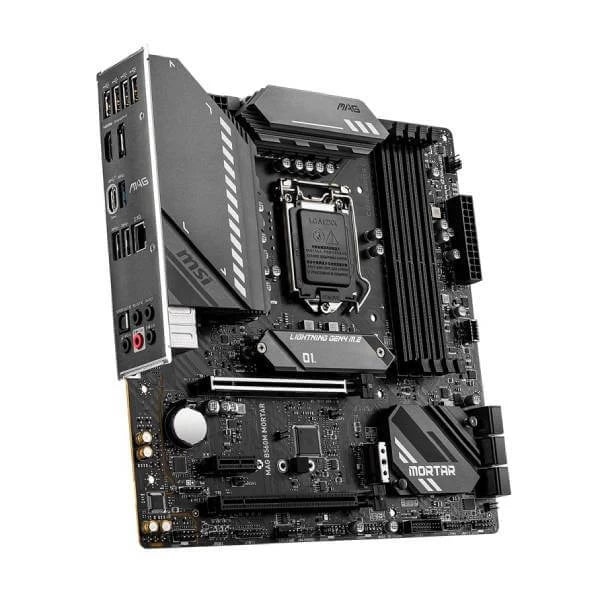

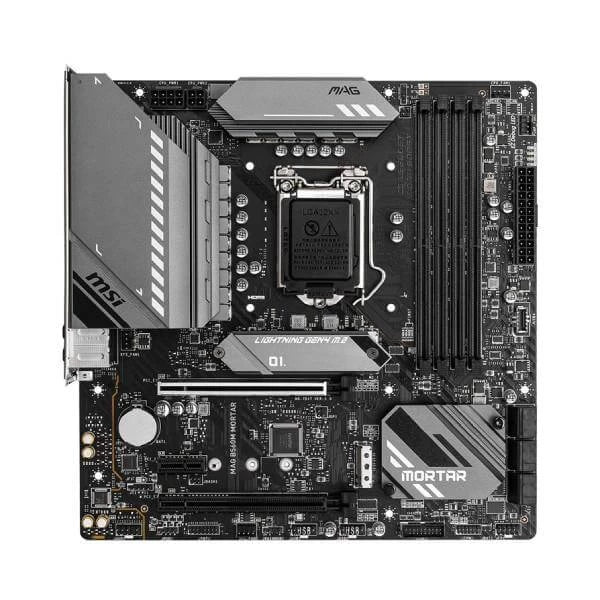

Feature MSI MAG B560M Mortar DDR4
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5066(OC) MHz
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
- Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire Technology™
Core Boost
MSI MAG b560M Mortar DDR4 comes With premium layout and fully digital power design to support more cores and provide better performance.
Digital PWM
MSI MAG B560M MORTAR has Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
6 layer PCB with 2oz Thickened Copper
6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
MSI MAG B560M MORTAR comes With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE in MSI MAG B560M MORTAR.
OPTIMIZED FOR WATER COOLING
MSI MAG B560M MORTAR is Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
ENHANCED PERFORMANCE
High performance MSI MAG B560M MORTAR is loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2×2 20G
Using USB 3.2 devices has never been faster! Featuring the Lighting USB 3.2 Gen2x2 controller, MSI motherboards offer never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The Lightning USB 20G connectors are covered with gold to ensure a better signal and performance.
Specifications MSI MAG B560M Mortar DDR4
| CPU/SOCKET MAX | i9/1200 |
| CHIPSET | Intel® B560 Chipset |
| DDR4 MEMORY | 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E X1 | 1 |
| SATAIII | 6 |
| M.2 SLOT | 2 |
| LAN | 1x Realtek® 8125B 2.5Gbps LAN |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 2(Gen 1, Type A) |

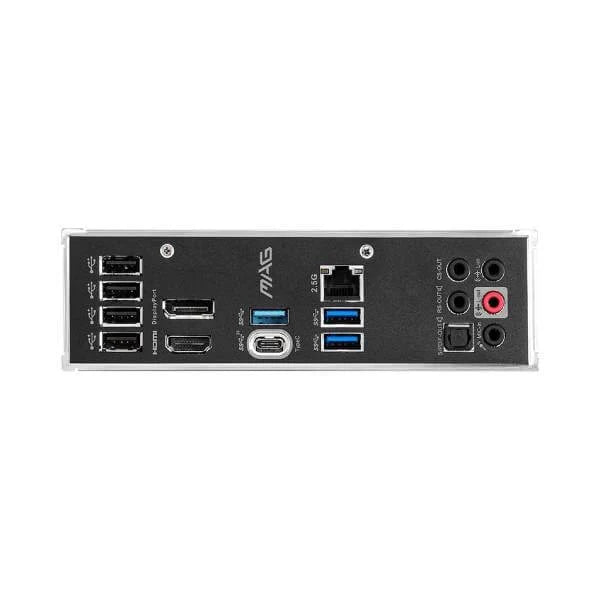

| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 3(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 4 |
| SERIAL PORTS (FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
| DISPLAY PORT | 1 |
| HDMI | 1 |
| VGA | 1 |
| CROSSFIRE | Yes |
| FORM FACTOR | MATX |
| WARRANTY | 3 Year |
