Description

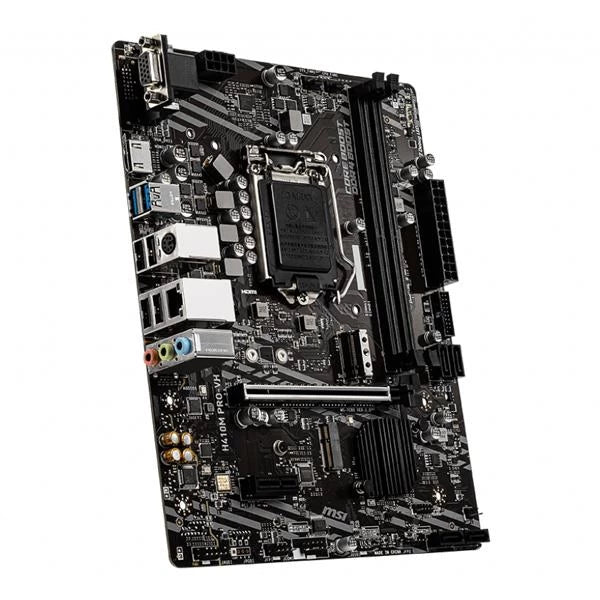

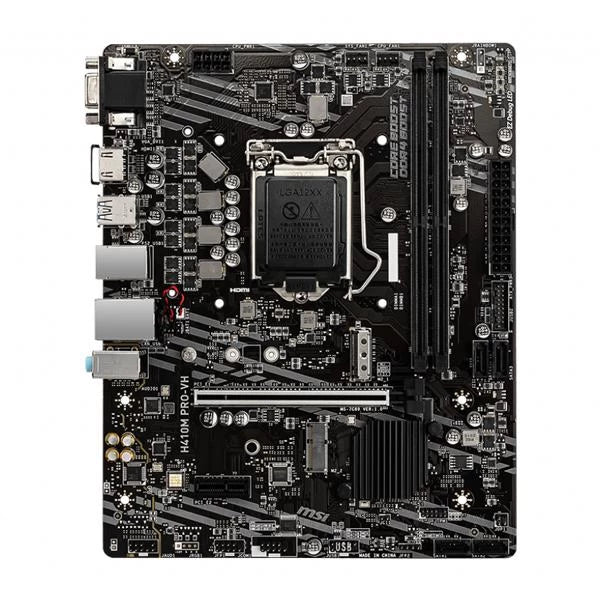

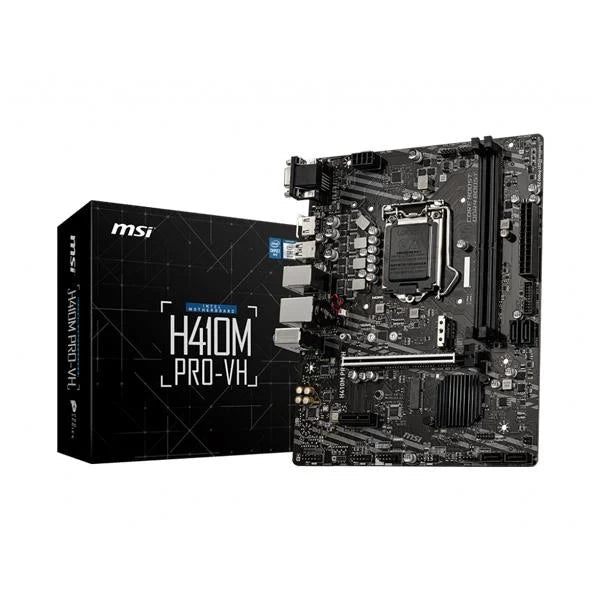

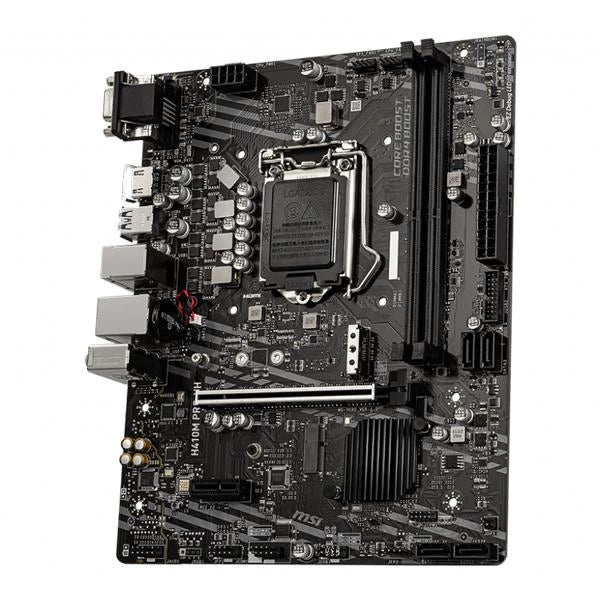

Feature of MSI H410M-VH Pro DDR4 Intel Motherboard
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933(Max) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability, and strength.
PRO H410 Series
MSI H410M-VH Pro DDR4 series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Fully Fan Control
Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence, Hysteresis for fans spin up fluently to make sure your system stays silent.
EZ DEBUG LED and XL CLIP
Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again. The enlarged PCI-E clip helps you swap or remove your devices easier to Keep the slot stronger and safer
High Bandwidth
Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices.
Steel Armor and Double ESD protection
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges.
Click BIOS 5
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
Core Boost
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating a perfect condition to support multi-core CPU running at full speed.
DDR4 Boost
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
Audio Boost
Make sure you enjoy the purest sound quality in both stereo and surround sound.Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.
Specifications of MSI H410M-VH Pro DDR4 Intel Motherboard
| Processor |
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket
|
| Chipset | Intel® H410 Chipset |
| Memory | 2x DDR4 memory slots, support up to 64GB1 Intel® Core™ i7/ i9Supports up to DDR4 2933 MHzIntel® Core™ i5 and below supports up to DDR4 2666 MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot |
1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) 1x M.2 slot with E key for WiFi module only |
| Onboard Graphics |
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
| Storage |
Intel® H410 Chipset4x SATA 6Gb/s ports
1x M.2 slot (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
| USB |
Intel® H410 Chipset4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
| Audio |
Realtek® ALC892/ALC897 Codec7.1-Channel High Definition Audio
|
| LAN | 1x Intel® I219V Gigabit LAN controller |
| Internal connectors |
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |

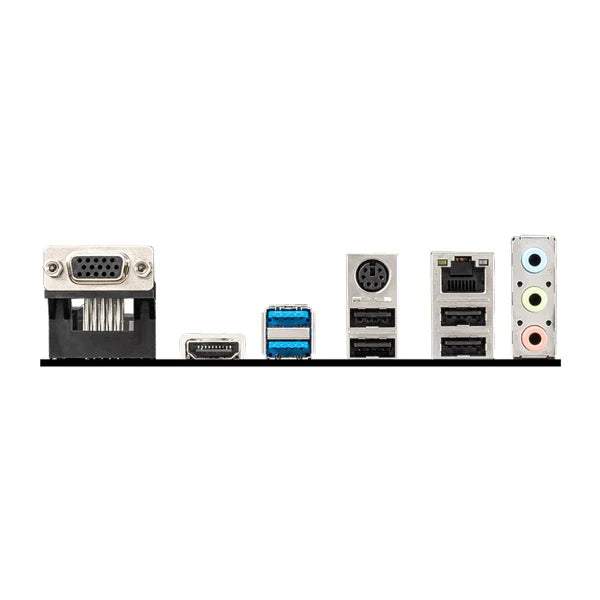

| Back panel ports |
VGA Keyboard / Mouse LAN HDMI USB 3.2 Gen 1 5Gbps Type-A USB 2.0 USB 2.0 Audio Connectors |
| Dimensions |
Mirco-ATX Form Factor 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) |
| Mounting | 6 mounting holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note |
***Features, Prices, and Specifications are subject to change without notice.
|
