Description
Feature of MSI H310M-Pro-VH DDR4
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666MHz
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: Easiest way to troubleshoot.
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
COOLING
STAY COOL
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.
DISPLAY
ENJOY THE LATEST VIDEO STANDARDS
Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user.
AUDIO
PROFESSIONAL SOUND QUALITY
Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.
MEMORY
UNMATCHED MEMORY PERFORMANCE
MSI H310M-Pro-VH DDR4 motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability.
TUNING
DESIGNED FOR LIMITLESS TUNING
Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
USB
MAXIMIZE YOUR USB DEVICE PERFORMANCE
Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!
SOFTWARE
APPS TO GREATLY IMPROVE EFFICIENCY
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.
QUALITY & PROTECTION
BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.
BIOS
A USER-FRIENDLY BIOS
We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features found in CLICK BIOS 5 let you fine-tune your system to deliver reliable maximum performance.
Specifications of MSI H310M-Pro-VH DDR4
| PROCESSOR | Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® H310 Chipset This chipset is ME11 firmware based and doesn't feature SDA3.0. |
| MEMORY |
2 x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| SLOTS |
1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots |
| ONBOARD GRAPHICS |
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H |
| STORAGE |
Intel® H310 Chipset 4 x SATA 6Gb/s ports |
| USB |
Intel® H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) |
| AUDIO |
Realtek® ALC887 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x RTL8111H Gigabit LAN controller |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 2 x Front panel connectors 1 x Front panel audio connector 1 x Serial port connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 4 x EZ Debug LED |

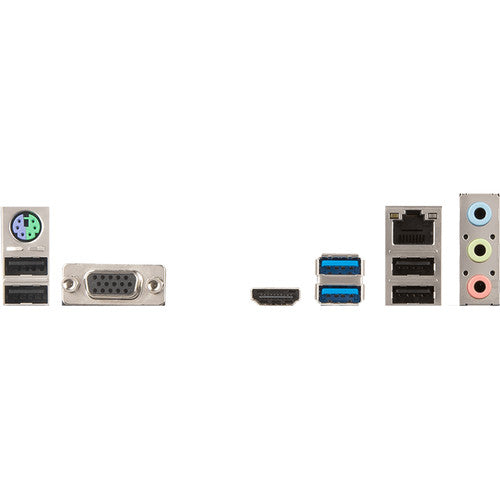

| BACK PANEL PORTS |
PS/2 Combo Port VGA Port HDMI Port USB 3.1 Gen1 LAN Port HD Audio Connectors USB 2.0 Port USB 2.0 Port |
| DIMENSIONS |
8.9 in. x 7.3 in. (22.6 cm x 18.5 cm) m-ATX Form Factor |
| MOUNTING | 6 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
