Description
Features of MSI GeForce RTX 5070 Shadow 2X OC 12GB Nvidia Graphic Card
TAKE THE ESSENTIALS
MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.

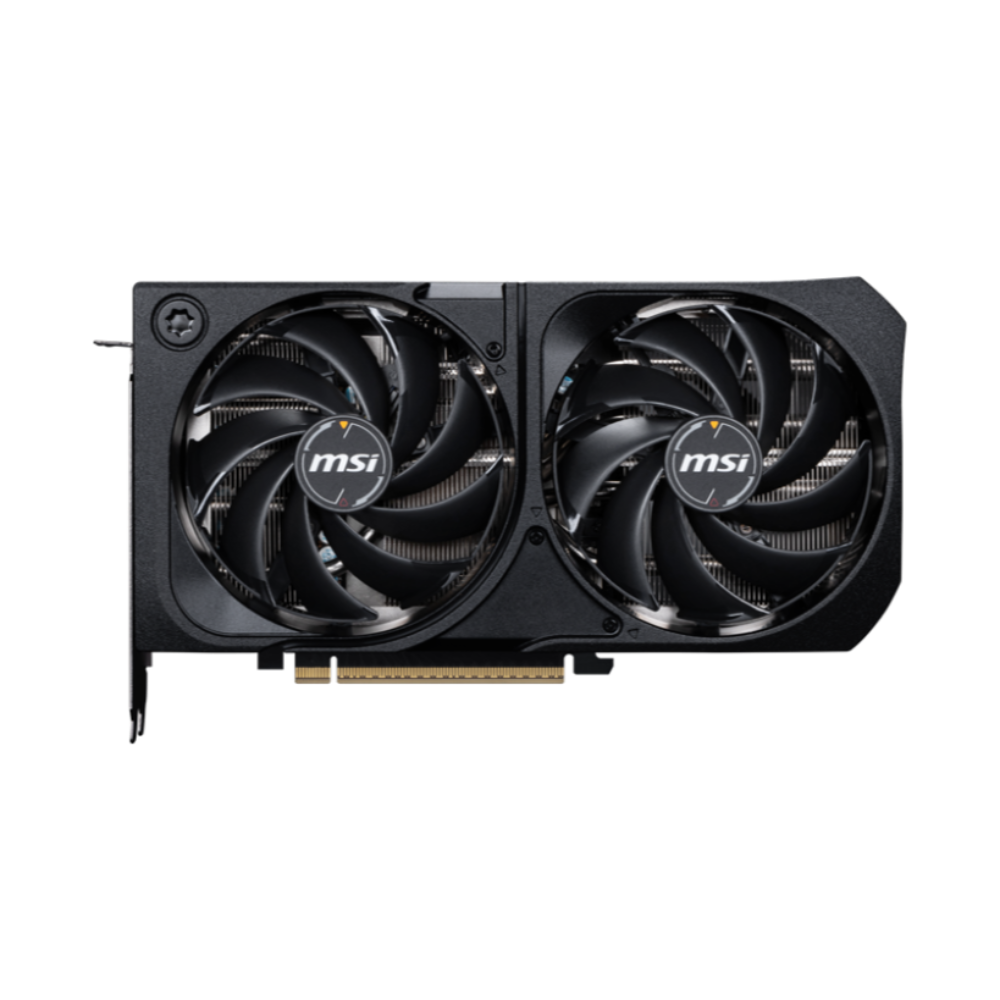

DUAL-Fan Thermal Design
Two fans on a large heatsink ensure great cooling performance with a quieter experience.
TORX FAN 5.0
TORX FAN 5.0 enhances airflow and pressure through an improved fan design. Ring arcs link three sets of 22-degree-tilted fan blades, increasing airflow by 23% compared to axial fans.
NICKEL-PLATED COPPER BASEPLATE
Heat from the GPU and memory modules is quickly captured by a solid nickel-plated copper baseplate and rapidly transferred to the core pipes.
KEEPING THE CORE COOL - CORE PIPES
Core Pipes are engineered with a square shape contact area for maximum heat capture where it engages the GPU baseplate, then dispersing heat across the heatsink for optimal thermal management.

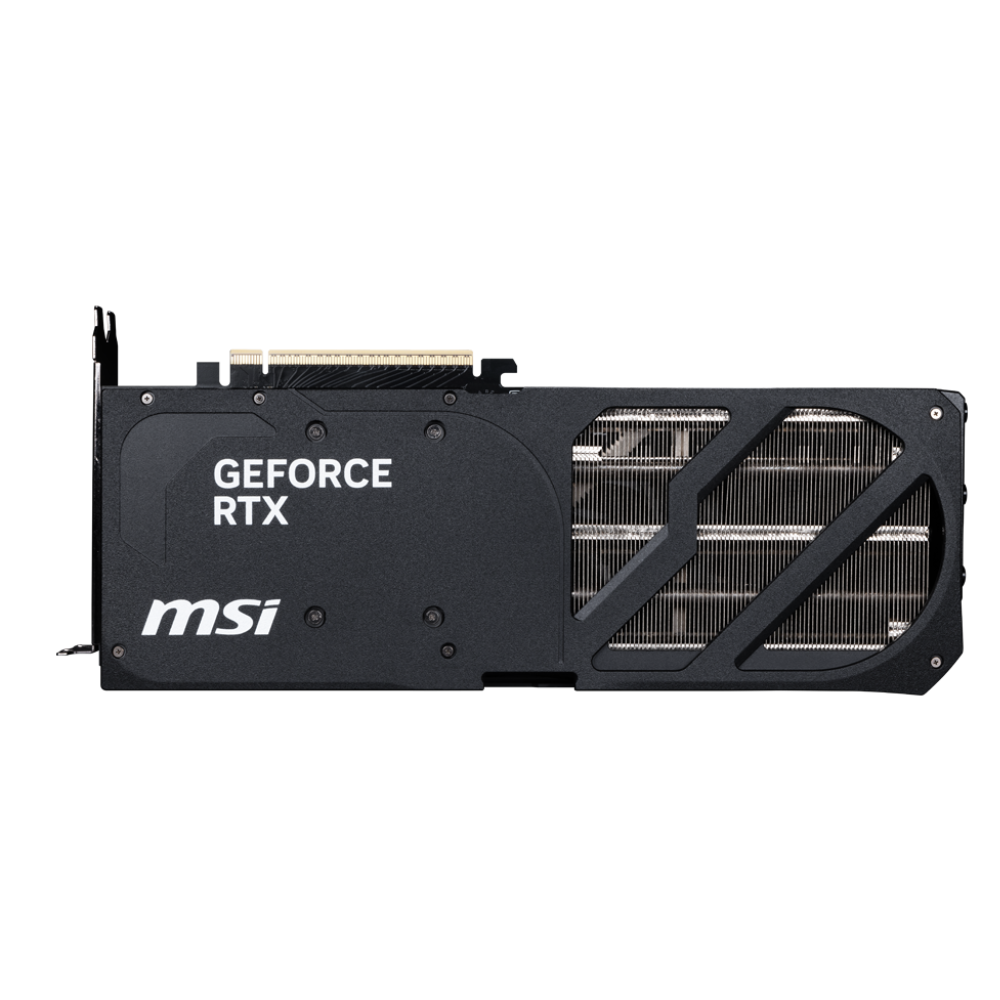

REINFORCING BACKPLATE
The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
HARDENING EVERY DETAIL
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
GeForce RTX™ 5070 12G SHADOW 2X OC
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
-
Core Clocks:
Extreme Performance: 2557 MHz (MSI Center)
Boost: 2542 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications of MSI GeForce RTX 5070 Shadow 2X OC 12GB Nvidia Graphic Card
| Marketing Name | GeForce RTX™ 5070 12G SHADOW 2X OC |
| Model Name | G5070-12S2C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 |
| Interface | PCI Express® Gen 5 |
| Core Clocks |
Extreme Performance: 2557 MHz (MSI Center) Boost: 2542 MHz |
| CUDA® CORES | 6144 Units |
| Memory Speed | 28 Gbps |
| Memory | 12GB GDDR7 |
| Memory Bus | 192-bit |

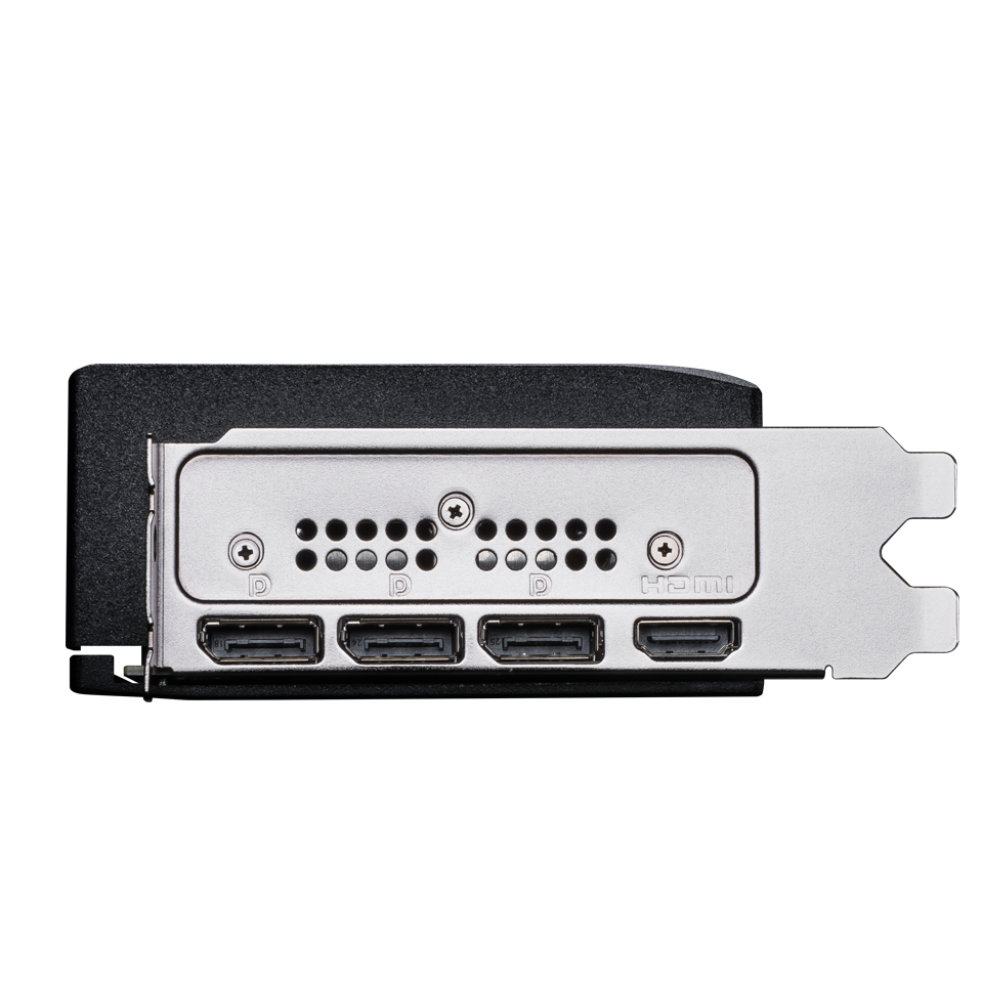

| Output |
DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 250 W |

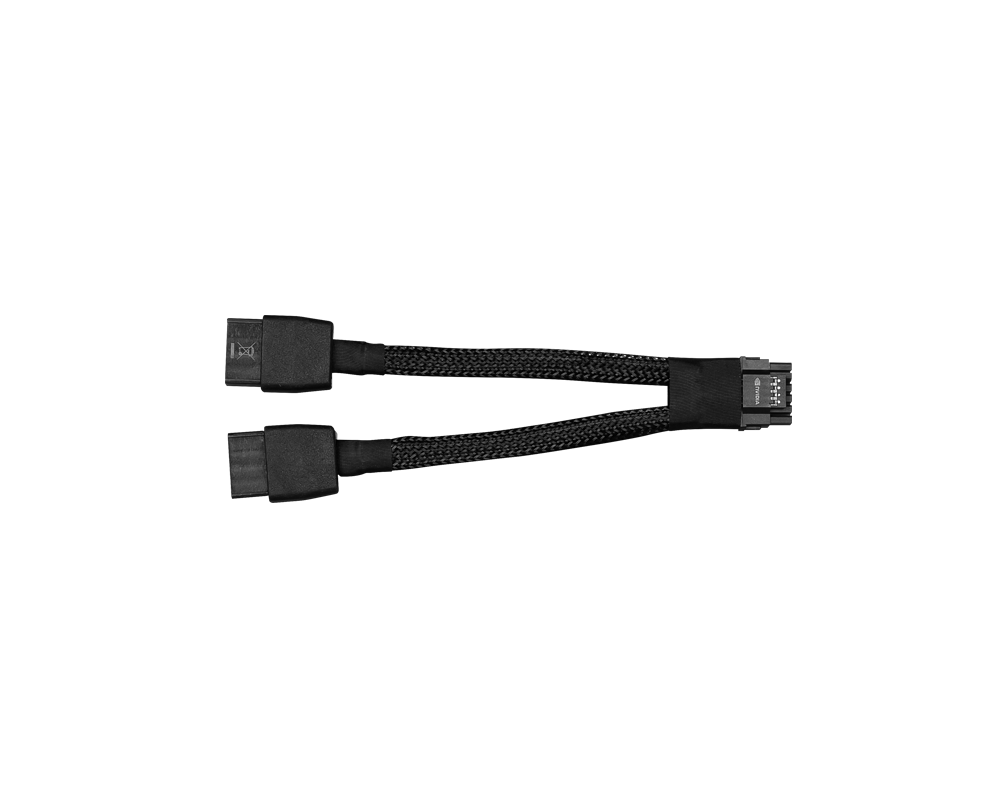

| Power connectors | 16-pin x 1 |
| Recommended PSU | 650 W |
| Card Dimension (mm) | 231 x 126 x 50 mm |
| Weight (Card / Package) | 724 g / 1107 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
