Description

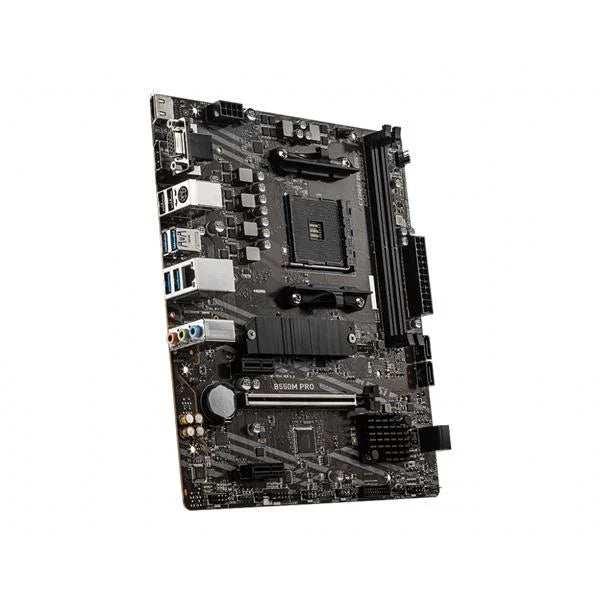

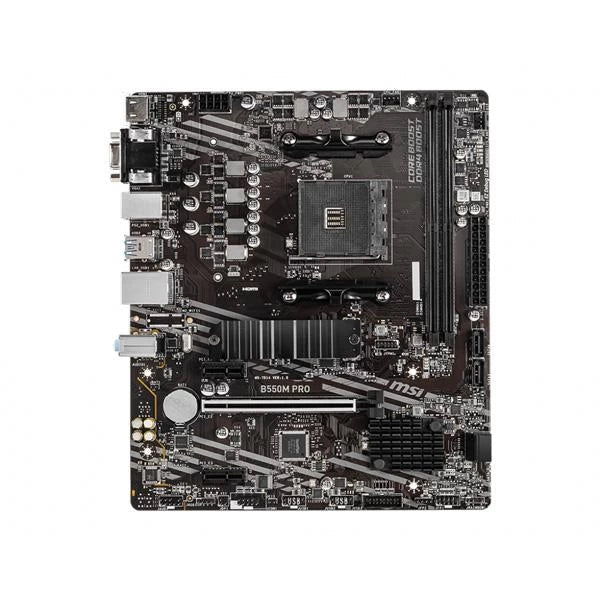

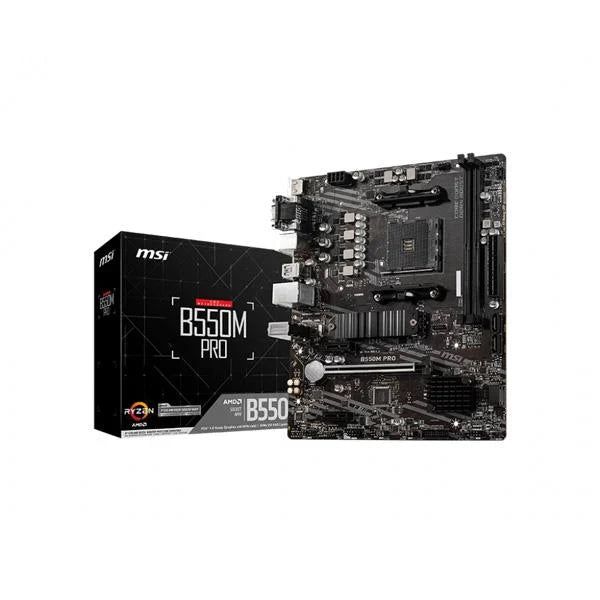

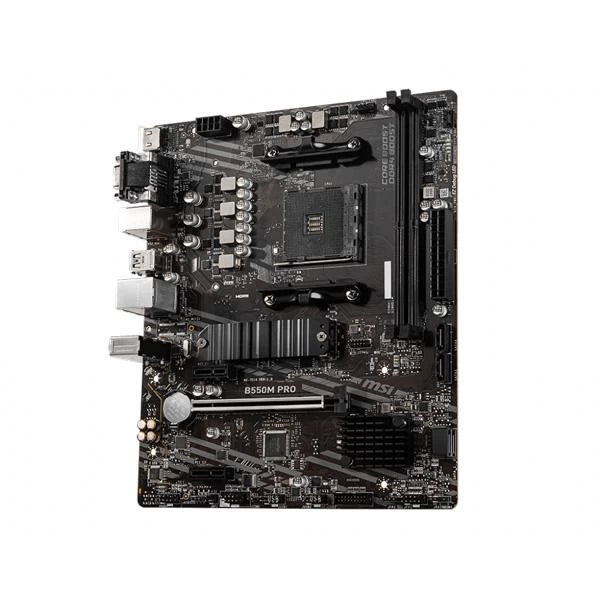

Features of MSI B550M Pro DDR4 AMD Motherboard
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
Specifications of MSI B550M Pro DDR4 AMD Motherboard
| CPU | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Memory |
2x DDR4 memory slots, support up to 64GBSupports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHzDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Expansion Slot |
1x PCIe x16 slot (PCI_E2)B550M PRO supports PCIe 4.0/3.0
2x PCIe 3.0 x1 slots |
| Onboard Graphics |
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x HDMI2.1, supports a maximum resolution of 4096x2160@60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 2048 MB Graphics specifications may vary depending on the CPU installed. Available for the processor with integrated graphics. |
| Storage |
AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor)B550M PRO Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devicesThe supported specification depends on installed processor. |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB |
AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio |
Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111H LAN controller |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumpe |

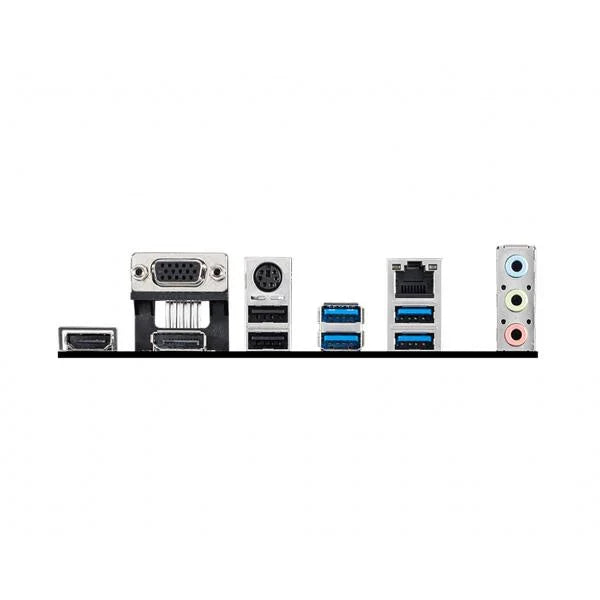

| Back panel ports |
VGA Keyboard / Mouse LAN port HDMI DisplayPort USB 2.0 Ports USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A Audio Connectors |
| Dimensions |
M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
| MOUNTING | 6 mounting holes |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
