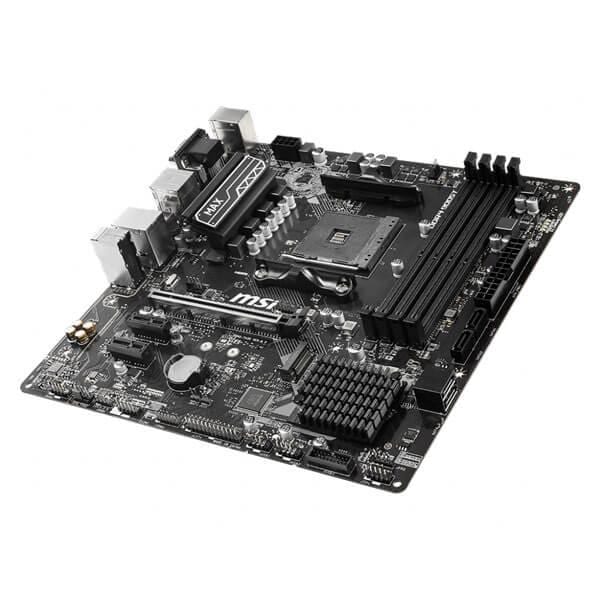

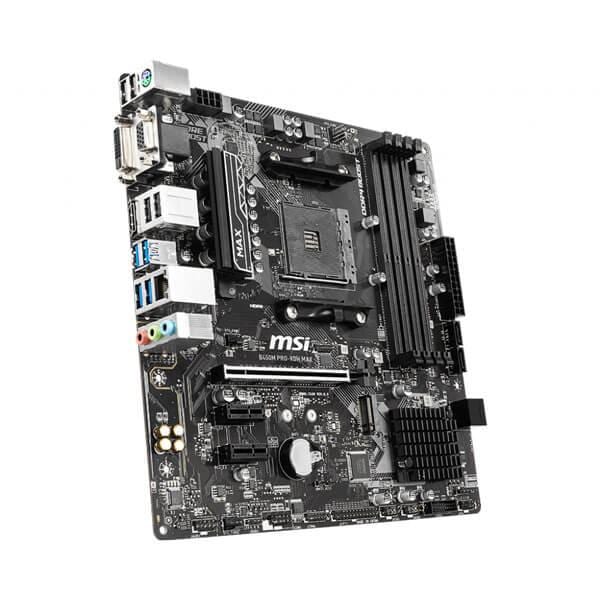

MSI B450M Pro-VDH Max DDR4 AMD Motherboard

Rs. 5,689.31 Rs. 9,450.00

Discount: Rs. 3,760.69 (40%)

Shipping and Returns

Shipping policy

Brain Tech PC operated by Nishi Infotek LLP ships to almost all pin codes across India. We use reliable courier partners to ensure your order reaches you safely and on time.

1. Shipping Costs

We offer Free Shipping on most prepaid orders across India.

  • If a specific shipping charge applies to a small order or a remote area, it will be calculated and displayed at checkout before you make a payment.

  • There are no hidden charges. The total price shown at checkout is the final price.

2. Order Processing Time (Handling Time)

  • Processing Time: Orders are usually processed and packed within 1 to 2 business days (Monday to Saturday).

  • Order Cut-off Time: Orders placed after 2:00 PM IST will be processed on the next business day.

  • Custom PCs: For Custom PC builds, please allow an additional 2-3 days for assembly and stress testing before dispatch.

3. Estimated Delivery Time

  • Transit Time: Once shipped, the estimated delivery time is 2 to 4 business days depending on your location.

  • Total Delivery Time: You can expect to receive your order within 3 to 6 business days from the date of purchase.

    • Metro Cities: 3-4 Days

    • Rest of India: 4-6 Days

    • Remote Areas: May take slightly longer.

(Note: Delivery timelines may be impacted by public holidays, extreme weather, or courier delays beyond our control.)

4. Courier Partners

We ship using trusted carriers to ensure the safety of high-value electronics:

  • Blue Dart

  • Delhivery

  • DTDC

  • Amazon Shipping

5. Order Tracking

Once your order is shipped, you will receive an email and SMS with the Tracking Number and the courier company's link. You can track your package live to know the expected delivery date.

6. Damaged or Open Packages

IMPORTANT:

  • Do not accept the package if the seal is broken, tampered with, or damaged.

  • Video Recording: We highly recommend making an unboxing video (without cuts) when opening your package. This is mandatory proof if you receive a damaged product or missing accessories.

  • If you face any issues, contact us immediately at +91 9146194675 or contact@braintechpc.in.

7. International Shipping

Currently, we do not ship internationally. We ship only within India.

8. Contact Information

If you have any questions about your shipment, please contact us:

  • Phone: +91 9146194675

  • Email: contact@braintechpc.in

  • Address: 1st Floor, 103, Prakashdeep Apartment, Station Road, O.T Section, Ulhasnagar, Maharashtra 421002, India

Contact us
Out of stock >
Add wishlist Delete wishlist Add compare Delete compare
Share

Sep 18 - Sep 22

✅ 100% Genuine Products 📦 Condition: Brand New (Sealed Pack) 🧾 GST Invoice Available 🔒 Secure Payment 🚚 Pan India Delivery 🛡 Brand Warranty Available

This product is covered by the official manufacturer/brand warranty. Warranty duration varies by brand and model. Please refer to the product specifications or contact us for details.

Have a question?

Description

Features Of MSI B450M Pro-VDH Max DDR4



Specifications Of MSI B450M Pro-VDH Max DDR4



Processor Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
Chipset AMD® B450 Chipset
Memory 4 x DDR4 memory slots, support up to 64GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)For AMD Other ProcessorsSupports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Supports Dual Channel mode
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
Please refer www.msi.com for more information on compatible memory.
Slots 1 x PCIe 3.0 x16 slot1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
Athlon™ with Radeon™ Vega Graphics support x4 mode2 x PCIe 2.0 x1 slots
Onboard Graphics 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processors
Maximum shared memory of 2048 MB
Storage AMD® B450 Chipset
4 x SATA 6Gb/s portsSupports RAID 0, RAID1 and RAID 101 x M.2 slot (Key M)Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
USB AMD® B450 Chipset
2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)
AMD® processor
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Audio Realtek® ALC892 Codec
7.1-Channel High Definition Audio
LAN 1 x Realtek® 8111H Gigabit LAN controller
Internal connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper

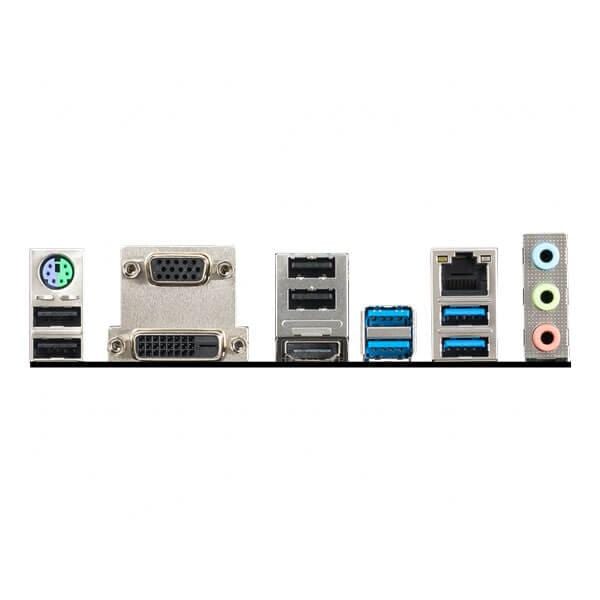

Back panel ports PS/2
VGA Port
USB 2.0 Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
DVI-D Port
HDMI Port
Dimensions 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor
Mounting 8 mounting holes
Operating System Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
