Description

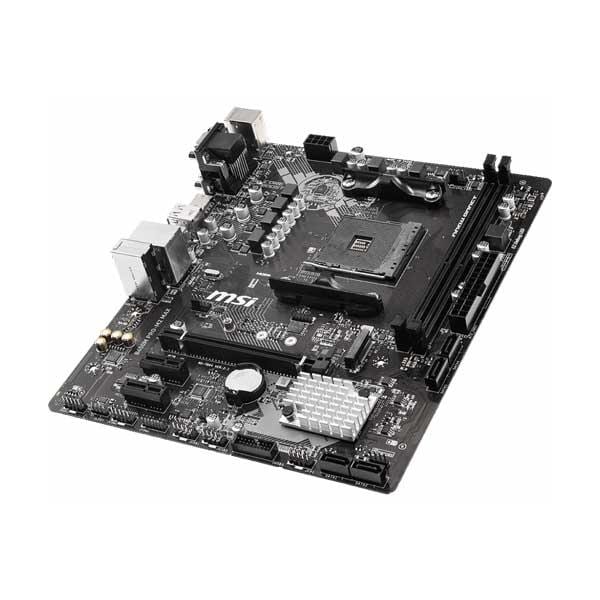

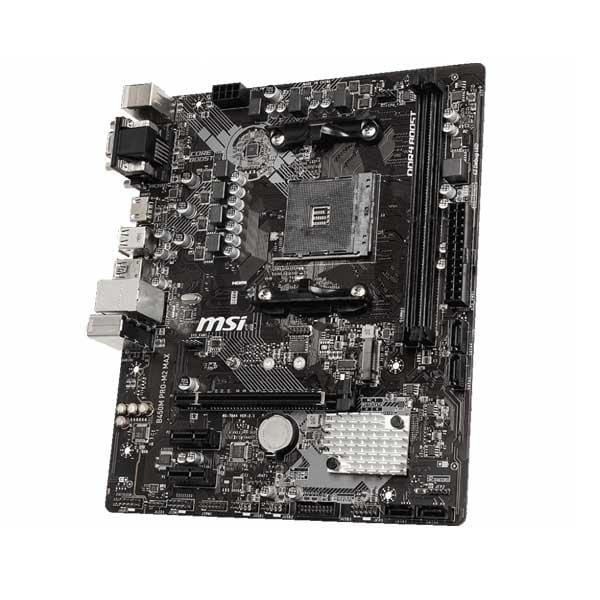

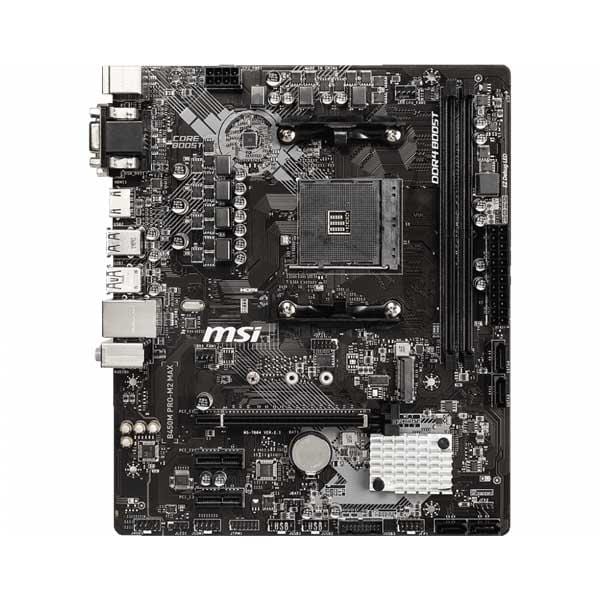

Features Of MSI B450M Pro-M2 Max DDR4 AMD Motherboard
For the best gaming experience, MSI B450M PRO-M2 Max comes with a DDR4 boost to deliver the best data signals.MSI B450M PRO-M2 Max gives the most immersive audio experience as it comes with studio sound quality.MSI B450M PRO-M2 Max allows users to connect any ultra-fast storage devices as it supports all the latest storage.No need to install a CPU, memory, or graphics card. Now flash any BIOS within seconds by simply using a USB key. No need to install a CPU, memory, or graphics card.
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 3466 (OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Audio Boost: Reward your ears with studio grade sound quality.
DIY FRIENDLY
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
STAY COOL FOR RELIABLE SYSTEM
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
AUTODETECT DC OR PWM MODE WITH HYSTERESIS
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
USER-FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. It makes it so easy to install your own motherboard without any issue.
Specifications Of MSI B450M Pro-M2 Max DDR4 AMD Motherboard
| Model | MSI B450M-PRO-M2-MAX |
| Processor | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| CHIPSET | AMD® B450 Chipset |
| MEMORY |
2 x DDR4 memory slots, support up to 32GBSupports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC For AMD Ryzen Gen3 (R5/R7/R9)Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz by A-XMP OC mode1For AMD Other CPUSupports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC modeDual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory |
| SLOTS |
1 x PCIe 3.0 x16 slot (PCI_E1)Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors2 x PCIe 2.0 x1 slots |
| ONBOARD GRAPHICS |
1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Maximum shared memory of 2048 MB |
| STORAGE |
AMD® B450 Chipset 4 x SATA 6Gb/s portsSupports RAID 0, RAID1 and RAID 101 x M.2 slot (Key M)Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
| USB |
AMD® B450 Chipset 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) AMD® processor 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| AUDIO |
Realtek® ALC887 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek® 8111H Gigabit LAN controller |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Serial port connector 1 x LED strip connector 1 x Clear CMOS jumper |

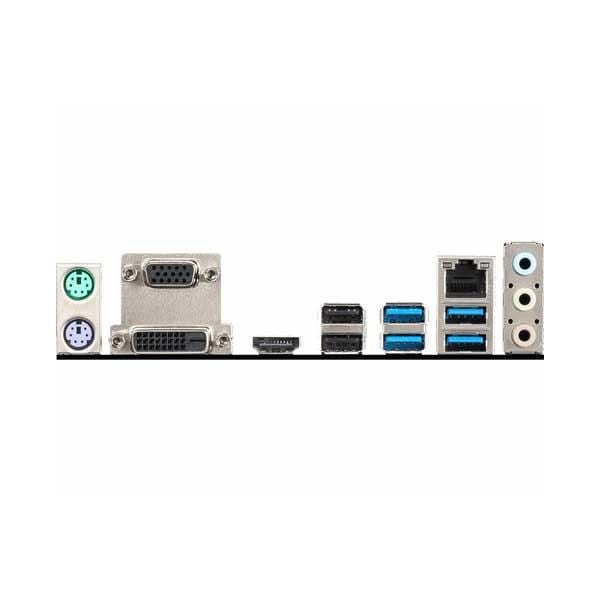

| BACK PANEL PORTS |
Mouse VGA Port USB 2.0 LAN Port HD Audio Connectors Keyboard DVI-D Port HDMI Port USB 3.2 Gen1 |
| DIMENSIONS |
9.6 in. x 8.1 in. (24.4 cm x 20.6 cm) m-ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
